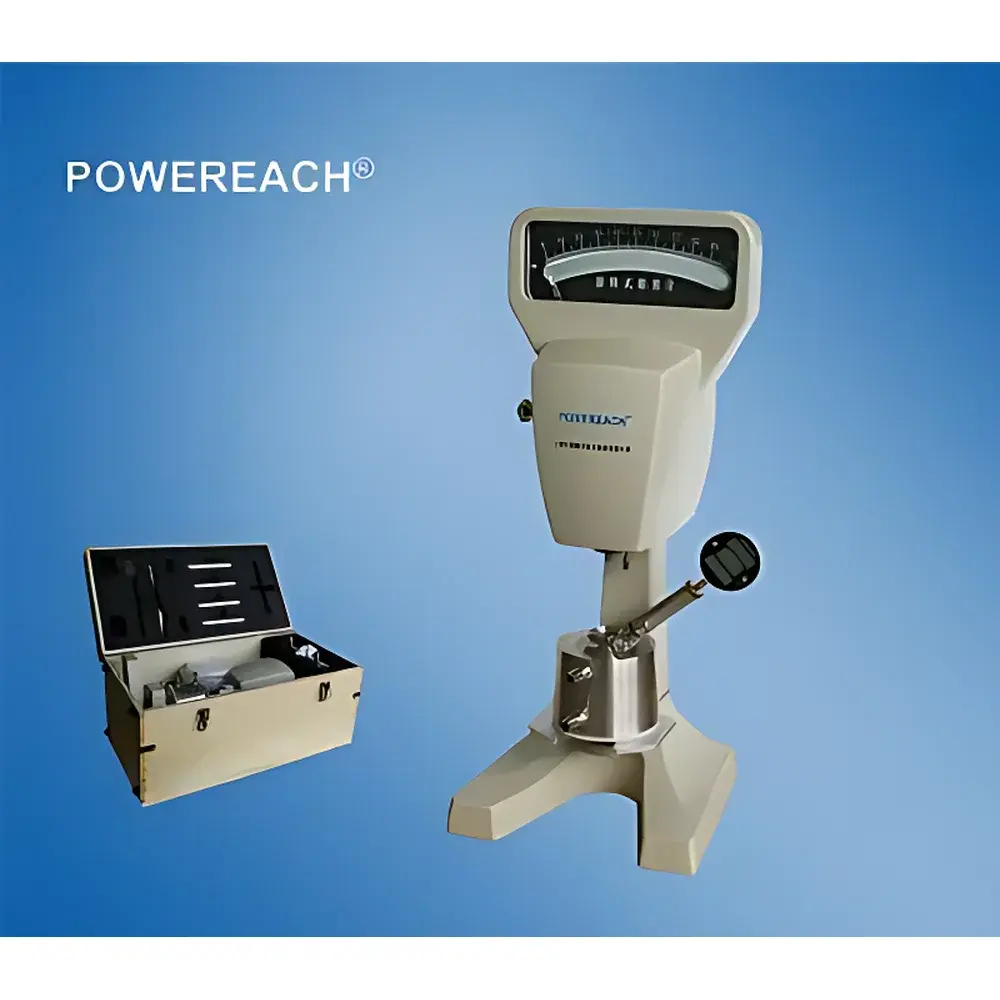

POWEREACH NDJ-79 Portable Rotational Viscometer

Overview

The POWEREACH NDJ-79 Portable Rotational Viscometer is a mechanically driven, analog-display viscometer engineered for reliable measurement of dynamic viscosity in both Newtonian and non-Newtonian liquids under ambient conditions. Based on the classical Couette flow principle, it employs a rotating cylindrical spindle immersed in the test fluid; viscous drag torque acting on the spindle induces angular deflection of a calibrated torsion spring system, which is translated into a direct reading on a mechanical dial scale. The instrument’s fixed-speed motor-driven design—operating at three discrete rotational frequencies (7.5, 75, and 750 rpm)—enables rapid assessment of apparent viscosity across a broad dynamic range (1–1,000,000 mPa·s), making it suitable for comparative quality control, batch consistency verification, and preliminary rheological screening where high-resolution shear-rate sweeps are not required.

Key Features

• Three-step fixed-speed operation (7.5 / 75 / 750 rpm) optimized for rapid viscosity estimation without electronic speed control or software dependency
• Mechanical torsion-spring sensing mechanism with analog pointer display—no battery, firmware, or calibration drift concerns
• Modular dual-sensor configuration: interchangeable spindles (Units II and III) allow adaptation to low- and high-viscosity regimes
• Compact benchtop footprint (170 × 140 × 440 mm) and self-contained 14 kg mass facilitate transport between production lines, field labs, or teaching environments
• Robust cast-aluminum housing and synchronous AC motor ensure long-term mechanical stability and minimal maintenance
• Compliance-ready mechanical architecture—designed to support traceable calibration using NIST-traceable standard oils per ISO 17025-accredited procedures

Sample Compatibility & Compliance

The NDJ-79 accommodates a wide spectrum of industrial process fluids—including polymer melts, paint formulations, edible oils, pharmaceutical suspensions, ink vehicles, rubber lattices, and petroleum distillates—provided sample volume suffices for full immersion of the selected spindle. Its operation conforms to foundational viscometry standards including ISO 2555 (plastics—determination of apparent viscosity), ASTM D2196 (rheological properties of non-Newtonian materials), and GB/T 2794–2013 (Chinese national standard for adhesive viscosity). While not equipped with digital audit trails or electronic data export, its mechanical readout supports manual GLP-compliant recordkeeping when used alongside standardized SOPs and operator training documentation.

Software & Data Management

The NDJ-79 operates independently of software or computer interface. All measurements are recorded manually from the analog scale, requiring users to apply the appropriate spindle factor (supplied in calibration certificate) to compute absolute dynamic viscosity in mPa·s. This analog architecture eliminates cybersecurity risks, firmware obsolescence, or OS compatibility constraints—making it particularly suited for regulated environments where validation simplicity and operational transparency are prioritized over automated reporting. For laboratories requiring digital archiving, external documentation systems (e.g., LIMS or paper-based logbooks) must be employed per internal QA protocols.

Applications

• Quality assurance in coatings manufacturing: monitoring batch-to-batch consistency of solvent-based and waterborne paints prior to application
• Food processing: verifying viscosity stability of syrups, dressings, and dairy emulsions during thermal treatment and storage
• Pharmaceutical excipient evaluation: assessing pseudoplastic behavior of carbomer gels and cellulose derivatives under static shear conditions
• Petroleum refining: preliminary screening of lubricant base stocks and residual fuel oils for specification compliance
• Academic instruction: hands-on demonstration of Newtonian/non-Newtonian response, temperature dependence (when paired with external thermostatic baths), and spindle selection logic
• Textile auxiliaries: controlling thickener concentration in dye pastes and sizing formulations to ensure uniform fabric penetration

FAQ

Is the NDJ-79 compliant with FDA 21 CFR Part 11?
No—the NDJ-79 is an analog instrument with no electronic data capture, user authentication, or audit trail functionality. It may be used in FDA-regulated facilities only when integrated into a validated manual data recording process.
Can it measure yield stress or thixotropy?
No—it provides single-point apparent viscosity values at fixed shear rates and does not support controlled shear stress ramping or time-dependent recovery testing.
What calibration standards are recommended?
NIST-traceable silicone oil standards (e.g., Cannon, Brookfield, or Anton Paar certified reference oils) covering the 1–100,000 mPa·s range should be used annually or per internal calibration schedule.
Does it require temperature control?
The instrument itself operates at ambient temperature; however, viscosity is highly temperature-sensitive—users must stabilize sample temperature externally (e.g., using a circulating water bath) and report measurement temperature alongside all readings.
Is technical support available outside China?
Yes—POWEREACH maintains authorized service partners in the U.S., Germany, South Korea, and Singapore for repair, calibration, and spare spindle supply under international warranty terms.
