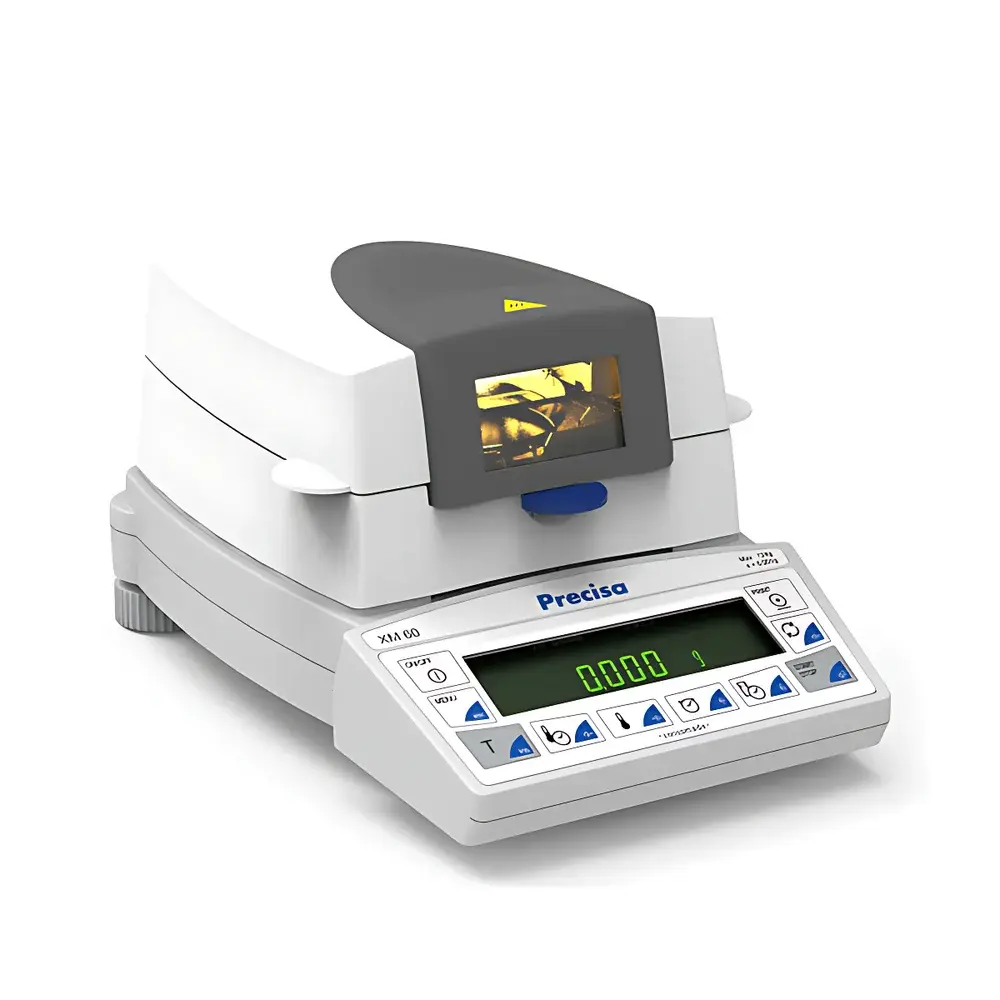

Precisa 330XM Series Halogen Moisture Analyzer

Overview

The Precisa 330XM Series Halogen Moisture Analyzer is a laboratory-grade thermal gravimetric instrument engineered for rapid, reliable, and traceable moisture content determination in solid and semi-solid samples. Based on the principle of loss-on-drying (LOD), the analyzer combines precise mass measurement with controlled halogen lamp heating to quantify moisture by measuring the mass difference before and after drying under defined temperature and time protocols. Designed and manufactured in Switzerland, the 330XM integrates a high-stability 320XB series electromagnetic force restoration (MFR) balance—providing exceptional resistance to electrostatic interference and thermal drift—within a fully die-cast aluminum enclosure that thermally isolates the weighing cell from the heating unit. This architecture ensures consistent repeatability (<0.1% RSD for routine samples) and long-term stability, meeting the metrological demands of regulated environments including pharmaceutical QC, food safety testing, and polymer quality control.

Key Features

• Halogen heating system delivering uniform, rapid, and controllable thermal energy (temperature range: 50–200 °C, adjustable in 1 °C increments)
• High-contrast vacuum fluorescent display (VFD) for clear real-time visualization of mass, moisture %, dry residue %, and drying curve
• MFR electromagnetic force sensor technology enabling high resolution (0.1 mg typical readability), fast stabilization (<3 s), and immunity to environmental static and vibration
• Full die-cast aluminum housing ensuring mechanical rigidity, thermal stability, and EMI shielding between weighing and heating modules
• Real-time clock with date/time stamping of all measurements—essential for ALCOA+ data integrity and GxP audit trails
• Multi-layer security: user-level password protection, mechanical door interlock, and configurable access rights for method editing and calibration
• External calibration capability using certified weights—fully compliant with ISO/IEC 17025 requirements for calibration traceability

Sample Compatibility & Compliance

The 330XM accommodates a broad spectrum of sample types—including powders, granules, pastes, films, and hygroscopic solids—with pan capacities up to 100 g and maximum sample weights of 60 g. Its optimized airflow design minimizes surface charring and promotes homogeneous drying, particularly critical for heat-sensitive materials such as APIs, dairy powders, and botanical extracts. The system supports full 3Q validation (Installation Qualification, Operational Qualification, Performance Qualification) documentation packages and is compatible with standard regulatory frameworks: USP , ASTM D4017, AOAC 952.08, and ISO 11875. All measurement data—including method parameters, operator ID, timestamp, and raw mass values—are stored internally with non-volatile memory retention, satisfying FDA 21 CFR Part 11 requirements when paired with validated software configurations and appropriate audit trail settings.

Software & Data Management

Data export and method management are facilitated via standard RS232 and USB interfaces, enabling seamless integration with LIMS, ELN, or custom QA databases. An optional interface expansion module provides additional connectivity options—including wired and wireless Ethernet (TCP/IP), Bluetooth 5.0, and dual USB host ports—supporting both automated data streaming and remote firmware updates. The built-in method library allows storage of up to 99 user-defined drying programs, each configurable with target temperature, drying mode (standard, step, ramp), endpoint criteria (time-based, slope-based, or auto-stop), and post-drying cooling delay. All methods and results are exportable in CSV format with full metadata (including calibration logs and system event history), ensuring full data lineage for internal audits and regulatory inspections.

Applications

• Pharmaceutical manufacturing: moisture verification of active pharmaceutical ingredients (APIs), excipients, and final dosage forms per ICH Q5C stability guidelines
• Food & beverage QA/QC: compliance testing for shelf-life prediction, HACCP monitoring, and labeling accuracy (e.g., nutritional panels)
• Chemical & polymer industries: determination of residual solvents, hydrate content, and drying efficiency in resins, catalysts, and pigments
• Agricultural & feed testing: grain moisture analysis aligned with ISO 6540 and EN ISO 6496 standards
• Research laboratories: method development for novel drying kinetics, comparative thermal stability studies, and material characterization workflows

FAQ

Does the 330XM support GLP/GMP-compliant data handling?
Yes—the instrument includes real-time clock stamping, operator ID assignment, password-protected configuration access, and immutable local storage of all measurement records. When connected to validated software with enabled audit trail functionality, it meets core requirements of 21 CFR Part 11 and EU Annex 11.
Can I perform method validation per ICH Q2(R2) guidelines?
Absolutely—the 330XM’s external calibration capability, documented 3Q protocols, and traceable performance verification procedures (e.g., repeatability, intermediate precision, robustness) provide the foundational evidence required for analytical method validation.
Is halogen heating suitable for temperature-sensitive organic compounds?
Halogen lamps offer superior spatial and temporal control compared to traditional IR heaters. Combined with programmable ramp profiles and slope-based endpoint detection, the 330XM minimizes thermal degradation risk while maintaining LOD accuracy—validated across diverse APIs and natural products.
What maintenance is required to ensure long-term accuracy?
Routine verification using certified reference weights and moisture standards (e.g., sodium tartrate dihydrate) is recommended per ISO/IEC 17025. No consumables or recalibration services are required beyond periodic verification; the MFR sensor exhibits no mechanical wear and maintains factory calibration stability for ≥24 months under normal use.
