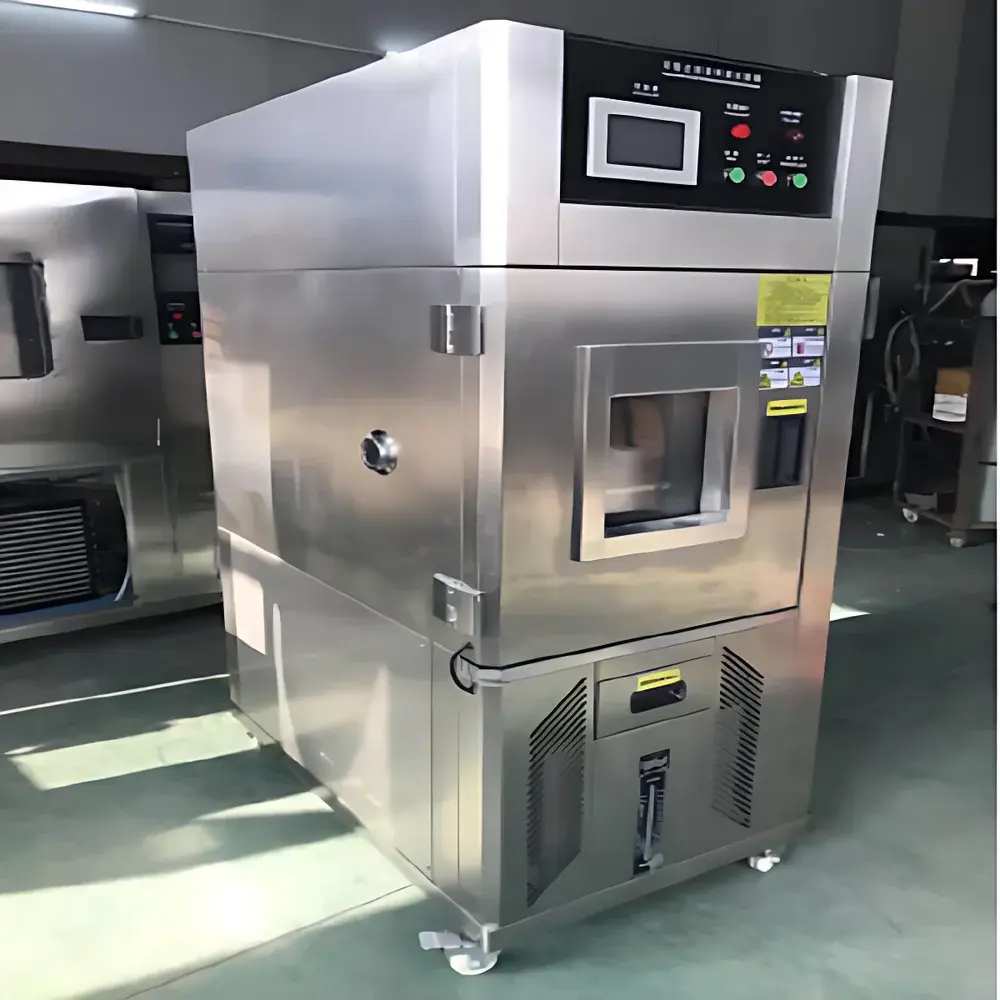

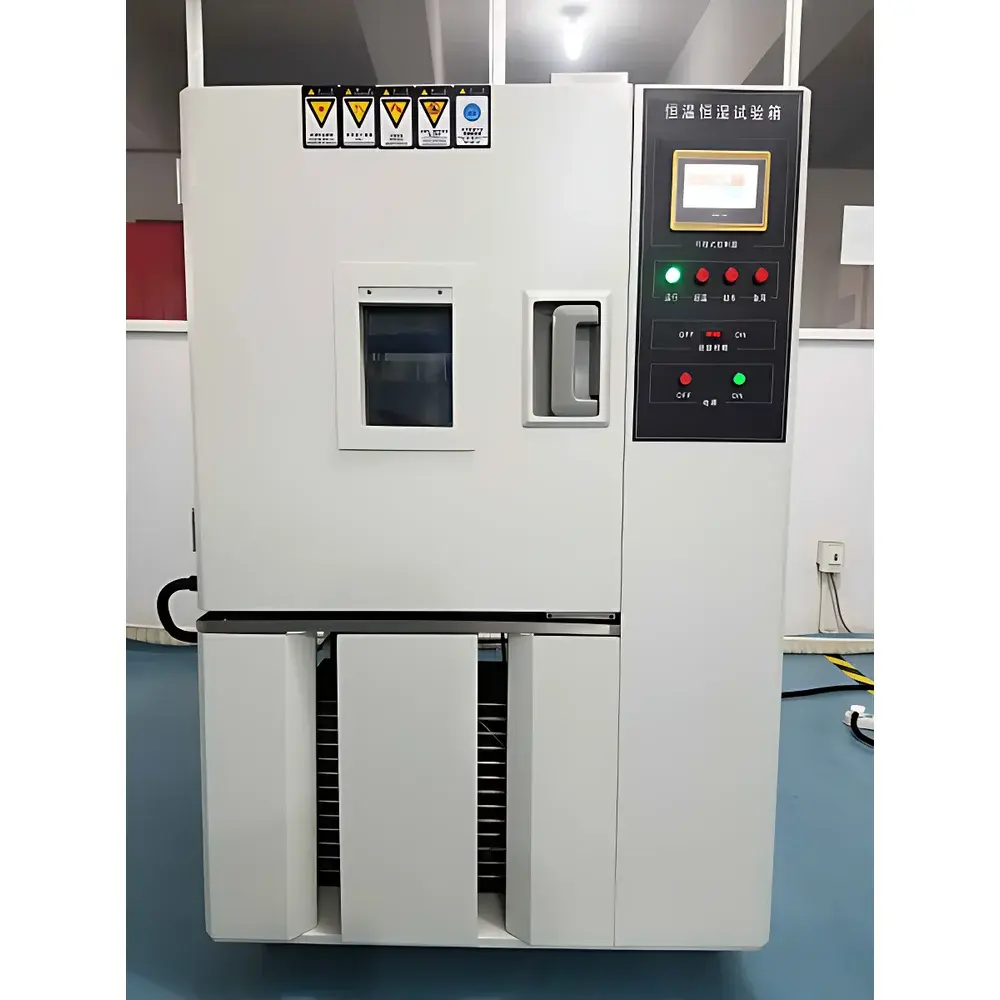

All Precision Instrument BHG-9102 Walk-in Environmental Test Chamber

Overview

The All Precision Instrument BHG-9102 Walk-in Environmental Test Chamber is an engineered solution for precise, repeatable simulation of combined temperature and humidity stress conditions in laboratory and industrial quality assurance environments. Designed according to IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (damp heat, cyclic), and ISO 16750-4 (road vehicles – environmental conditions), this chamber supports standardized environmental qualification testing of electronic components, automotive modules, packaging materials, pharmaceutical primary packaging, and polymer-based products. Its core operational principle relies on dual-loop PID-controlled air circulation with balanced temperature-humidity conditioning (BTHC), where independent refrigeration, heating, and humidification subsystems are dynamically coordinated to maintain target setpoints under variable thermal loads. The chamber’s insulated double-wall construction—featuring high-density polyurethane foam (≥100 mm thickness) and seamless inner stainless-steel 304 lining—ensures low thermal leakage and long-term dimensional stability across repeated thermal cycling.

Key Features

• Robust single-stage refrigeration system with Tecumseh (France) hermetic compressor and environmentally compliant R404A refrigerant, optimized for stable low-temperature performance down to −40 °C
• Dual-sensor PT100-based measurement architecture: separate armored RTDs for chamber air temperature and wet-bulb temperature, enabling traceable humidity derivation via psychrometric calculation per ASME PTC 19.3
• High-fidelity programmable controller with 7-inch color TFT touchscreen, supporting up to 160-step multi-segment profiles, nested cycling (full/partial), and real-time USB data export for audit-ready reporting
• Integrated safety architecture including dual-stage over-temperature cutoff (chamber wall and air sensor), compressor winding thermal monitoring, humidifier dry-run prevention, and Class II grounding with residual current device (RCD)
• Electrothermal anti-fog viewing window with 9 W LED illumination, facilitating non-intrusive observation without compromising thermal integrity or condensation risk
• Modular internal layout with adjustable stainless-steel shelves, 4 swivel casters (2 with brakes), and optional cable/port interfaces (IP65-rated feedthroughs available upon request)

Sample Compatibility & Compliance

The BHG-9102 accommodates samples up to 400 mm depth × 450 mm width × 550 mm height, making it suitable for medium-volume validation batches, assembled PCBAs, small enclosures, and pre-filled blister packs. Its humidity generation method—based on electrically heated steam injection coupled with precision water-level feedback—meets the stability requirements of ASTM D4332 (conditioning containers prior to testing) and ISO 2231 (plastics—standard atmospheres). The chamber’s temperature uniformity (±2 °C) and humidity stability (≤±3 %RH) align with GLP-compliant environmental monitoring protocols and support IQ/OQ documentation per FDA 21 CFR Part 11 when paired with validated controller firmware and external calibration records. Optional NIST-traceable sensor validation kits and third-party calibration certificates are available for GMP-regulated applications.

Software & Data Management

The embedded controller firmware supports full-cycle logging at user-selectable intervals (1–60 seconds), storing timestamped temperature, relative humidity, runtime state, and alarm events directly to internal memory or removable USB flash drives. Exported CSV files are compatible with MATLAB, Python pandas, and standard LIMS platforms. Audit trail functionality—including operator ID tagging, parameter change history, and system event timestamps—is enabled by default and complies with ALCOA+ principles for data integrity. Remote monitoring via Ethernet (optional MODBUS TCP interface) allows integration into centralized facility management systems without compromising local control autonomy. Firmware updates are performed via secure signed packages to ensure version traceability and prevent unauthorized modification.

Applications

• Accelerated aging studies of lithium-ion battery cells under thermal-humidity stress per UN 38.3 Section 40.3
• Stability testing of medical device packaging per ISO 11607-1, including peel strength evaluation after 24–96 h dwell at 40 °C/75 %RH
• Environmental screening of automotive ECUs per GMW3172 and Ford CETP 00.00-L-467
• Moisture absorption kinetics analysis of hygroscopic polymers (e.g., PA6, PETG) using gravimetric mass tracking synchronized with chamber RH steps
• Pre-conditioning of optical components prior to laser-induced damage threshold (LIDT) testing per ISO 21254
• Validation of desiccant performance in pharmaceutical secondary packaging under controlled humidity ramp profiles

FAQ

What is the maximum sample weight the BHG-9102 can accommodate without compromising thermal uniformity?
The chamber is rated for static loads up to 50 kg distributed evenly across the floor plate; exceeding this may affect airflow distribution and invalidate uniformity specifications.
Does the controller support 21 CFR Part 11 compliance out-of-the-box?
The base firmware includes electronic signature prompts, audit trail logging, and role-based access control; full Part 11 compliance requires site-specific validation documentation and integration with a qualified identity management system.
Can the chamber operate continuously at 98 %RH above 60 °C?
Sustained operation above 60 °C at >90 %RH is not recommended due to accelerated corrosion risk on internal components and reduced sensor longevity; consult the technical manual for derating curves.
Is external water supply integration possible for extended unattended operation?
Yes—via optional rear-mounted deionized water inlet with pressure regulator and flow switch; factory installation required to maintain IP rating and warranty coverage.
How often should the humidifier tank and steam nozzle be cleaned to prevent mineral buildup?
With distilled water use, cleaning every 150 operational hours is advised; with tap water, weekly maintenance is mandatory to avoid scale accumulation and flow restriction.
