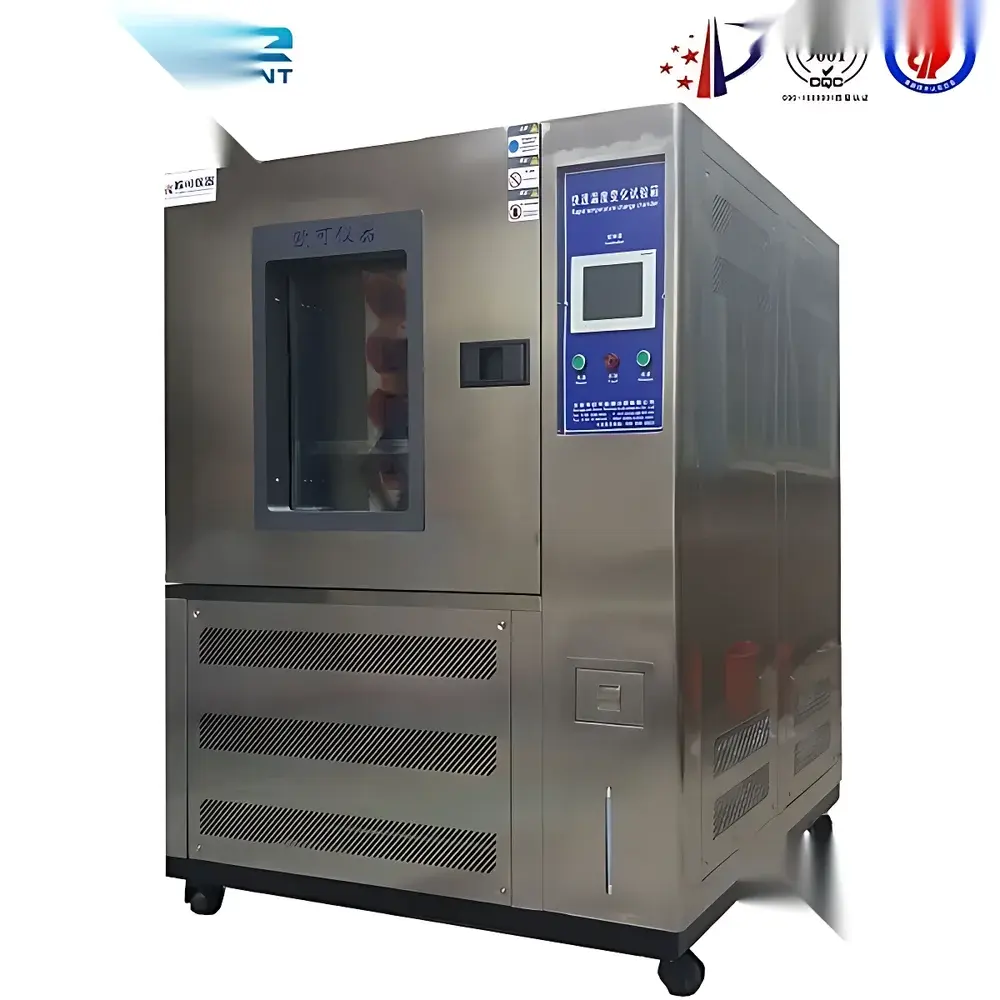

Programmable Rapid Temperature Change Test Chamber

Overview

The Programmable Rapid Temperature Change Test Chamber is an engineered environmental stress screening (ESS) system designed for accelerated reliability testing of electronic components, automotive modules, aerospace subsystems, and industrial materials under dynamically controlled thermal gradients. Operating on a dual-stage cascade refrigeration architecture, the chamber achieves precise, repeatable, and high-speed temperature transitions—up to 25 °C per minute—across a wide operational envelope from −70 °C to +150 °C, with optional humidity control spanning 5–98 % RH. Its core functionality is grounded in thermodynamic control theory: real-time feedback loops governed by PID algorithms regulate compressor output, expansion valve positioning, and airflow modulation to maintain setpoint fidelity within ±0.5 °C and spatial uniformity within ±2 °C across the working volume. Unlike conventional thermal chambers, this system integrates programmable ramp-hold-soak profiles with up to 96 independently stored test specifications, enabling compliance-driven qualification per MIL-STD-810, IEC 60068-2-14, and JESD22-A104.

Key Features

• Industrial-grade cascade refrigeration system using hermetically sealed, low-noise compressors compliant with EU Ecodesign Directive 2019/2021; refrigerant blend R507/R23 ensures zero ozone depletion potential (ODP = 0) and reduced global warming potential (GWP < 3,990).
• 7-inch full-color resistive touchscreen controller with intuitive drag-and-drop profile editor, real-time graphical display of actual vs. setpoint curves, and dual-language (English/Chinese) interface—designed for ISO 9241-110 ergonomic usability.
• Structural integrity reinforced with SUS#304 stainless steel interior walls, double-wall vacuum-insulated construction, and optimized air circulation via tangential centrifugal fans to eliminate thermal stratification and ensure ±2 °C uniformity.
• Comprehensive safety architecture including PLC-monitored overtemperature cutoff, ground fault interruption (GFI), phase-loss detection, compressor discharge temperature limiters, and audible/visual alarm triggers—all logged with timestamps for audit readiness.

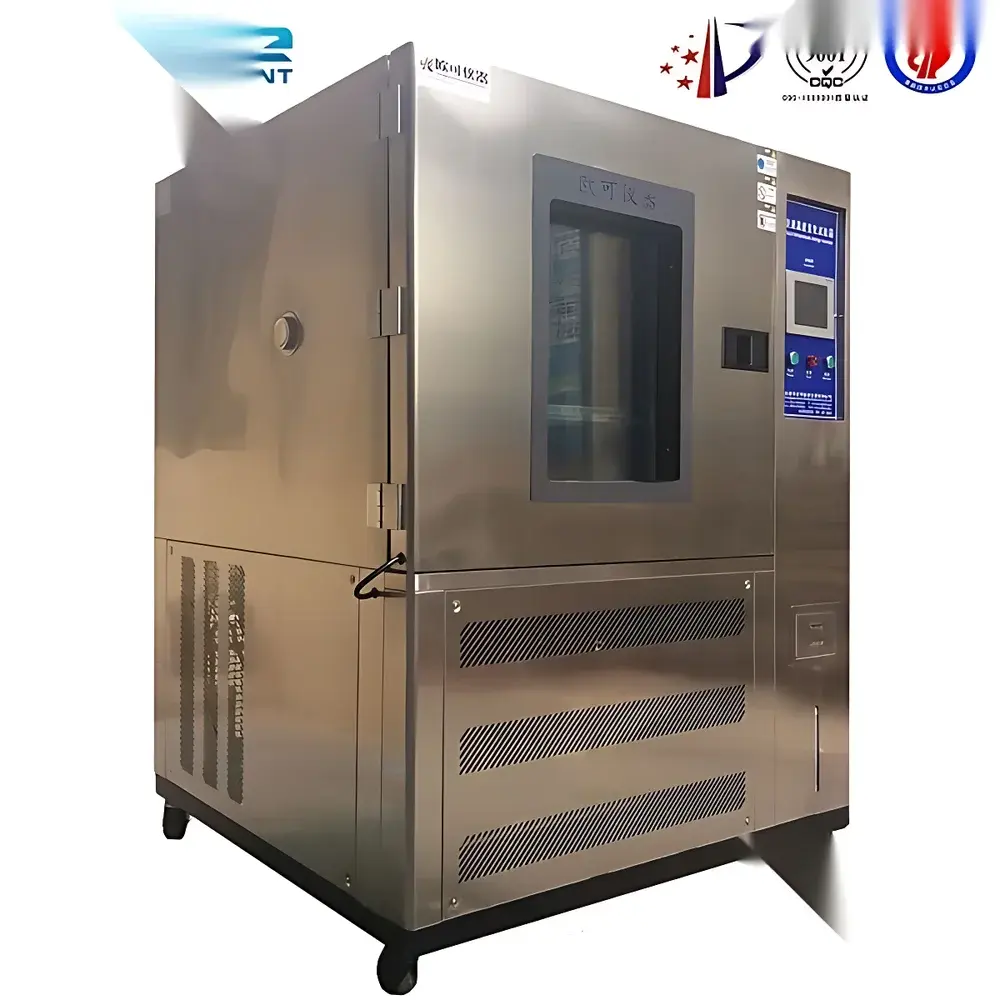

• Standard 50 mm diameter access port (left-side, gasket-sealed) for external power feedthrough, sensor cabling, or real-time DUT monitoring without compromising chamber integrity or thermal performance.

Sample Compatibility & Compliance

This chamber accommodates test specimens up to 100 L internal volume (KS-TH-1000 model), with customizable internal dimensions and optional humidity capability for combined temperature-humidity stress testing. It supports standard test fixtures, PCB carriers, and automotive ECUs mounted on non-conductive racks. The system conforms to national and international environmental test standards including GB/T 2423.1 (cold), GB/T 2423.2 (dry heat), GB/T 2423.22 (temperature change), GJB 150.3 (military high-temp), and GB/T 10592 (chamber performance requirements). All thermal calibration data are traceable to NIM (National Institute of Metrology, China) via accredited third-party reports. For regulated industries, the controller firmware supports optional audit trail logging and user-level access control—aligning with GLP/GMP documentation expectations.

Software & Data Management

The embedded controller provides native CSV export of time-stamped temperature/humidity logs at user-defined intervals (1 s to 60 min resolution), compatible with MATLAB, Python pandas, and industry-standard SPC tools. Optional Ethernet/IP or RS-485 Modbus RTU connectivity enables integration into centralized MES or LabVantage environments. Firmware supports firmware update via USB, password-protected parameter locking, and event-triggered data capture (e.g., on overshoot or deviation >1 °C). While not FDA 21 CFR Part 11–certified out-of-the-box, the system’s deterministic behavior, immutable log generation, and timestamped operator actions meet foundational ALCOA+ principles for data integrity in preclinical and manufacturing validation workflows.

Applications

• Accelerated life testing (ALT) of lithium-ion battery packs under rapid thermal cycling to assess electrolyte stability and SEI layer evolution.
• Qualification of avionics enclosures per DO-160 Section 4 (temperature variation) and RTCA/DO-160G Environmental Conditions and Test Procedures.
• Thermal shock evaluation of solder joints in automotive ADAS modules using JEDEC JESD22-A104D-compliant profiles.
• Material compatibility studies for polymer seals, optical adhesives, and conformal coatings exposed to extreme thermal transients.
• Pre-compliance screening for consumer electronics prior to formal IEC 60068-2-14 execution in certified laboratories.

FAQ

What is the maximum achievable temperature transition rate, and how is it verified?
The system delivers programmable ramp rates from 5 °C/min to 25 °C/min, validated per GB/T 10592 Annex B using calibrated PT100 sensors at nine spatial locations within the working volume.
Can the chamber operate unattended for extended cycles?
Yes—fully autonomous operation is supported for up to 999 cycles or 999 hours 59 minutes per program, with automatic restart after power recovery and configurable email/SMS alerts via optional gateway module.
Is humidity control available as a factory-installed option?
Humidity range 20–98 % RH is standard; extended ranges (5–98 % RH or 10–98 % RH) require optional steam humidifier and dehumidification subsystems, quoted separately.
Does the controller support remote monitoring and control?
The base unit includes local touchscreen operation only; remote access requires optional Ethernet-enabled controller upgrade with HTTPS-secured web interface and RESTful API endpoints.
What maintenance intervals are recommended for long-term reliability?
Compressor oil analysis every 2,000 operating hours; refrigerant leak check annually; air filter replacement every 6 months; full calibration verification per ISO/IEC 17025 every 12 months.
