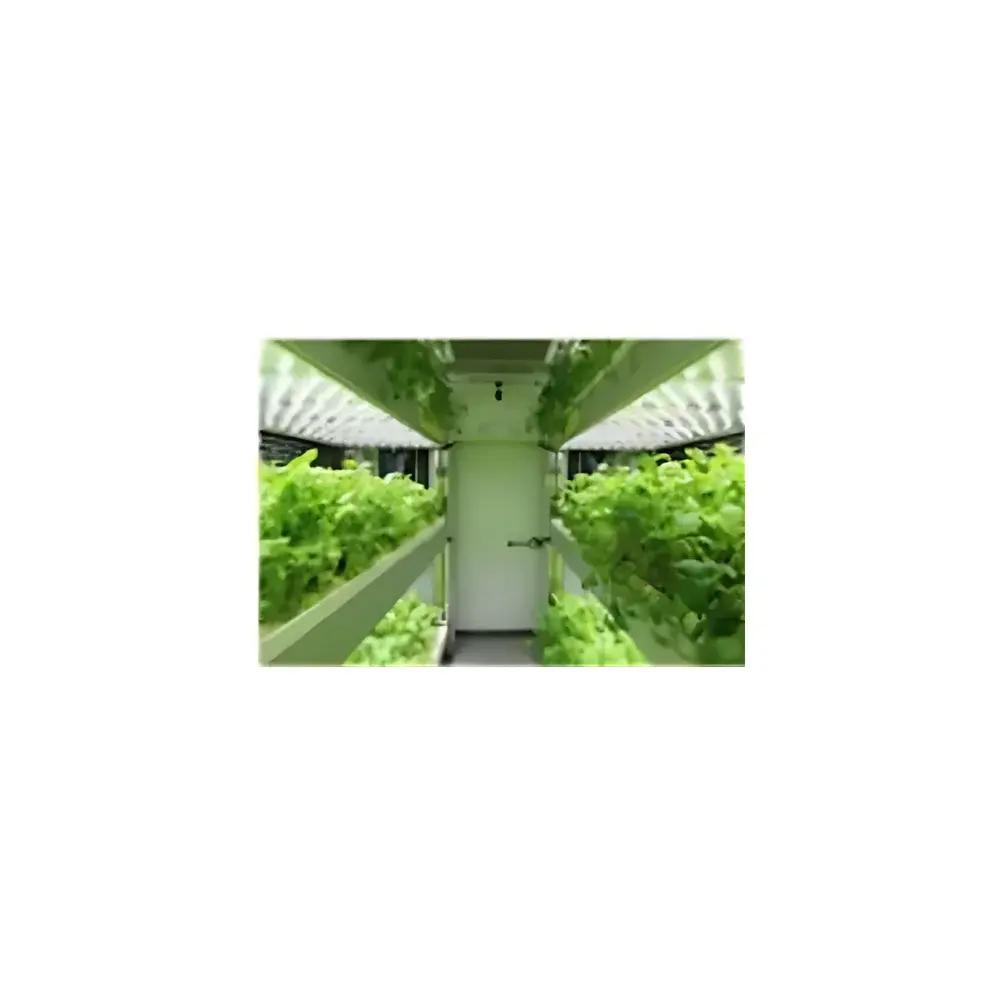

PSI Fyto-Panel Intelligent LED Light Source
| Brand | PSI (Czech Republic) |
|---|---|
| Origin | Czech Republic |
| Model | Fyto-Panel |
| Dimensions | 27 × 81 cm or 27 × 41 cm |
| Maximum Photosynthetic Photon Flux Density (PPFD) | 2400 µmol·m⁻²·s⁻¹ at 50 cm |
| Spectral Channels | Cool White + Far-Red + Deep Red (standard) |
| LED Lifetime | 60,000–70,000 h |
| Power Consumption | 210 W (A), 360 W (B), 580 W (C), 600 W (MULTI) |
| Operating Temperature | 0–55 °C |
| Relative Humidity | 0–80% RH (non-condensing) |
| Control Interface | USB/RS-485 |
| Software Features | Programmable light regimes (duration, intensity, spectral composition, modulation waveforms), cloud cover simulation, dawn/dusk transition modeling, GLP-compliant audit trail (via Light Studio Pro) |
Overview
The PSI Fyto-Panel Intelligent LED Light Source is a precision-engineered photobiological illumination system designed for controlled-environment plant science. Based on the fundamental principles of photosynthetic photon action spectra and phytochrome photoequilibrium dynamics, the Fyto-Panel delivers spectrally defined, spatially uniform, and temporally programmable irradiance to support rigorous experimental protocols in plant physiology, stress biology, and developmental photomorphogenesis. Unlike broad-spectrum lamps or non-calibrated LED arrays, the Fyto-Panel integrates calibrated monochromatic emitters—including cool white (400–700 nm), deep red (660 nm), and far-red (730 nm)—each independently controllable in real time. Its optical architecture employs collimated LED optics (±6° for visible channels; non-collimated for far-red) to ensure high spatial homogeneity (CV < 5% across active area) and reproducible photon delivery at standardized measurement distances (e.g., 50 cm). The system is engineered for integration into growth chambers, climate rooms, walk-in growth cabinets, and custom-built phenotyping platforms—enabling researchers to decouple light quantity, quality, and timing as independent experimental variables.
Key Features
- High-uniformity irradiance distribution (coefficient of variation < 5% over full panel area)
- Maximum PPFD up to 2400 µmol·m⁻²·s⁻¹ at 50 cm distance—optimized for high-light-demand species and stress induction protocols
- Independent, continuous (0–100%) intensity control per spectral channel via digital PWM regulation
- Modular spectral configuration: standard triple-channel (cool white + deep red + far-red); optional dual- or multi-channel configurations with user-selectable peak wavelengths (e.g., 450 nm, 525 nm, 630 nm, 730 nm)
- Robust thermal management enabling stable output across ambient temperatures from 0 to 55 °C
- Long-lifetime LEDs rated for 60,000–70,000 hours at nominal drive current—ensuring long-term radiometric stability and reduced calibration drift
- Integrated mechanical mounting frame and universal power supply unit for seamless installation in vertical or horizontal orientations
- Native compatibility with both PC-based Light Studio software and standalone LC200 hardware controller
Sample Compatibility & Compliance
The Fyto-Panel is validated for use with intact plants (seedlings, rosettes, cuttings), detached leaves, algal cultures, and tissue explants under controlled abiotic conditions. Its spectral fidelity and temporal precision make it suitable for experiments requiring compliance with ISO 21732:2021 (photobiological safety of lighting equipment), ASTM E2935-21 (standard practice for calibration of photosynthetic photon flux meters), and EU Regulation No. 2019/2020 on ecodesign requirements for lighting products. When operated with Light Studio Pro and timestamped logging enabled, the system supports GLP- and GMP-aligned workflows—including electronic signatures, user access levels, and immutable audit trails required for regulatory submissions (e.g., OECD TG 208, EPA OPPTS 850.4400). All firmware and software versions are traceable and version-controlled per ICH-GCP Annex 11 and FDA 21 CFR Part 11 guidelines.
Software & Data Management
Light Studio provides a graphical, drag-and-drop interface for constructing complex illumination protocols—including diurnal cycles, stepwise acclimation ramps, sinusoidal modulations, microsecond-scale pulse trains, and stochastic cloud-cover simulations. Each logical light channel can be assigned to one or more physical panels, supporting up to 254 concurrently addressed devices and unlimited virtual channels. Calibration profiles (irradiance vs. digital setpoint) are stored per panel serial number and applied automatically during protocol execution. Export formats include CSV (time-stamped PPFD, spectral weightings, duty cycle), JSON (protocol definitions), and HDF5 (for integration with Python-based analysis pipelines). The LC200 controller offers embedded operation without PC dependency—featuring four-button navigation, microsecond-resolution pulse triggering, and onboard storage for up to 224-stage programs. Both platforms log all parameter changes with timestamps, operator IDs, and checksum-verified command history.
Applications
- Dynamic light stress assays: simulating fluctuating field conditions to quantify non-photochemical quenching (NPQ), state transitions, and photoprotective pigment dynamics
- Photosynthetic acclimation studies: delivering precise light histories prior to chlorophyll fluorescence (OJIP, qP, ΦPSII) or gas exchange measurements
- Phytochrome-mediated developmental phenotyping: manipulating R:FR ratios to investigate shade avoidance, seed germination, and flowering time
- High-throughput phenomics: synchronizing illumination across multi-panel arrays for parallel treatment of genotypic replicates in growth chamber or greenhouse-integrated systems
- Calibration reference source for quantum sensors, fluorometers, and hyperspectral imagers used in plant phenotyping
- Supporting circadian rhythm research through programmable twilight transitions and phase-shift protocols
FAQ
What is the spectral bandwidth of the standard cool white LED channel?
The standard cool white emitter has a correlated color temperature of ~6500 K and spans 400–700 nm with peak intensity near 450 nm and 550 nm, optimized for photosynthetically active radiation (PAR) coverage.
Can the Fyto-Panel be used for UV-B or UV-A supplementation?
UV-capable modules are available as custom configurations (e.g., 310 nm, 370 nm) but are not included in the standard model; spectral customization requires prior optical safety assessment and firmware validation.
Is remote monitoring and control supported over Ethernet or Wi-Fi?
The base Fyto-Panel uses USB or RS-485 interfaces; Ethernet/Wi-Fi connectivity is achievable via third-party industrial gateways (e.g., Modbus TCP converters) or through Light Studio’s API-enabled server mode (requires dedicated host PC).
How is radiometric calibration maintained over time?
PSI provides NIST-traceable factory calibration certificates; users may perform routine verification using a calibrated PAR sensor. Light Studio supports user-defined recalibration curves imported from external metrology reports.
Does the system comply with electromagnetic compatibility (EMC) directives for laboratory environments?
Yes—the Fyto-Panel meets EN 61326-1:2013 (measurement/control lab equipment) and EN 55011:2016 Class B emission limits, ensuring minimal interference with sensitive electrophysiological or fluorescence instrumentation.
