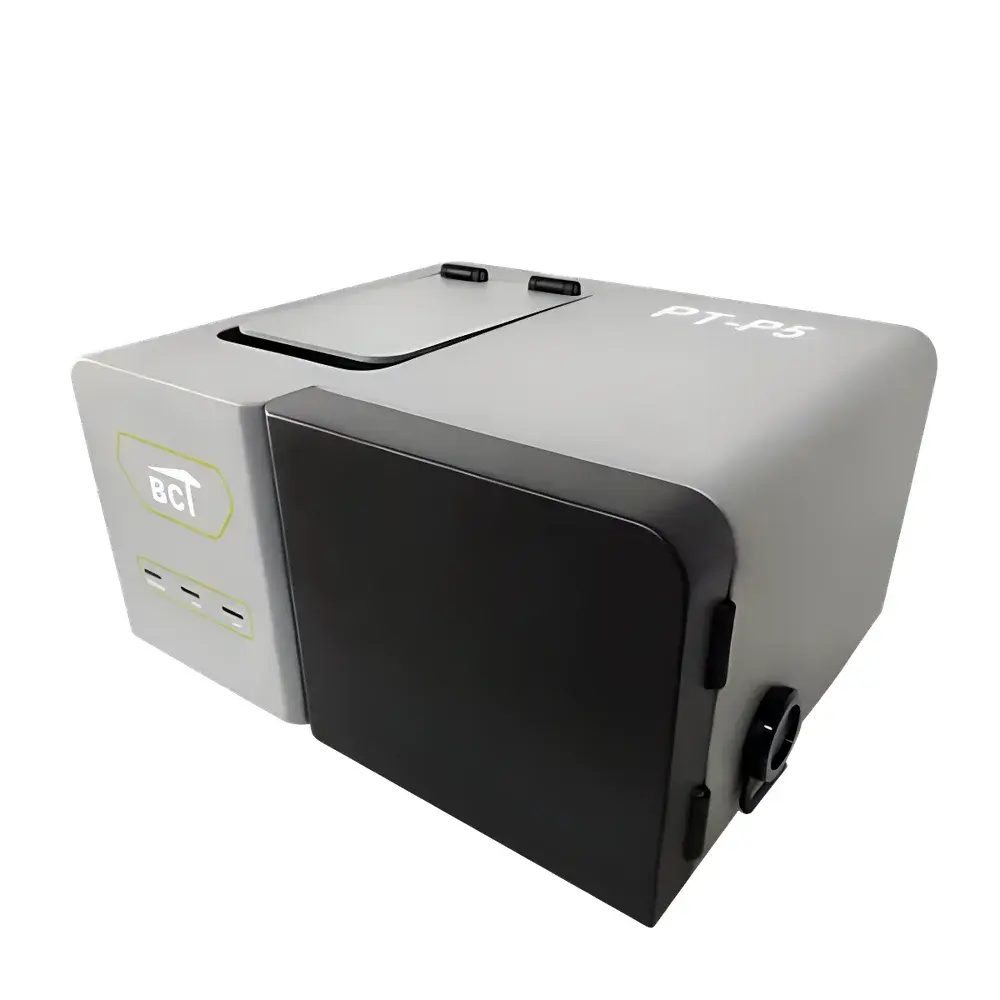

PT-P5 Portable Purge-and-Trap Sampling System

Overview

The PT-P5 Portable Purge-and-Trap Sampling System is a field-deployable, integrated sample introduction module engineered specifically for on-site volatile organic compound (VOC) analysis in aqueous matrices. It operates on the principle of dynamic headspace extraction—purging dissolved VOCs from water samples with inert gas (typically helium or nitrogen), trapping them onto a sorbent column at cryogenic or ambient temperatures, and subsequently thermally desorbing them into a coupled portable gas chromatography–mass spectrometry (GC–MS) system. Designed as a complementary sampling interface—not a standalone analytical instrument—the PT-P5 enables quantitative and qualitative VOC profiling directly at the point of sampling, eliminating delays associated with sample transport, preservation, and laboratory-based preparation. Its architecture supports both manual grab sampling and unattended, time-programmed sequential operation, making it suitable for deployment in emergency response, fixed-station source monitoring, and routine environmental surveillance.

Key Features

• Field-portable form factor with integrated battery power supply and ruggedized housing rated IP54 for dust and splash resistance
• Modular purge-and-trap configuration supporting customizable trap beds (e.g., Tenax TA/Carboxen combinations) and programmable purge/dry/heat-desorb cycles
• Automated internal standard addition capability for improved quantification accuracy and recovery correction
• Onboard microprocessor control with intuitive touchscreen interface and voice-guided operational feedback
• Integrated tubing cleaning protocol using high-purity carrier gas and thermal bake-out to minimize carryover between analyses
• Pre-concentration efficiency optimized for C2–C12 VOCs including BTEX, chlorinated ethenes, trihalomethanes, and aliphatic hydrocarbons
• Low-maintenance design with solid-state valves, sealed pump assemblies, and field-replaceable consumables

Sample Compatibility & Compliance

The PT-P5 accepts aqueous samples ranging from 5 to 25 mL, accommodating raw surface water, groundwater, wastewater effluents, and treated drinking water without prior filtration (when particulate load is ≤10 mg/L). It complies with core methodological frameworks referenced in EPA Method 524.4, ASTM D5798, and ISO 15681-2 for VOC determination in water. When operated in conjunction with GC–MS platforms meeting FDA 21 CFR Part 11 requirements (e.g., BCT ER series and P8800 systems), the full analytical workflow—including method parameters, calibration data, and audit trails—supports GLP/GMP-aligned documentation for regulatory reporting. All wetted components are inert (silco-treated stainless steel, PFA, and fused silica) to prevent adsorption or catalytic degradation of reactive analytes.

Software & Data Management

The PT-P5 communicates bidirectionally via RS-232 or USB-C with host GC–MS acquisition software. Firmware supports synchronized method triggering, real-time status telemetry (purge flow rate, trap temperature, valve position), and error logging with timestamped event records. Data files adhere to ASTM E1381-compliant metadata structures, enabling traceable integration into LIMS environments. Optional cloud-sync functionality allows remote firmware updates and diagnostic log uploads for preventive maintenance scheduling. Audit trail generation meets ALCOA+ principles, capturing user identity, parameter changes, and run start/stop events—essential for laboratories undergoing ISO/IEC 17025 accreditation or EPA-approved method validation.

Applications

• Emergency Response: Rapid identification and semi-quantitative screening of VOC contamination following chemical spills, industrial accidents, or natural disasters—results available within 15 minutes post-sample introduction
• Unmanned Monitoring Stations: Integration into water intake or distribution networks for continuous 24/7 VOC surveillance; programmable sampling intervals (1–24 h) with auto-blank verification
• Routine Environmental Monitoring: Compliance-driven testing per national water quality standards (e.g., China’s GB 3838-2002, US EPA Clean Water Act Tier 1)
• Method Development & Validation: Platform for optimizing purge conditions (temperature, flow, duration) and trap desorption profiles across diverse matrix interferences
• Field Research: Deployment in remote watersheds, coastal zones, and agricultural runoff sites where lab access is impractical

FAQ

Is the PT-P5 compatible with non-BCT GC–MS systems?
Yes—provided the host instrument supports external trigger input and accepts standard analog/digital control signals for purge initiation and desorption timing.
What is the typical detection limit achievable with the PT-P5 when paired with a portable GC–MS?
Sub-pptr (ng/L) detection limits for target VOCs are attainable under optimized conditions, dependent on instrument sensitivity, trap efficiency, and matrix complexity.
Can the PT-P5 perform automated calibration runs?
It supports scheduled calibration injections via external liquid autosampler integration but does not include an onboard calibrant reservoir.
Does the system require compressed gas cylinders on-site?
Yes—a regulated supply of high-purity helium or nitrogen (≥99.999%) is required for purging and carrier functions; optional integrated gas generator modules are available as accessories.
How is method transfer validated between lab-based and field PT-P5 workflows?
Cross-platform validation follows ISO 17025 Clause 7.2.2 guidelines, requiring parallel analysis of reference materials and spiked field samples to demonstrate equivalence in recovery, precision, and linearity.
