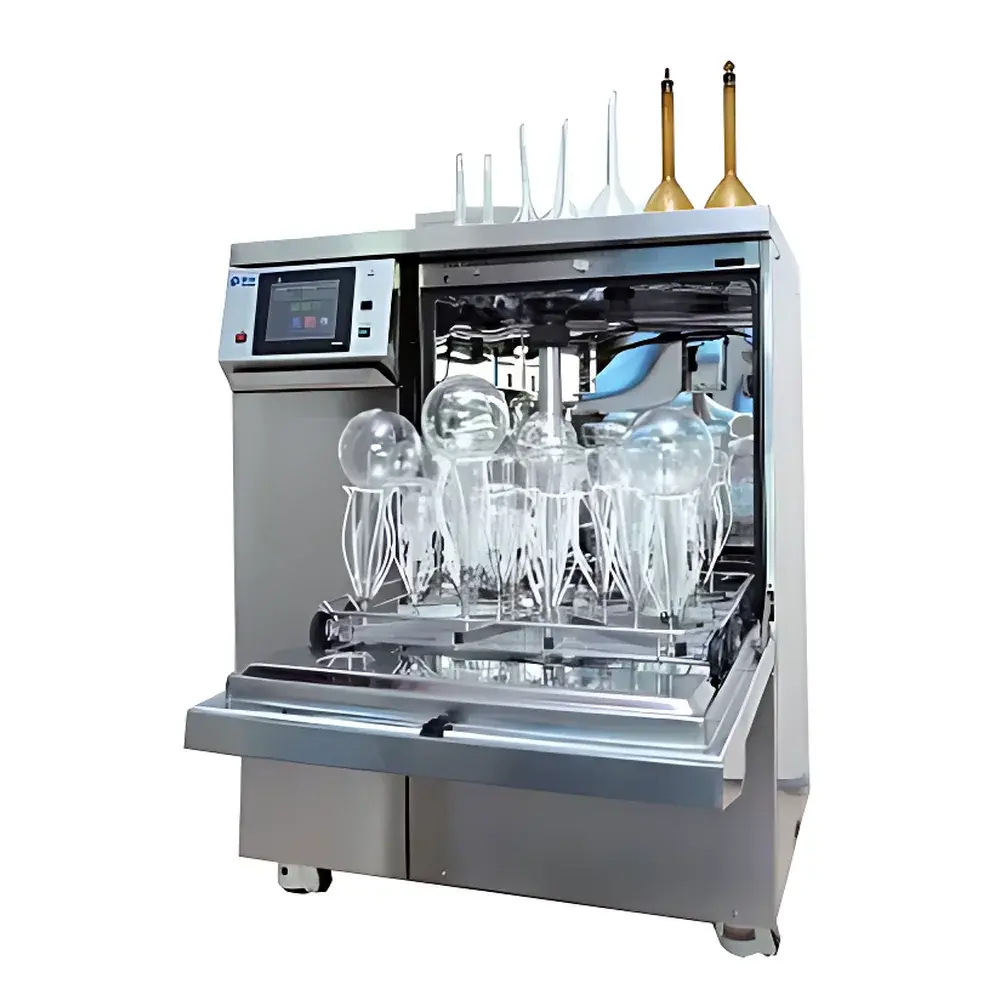

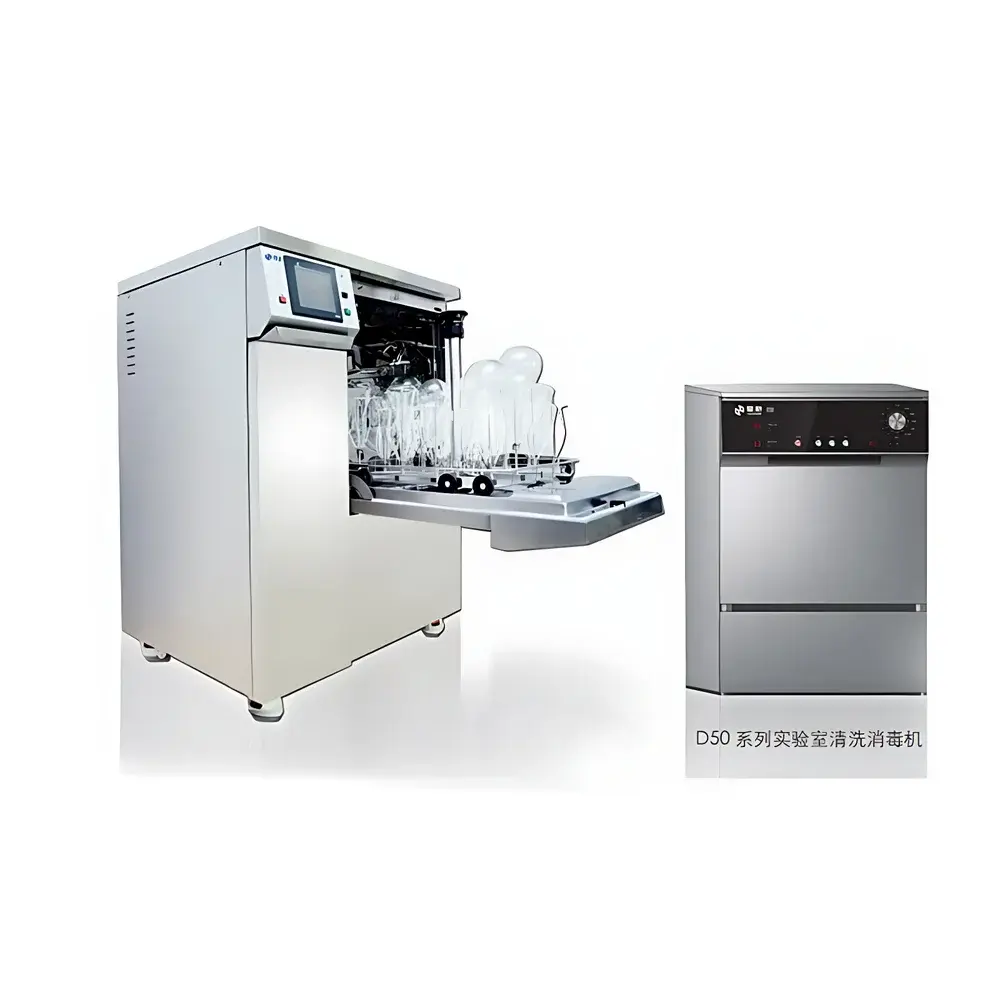

Purkinje Y3600 Series Laboratory Glassware Washer
| Brand | Purkinje |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | Y3600 |
| Price Range | USD 7,000–14,000 |
| Chamber Volume | ≥180 L |
| Heating Power | Water Heating ≥9,000 W |
| Wash Temperature Range | 5–40 °C |
| Compatible Cleaning Agents | Alkaline Detergents & Acidic Neutralizers |
| External Dimensions (L×W×D) | 605×705×900 mm |
Overview
The Purkinje Y3600 Series Laboratory Glassware Washer is an automated, high-capacity cleaning and rinsing system engineered for reproducible decontamination of reusable laboratory glassware and plasticware. Designed according to core principles of validated cleaning process engineering—including controlled temperature profiling, programmable multi-stage wash-rinse-neutralize-dry cycles, and uniform spray dynamics—the Y3600 delivers consistent removal of organic residues, particulates, and trace contaminants from complex geometries. Its ≥180 L chamber accommodates standard volumetric flasks (up to 2 L), burettes, pipettes, conical flasks, beakers, graduated cylinders, and narrow-necked sample vials—enabling batch processing aligned with ISO 15190:2020 (Laboratory safety) and GLP-compliant workflow requirements. The system operates without steam sterilization capability; it is intended for cleaning and thermal drying—not terminal sterilization—and thus serves as a critical pre-analytical step in quality-controlled environments such as clinical labs, environmental testing facilities, and pharmaceutical QC laboratories.
Key Features
- High-power water heating system (≥9,000 W) enables rapid temperature ramp-up and stable maintenance across the 5–40 °C operational range—optimized for alkaline detergent activation and residue solubilization.
- Modular, injection-molded interior components ensure dimensional consistency, corrosion resistance, and long-term mechanical reliability under repeated thermal cycling.
- Programmable cycle architecture supports customizable sequences: pre-wash, main wash (with alkaline detergent), intermediate rinse, acid neutralization (using acidic neutralizer), final purified-water rinse, and heated drying (up to 40 °C).
- Ergonomic front-loading design with reinforced door seal and integrated drip tray minimizes operator exposure and prevents floor contamination during loading/unloading.
- Robust stainless-steel construction (AISI 304 chamber, reinforced frame) meets IP54-rated ingress protection for lab-grade durability and ease of surface decontamination.
Sample Compatibility & Compliance

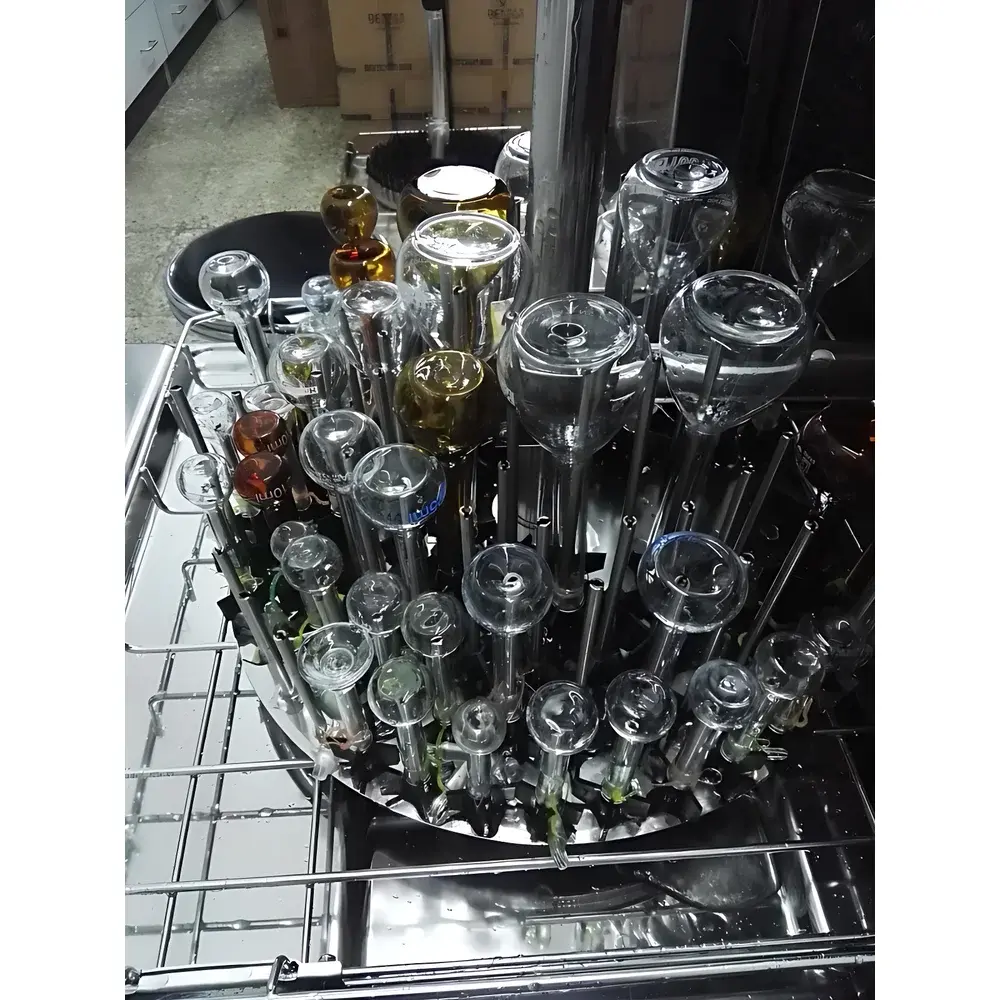

The Y3600 accommodates common borosilicate glass and autoclavable polymer labware—including Class A volumetric flasks (10 mL–2 L), serological pipettes (1–100 mL), culture tubes, Erlenmeyer flasks (50–1,000 mL), beakers (25–1,000 mL), and narrow-mouth reagent bottles (ID ≥8 mm). It complies with fundamental hygiene infrastructure standards referenced in ISO/IEC 17025:2017 (clause 6.4.3 on equipment suitability) and supports traceability documentation required under GMP Annex 15 (Qualification and Validation). While not certified to EN ISO 15883 or FDA 21 CFR Part 11 out-of-the-box, its cycle logs (time-stamped temperature, pump status, and phase duration) can be exported manually for internal audit trails and validation protocol integration.
Software & Data Management
The Y3600 employs a microprocessor-based control interface with LCD display and tactile membrane keypad. All cycle parameters—including temperature setpoints, dwell times per stage, pump duty cycles, and rinse volume thresholds—are configurable and retained in non-volatile memory. Cycle execution data (start time, end time, peak temperature achieved, fault codes) are stored locally for up to 1,000 runs. No network connectivity or remote access is provided; data export requires manual USB transfer or visual log review—making it suitable for regulated environments where air-gapped operation is mandated. Audit-ready documentation (e.g., IQ/OQ templates, cleaning validation checklists) is available upon request from Purkinje’s technical support team.
Applications
- Preparation of trace-metal-free glassware for ICP-MS and AAS analysis through sequential alkaline/acid treatment.
- Routine decontamination of HPLC vials and autosampler trays to prevent carryover in quantitative bioanalysis.
- Removal of proteinaceous or lipid-based residues from cell culture vessels prior to reuse in sterile workflows.
- Batch cleaning of volumetric calibration equipment in metrology labs requiring documented repeatability (per ISO/IEC 17025 clause 6.4.10).
- Supporting environmental testing labs compliant with EPA Method 500 series—where glassware cleanliness directly impacts method detection limits.
FAQ
Does the Y3600 provide sterilization (e.g., 121 °C steam)?
No. The Y3600 is a cleaning and thermal drying system only. It does not achieve sterilization conditions and is not classified as a sterilizer under ISO 15883 or EN 285.
Can it handle delicate or coated glassware?
It is not recommended for coated optics, thin-walled capillary tubes, or soft plastics (e.g., LDPE, PETG) due to mechanical agitation and thermal stress risks. Refer to Purkinje’s compatibility matrix before processing non-standard items.
Is purified water required for final rinse?
Yes. Use of Type II or higher purity water (per ISO 3696) is strongly advised for the final rinse to prevent spotting and mineral deposition.
What maintenance intervals are specified?
Filter cleaning every 50 cycles; pump inspection and O-ring replacement annually; full calibration verification recommended biannually per internal SOPs.
Does Purkinje supply validation documentation?
Factory-supplied IQ/OQ protocols and blank test reports are available; PQ must be performed on-site by the end user in accordance with their quality management system.
