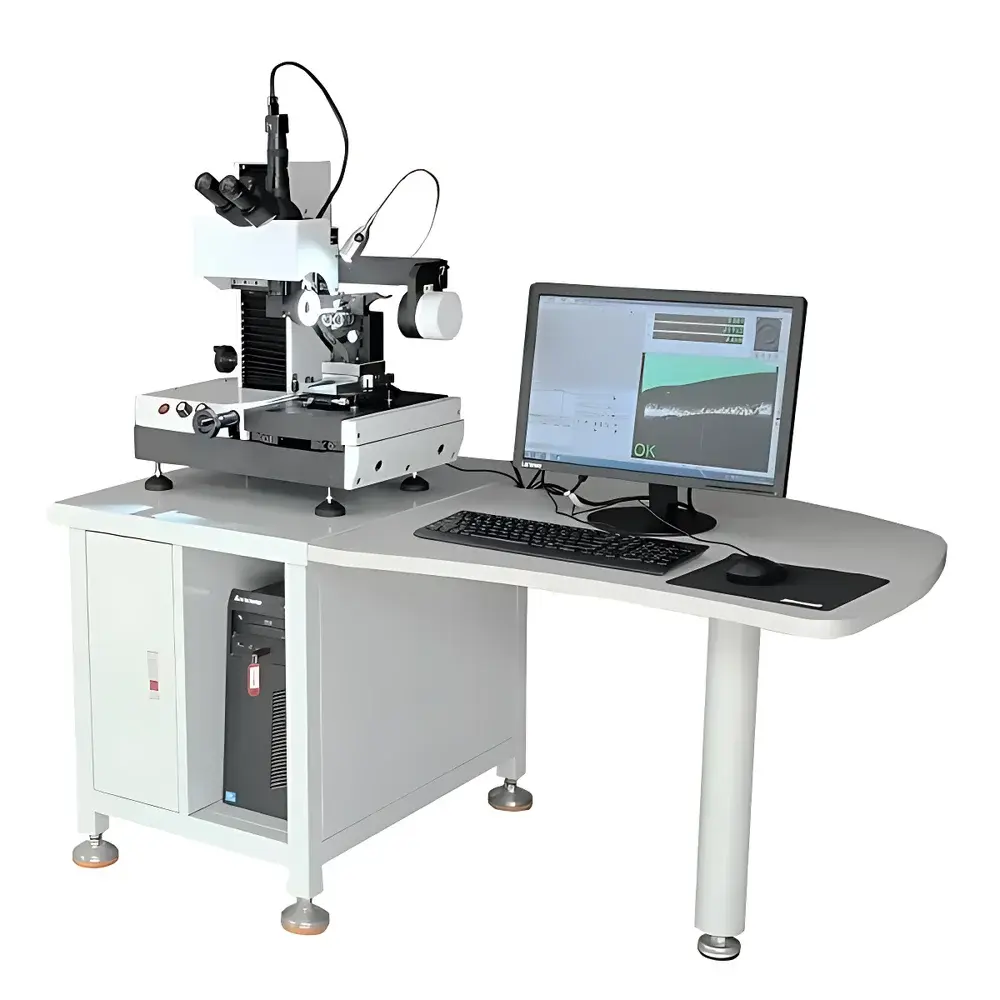

PZ-600X Precision Tool Projection Measuring System by Product Intelligence & Creativity

Overview

The PZ-600X Precision Tool Projection Measuring System is an optical metrology platform engineered for high-accuracy geometric characterization of cutting tools and precision mechanical components. Based on the principle of orthographic projection combined with calibrated digital image analysis, the system captures magnified, distortion-corrected silhouettes and surface features of tools under controlled illumination conditions. Unlike conventional coordinate measuring machines (CMMs), the PZ-600X leverages non-contact optical measurement—eliminating probe-induced deformation or surface damage—while maintaining traceable dimensional accuracy compliant with ISO 10360-2 and GB/T 16857.2 standards for optical measuring instruments. Its core architecture integrates a granite-based kinematic structure, dual-axis rotational fixtures, and synchronized multi-source lighting to ensure consistent edge detection across complex tool geometries including end mills, drills, reamers, and indexable inserts.

Key Features

• 000-grade granite base and moving stage, providing thermal stability and minimal elastic deformation under load (coefficient of linear expansion: < 2.0 × 10⁻⁶ /°C).
• Dual-mode observation system: binocular microscope (10× wide-field eyepieces) paired with a continuously variable zoom objective (1.0–6.5×), enabling real-time visual verification without software dependency.
• Gigabit Ethernet-connected 6-megapixel color CCD camera with 1.0× telecentric tube lens, delivering low-noise, high-dynamic-range images at up to 225× effective digital magnification.
• Horizontal 360° rotating stage and vertical 360° tilting fixture—mechanically decoupled from the XY translation system—to support full circumferential profiling of helical flutes and asymmetric tool bodies.
• Tri-modal illumination architecture: coaxial ring LED (surface reflectance), backlit edge LED (silhouette contrast), and two independently positionable auxiliary LEDs for directional shadow control and glare reduction on polished carbide or PCD surfaces.
• Linear encoder-based motion feedback with 1 µm resolution encoders on all three axes (X/Y/Z), supporting closed-loop positioning repeatability of ±0.5 µm over full travel.

Sample Compatibility & Compliance

The PZ-600X accommodates tools with maximum dimensions of Ø60 mm × 120 mm (diameter × length), including solid carbide end mills, HSS twist drills, broaches, gear cutters, and micro-tools down to 0.1 mm diameter. Its modular fixturing supports both clamped shank mounting and vacuum chuck interfaces for thin-walled or fragile substrates. All measurement algorithms are validated per ISO 5725-2 (repeatability and reproducibility) and referenced against NIST-traceable step gauges and angle artifacts. The system meets electromagnetic compatibility requirements per EN 61326-1 and safety standards per EN 61010-1. While not FDA-certified as standalone medical device test equipment, its data export formats (CSV, DXF, XML) and audit trail logs comply with GLP/GMP documentation prerequisites for tool calibration records in regulated manufacturing environments.

Software & Data Management

The proprietary VisionTool Pro software suite provides ISO-compliant geometric dimensioning and tolerancing (GD&T) evaluation, including angular deviation (rake, relief, helix), radius fitting (corner radii, gash curvature), chordal length, and pitch spacing. Measurement routines feature sub-pixel edge detection using Canny–Sobel hybrid operators and least-squares best-fit algorithms for circles, lines, and arcs. Each session generates timestamped, user-annotated reports with embedded image thumbnails, measurement uncertainty estimates (k=2), and operator ID logging. Data export supports CSV (for SPC analysis), DXF (for CAD comparison), and XML (for integration into MES/QMS platforms). Software audit trails record all parameter modifications, image captures, and report generations—fully compliant with FDA 21 CFR Part 11 requirements when deployed with Windows domain authentication and electronic signature modules.

Applications

• Quantitative verification of ISO 8634 (end mill geometry), ISO 230-6 (machine tool testing), and DIN 1417 (drill point angles) specifications.
• Routine inspection of tool wear progression—including flank wear land width, crater depth, and chipping—using comparative overlay analysis between reference and in-service tool images.
• Reverse engineering of legacy tool profiles via spline-fitted contour extraction and DXF export for CNC toolpath regeneration.
• QC validation of micro-geometries in watchmaking components (escapement wheels, balance springs) and precision stamped terminals (0.05 mm feature tolerance).
• Research-grade characterization of PCD/PCBN tool edge integrity, including micro-chipping and bond-line uniformity assessment under oblique illumination.

FAQ

Is the PZ-600X suitable for measuring coated tools (e.g., TiAlN, DLC)?

Yes—the tri-modal LED illumination allows selective enhancement of coating interference effects; surface mode highlights coating uniformity, while profile mode isolates substrate geometry beneath thin films.
Can measurement data be integrated into existing factory SPC systems?

Yes—real-time CSV streaming and OPC UA-compatible drivers are available as optional add-ons for direct connectivity to Siemens Opcenter, Rockwell FactoryTalk, or custom SQL-based dashboards.
Does the system support automated batch measurement of identical tools?

Yes—VisionTool Pro includes programmable measurement sequences with auto-focus, auto-lighting adjustment, and pass/fail decision logic based on user-defined GD&T limits.
What calibration artifacts are recommended for routine verification?

A certified step gauge (10–100 mm range), optical angle standard (±1′ accuracy), and NIST-traceable radius set (0.1–5.0 mm) are recommended for quarterly performance verification per ISO 9001 internal audit protocols.
Is remote technical support available outside business hours?

Yes—24/7 web-based diagnostic access and screen-sharing support are included for the first 12 months post-installation, with SLA-governed response times under 2 business hours for critical path issues.
