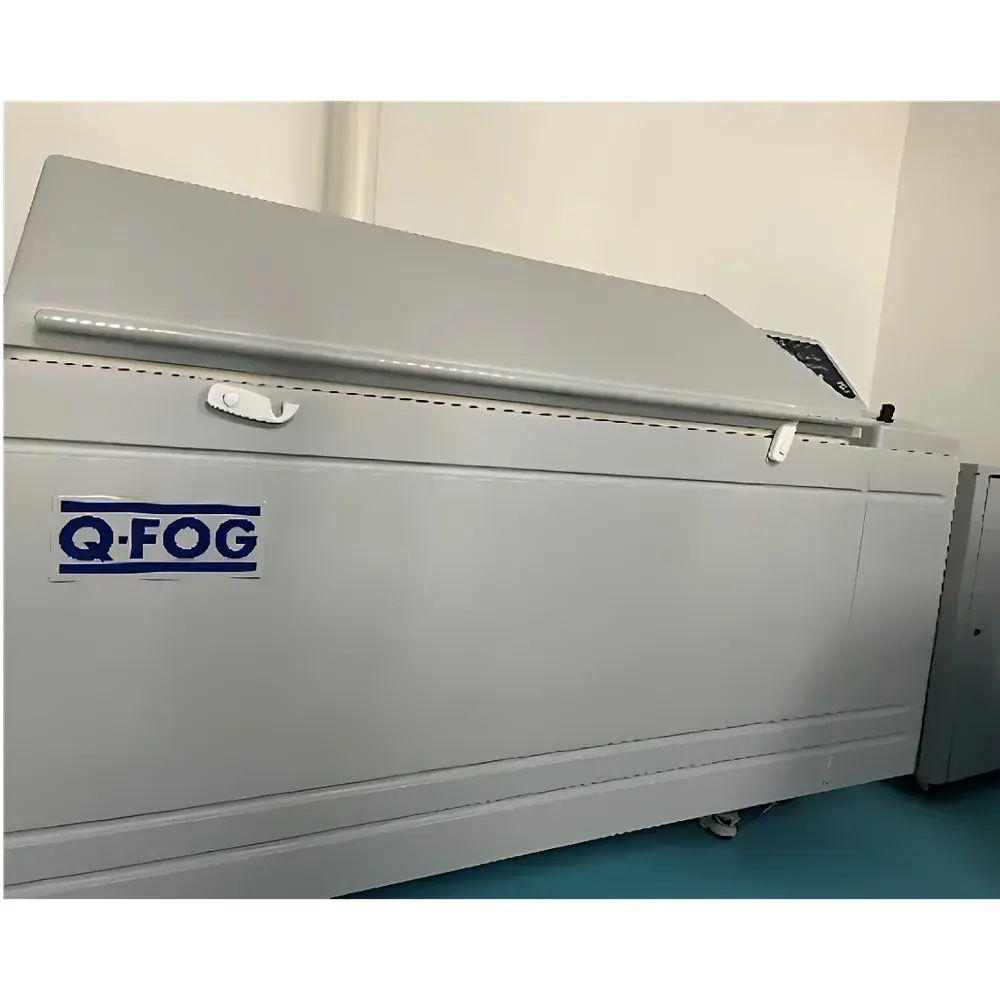

Q-FOG Composite Cyclic Salt Spray Test Chamber by Supro Instruments

Overview

The Q-FOG Composite Cyclic Salt Spray Test Chamber, engineered and manufactured by Supro Instruments in the United States, is a precision-controlled environmental test system designed to replicate accelerated corrosion conditions encountered in real-world service environments. Unlike conventional steady-state salt spray (e.g., ASTM B117) testing, the Q-FOG chamber implements programmable multi-phase cyclic exposure protocols—including salt fog, high-humidity soak, and controlled drying stages—enabling realistic simulation of atmospheric corrosion mechanisms on coated metals, automotive components, aerospace alloys, and electronic enclosures. Its operation is grounded in electrochemical corrosion science: cyclic wet/dry transitions promote anodic dissolution at coating defects while facilitating chloride ion migration and hygroscopic salt residue rehydration, thereby accelerating pitting, blistering, and underfilm corrosion propagation with high reproducibility across laboratories.

Key Features

• Programmable 3-phase cyclic operation: salt fog → humid soak → dry air conditioning, with independent control of temperature, relative humidity, and spray duration per phase
• Corrosion-resistant chamber construction using polypropylene-lined stainless steel (316 SS exterior, PP interior lining) to withstand aggressive NaCl and acidic salt solutions
• Integrated saturated air heater and preheated salt solution reservoir to ensure stable fog generation per ISO 9227 and ASTM G85 Annex A5 requirements
• Dual-chamber configuration available (standard single-chamber or optional dual-zone for simultaneous independent test profiles)
• Touchscreen HMI with embedded controller supporting up to 99 user-defined test cycles, each with configurable dwell times, ramp rates, and phase sequencing
• Compliance-ready architecture: supports audit trails, user access levels, and calibration logging in alignment with ISO/IEC 17025 laboratory accreditation practices

Sample Compatibility & Compliance

The Q-FOG chamber accommodates standard test specimens (e.g., 150 mm × 100 mm panels per ASTM D1654), as well as custom fixtures for automotive door handles, brake calipers, PCB assemblies, and fastener subassemblies. It meets the operational requirements of multiple international standards, including but not limited to: ASTM G85 (Annexes A1–A5), ISO 11997-1/-2, JASO M609, VDA 621-415, and GMW 14872. All chambers undergo factory verification per ASTM E74 and NIST-traceable temperature/humidity calibration. Optional IQ/OQ documentation packages are available for regulated industries requiring GLP or GMP compliance.

Software & Data Management

Supro Instruments provides the Q-FOG Control Suite—a Windows-based software platform enabling remote monitoring, real-time data logging (temperature, RH, spray status, cycle progression), and automated report generation in PDF or CSV format. The software supports 21 CFR Part 11-compliant electronic signatures, role-based user permissions, and secure data export with embedded metadata (operator ID, timestamp, calibration certificate IDs). Logged parameters are time-stamped at 1-second intervals and archived with SHA-256 hash integrity verification. Integration with LIMS systems is supported via OPC UA or Modbus TCP protocols.

Applications

• Evaluation of primer/topcoat adhesion and corrosion resistance on automotive body panels and chassis components
• Qualification of zinc-nickel and trivalent chromium plating systems per Ford WSB-M1P12-A and GM GMW15635
• Reliability screening of conformal-coated printed circuit boards subjected to coastal or de-icing salt exposure
• Accelerated aging of marine-grade stainless steels (e.g., UNS S32205) and aluminum alloys (e.g., AA6061-T6) under cyclic chloride loading
• Validation of sealant performance in HVAC housings and outdoor telecom enclosures per IEC 60068-2-52
• Supporting root-cause analysis of field failures through correlation of lab-induced corrosion morphology with SEM/EDS and cross-section metallography

FAQ

What distinguishes composite cyclic salt spray testing from traditional ASTM B117 salt fog?

Composite cycling introduces controlled humidity and drying phases—critical for simulating natural diurnal cycles—whereas ASTM B117 maintains continuous fog without interruption, yielding less representative failure modes.
Can the Q-FOG chamber be validated for ISO/IEC 17025 accreditation?

Yes. Supro Instruments supplies full validation documentation (IQ/OQ/PQ templates), NIST-traceable calibration certificates, and uncertainty budgets for all critical measurement parameters.
Is remote monitoring supported during unattended operation?

Yes. Ethernet connectivity enables live status viewing, email/SMS alerts on phase completion or fault conditions, and secure cloud backup of cycle logs.
Does the system support custom salt solutions beyond NaCl?

The chamber is compatible with CuCl₂-acidified solutions (per ASTM G85 Annex A3), synthetic seawater (ASTM D1141), and SO₂-doped fog (ISO 6988), subject to material compatibility review.
How frequently does the system require maintenance?

Preventive maintenance is recommended every 500 operational hours or annually—whichever occurs first—including nozzle inspection, saturation tower cleaning, and sensor recalibration.
