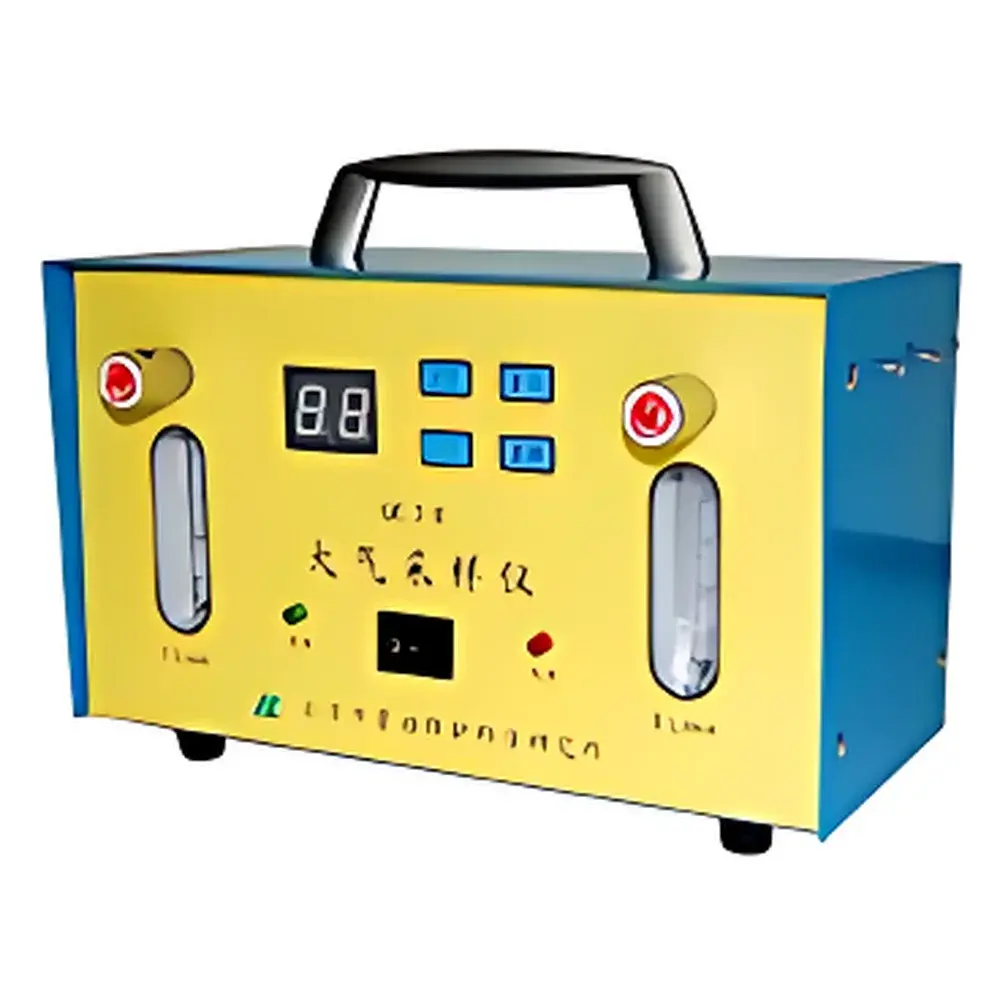

QC-2 Dual-Channel Ambient Air Sampler

Overview

The QC-2 Dual-Channel Ambient Air Sampler is a precision-engineered, portable gas sampling instrument designed for simultaneous collection of two independent air samples under field or occupational hygiene conditions. It operates on the principle of volumetric displacement via dual diaphragm vacuum pumps, each driving a separate, isolated sampling train—enabling concurrent acquisition of parallel samples (e.g., for analytical redundancy), sequential sampling at different flow rates, or co-sampling of distinct target analytes (e.g., sulfur dioxide and particulate matter using paired impingers or sorbent tubes). Its architecture adheres to fundamental requirements outlined in ISO 16000-1 (Indoor air — Part 1: General aspects), ASTM D1357 (Standard Practice for Planning Sampling and Measuring Air), and OSHA Method ID-121, ensuring compatibility with regulatory sampling protocols used in environmental monitoring, industrial hygiene, and occupational safety laboratories.

Key Features

• Dual independent sampling channels with electronically synchronized or individually programmable timing—eliminating cross-contamination risk and supporting method-compliant parallel sampling.
• Adjustable flow control across 0.1–1.5 L/min per channel, calibrated against NIST-traceable rotameters and verified per ISO 5725 (Accuracy and precision of measurement methods).
• Microprocessor-based timer with 1–99 minute resolution and <0.1% timing deviation, compliant with GLP documentation requirements for audit-ready sampling logs.
• Compact, ergonomic housing (210 × 125 × 95 mm) constructed from impact-resistant ABS polymer, rated IP54 for dust and splash resistance during outdoor deployment.
• Integrated rechargeable Ni-MH battery system delivering >6 hours of continuous operation at 1.0 L/min per channel—validated per IEC 62133 for safe portable power management.
• Real-time flow indication via dual analog pressure gauges and tactile flow adjustment knobs—designed for glove-compatible operation in industrial settings.

Sample Compatibility & Compliance

The QC-2 supports standard 25–100 mL absorption bottles (e.g., midget impingers, silica gel tubes, charcoal sorbent cartridges), as well as filter cassettes (37-mm or 25-mm) when fitted with optional adapter kits. Each channel accommodates inline safety buffer bottles and flow calibration adapters without tooling. The instrument meets mechanical and electrical safety requirements per IEC 61010-1 (Safety requirements for electrical equipment for measurement, control, and laboratory use) and is suitable for use in non-hazardous environments classified under ATEX Zone 2 / UL Class I, Division 2, when operated with certified accessories. All wetted materials—including pump diaphragms, tubing, and valve seats—are chemically inert (EPDM and PTFE-lined), minimizing analyte adsorption or catalytic degradation during sampling of reactive gases such as NO₂, H₂S, or formaldehyde.

Software & Data Management

While the QC-2 operates as a standalone hardware platform without embedded Wi-Fi or Bluetooth, its timing and flow parameters are fully documentable via external logbooks or digital field notebooks aligned with 21 CFR Part 11 principles. Optional USB-connected flow calibrators (e.g., DryCal DC-Lite) can be used to generate timestamped calibration certificates traceable to national metrology institutes. The device’s deterministic timing engine and stable flow output support integration into validated laboratory information management systems (LIMS) through manual entry of sample IDs, start/stop times, and measured flow rates—ensuring full chain-of-custody integrity for EPA, ISO 17025, or ISO 9001-accredited labs.

Applications

• Occupational exposure assessment per NIOSH Manual of Analytical Methods (NMAM) Chapters 1000–5000 series (e.g., NMAM 6001 for total dust, NMAM 6004 for respirable dust, NMAM 6011 for formaldehyde).
• Ambient air quality monitoring in urban, industrial, and rural zones—supporting PM₂.₅/PM₁₀, VOC, and acid gas sampling per EN 13644-1 and EPA TO-15 protocols.
• Process emission verification during stack testing, fugitive emission surveys, and indoor air quality (IAQ) audits in commercial buildings and manufacturing facilities.
• Field validation of fixed-site air monitors and sensor networks requiring reference-grade grab or integrated sampling.
• Educational and research applications in environmental engineering curricula and public health field studies where dual-channel comparability enhances statistical robustness.

FAQ

Is the QC-2 certified for use in explosion-proof environments?
No—the QC-2 is rated for general-purpose use in non-classified areas. For hazardous locations, consult the manufacturer’s ATEX-certified variants (e.g., QC-2Ex series), which feature intrinsically safe circuitry and flameproof enclosures.
Can the flow rate be calibrated in the field without specialized equipment?
Yes—each channel includes a built-in adjustable needle valve and compatible ports for connection to primary standards (e.g., bubble meters or electronic calibrators) per ISO 5725-2 verification procedures.
What battery chemistry is used, and how is charge status indicated?
The unit employs a sealed 7.2 V / 2.2 Ah Ni-MH battery pack with LED-based low-power warning (flashing red) and full-charge indicator (solid green); battery life is specified at ≥6 h under nominal 1.0 L/min load per channel.
Does the QC-2 comply with US EPA or EU reference method requirements?
It serves as a compliant sampling platform when operated within its validated flow range and paired with EPA/EN-approved collection media; however, it is not itself an “EPA-listed” or “EN-certified” instrument—it functions as a critical component within broader method-defined sampling systems.
Are spare parts and service support available internationally?
Yes—authorized distributors provide global technical documentation, replacement diaphragm kits, calibration adapters, and firmware update services aligned with ISO 9001 maintenance protocols.
