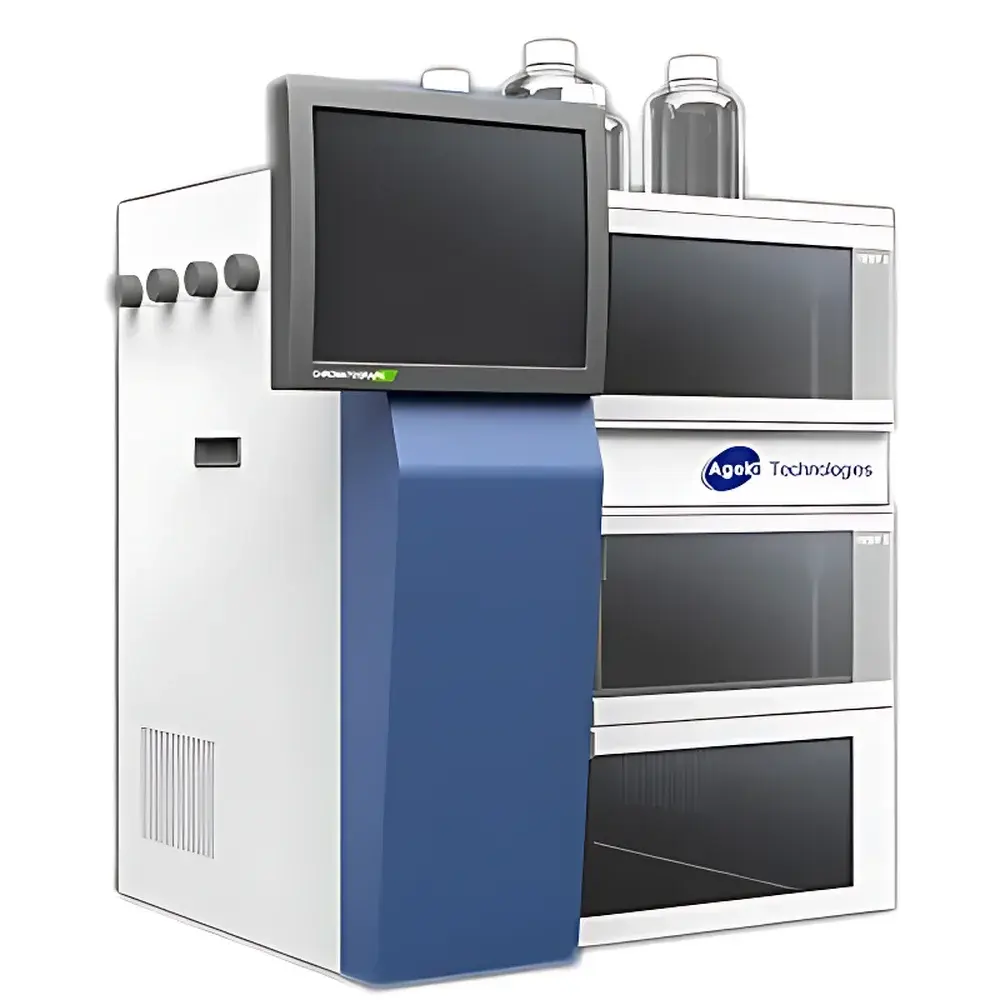

Qdaura® SPE-40 Fully Automated Solid Phase Extraction System

Overview

The Qdaura® SPE-40 Fully Automated Solid Phase Extraction System is an engineered solution for high-throughput, reproducible sample preparation in regulated and research laboratories. Designed around the fundamental principles of solid-phase extraction (SPE), the system automates the complete sequence—column conditioning, sample loading, interferent washing, and analyte elution—using precisely controlled positive-pressure fluid delivery. Unlike vacuum-based or gravity-fed SPE workstations, the SPE-40 employs a positive-pressure sealing architecture that ensures consistent flow dynamics across all cartridges, regardless of sorbent type or particle size. This design eliminates channel-to-channel variability and supports method robustness across diverse matrices including aqueous food extracts, biological fluids, environmental water samples, and pharmaceutical formulations. The system is optimized for trace-level analyte enrichment—particularly for organic contaminants (e.g., pesticides, mycotoxins, veterinary drug residues), heavy metals (after chelation), and polar metabolites—where recovery accuracy, matrix tolerance, and inter-run reproducibility are critical.

Key Features

• Four independent SPE channels with real-time pressure monitoring per channel—enabling parallel processing of up to four samples while maintaining full fault isolation (a failure in one channel does not interrupt others).
• Positive-pressure cartridge sealing compatible with 1–25 mL SPE cartridges from all major vendors (e.g., Agela, Waters, Thermo Fisher, Phenomenex), eliminating column dry-out and ensuring uniform bed compression.
• Integrated solvent delivery system with five independently controlled solvent reservoirs and a high-precision, valveless metering pump—capable of continuous, pulse-free liquid transfer with flow stability ≤±1.5% RSD over extended runs.
• Expandable sample handling capacity: Processes 4 samples concurrently; accommodates unattended sequential processing of up to 24 samples via programmable carousel positioning.
• Chemically inert fluid path constructed entirely from alumina ceramic, PEEK, and PTFE—resistant to aggressive organic solvents (e.g., DCM, acetone, acetonitrile), strong acids (up to 6 M HCl), and bases (up to 1 M NaOH), ensuring long-term system integrity and minimal leachables.
• 12.1-inch capacitive touchscreen interface with intuitive graphical workflow navigation, dual-language support (English/Chinese), audit-trail-enabled user management, and embedded method storage for up to 200 protocols.

Sample Compatibility & Compliance

The SPE-40 supports broad sample matrix compatibility—from low-viscosity aqueous standards to turbid environmental waters, clarified tissue homogenates, and protein-precipitated plasma. Its integrated inline filtration (via sintered stainless-steel frits in sample tubes) prevents column clogging without compromising analyte recovery. The system meets foundational requirements for GLP and GMP environments: all operational parameters—including flow rate, dwell time, pressure thresholds, and solvent selection—are digitally recorded with timestamped metadata. While not pre-certified for 21 CFR Part 11, the platform’s electronic logbook, user authentication, and method version control provide a defensible foundation for validation under ISO/IEC 17025, USP , and ASTM D7289 (for environmental SPE workflows). Optional ventilation hood integration ensures operator safety during volatile solvent handling.

Software & Data Management

The embedded control software provides full lifecycle method management: users define, save, duplicate, and version-control SPE protocols with granular parameter control (e.g., conditioning volume per solvent, load-wait time, wash cycle count, fractionated elution collection). Real-time visualization includes dynamic pressure curves per channel, step-by-step progress indicators, and immediate visual alerts for pressure excursions (>25 psi), leak detection, or reservoir depletion. All events—including user logins, method edits, and run completions—are captured in a tamper-resistant local database compliant with ALCOA+ principles. Export options include CSV and PDF reports with full parameter sets, pressure logs, and timestamps—facilitating integration into LIMS or ELN systems. Remote diagnostics and firmware updates are supported via secure Ethernet connection.

Applications

• Food & Agricultural Safety: Multi-residue analysis of pesticides (e.g., organophosphates, neonicotinoids) in fruit juices, milk, and grain extracts per EU SANTE/11312/2021 guidelines.
• Environmental Monitoring: Pre-concentration of PAHs, PCBs, and pharmaceuticals from surface water, wastewater, and groundwater at sub-pptr levels (EPA Method 508.1, 525.3).
• Clinical & Pharmaceutical Research: Cleanup of plasma, urine, and CSF prior to LC-MS/MS quantification of endogenous steroids, therapeutic drugs, or biomarkers.
• Regulatory QC Labs: High-volume batch processing for residue testing in raw materials, APIs, and finished dosage forms under ICH Q5C and Q7 frameworks.

FAQ

Does the SPE-40 support method validation for regulated environments?
Yes—the system enables full parameter documentation, electronic signatures, and audit-ready data export. Laboratories typically validate it per ICH Q2(R2) for precision, accuracy, and robustness during SOP implementation.
Can the system handle large-volume environmental samples (e.g., 2 L river water)?
Yes—via optional large-volume adapter kits supporting up to 5000 mL sample loading with automated fraction collection and programmable flow ramping to prevent breakthrough.
Is remote monitoring or integration with laboratory information systems possible?
The system supports TCP/IP communication and offers configurable CSV/PDF report exports compatible with most LIMS and ELN platforms. API access is available under NDA for enterprise integration.
What maintenance is required for the pump and fluidic system?
The valveless metering pump requires no routine calibration or seal replacement. Routine maintenance is limited to periodic inspection of tubing, cartridge adapters, and solvent filters—typically every 6 months under normal use.
Are third-party SPE cartridges fully compatible?
Yes—the positive-pressure sealing mechanism accommodates standard 1–25 mL cartridges from all major suppliers without mechanical adaptation or proprietary consumables.
