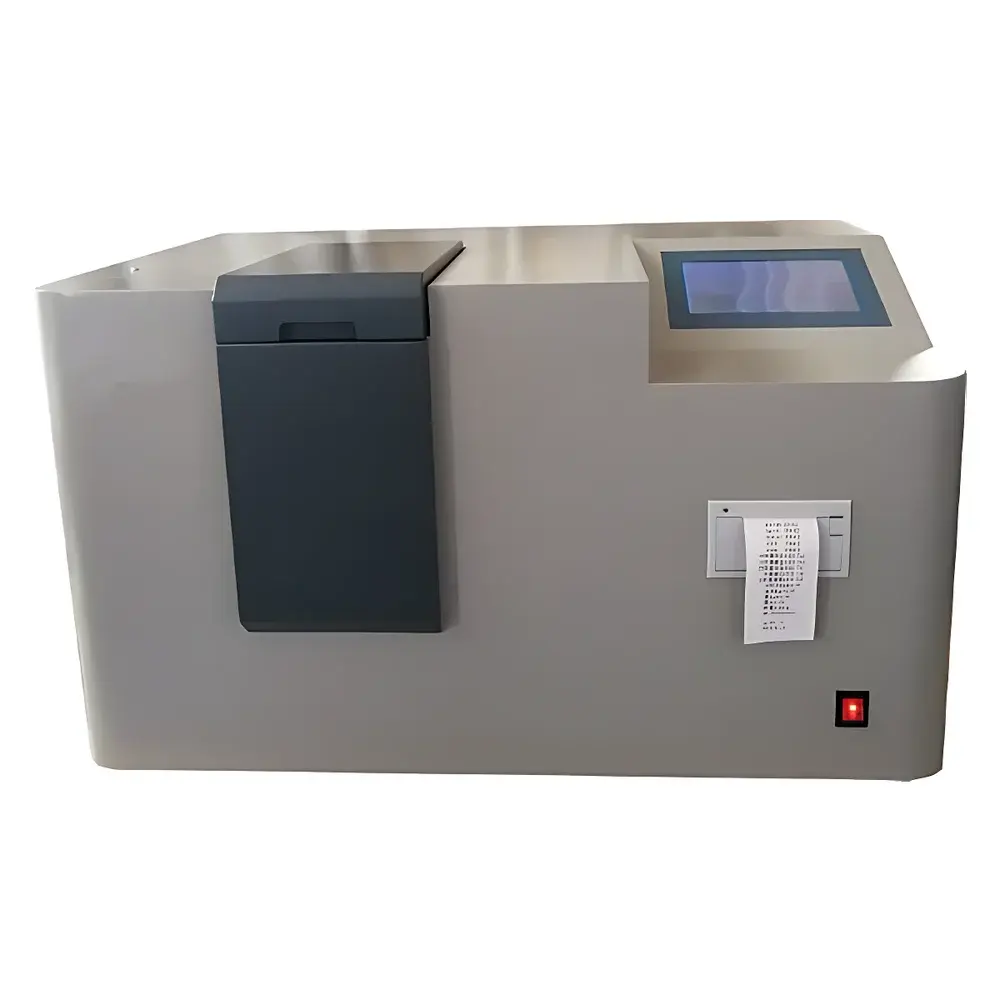

Qigao XRY-1B Automatic Oxygen Bomb Calorimeter

Overview

The Qigao XRY-1B Automatic Oxygen Bomb Calorimeter is a precision combustion calorimetry system engineered for the accurate determination of gross calorific value (GCV) of solid and liquid fuels in accordance with internationally recognized standards—including ASTM D5865 (Standard Test Method for Gross Calorific Value of Coal and Coke), GB/T 213 (Chinese national standard for coal calorific value determination), GB/T 384 (for petroleum products), and JJG 672 (National Verification Regulation for Oxygen Bomb Calorimeters). It operates on the principle of adiabatic or near-adiabatic bomb calorimetry: a precisely weighed fuel sample is combusted under high-pressure oxygen (up to 3.0 MPa initial fill, with burst pressure rating of 20 MPa) inside a robust stainless-steel oxygen bomb. The resulting heat release is fully absorbed by a thermally isolated water jacket system, and temperature rise is measured with high-resolution platinum resistance thermometry (0.0001 K resolution). The instrument’s calibrated thermal capacity—ranging from 10,500 to 14,500 J/K—ensures traceable energy quantification per unit mass, delivering GCV results in J/g or MJ/kg with Class C repeatability (≤0.2% RSD) as verified per ISO 1928 and ASTM D2015.

Key Features

• Self-sealing stainless-steel oxygen bomb rated to 20 MPa, designed to safely contain peak combustion pressures from both solid (e.g., coal, coke, charcoal) and liquid fuels (e.g., diesel, jet fuel, fuel oil).
• Double-walled outer water jacket with integrated mechanical stirrer, maintaining stable thermal equilibrium during measurement; inner water bucket fabricated from thin-gauge stainless steel with pear-shaped cross-section (3000 g water capacity) and motor-driven impeller for uniform temperature distribution.
• Fully automated operation sequence: auto-water filling, auto-oxygen charging, auto-ignition via nickel-chromium ignition wire, real-time temperature acquisition, and end-of-test termination based on thermal stabilization criteria.
• Integrated 7-inch capacitive touch LCD interface with graphical display of real-time temperature vs. time curves, intuitive menu navigation, and on-screen calibration prompts.
• Onboard microprocessor performs automatic calculation of gross calorific value using standardized correction algorithms (e.g., nitric acid, sulfuric acid, and fuse wire corrections per ASTM D5865 Annex A), with direct output in SI units (J/g, MJ/kg) or customary units (cal/g, BTU/lb).

Sample Compatibility & Compliance

The XRY-1B is validated for use with anhydrous combustible materials including bituminous and anthracite coals, metallurgical coke, lignite, activated carbon, paraffin wax, and petroleum distillates (gasoline, kerosene, diesel, residual fuel oils). It excludes samples with high moisture or volatile content requiring pre-drying per GB/T 213 Clause 6. Instrument design and verification protocol align with metrological requirements of JJG 672, ensuring compliance with Chinese legal metrology frameworks. For laboratories operating under GLP or ISO/IEC 17025 accreditation, the system supports audit-ready documentation: each test record includes timestamp, operator ID (if configured), sample ID, oxygen pressure, ignition energy, temperature curve metadata, raw ΔT, corrected GCV, and pass/fail status against internal repeatability thresholds. While not natively 21 CFR Part 11 compliant, data export (via USB or RS232) enables integration into validated LIMS environments with appropriate procedural controls.

Software & Data Management

The embedded firmware stores up to 1000 complete test records with full parameter traceability. Data fields include: test date/time, sample mass (mg), oxygen pressure (MPa), initial/final temperatures (°C), calculated ΔT (K), thermal capacity (J/K), acid correction terms, and final GCV (J/g). Export formats include CSV and plain-text reports compatible with Excel, LabArchives, or custom QA databases. Optional PC-based software (Qigao CalWin v3.x) provides extended functionality: multi-instrument fleet monitoring, statistical process control (SPC) charts (X-bar/R), calibration log management, and PDF report generation with digital signature support. All stored data retain immutable timestamps and are write-protected after finalization—supporting basic ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate).

Applications

• Quality control laboratories in coal mining, power generation, and cement manufacturing for routine GCV verification against contractual specifications (e.g., ASTM D3176, ISO 1928).
• Fuel trading and arbitration labs performing inter-laboratory comparison studies under ISO 5725-2 precision protocols.
• R&D facilities evaluating alternative solid fuels (e.g., biomass pellets, refuse-derived fuel) where reproducible energy density quantification is required for combustion modeling.
• Academic and vocational training programs in fuel science and thermal engineering, where hands-on demonstration of first-law thermodynamics and calorimetric standardization is essential.
• Third-party inspection agencies conducting conformity assessments for GB 17622 (coal quality grading) or GB/T 17623 (petroleum product specifications).

FAQ

What standards does the XRY-1B comply with for coal testing?
It meets ASTM D5865, GB/T 213, and JJG 672 requirements for gross calorific value determination.
Can the instrument measure fuels with high moisture content?
No—it is designed for anhydrous or pre-dried samples; moisture correction must be applied externally per GB/T 213 Section 8.
Is external calibration required before each test?
No; the system uses a certified benzoic acid standard (NIST SRM 39j or equivalent) for periodic calibration (recommended daily or per batch), with thermal capacity automatically updated in firmware.
What maintenance is required for long-term accuracy?
Regular cleaning of the oxygen bomb head, replacement of ignition wires and cotton thread, verification of stirrer torque, and annual verification of thermometer linearity using a reference PRT are recommended.
Does the XRY-1B support network connectivity or remote diagnostics?
Not natively; communication is limited to USB host mode and RS232 serial interface—Ethernet or Wi-Fi modules are not integrated but may be added via third-party industrial gateways.
