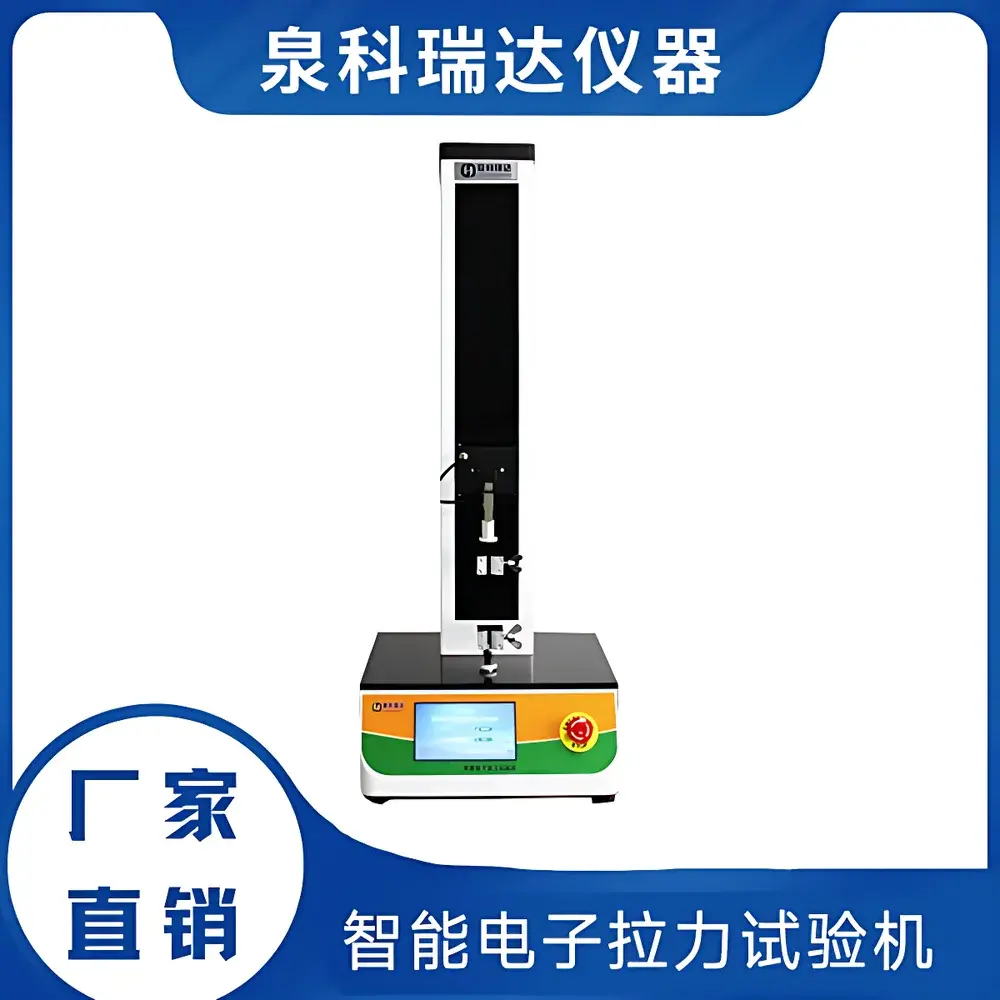

QKTester MTT-01H Syringe Plunger Force & Pharmaceutical Foil Piercing Tester

Overview

The QKTester MTT-01H is a dedicated electromechanical testing system engineered for precise mechanical characterization of primary pharmaceutical packaging and delivery devices—specifically syringes and aluminum foil laminates used in blister packaging. It operates on the principle of controlled uniaxial force application via a servo-driven crosshead, enabling quantitative measurement of plunger actuation forces (push/pull), needle piercing resistance, barrel-piston friction (slip force), and structural failure thresholds under defined displacement rates. Designed in accordance with the mechanical test requirements of ISO 7886-1 (syringes for single use), ISO 11040-4 (glass syringes), and ISO 11499 (aluminum foil for pharmaceutical packaging), the MTT-01H supports regulatory-compliant quality assurance workflows in GMP environments.

Key Features

• Class 1 force accuracy (per ISO 7500-1), validated across the full 0.5 kN load range using traceable calibration standards
• Programmable crosshead speed control (0.01–500 mm/min) with closed-loop position feedback for reproducible displacement profiles
• Dedicated fixture sets: syringe barrel clamping jaws with axial alignment guides; foil piercing mandrel with standardized 0.8 mm diameter stainless steel probe per ISO 11499 Annex A
• Microprocessor-based controller with real-time force/displacement acquisition at ≥100 Hz sampling rate
• Integrated overload protection and emergency stop circuitry compliant with IEC 61000-6-2 electromagnetic compatibility requirements
• Modular mechanical architecture supporting future upgrades including environmental chamber integration (−10°C to +60°C)

Sample Compatibility & Compliance

The MTT-01H accommodates standard Luer-lock and Luer-slip syringes (1 mL to 60 mL capacity), prefilled cartridge systems, and pharmaceutical-grade cold-forming aluminum foils (thickness 20–40 µm). All test methods align with pharmacopoeial and industrial standards including ISO 7886-1:2017 (plunger force ≤ 10 N at 100 mm/min for 2 mL syringes), ISO 11040-4:2015 (glass syringe piston glide force), and ISO 11499:2018 (piercing force ≤ 12 N for 30 µm foil). The system’s mechanical design meets ISO 17025:2017 requirements for test equipment used in accredited laboratories, and its force transducer calibration documentation supports FDA 21 CFR Part 11 audit readiness when paired with compliant software.

Software & Data Management

The MTT-01H operates with optional QKSoft v3.2 test management software, which provides GLP-compliant data handling: user-level access control (admin/operator), electronic signatures, automatic metadata stamping (date/time/tester/sample ID), and immutable audit trails for all method modifications and result exports. Raw force–displacement curves are stored in .csv and .tdms formats; summary reports include statistical parameters (mean, SD, CV%) across replicate tests and pass/fail status against configurable limits. Exported reports conform to ISO/IEC 17025 clause 7.8.2 for result reporting and support direct integration into LIMS platforms via ODBC connectivity.

Applications

• Quality control of syringe plunger glide force, break-loose force, and barrel integrity during assembly
• Evaluation of aluminum foil seal strength and needle penetration resistance in blister packaging validation
• Comparative assessment of lubricant efficacy (e.g., silicone oil coating) on piston-barrel interface friction
• Stability testing of pre-filled syringes under accelerated aging conditions (when coupled with environmental chambers)
• Material qualification of cyclic olefin copolymer (COC) and cyclic olefin polymer (COP) syringe barrels
• Supporting design verification per ISO 14971:2019 risk management requirements for injection device mechanical failure modes

FAQ

Does the MTT-01H comply with FDA or EU MDR requirements for medical device testing?
Yes—the instrument’s force measurement traceability, calibration interval documentation, and operational protocols align with FDA guidance on nonclinical bench testing (FDA Guidance for Industry: Nonclinical Bench Testing of Medical Devices, 2021) and EU MDR Annex I General Safety and Performance Requirements (GSPR 10.2, 10.4).

Can the system perform both push and pull force measurements on the same syringe in one test sequence?
Yes—customizable multi-step test programs allow sequential plunger push (to 70% stroke), dwell (2 s), and controlled retraction (pull) with independent force threshold triggers and displacement limits.

Is third-party calibration certification included with purchase?
A factory-issued ISO/IEC 17025-accredited calibration certificate (covering force and displacement axes) is provided with each unit; annual recalibration services are available through QKTester’s authorized service centers in Europe and North America.

What sample fixtures are supplied as standard?
Standard configuration includes: syringe vertical holder with adjustable height lock, Luer adapter set (male/female), foil piercing base plate with vacuum-assisted specimen retention, and calibration verification weights (10 N, 50 N, 100 N).
