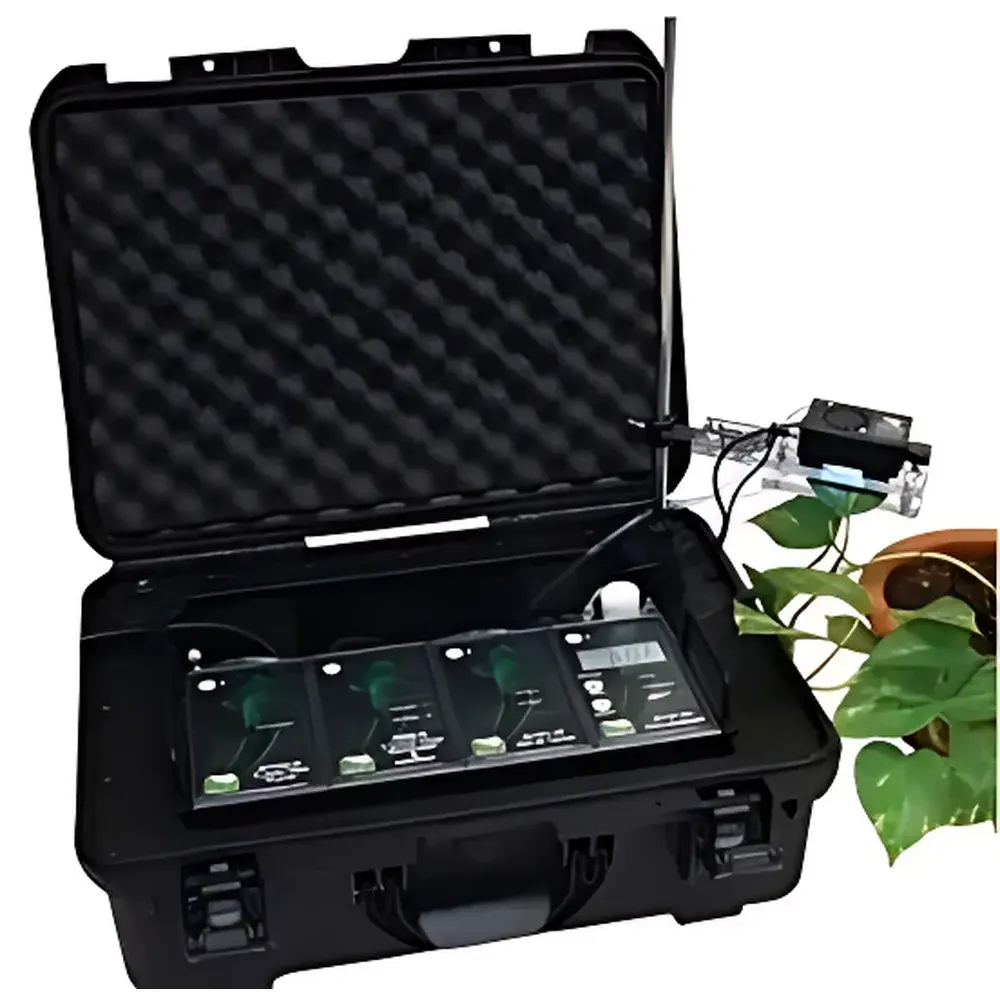

Qubit Q-Box CO650 Portable Photosynthesis Measurement System
| Brand | Qubit |
|---|---|
| Origin | Canada |
| Model | Q-Box CO650 |
| CO₂ Analyzer Principle | Non-Dispersive Infrared (NDIR) |
| Gas Flow Mode | Open-flow, Closed-chamber Configuration |
| Flow Rate | 650 mL/min |
| CO₂ Measurement Range (Display) | 0–1999 ppm |
| CO₂ Accuracy | ±1 ppm (after calibration) |
| CO₂ Repeatability | ±1 ppm (under stable T/P) |
| Response Time (t₉₅) | ~25 s (at 250 mL/min) |
| Warm-up Time | ~5 min (at 22°C) |
| PAR Output | Up to 1200 µmol·m⁻²·s⁻¹ (white LED, leaf surface) |
| Leaf Chamber Volume | 9 mL |
| Chamber Dimensions | 3.0 × 5.3 × 25.5 cm (H×W×L) |
| Data Logger | 3 analog + 2 digital inputs, USB 2.0, 100 kS/s sampling rate |
| Operating Temp | 0–50°C |
| Storage Temp | −40–+70°C |
| Humidity Range | 5–90% RH (non-condensing) |
| Power | 12 V DC or 120 V AC/60 Hz adapter |
| Weight (Analyzer Unit) | 1.0 kg |
| Weight (Pump Unit) | 0.9 kg |
| Warranty | 1 year |
Overview
The Qubit Q-Box CO650 Portable Photosynthesis Measurement System is a compact, education-optimized gas exchange instrument engineered for quantitative assessment of net photosynthesis, dark respiration, and photorespiration in intact leaves under controlled environmental conditions. It operates on the principle of open-system infrared gas analysis (IRGA), utilizing a high-stability non-dispersive infrared (NDIR) CO₂ analyzer coupled with precision mass flow control and real-time environmental monitoring. Designed for pedagogical rigor and field-deployable reliability, the system enables direct measurement of key biophysical parameters—including CO₂ compensation point (Γ), carboxylation efficiency (Vcmax proxy), light saturation curves, CO₂ response curves (A/Ci), and quantum yield—without requiring complex calibration infrastructure or laboratory-grade infrastructure. Its modular architecture integrates a programmable white LED light source, thermostatically stabilized leaf chamber, differential CO₂/H₂O sensing, and synchronized data acquisition—all calibrated traceably to NIST-traceable standards.
Key Features
- Integrated NDIR CO₂ analyzer with ±1 ppm accuracy and <25 s t₉₅ response time, optimized for low-drift operation across ambient pressure and humidity gradients
- White LED illumination system delivering up to 1200 µmol·m⁻²·s⁻¹ PAR at the leaf surface, spectrally matched to chlorophyll absorption maxima and thermally decoupled to prevent leaf heating artifacts
- Custom-designed polycarbonate leaf chamber (9 mL volume, 3.0 × 5.3 × 25.5 cm) with integrated thermistor and gasket-sealed interface for reproducible stomatal conductance estimation
- Dual-mode gas handling: selectable open-flow or semi-closed recirculation configuration, supported by a 3 L/min diaphragm pump and laminar-flow calibrated rotameter (0–1 L/min)
- Embedded data logger with 3 analog and 2 digital sensor channels, USB 2.0 interface, and 100,000 samples per second acquisition capability for high-temporal-resolution kinetics
- Full environmental monitoring suite: temperature (±0.01°C resolution, 5–60°C range), relative humidity (±2% RH, 0–100% range), and barometric pressure compensation (±1.5% of local mean pressure)
- Portable form factor: main analyzer unit weighs 1.0 kg; complete system (including pump, chamber, and accessories) fits in a ruggedized carry case suitable for classroom transport and field excursions
Sample Compatibility & Compliance
The Q-Box CO650 accommodates broadleaf, needle, and monocot specimens with leaf areas between 2.5–12 cm², provided leaf thickness does not exceed 4 mm and petiole diameter permits secure chamber sealing. Chamber design minimizes boundary layer resistance and supports rapid equilibration (<60 s) for steady-state A/Ci and light-response protocols. All electronic modules comply with IEC 61000-4 electromagnetic compatibility standards. While not certified for GLP/GMP production environments, the system meets ASTM E2913-20 guidelines for educational instrumentation validation and supports audit-ready data export (CSV, Excel) with timestamped metadata. Firmware supports user-defined calibration routines aligned with ISO 17025 traceability frameworks when used with certified span gases.
Software & Data Management
Q-Box CO650 operates with Qubit’s proprietary Q-Box Control Suite (v4.x), a Windows-based application enabling real-time visualization, protocol scripting (light ramps, CO₂ steps, dark transitions), and automated curve fitting for A/PAR, A/Ci, and LCP derivation. Raw sensor streams are logged at full 100 kHz resolution and downsampled post-acquisition to preserve signal fidelity. Software enforces data integrity via embedded checksums, session-level encryption (AES-128), and optional 21 CFR Part 11-compliant audit trails (user login, parameter changes, calibration events). Export formats include CSV (with column headers and units), MATLAB (.mat), and PDF report templates compliant with undergraduate lab reporting standards.
Applications
- Undergraduate plant physiology laboratories: hands-on instruction in Farquhar-von Caemmerer-Berry model fundamentals, stomatal limitation analysis, and stress-induced photosynthetic inhibition
- Ecophysiology field studies: comparative assessments of C3/C4 species acclimation across elevational or moisture gradients
- Agricultural research: screening of cultivar-specific photosynthetic efficiency under controlled light and CO₂ treatments
- Environmental science courses: quantifying impacts of O₃, drought, or nutrient deficiency on quantum yield and carboxylation capacity
- Graduate thesis projects requiring portable, repeatable gas exchange data without access to high-end commercial systems
FAQ
What is the minimum leaf area required for reliable measurements?
A minimum exposed leaf area of 2.5 cm² is recommended to ensure signal-to-noise ratio >20:1 in CO₂ differential mode; smaller areas may be measured using extended averaging (≥60 s integration).
Can the system measure both CO₂ and H₂O vapor simultaneously?
Yes—the NDIR analyzer measures CO₂ concentration differentially across inlet/outlet ports, while integrated capacitive humidity sensors provide concurrent H₂O mole fraction data for transpiration rate calculation.
Is battery operation supported out-of-the-box?
A 12 V DC rechargeable lithium-ion battery pack is available as an optional accessory (Q-Box BATT-12), enabling >4 hours of continuous operation without AC power.
How often must the CO₂ analyzer be zeroed and span-calibrated?
Zero calibration is recommended before each experimental session using CO₂-scrubbed air; span calibration with certified 500 ppm NIST-traceable gas is advised every 30 days or after exposure to condensation or particulate contamination.
Does the software support automated light-curve generation?
Yes—Q-Box Control Suite includes preconfigured “Light Response” and “CO₂ Response” wizards that auto-step PAR intensity (0–2000 µmol·m⁻²·s⁻¹) or inlet CO₂ (50–2000 ppm) while logging steady-state assimilation rates and calculating derived parameters in real time.
