Rainin QuickFlow Lite Vacuum Liquid Aspiration System

Overview

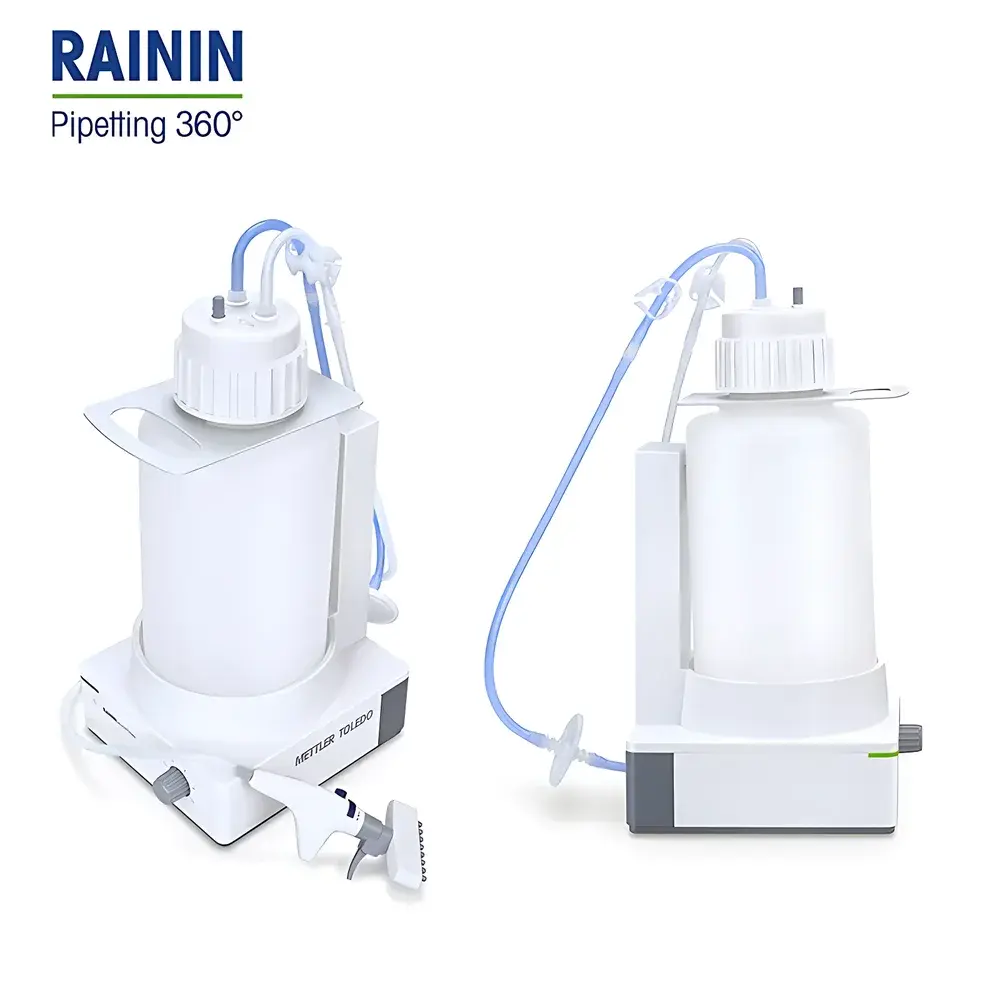

The Rainin QuickFlow Lite Vacuum Liquid Aspiration System is a benchtop, self-contained vacuum aspiration platform engineered for precision, ergonomic efficiency, and regulatory-compliant liquid removal in life science laboratories. Operating on controlled negative pressure principles, the system utilizes a built-in diaphragm vacuum pump to generate stable suction within the range of –20 kPa to –70 kPa—sufficient for gentle yet effective aspiration of culture media, supernatants, wash buffers, and lysates without disturbing sensitive cell monolayers or pelleted biomolecules. Unlike centralized vacuum systems requiring complex plumbing or foot-switch dependency, the QuickFlow Lite integrates pump, controller, and fluid path into a compact footprint (460 × 200 × 400 mm), enabling deployment in biosafety cabinets, laminar flow hoods, and shared core facilities without infrastructure modification. Its design adheres to ISO 9001–certified manufacturing standards and supports GLP/GMP-aligned workflows through traceable operation modes and cleanability validation.

Key Features

• Continuous-aspiration mode with adjustable vacuum intensity—eliminates repetitive button-pressing and reduces operator fatigue during extended protocols such as serial passaging or multi-well plate processing.
• Non-contact capacitive liquid level sensor integrated into the collection reservoir—automatically halts aspiration upon reaching preset fill thresholds, preventing overflow, cross-contamination, and pump damage.
• Modular adapter system supporting three interchangeable configurations: Pasteur pipette adapter, single-channel tip adapter, and 8-channel multichannel adapter—each engineered for secure, leak-free coupling with standard conical or universal-fit pipette tips (e.g., 10–1000 µL volume ranges).
• All fluid-contact components—including handpiece, silicone tubing, adapters, lid, and polypropylene reservoir—are autoclavable at 121°C for 20 minutes, complying with ISO 17664 for reprocessing of reusable laboratory equipment.

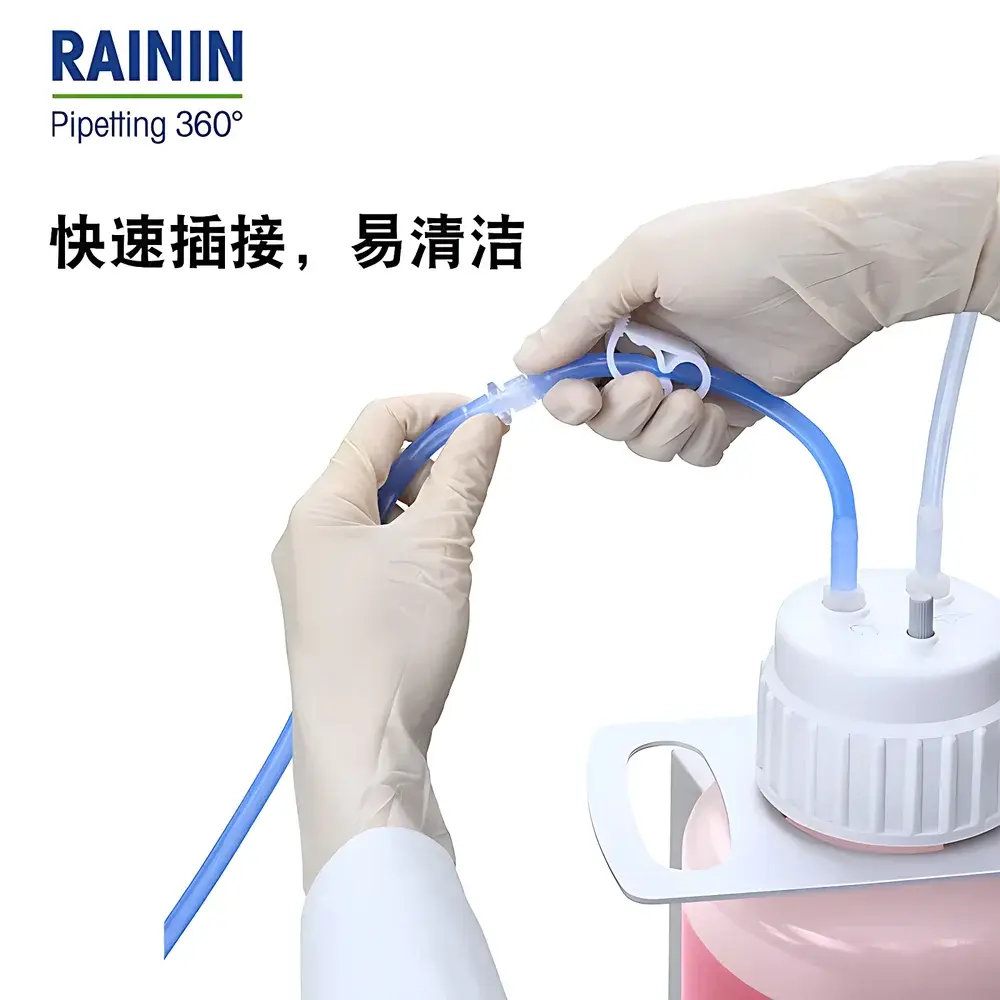

• Quick-release, self-sealing push-fit connectors enable tool-free disassembly and reassembly—facilitating rapid cleaning, visual inspection, and routine maintenance without specialized technicians.

Sample Compatibility & Compliance

The QuickFlow Lite accommodates a broad spectrum of biological and biochemical samples: adherent and suspension mammalian cell cultures, primary neuronal isolates, microbial pellets, clarified lysates, nucleic acid purification eluates, and protein-containing supernatants. It is validated for use with common lab consumables including borosilicate glass Pasteur pipettes, low-retention polypropylene tips, and sterile-filtered collection bottles. From a compliance standpoint, the system supports audit-ready documentation when used in regulated environments: its operational consistency aligns with ASTM E2656 (Standard Guide for Validation of Liquid Handling Devices), while its sterilization compatibility meets USP requirements for reusable devices in pharmaceutical development. Though not FDA 510(k)-cleared as a medical device, it conforms to IEC 61010-1 safety standards for electrical equipment used in laboratory settings.

Software & Data Management

The QuickFlow Lite operates via an embedded microcontroller with no external software dependency—ensuring deterministic response times and eliminating cybersecurity vulnerabilities associated with network-connected instruments. All operational parameters (vacuum setpoint, run duration, and aspiration mode) are configured using tactile membrane buttons and an LED status indicator. While the base model does not include digital logging or USB export, its consistent mechanical behavior enables integration into LIMS or ELN platforms via manual entry or barcode-scanned protocol referencing. For labs requiring electronic records, Rainin offers optional firmware-upgradable variants compliant with FDA 21 CFR Part 11 through third-party middleware solutions that capture timestamped event logs (e.g., start/stop, sensor trigger, error codes).

Applications

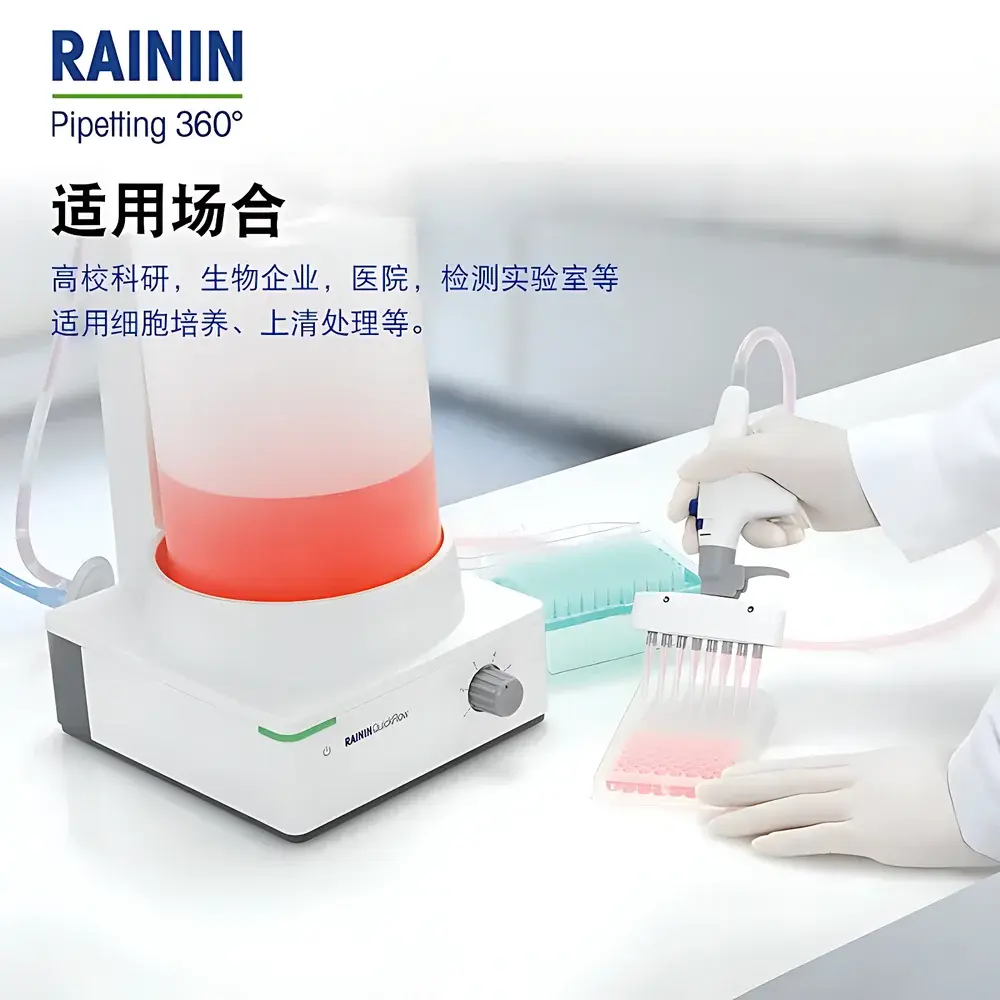

• Cell culture maintenance: removal of spent media from T-flasks, roller bottles, and multiwell plates without disrupting confluent monolayers.
• Nucleic acid and protein isolation workflows: aspiration of ethanol washes, binding buffers, and column flow-throughs in spin-column and magnetic bead-based kits.
• Histology and cytology sample preparation: gentle decanting of fixatives and staining solutions from tissue sections or cytospin preparations.
• Quality control testing: high-throughput aspiration of QC samples prior to HPLC, mass spectrometry, or enzymatic assay analysis.
• Educational laboratories: robust, intuitive platform for teaching sterile technique, vacuum physics fundamentals, and Good Laboratory Practice (GLP) principles.

FAQ

Can the QuickFlow Lite be connected to an existing central vacuum system?
Yes—the handpiece and adapter kit (sold separately) is compatible with standard 8–10 mm vacuum hose interfaces, allowing integration into facility-wide vacuum networks where local pump noise or heat dissipation must be minimized.
Is the reservoir volume specified in the technical documentation?
The standard polypropylene reservoir has a calibrated capacity of 1.5 L, marked with dual-scale graduations (mL and % fill) and designed for visual monitoring under BSC lighting conditions.
What maintenance intervals are recommended for the internal diaphragm pump?
Under typical usage (≤4 hrs/day, ambient temperature ≤30°C), Rainin recommends annual inspection of pump seals and carbon vanes; full pump service is advised every 24 months or after 5,000 operational hours, per manufacturer’s service bulletin QB-QL-2023-04.
Does the system support vacuum calibration verification?
Yes—users may verify vacuum output using a NIST-traceable digital manometer connected to the dedicated test port on the rear panel, with allowable deviation ±2 kPa across the operating range.
Are replacement adapters available as individual SKUs?
Yes—each adapter type (Pasteur, single-channel, 8-channel) carries a unique Rainin catalog number and is supplied with OEM-certified gaskets and alignment guides to ensure repeatable sealing performance.
