Rainin SmartCheck Pipette Verification System

Overview

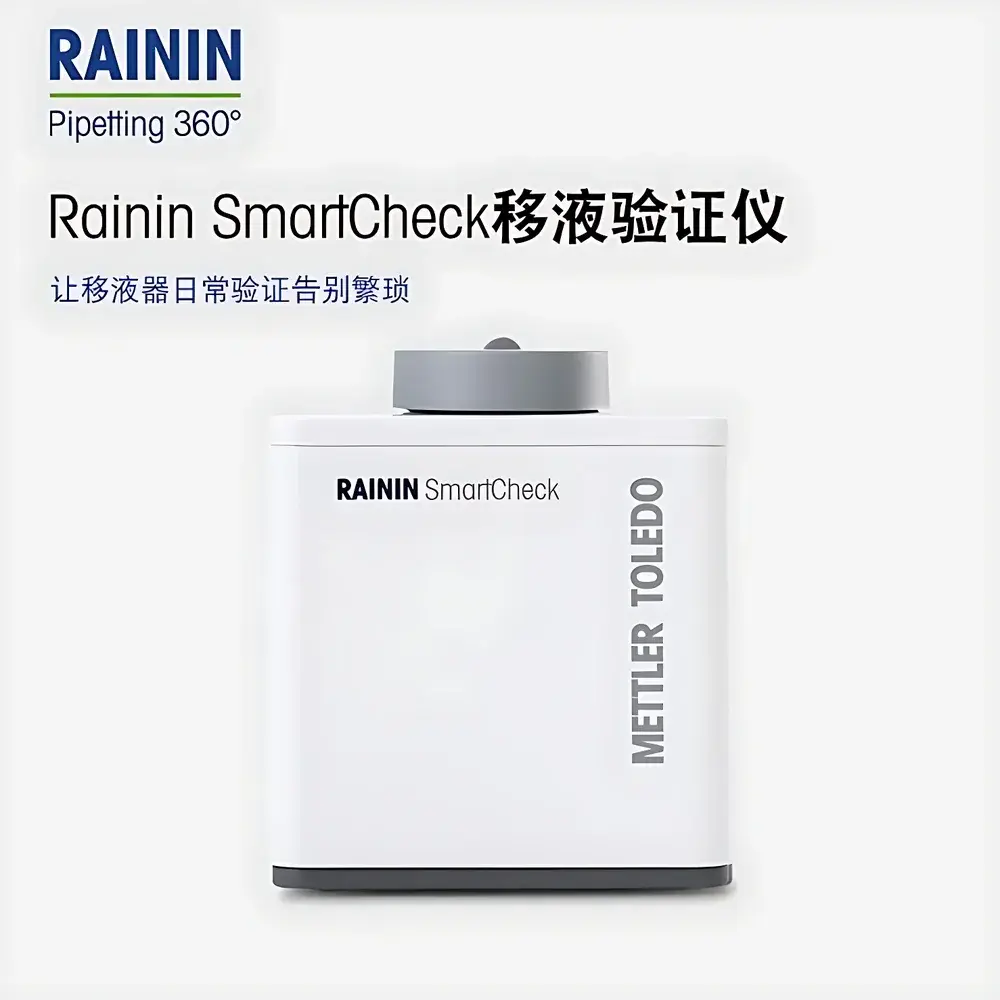

The Rainin SmartCheck Pipette Verification System is a compact, benchtop gravimetric verification instrument engineered for rapid, on-demand performance assessment of single-channel pipettes in the 10–1000 µL range. Unlike full calibration services requiring external labs or extended downtime, SmartCheck implements ASTM E2758-21 and ISO 8655-compliant weight-based volumetric verification—measuring dispensed mass of deionized water under controlled ambient conditions (temperature, humidity, air pressure) and converting it to volume using density correction algorithms. It delivers pass/fail determinations within 60 seconds per test sequence, supporting quality assurance workflows in GLP, GMP, and ISO/IEC 17025-accredited laboratories where traceable, auditable pipette performance documentation is mandatory.

Key Features

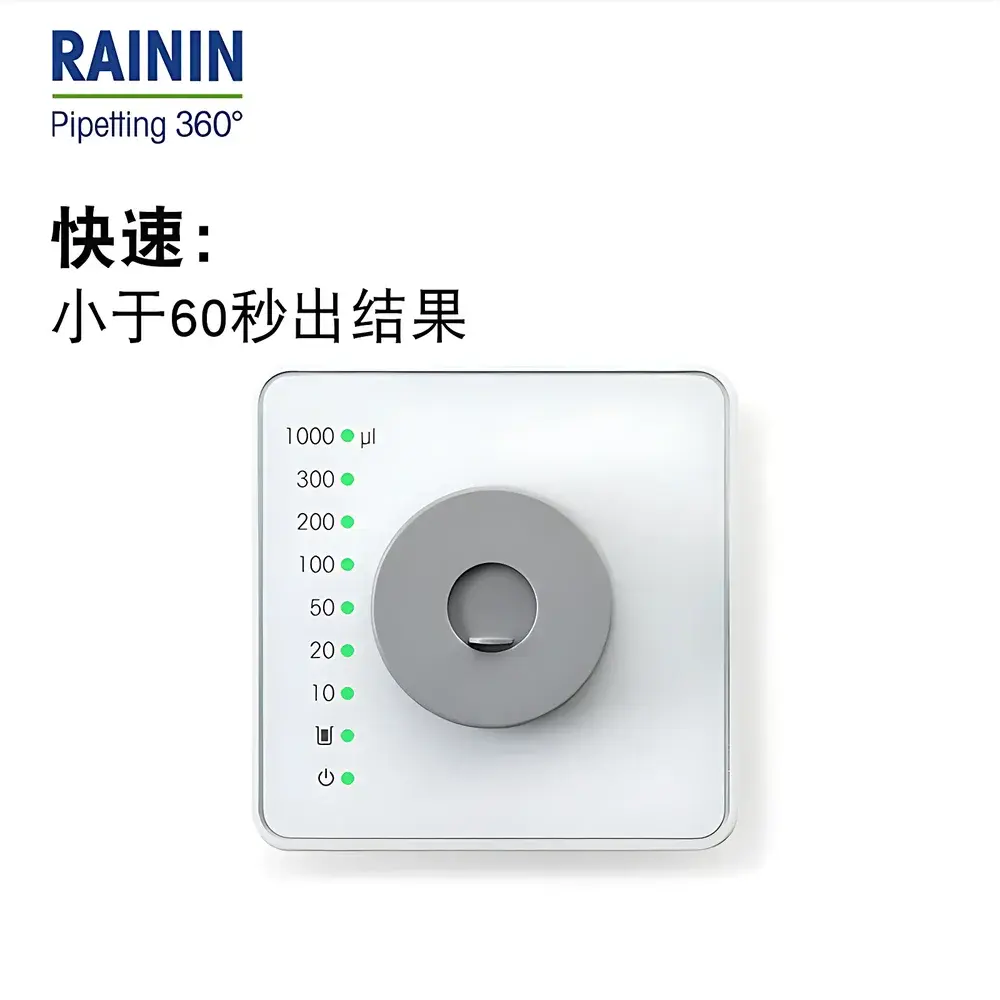

• Rapid verification cycle: Completes three replicate dispenses and statistical analysis in under 60 seconds per nominal volume setting.
• Gravimetric principle: Uses high-resolution analytical balance (integrated or external, per configuration) with real-time buoyancy and water density compensation per ISO 8655-6.
• Universal compatibility: Validates any brand of single-channel adjustable-volume pipette (10–1000 µL); supports individual channel verification for multi-channel units via sequential testing.
• Intuitive workflow guidance: On-screen prompts guide users through aspiration, dispensing, and result interpretation—minimizing operator dependency and training overhead.
• Pass/fail decision logic: Calculates both systematic error (bias) and random error (repeatability) across three replicates; compares against user-selectable tolerance limits aligned with ISO 8655 Annex B or internal SOPs.
• Traceability-ready: Generates timestamped verification records including ambient conditions, measured mass, calculated volume, error %, and final status—structured for export or direct integration with PipetteX software.

Sample Compatibility & Compliance

SmartCheck is validated exclusively for aqueous solutions with physical properties closely matching deionized water (density ≈ 0.9982 g/mL at 20 °C, surface tension ≈ 72.75 mN/m). It does not support viscous, volatile, or corrosive liquids. The system complies with key international standards governing liquid handling equipment verification, including ISO 8655-6 (gravimetric methods), ASTM E2758-21 (standard practice for pipette verification), and supports alignment with FDA 21 CFR Part 11 requirements when used with PipetteX software enabling electronic signatures and audit trails. All verification reports include metadata required for laboratory accreditation audits (e.g., ISO/IEC 17025 clause 6.4.10).

Software & Data Management

Verification data from SmartCheck are exported in CSV format or directly synchronized with Rainin’s PipetteX software—a validated desktop application designed for comprehensive pipette lifecycle management. PipetteX enables centralized storage of verification history, automatic generation of compliance reports (including trend analysis and out-of-tolerance alerts), and integration with enterprise LIMS or QMS platforms via standard APIs. Audit trail functionality meets GLP/GMP documentation requirements, recording user identity, action timestamps, data modifications, and reason-for-change entries. Optional SmartCheck Functional Test Kit (sold separately) allows periodic system suitability verification using certified reference weights and calibrated water volumes—ensuring ongoing instrument integrity between third-party calibrations.

Applications

• Routine pre-use verification prior to critical assays (e.g., qPCR, ELISA, cell culture media preparation) to prevent sample loss or data invalidation.
• Root cause analysis during troubleshooting of inconsistent assay results—distinguishing pipette inaccuracy from reagent or protocol issues.
• Operator competency assessment and technique training: Visual feedback and immediate pass/fail output reinforce proper pipetting mechanics (e.g., tip immersion depth, plunger speed, pause timing).
• Supporting ISO 15189 and CAP accreditation requirements for clinical laboratories by providing documented evidence of pipette performance at point-of-use.
• Reducing reliance on outsourced calibration services for non-critical applications—extending calibration intervals while maintaining confidence in measurement reliability.

FAQ

What volume ranges can SmartCheck verify?
SmartCheck is validated for single-channel pipettes operating between 10 µL and 1000 µL. While the device accepts dispenses up to 10 mL for functional checks, official verification claims apply only within the 10–1000 µL range per ISO 8655-6.

Does SmartCheck require external calibration?
Yes—the integrated or connected analytical balance must be calibrated regularly per manufacturer specifications and ISO/IEC 17025 requirements. Rainin recommends daily zeroing and weekly calibration using certified Class E2 or better weights.

Can SmartCheck verify positive-displacement pipettes?
No. SmartCheck is designed exclusively for air-displacement pipettes. Positive-displacement systems require alternative verification approaches due to fundamental differences in fluid mechanics and error sources.

Is ambient condition monitoring built-in?
SmartCheck does not include embedded environmental sensors. Users must record ambient temperature, humidity, and barometric pressure manually or via external logging devices to ensure accurate density correction during volume calculation.

How often should the SmartCheck Functional Test Kit be used?
Rainin recommends performing system suitability verification with the Functional Test Kit at least once per week—or before each day’s first verification session—in high-throughput or regulated environments.
