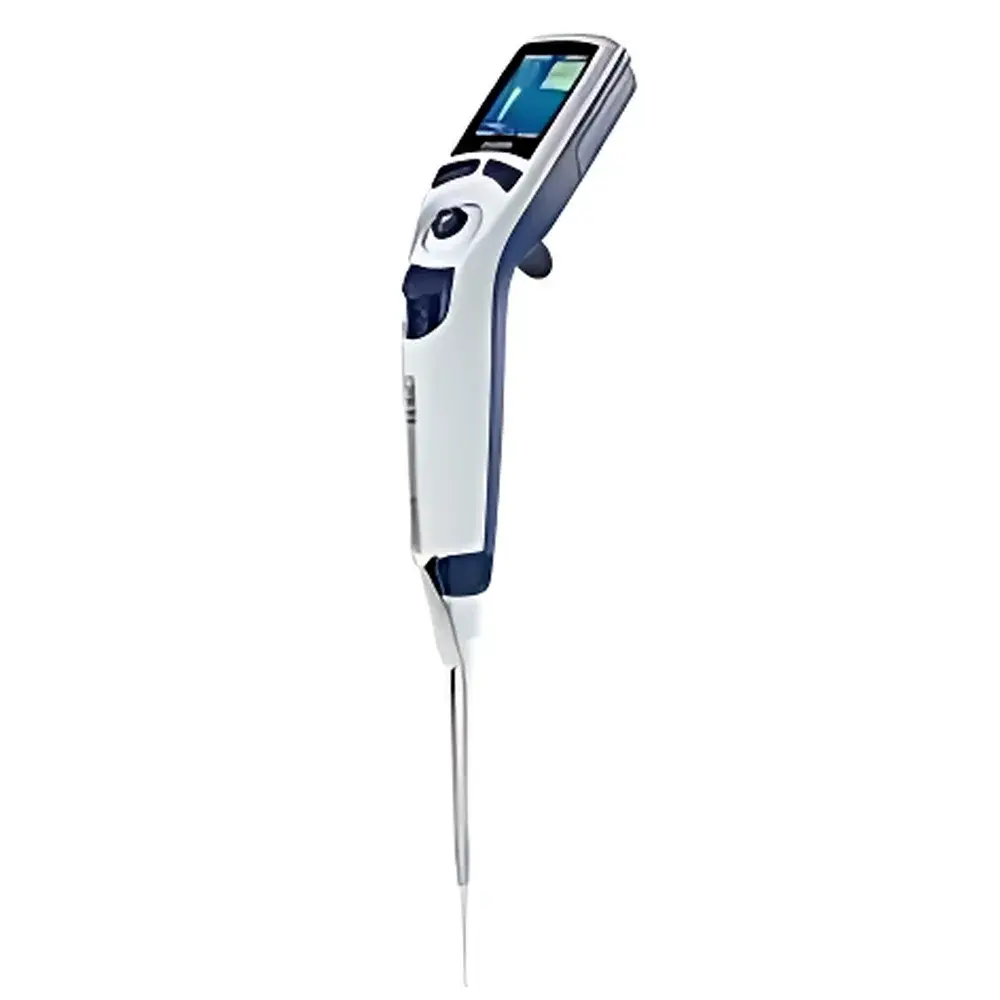

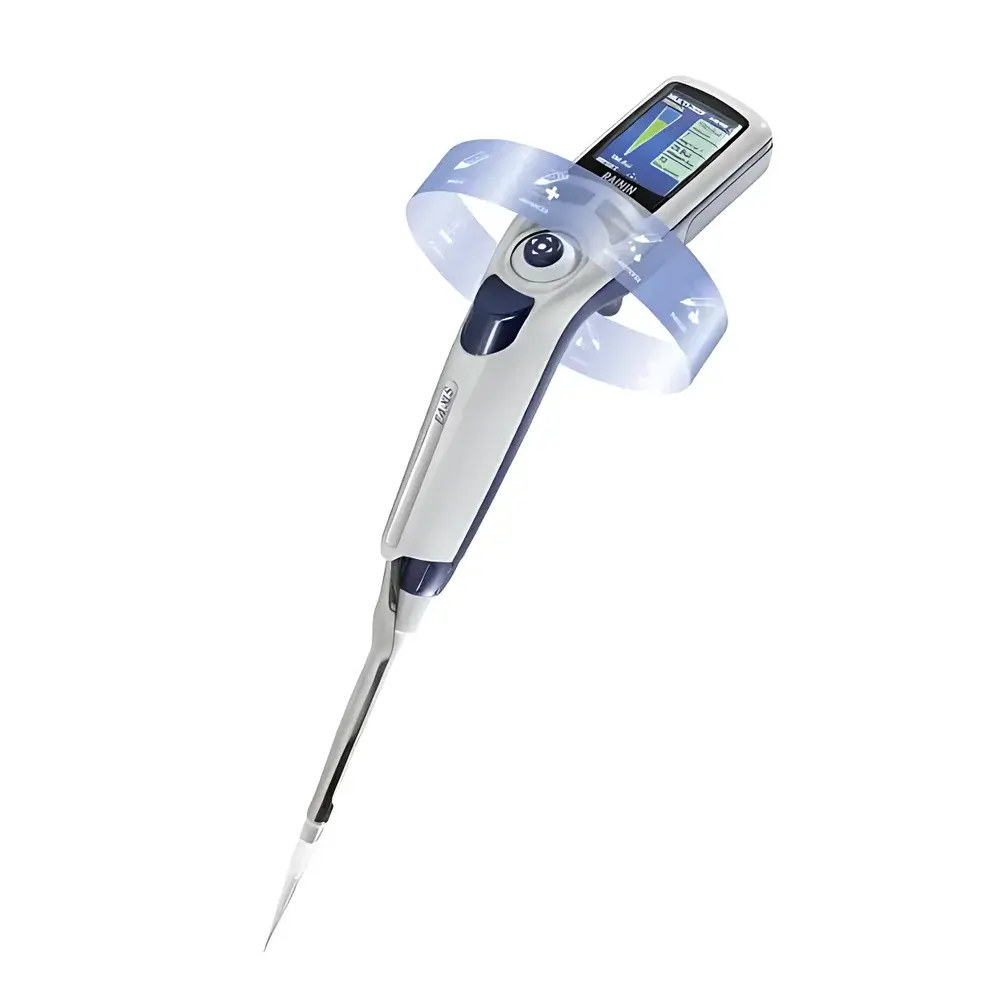

Rainin XLS E4 Electric Single-Channel Pipette

Overview

The Rainin XLS E4 Electric Single-Channel Pipette is an ISO 9001-certified precision liquid handling instrument engineered for high-reproducibility pipetting across academic, clinical, pharmaceutical, and industrial laboratories. Built on a robust electromechanical architecture, the E4 employs closed-loop stepper motor control with 4000 microstep resolution to deliver consistent aspiration and dispensing performance across its full volume range—from sub-microliter (0.5 µL) to 20 mL—without mechanical recalibration. Its operation is grounded in gravimetric displacement principles compliant with ISO 8655-2 (volumetric accuracy verification) and aligned with GLP/GMP documentation requirements. Unlike manual or basic electronic pipettes, the XLS E4 integrates real-time flow-rate modulation, independent control of aspirate/dispense/blow-out speeds, and programmable pause intervals—enabling precise handling of viscous, volatile, foaming, or temperature-sensitive samples. The device is manufactured in the United States and distributed globally under Mettler Toledo’s quality management system.

Key Features

• Intuitive 3.5-inch 16-bit color TFT touchscreen with graphical user interface (GUI), supporting contextual help prompts and dynamic mode visualization
• Ergonomic joystick navigation combined with soft-touch keypad for rapid access to all functions—including pipetting direction reversal, continuous dispensing, dilution series, titration, mixing, and volumetric measurement
• Programmable multi-step protocols: users define up to 99 steps per method, each with independent volume, speed, tip touch-off, and delay parameters
• RFID-enabled asset management: embedded tag stores serial number, calibration history, service logs, and user-defined identifiers for integration with LIMS or laboratory inventory systems
• USB-based firmware update capability ensures long-term compatibility with evolving regulatory software standards (e.g., FDA 21 CFR Part 11 audit trail readiness)
• Lithium-ion battery with intelligent charge management; fully recharges in ≤60 minutes via optional 3-position rapid charging station
• Two LTS tip engagement options: cylindrical (for universal compatibility) or conical (for enhanced seal integrity with low-retention tips)

Sample Compatibility & Compliance

The XLS E4 supports reliable liquid transfer across diverse sample classes—including aqueous buffers, glycerol-rich solutions (up to 70% v/v), ethanol/water mixtures, cell suspensions, and cold (4 °C) or pre-warmed (37 °C) reagents—through adjustable aspiration/dispense kinetics and optimized blow-out algorithms. Its design conforms to ISO 8655-5 (performance testing of electronic pipettes) and meets the mechanical durability requirements of IEC 61000-4-2 (ESD immunity). Calibration traceability follows NIST standards, and factory certification reports include gravimetric test data per ISO 8655-6. For regulated environments, the instrument supports configurable user authentication, electronic signature capture, and timestamped audit logs—facilitating compliance with USP <1058>, CLIA, and EU Annex 11 expectations.

Software & Data Management

While the XLS E4 operates autonomously via onboard memory (storing ≥20 user-defined methods), it interfaces seamlessly with Rainin’s free LiteLink software for advanced protocol development, remote firmware deployment, and centralized device monitoring. LiteLink exports CSV-formatted usage logs—including cycle count, error codes, and calibration timestamps—for integration into ELN platforms. All data exchanges occur over encrypted USB HID protocol; no cloud dependency is required. For enterprise deployments, the RFID tag enables automated check-in/check-out workflows within asset-tracking databases, reducing manual reconciliation effort during internal audits.

Applications

The XLS E4 serves as a primary pipetting platform in molecular biology (qPCR setup, NGS library prep), clinical diagnostics (serum dilution, ELISA plate filling), biopharmaceutical QC (potency assays, formulation stability testing), and academic research (enzyme kinetics, high-throughput screening). Its continuous dispensing mode supports uniform coating of microplates or biosensor surfaces; reverse pipetting enhances accuracy for protein solutions and surfactant-containing reagents; and programmable mixing cycles improve homogeneity in viscous master mixes. Universities and public health labs rely on its multilingual interface and intuitive learning curve to reduce operator training time and minimize inter-user variability.

FAQ

Does the XLS E4 support 21 CFR Part 11-compliant electronic records?

Yes—the device generates timestamped, immutable audit trails for all critical events (e.g., calibration, method edits, firmware updates) when used with LiteLink and configured user roles.

Can I use standard non-LTS tips with the XLS E4?

No—only Rainin LTS (Low Retention Technology) tips are mechanically and functionally validated for optimal sealing, accuracy, and longevity.

What is the recommended recalibration interval?

Per ISO 8655-7, annual calibration is advised; however, frequency should be risk-assessed based on usage intensity, application criticality, and internal SOPs.

Is the rapid charger compatible with all XLS E4 models?

Yes—the same 3-position charging station supports all volume variants, including the 10 mL and 20 mL configurations.

How does the joystick enhance ergonomics compared to button-only interfaces?

The tactile, low-force joystick reduces finger fatigue during extended pipetting sessions and allows one-handed mode navigation without visual fixation—supporting ISO 10075-3 ergonomic guidelines.
