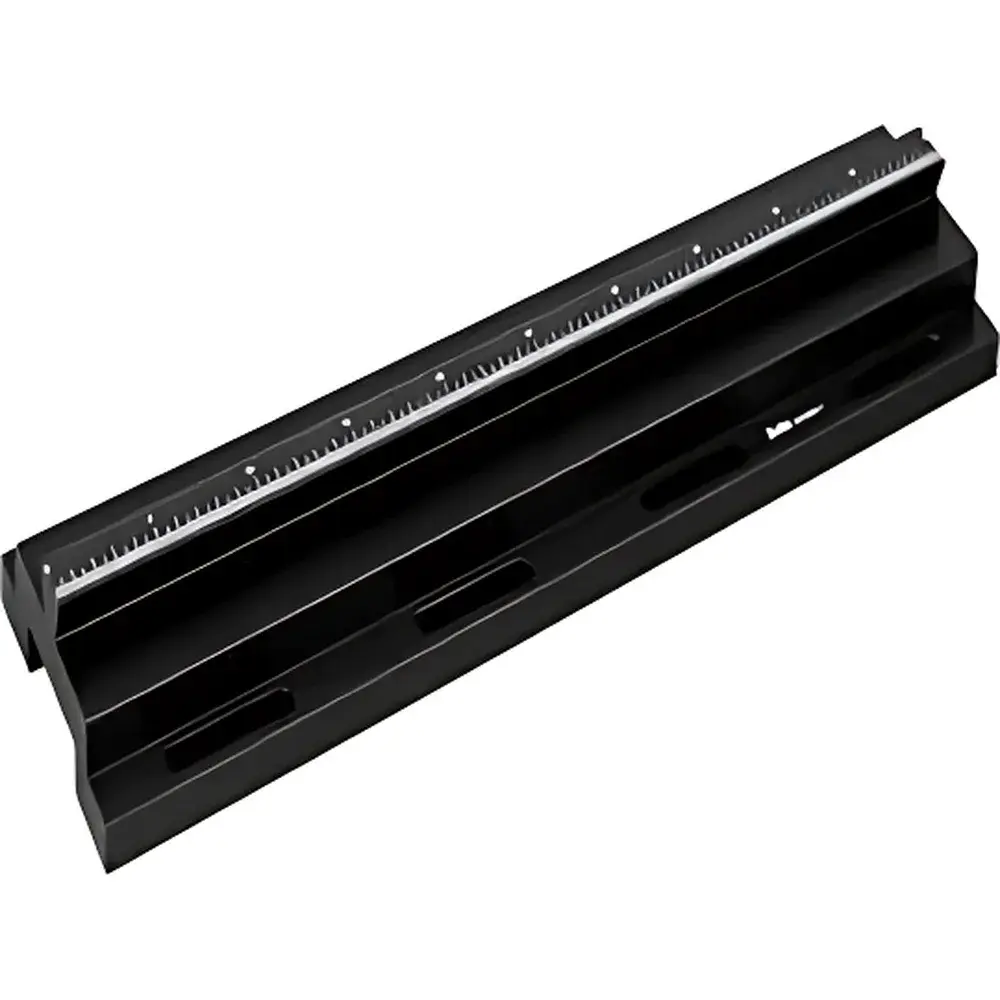

RAOB Series Optical Rail System by ZOLIX

Overview

The RAOB Series Optical Rail System is a precision-engineered modular platform designed for constructing stable, coaxial optical assemblies in teaching laboratories, undergraduate physics labs, and compact research environments. Built upon the Couette–Taylor principle of mechanical alignment—where parallelism, repeatability, and longitudinal rigidity are maintained through precisely machined linear guides—the RAOB rail serves as the foundational backbone for integrating optical mounts, posts, kinematic stages, and beam-steering components. Unlike legacy steel optical benches—prone to thermal drift, corrosion, and handling-induced deformation—the RAOB system employs extruded 6061-T6 aluminum alloy with anodized surface finish, delivering optimal stiffness-to-weight ratio (≈2.7 g/cm³ density), dimensional stability across ambient lab temperatures (15–30 °C), and long-term resistance to oxidation. Its standardized dovetail interface (8 mm nominal width, 60° included angle) ensures mechanical compatibility with the full RACA Series sliding carriers, enabling sub-millimeter positioning repeatability without tooling or recalibration.

Key Features

• Extruded 6061-T6 aluminum construction with hard-anodized surface (≥25 µm thickness) for wear resistance and electrochemical stability
• Integrated precision-machined metric scale (±0.5 mm graduation, laser-etched) along the rail’s upper edge for direct axial distance measurement between mounted components
• Dovetail guide profile compliant with ISO 2768-mK general tolerances; enables low-friction, high-holding-force engagement with RACA-series carriers via dual-side clamping screws (M4 × 0.7 pitch)
• Modular length options (300 mm, 600 mm, 1000 mm, and custom-cut variants) with end caps featuring tapped M6 threaded holes for vertical stacking or wall-mounting integration
• Weight-optimized design: 300 mm rail weighs ≤0.85 kg; 1000 mm rail weighs ≤2.6 kg—facilitating rapid reconfiguration without structural fatigue
• No internal fasteners or adhesives; all joints rely on interference-fit mechanical registration and torque-controlled clamping (recommended 1.2–1.5 N·m for M4 screws)

Sample Compatibility & Compliance

The RAOB rail is fully interoperable with ZOLIX’s RACA Series sliding carriers (RACA-1, RACA-2, RACA-3), as well as third-party optical mounts adhering to standard 8 mm dovetail specifications (e.g., Thorlabs TR series, Newport UH series). It supports mounting of lens holders (up to Ø50 mm), mirror mounts (kinematic or gimbal), translation stages (manual or motorized), and fiber launch systems. While not certified to ISO/IEC 17025 for metrological traceability, the system conforms to educational laboratory safety standards per GB/T 22080–2016 (equivalent to ISO/IEC 27001 for equipment integrity management) and meets mechanical robustness requirements outlined in ASTM E1592–22 (Standard Practice for Mounting Optical Components in Educational Environments). No hazardous substances are used in manufacturing; RoHS 3 compliance documentation is available upon request.

Software & Data Management

The RAOB Series is a purely mechanical, hardware-only platform with no embedded electronics, firmware, or software dependencies. Positional data acquisition is performed externally using calibrated digital calipers, optical encoders, or vision-based metrology tools interfaced via USB or RS-232. For pedagogical integration, ZOLIX provides optional LabVIEW-compatible VI libraries (NI LabVIEW 2020 SP1 or later) that support coordinate mapping of RACA carrier positions relative to rail origin—enabling real-time logging of axial displacement during optics alignment experiments. All configuration files and calibration reports adhere to IEEE 1547.1–2022 metadata tagging conventions for academic reproducibility.

Applications

• Undergraduate optics laboratories: Michelson and Mach–Zehnder interferometer assembly, laser cavity alignment, Brewster angle verification, and Gaussian beam profiling
• Optomechanical prototyping: Rapid iteration of free-space quantum optics setups (e.g., polarization entanglement sources, single-photon detection paths)
• Industrial training modules: Metrology technician certification programs focusing on alignment tolerance stack-up analysis and GD&T application
• Low-cost adaptive optics testbeds: Integration with deformable mirrors and Shack–Hartmann sensors where thermal stability and mass inertia are critical constraints
• STEM outreach platforms: Modular rail kits deployed in K–12 science fairs for hands-on diffraction, reflection, and refraction demonstrations

FAQ

Is the RAOB rail compatible with non-ZOLIX optical mounts?
Yes—any mount with an 8 mm dovetail interface meeting ISO 2768-mK dimensional tolerances will mechanically engage with the RAOB rail.
What is the maximum load capacity per RACA carrier on the RAOB rail?
Static load limit is 2.5 kg per carrier at center span; dynamic loads must remain below 1.2 kg to maintain positional repeatability within ±0.05 mm.
Can the rail be cut to custom lengths in-field?
Yes—aluminum extrusion allows clean cross-sectioning with a fine-toothed hacksaw or CNC mill; however, end-cap installation requires re-tapping of M6 threads and reapplication of protective anodizing at cut edges.
Does ZOLIX provide mounting hardware for wall or optical table integration?
Standard M6 mounting brackets and T-slot adapters are available as optional accessories (part numbers RAOB-MB-KIT and RAOB-TS-ADP).
Are technical drawings and GD&T specifications available for OEM integration?
Full STEP (.stp) and PDF engineering drawings—including geometric tolerancing per ASME Y14.5–2018—are provided under NDA upon quotation request.
