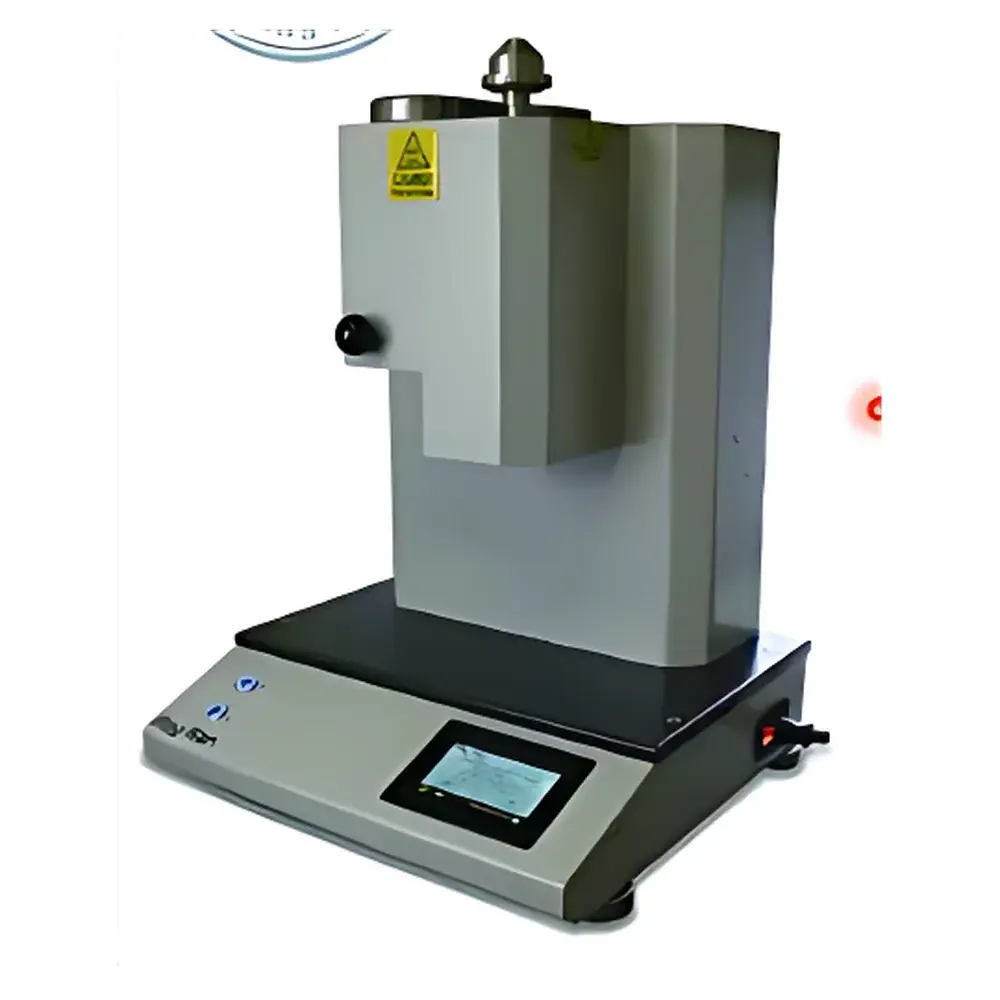

Ray-Ran MFR200 Automatic Cut-Off Melt Flow Indexer

Overview

The Ray-Ran MFR200 Automatic Cut-Off Melt Flow Indexer is a precision-engineered instrument designed for the quantitative determination of melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastic polymers under standardized thermal and mechanical conditions. Based on the fundamental principle of extrusion rheometry—where molten polymer is forced through a calibrated capillary die under controlled temperature and defined dead-load—this indexer delivers high reproducibility in compliance with ASTM D1238 (Method A and B), ISO 1133-1 (gravimetric) and ISO 1133-2 (volumetric), as well as GB/T 3682. Its integrated microprocessor-controlled timing system eliminates operator-dependent variability in cut-off initiation, directly addressing one of the most significant sources of measurement uncertainty in traditional manual MFI testing.

Key Features

• Automated cut-off mechanism with programmable timing resolution of ±0.1 s, enabling precise sample extrusion duration control per ISO 1133-1 Clause 7.3;
• Self-contained microprocessor unit with embedded MFR/MVR calculation algorithms—no external PC or software required for basic operation;
• Ergonomic front-panel black release button for rapid, tool-free orifice removal, minimizing downtime during cleaning or die changeovers;
• Quick-swap barrel assembly design supporting both non-corrosive (standard brass/steel) and corrosion-resistant (Inconel-lined) configurations for testing halogenated or filled polymers;
• Optional pneumatic weight loading system delivering consistent, vibration-damped force application up to 11 bar (equivalent to 21.6 kgf), eliminating manual weight placement errors and improving repeatability across multi-operator environments;
• Pneumatic loader doubles as a mechanical cleaning aid when used with optional barrel-cleaning attachments, facilitating residue removal without thermal cycling;
• Digital PID temperature controller with ±0.2 °C stability over full operating range (ambient to 450 °C), verified per ASTM E220 calibration traceability requirements.

Sample Compatibility & Compliance

The MFR200 accommodates a broad spectrum of thermoplastic resins—including polyethylene (PE), polypropylene (PP), polycarbonate (PC), ABS, PET, POM, and engineering-grade composites containing glass fiber, carbon filler, or flame retardants. Its modular barrel and orifice system allows seamless transition between standard (2.095 mm × 8.00 mm) and alternative geometries (e.g., 1.05 mm orifice for high-viscosity grades), ensuring method flexibility across material families. All operational parameters—including soak time, preheat duration, piston displacement, and cut-off interval—are fully configurable to satisfy both routine QC protocols and R&D-grade method development. The instrument’s architecture supports GLP-compliant documentation workflows when paired with optional audit-trail-enabled software modules compliant with FDA 21 CFR Part 11 requirements.

Software & Data Management

While standalone operation requires no computer connection, the MFR200 is compatible with Ray-Ran’s optional MeltFlow Pro software suite. This Windows-based application provides automated data logging, real-time extrudate mass tracking, statistical process control (SPC) charting (X̄–R, Cp/Cpk), and export to CSV, PDF, or LIMS-ready XML formats. All test records include timestamped metadata: operator ID, ambient humidity/temperature, calibration certificate IDs, and instrument firmware version—enabling full traceability for internal audits or regulatory submissions under ISO/IEC 17025 or IATF 16949 frameworks.

Applications

The MFR200 serves critical functions across polymer manufacturing, compounding, quality assurance, and academic research laboratories. It is routinely deployed for incoming raw material verification, batch-to-batch consistency monitoring, degradation assessment after extrusion or injection molding cycles, and correlation studies linking MFR values to mechanical performance (e.g., tensile strength vs. flow index). In R&D settings, its programmable cut-off and dual-load capability support advanced characterization such as shear-rate sweeps (via variable dwell times) and comparative thermal stability analysis across multiple temperature setpoints.

FAQ

Does the MFR200 comply with ISO 1133-2 for volumetric flow rate (MVR) measurements?
Yes—the instrument includes a calibrated piston displacement sensor and integrated temperature-compensated volumetric calculation engine, fully aligned with ISO 1133-2 Annex A.
Can the pneumatic loader be retrofitted to an existing MFR200 unit?
Yes—Ray-Ran offers field-installable upgrade kits including solenoid valves, pressure regulators, and mounting hardware, with factory recalibration included.
What maintenance intervals are recommended for the orifice and barrel?
Daily visual inspection and post-test cleaning with brass brushes and specified solvents; dimensional verification via optical comparator every 200 test cycles or quarterly—whichever occurs first.
Is NIST-traceable calibration documentation provided with shipment?
Each unit ships with a UKAS-accredited calibration certificate covering temperature uniformity, timer accuracy, and load cell linearity, valid for 12 months from date of issue.
How does the automatic cut-off improve repeatability compared to manual timing?
By removing human reaction latency (typically 0.2–0.5 s variability), the system reduces standard deviation in triplicate MFR results by ≥35% under identical test conditions, as verified per ISO 5725-2 interlaboratory studies.
