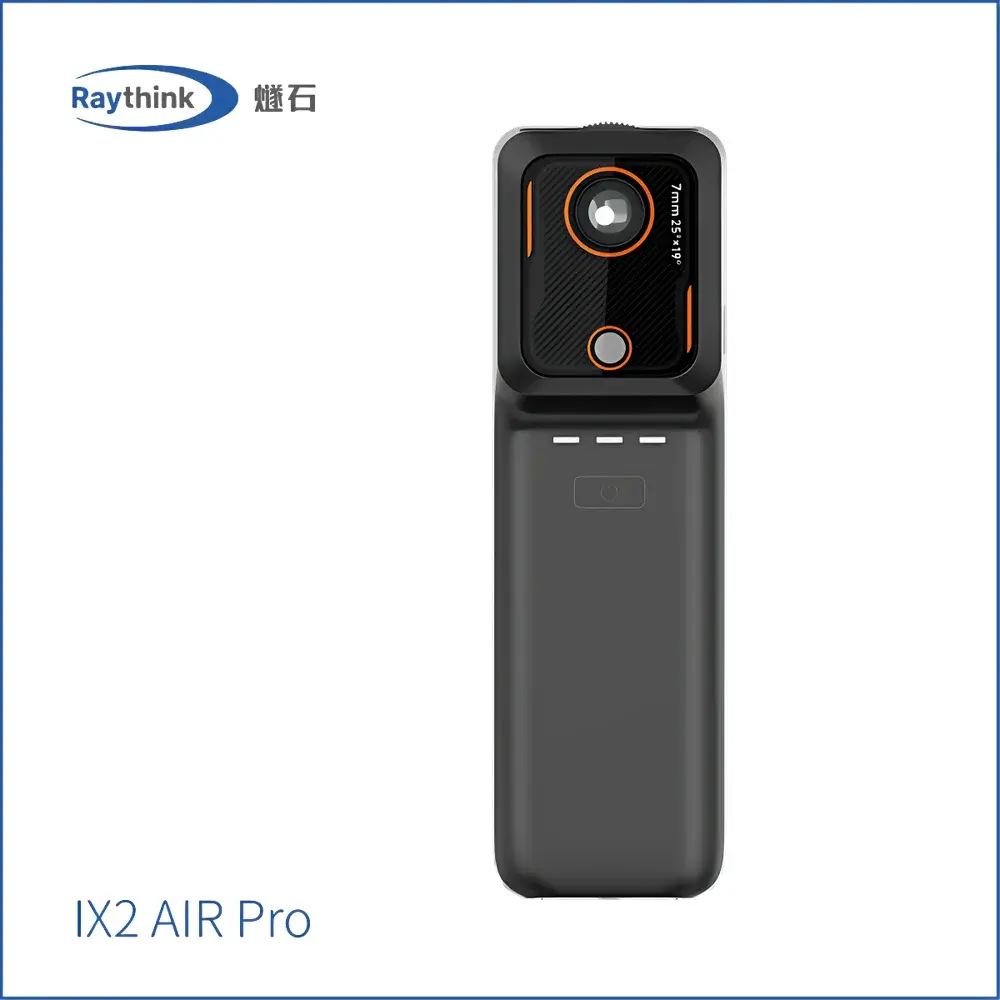

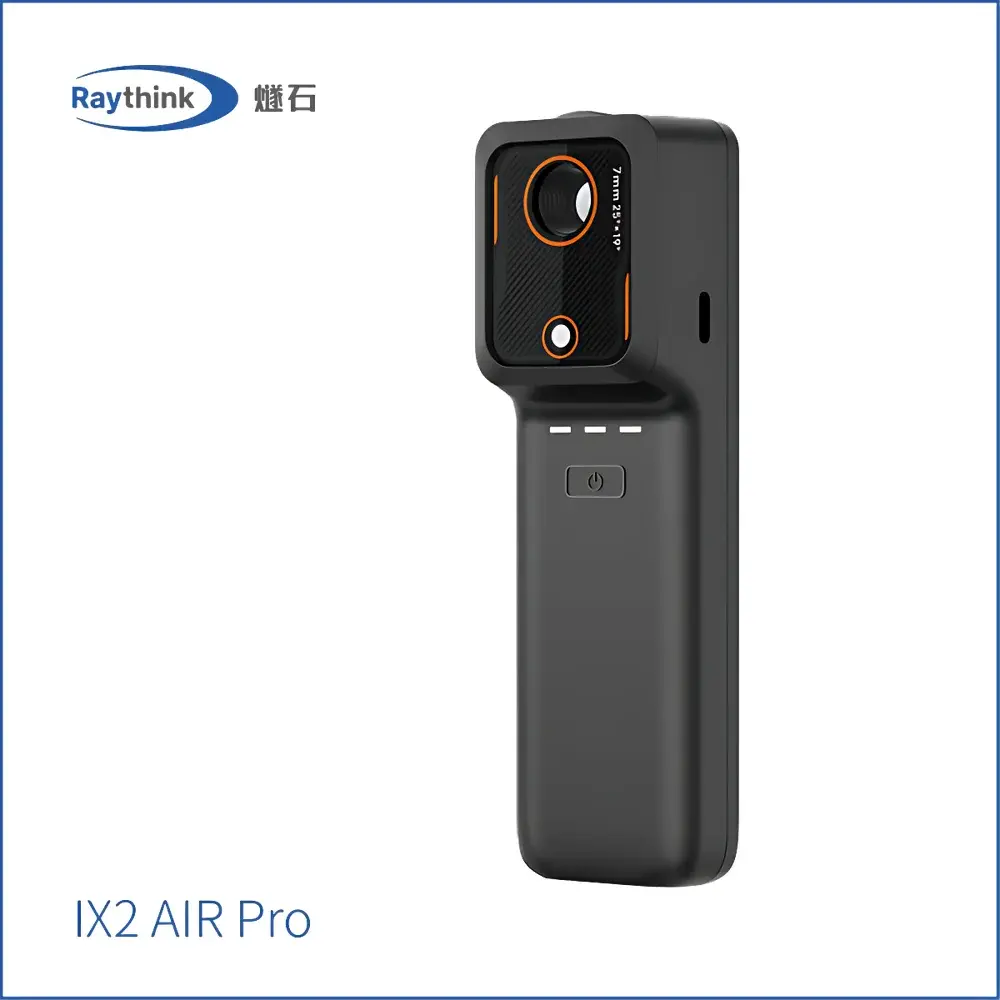

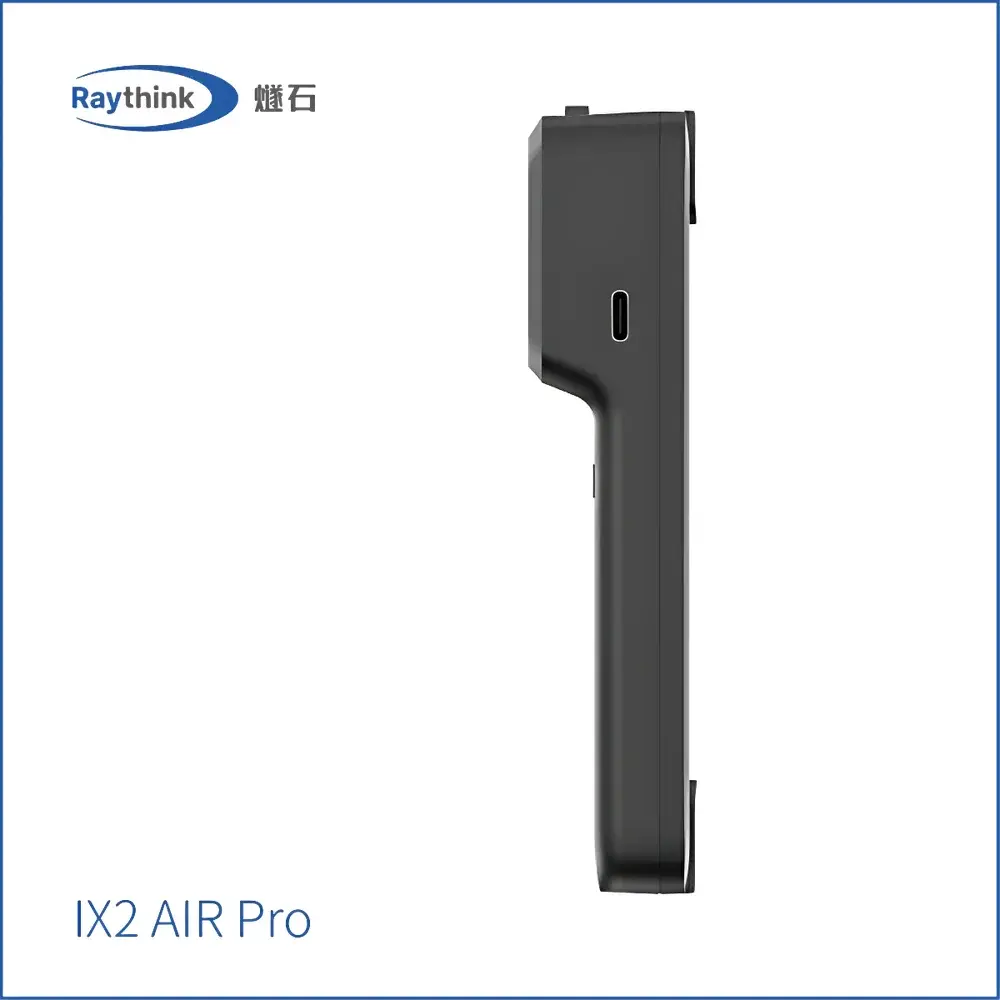

Raythink IX2 AIR Pro Wireless Smartphone Infrared Thermal Imaging Camera

Overview

The Raythink IX2 AIR Pro is a compact, wireless smartphone-integrated infrared thermal imaging camera engineered for field-deployable temperature diagnostics and qualitative thermal mapping. It employs an uncooled vanadium oxide (VOx) microbolometer detector operating in the long-wave infrared (LWIR) spectral band (7.5–14 µm), enabling passive, non-contact surface temperature measurement without external cooling or calibration drift concerns. Designed for industrial maintenance, building envelope inspection, electrical distribution monitoring, HVAC commissioning, and R&D prototyping, the IX2 AIR Pro delivers laboratory-grade thermal contrast sensitivity (NETD <40 mK) and real-time radiometric imaging at 25 Hz—sufficient for capturing dynamic thermal transients in rotating machinery, energized components, or thermal leakage events. Its core architecture prioritizes interoperability: native integration with iOS and Android smartphones via low-latency Wi-Fi Direct ensures seamless image acquisition, annotation, and on-device analysis—eliminating reliance on proprietary hardware or tethered configurations.

Key Features

• Uncooled VOx microbolometer detector with 256 × 192 native IR resolution, enhanced in real time to 512 × 384 via on-device AI super-resolution algorithms—preserving spatial fidelity without interpolation artifacts.

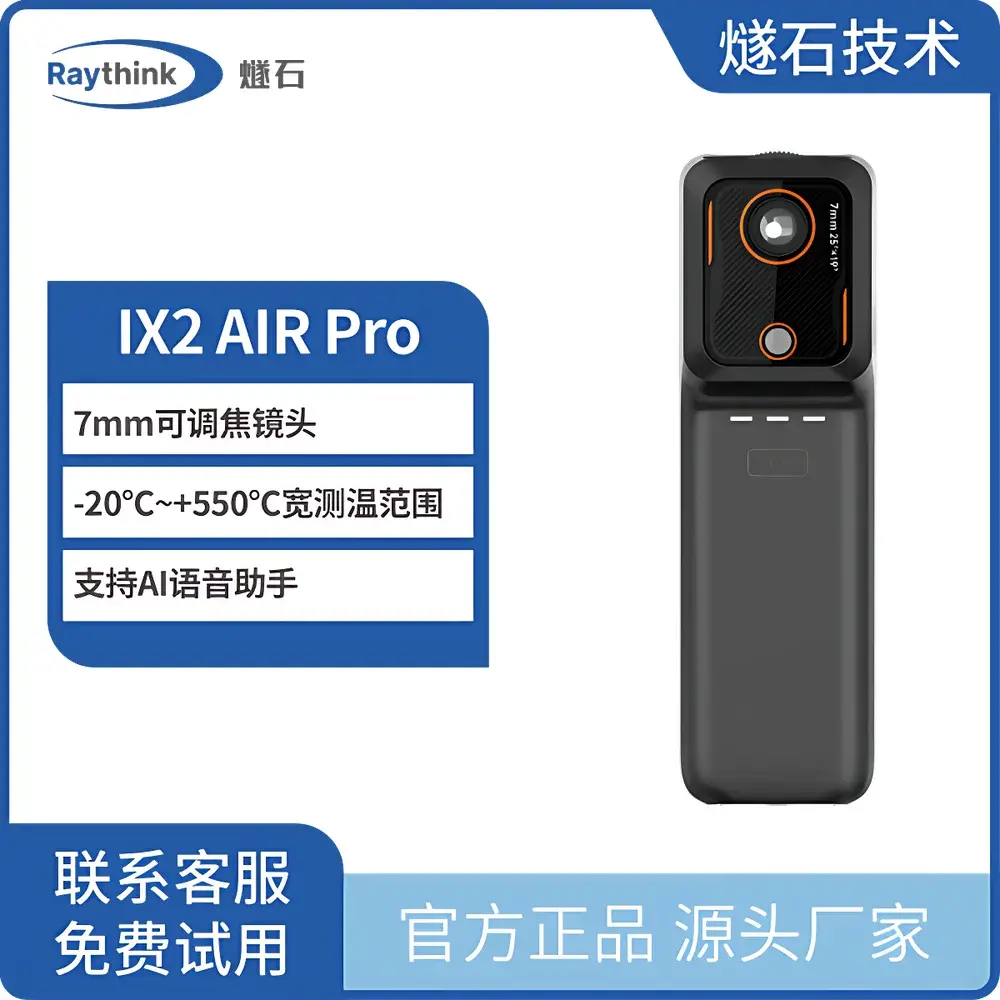

• Manual 7 mm focal length lens optimized for working distances from 0.3 m to ∞, supporting both macro thermal inspection and wide-field scanning.
• Low-latency wireless transmission (≤300 ms end-to-end delay) over 2.4 GHz Wi-Fi Direct, enabling stable video streaming up to 30 meters in open environments—ideal for confined-space or elevated inspections where physical tethering is impractical.
• Radiometric accuracy certified to ±2% of reading or ±2 °C (whichever is greater), traceable to NIST-traceable blackbody sources; emissivity compensation (0.01–1.00 adjustable in 0.01 increments) and reflected apparent temperature correction integrated into capture workflow.
• Built-in voice interface compliant with ISO/IEC 22176-1 for command-driven operation—supporting hands-free activation of spot measurements, area statistics, palette switching, and image capture via predefined thermal analysis phrases.

Sample Compatibility & Compliance

The IX2 AIR Pro is compatible with any surface emitting within the LWIR band, including metals, composites, ceramics, polymers, and biological tissues—provided appropriate emissivity values are applied. It complies with IEC 62906-5-2:2019 (infrared imaging systems – performance testing) and meets CE marking requirements under the EU Electromagnetic Compatibility Directive 2014/30/EU and RoHS 2011/65/EU. While not classified as a medical device per FDA 21 CFR Part 801, its radiometric output adheres to ASTM E1933-19 standards for infrared thermography system characterization. Data export formats (including .csv, .jpg with embedded radiometric metadata, and proprietary .rth format) support audit-ready documentation for ISO 55001 asset management or ISO 9001 quality system integration.

Software & Data Management

The Raythink Thermal Studio platform—available as native iOS/Android apps and Windows desktop software—provides full radiometric data handling: multi-point temperature trending, isotherm masking, delta-T analysis, customizable reporting templates (PDF/Excel), and batch processing of time-series thermal video. All captured frames retain full 14-bit radiometric data; no compression-induced loss of quantitative integrity. The software implements role-based user access control, encrypted local storage, and optional cloud synchronization with TLS 1.2 encryption. Audit trails log all parameter changes, annotations, and export actions—meeting GLP/GMP documentation expectations for regulated industrial QA/QC environments. Firmware updates are delivered OTA with SHA-256 signature verification.

Applications

• Electrical infrastructure: Detection of loose connections, overloaded circuits, and failing breakers via comparative thermal profiling under load.
• Building science: Identification of thermal bridging, insulation voids, moisture ingress, and air leakage pathways per ASTM C1060 and ISO 6781-3.
• Mechanical systems: Monitoring bearing temperatures, motor windings, heat exchanger fouling, and steam trap functionality during operational runtime.
• Product development: Qualitative thermal validation of PCB layout, battery thermal management systems, and enclosure airflow design.
• Fire safety: Rapid identification of smoldering hotspots behind walls or in ceiling cavities prior to flame ignition.

FAQ

Is the IX2 AIR Pro suitable for quantitative thermography in compliance with ISO 18436-7?
Yes—the device provides calibrated radiometric output traceable to blackbody references, supports emissivity and atmospheric correction inputs, and exports raw temperature matrices for third-party analysis per ISO 18436-7 Annex B requirements.
Can thermal video be recorded with synchronized visible-light overlay?
No—the IX2 AIR Pro captures IR-only video; visible-light fusion requires external RGB camera alignment and post-processing in Thermal Studio.
Does the AI super-resolution affect measurement accuracy?
No—AI upscaling operates exclusively on display rendering; all quantitative temperature calculations are performed on the native 256×192 detector data.
What is the battery life during continuous wireless streaming?
Up to 2.5 hours at 25 Hz streaming with active Wi-Fi and display backlight; battery status and thermal shutdown protection are managed autonomously.
Is SDK access available for custom integration?
Yes—Raythink provides a documented RESTful API and C/C++ SDK for OEM integration, including real-time radiometric frame streaming, device configuration, and metadata injection.
