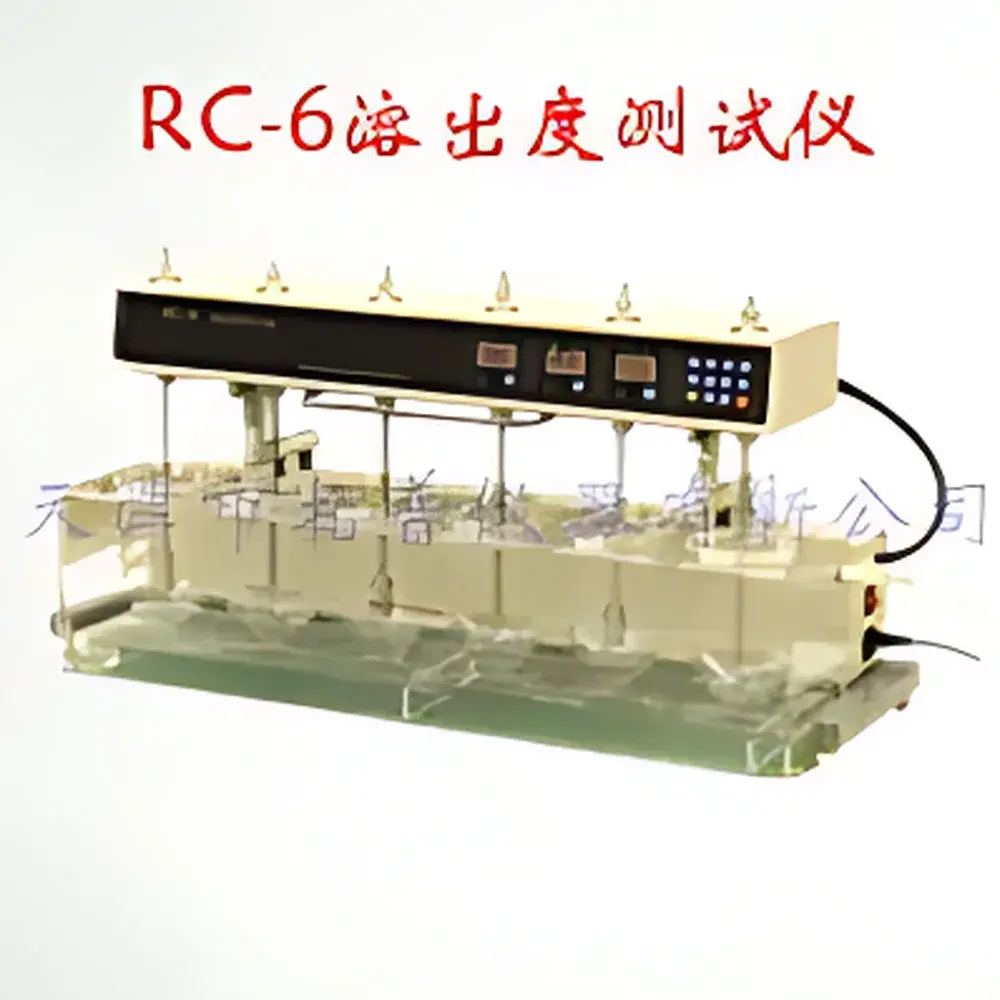

RC-6 Dissolution Tester

Overview

The RC-6 Dissolution Tester is a six-vessel, microprocessor-controlled pharmaceutical dissolution apparatus engineered for precise and reproducible assessment of drug release profiles from solid oral dosage forms—including immediate-release tablets, delayed-release capsules, and modified-release formulations—under standardized conditions defined by the United States Pharmacopeia (USP), European Pharmacopoeia (Ph. Eur.), and Chinese Pharmacopoeia (ChP). It operates on the principle of paddle (USP Apparatus 2) or basket (USP Apparatus 1) dissolution methodology, maintaining rigorous hydrodynamic consistency across all six vessels through calibrated rotational mechanics and uniform thermal distribution. Designed in compliance with USP , , and , the system supports both monophasic and biphasic dissolution testing protocols, enabling quantitative analysis of active pharmaceutical ingredient (API) release kinetics over time.

Key Features

• Microcontroller-based closed-loop control system managing temperature, rotation speed, and timing independently for each of six test stations
• High-stability water bath with recirculating pump-driven thermal homogenization, ensuring spatial temperature uniformity ≤±0.2°C across all vessels at setpoint
• Motorized vertical lift mechanism for instrument head—enabling smooth, repeatable positioning of paddles or baskets without manual torque variation
• Front-panel interface featuring PC-grade membrane keypad and dual-line LED display showing both preset and real-time values simultaneously
• Pre-programmed pharmacopeial method library compliant with ChP 2020 Edition and USP General Chapter , including automatic recall of dissolution parameters for up to 100 predefined test protocols
• Multi-point timed sequence operation: supports up to six independent time points per run, with audible alert and automatic transition to next phase
• Mechanical precision certified: paddle shaft radial runout ≤0.05 mm; basket concentricity deviation ≤1 mm at operating speed
• Robust mechanical architecture using corrosion-resistant stainless steel frames, anodized aluminum housings, and sealed DC brushless motors rated for continuous 8-hour operation

Sample Compatibility & Compliance

The RC-6 accommodates standard USP-compliant dissolution vessels (1000 mL cylindrical glass), baskets (22 mm OD), and paddles (10 mm blade diameter), with optional accessories for sinker use, conical vessels, or mini-vessels (250 mL). It supports routine validation per USP “The Dissolution Procedure: Development and Validation” and meets mechanical calibration requirements outlined in ASTM E2503-22 “Standard Practice for Performance Verification of Dissolution Apparatus.” All electronic controls comply with IEC 61000-4 electromagnetic compatibility standards. The system is suitable for GLP-compliant laboratories and may be integrated into GMP environments when paired with validated software and audit-trail-enabled data acquisition modules.

Software & Data Management

While the base RC-6 operates via embedded firmware without external PC dependency, it is compatible with optional RS-232/USB data logging interfaces for connection to validated third-party dissolution analysis platforms. When configured with compliant software (e.g., WinDiss or equivalent), the instrument supports FDA 21 CFR Part 11–compliant electronic records—including user authentication, change tracking, electronic signatures, and immutable audit trails. Raw time-series temperature, speed, and timer status data are timestamped and exportable in CSV format for post-run kinetic modeling (e.g., zero-order, first-order, Higuchi, or Korsmeyer-Peppas analysis).

Applications

• Quality control release testing of commercial batches against established dissolution specifications
• Formulation development and optimization of extended-release matrix tablets and osmotic pump systems
• Stability-indicating dissolution profiling under stressed conditions (e.g., pH-shift, surfactant addition)
• Bioequivalence support studies requiring comparative dissolution testing (f2 similarity factor calculation)
• Regulatory submission dossier preparation in alignment with ICH Q5A(R2) and Q5C guidelines
• In-process monitoring during tablet coating or granulation scale-up

FAQ

Does the RC-6 meet USP Apparatus 1 and 2 mechanical calibration requirements?
Yes—the system satisfies USP dimensional tolerances, rotational accuracy (±2 rpm), and wobble limits (basket ≤1 mm, paddle shaft ≤0.05 mm) when operated within specified environmental conditions.
Is temperature uniformity verified across all six vessels?
Yes—recirculating water flow and insulated bath design ensure ≤±0.2°C inter-vessel deviation at 37.0°C, confirmed by independent probe mapping per ASTM E2503-22 Annex A2.
Can the RC-6 be used for non-USP dissolution methods such as flow-through cells (Apparatus 4)?
No—the RC-6 is mechanically configured exclusively for Apparatus 1 (basket) and Apparatus 2 (paddle); flow-through cell integration requires dedicated hardware not supported by this platform.
What documentation is provided for IQ/OQ qualification?
Factory-supplied IQ/OQ protocol templates, calibration certificates for speed and temperature sensors, and mechanical verification reports are included; final PQ must be executed on-site using pharmacopeial reference standards.
Is remote monitoring or network connectivity available?
Not natively—the RC-6 lacks Ethernet or Wi-Fi capability; however, optional serial-to-Ethernet converters enable integration into centralized lab monitoring systems when validated per local IT security policies.
