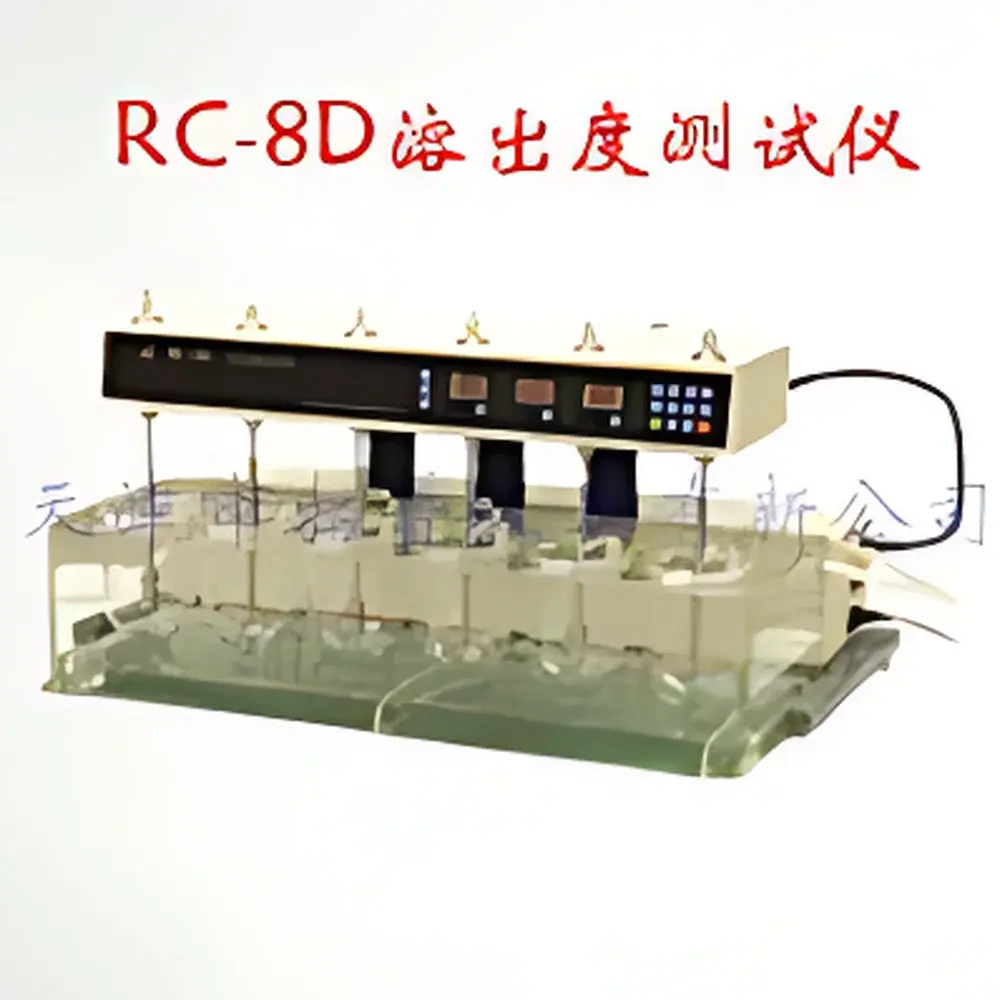

RC-8D Dissolution Tester

Overview

The RC-8D Dissolution Tester is a fully automated, eight-vessel pharmaceutical dissolution testing system engineered for compliance with United States Pharmacopeia (USP) Apparatus 1 (basket) and Apparatus 2 (paddle) standards. It implements precise hydrodynamic control via a magnetically coupled, low-turbulence water bath circulation system—ensuring uniform thermal distribution across all vessels with minimal mechanical vibration transmission. The instrument’s dual-row configuration comprises six primary dissolution vessels arranged in the front row (each equipped with independently aligned baskets or paddles), and two rear-positioned auxiliary reservoir cups dedicated to automated media replenishment or sink condition maintenance. All wetted components—including baskets, paddles, shafts, and vessel caps—are fabricated from medical-grade SUS316L stainless steel, offering superior corrosion resistance, cleanability, and compatibility with aggressive dissolution media (e.g., acidic buffers, organic-aqueous mixtures, surfactant solutions). Designed for routine QC laboratories and R&D environments, the RC-8D supports method development, stability-indicating release profiling, and comparative dissolution studies under GLP- and GMP-aligned operational frameworks.

Key Features

• Motorized, programmable head-lift mechanism ensures repeatable, operator-independent positioning of baskets/paddles into dissolution vessels—eliminating manual alignment variability.
• Dual-zone vessel layout: Six standard USP-compliant test positions plus two auxiliary reservoir cups for continuous media top-up, pH adjustment, or dissolution sink maintenance.
• High-stability temperature control system maintains bath uniformity within ±0.3 °C across all eight zones, verified per USP thermal mapping protocols.
• Brushless DC motor drive delivers smooth, low-pulse rotational motion across the full 20–200 rpm range, with speed accuracy maintained at ±2 rpm under load.
• Integrated real-time display shows both user-defined setpoints and live measured values for temperature, rotation speed, and elapsed time—enabling immediate deviation detection.
• Onboard memory stores pre-configured pharmacopoeial methods (USP, ChP, EP) with editable parameters; supports recall, modification, and audit-trail-enabled execution logging.
• Multi-stage timing engine allows up to six discrete time points per run, each triggering audible alerts and automatic transition to subsequent sampling intervals—facilitating synchronized manual or automated sampling workflows.

Sample Compatibility & Compliance

The RC-8D accommodates standard 1000 mL USP dissolution vessels and accepts all commercially available basket and paddle assemblies meeting USP dimensional tolerances. Its mechanical design conforms to ISO 17025 calibration traceability requirements for dissolution apparatus verification. The system supports validation per FDA Guidance for Industry: “Dissolution Testing of Immediate Release Solid Oral Dosage Forms” (1997) and ICH Q5C stability protocol integration. All electronic controls comply with IEC 61000-6-3 (EMC) and IEC 61010-1 (safety) standards. Data integrity features—including password-protected method editing, timestamped event logs, and non-erasable run records—align with FDA 21 CFR Part 11 principles for electronic records and signatures when operated in conjunction with validated LIMS or chromatography data systems.

Software & Data Management

While the RC-8D operates as a standalone hardware platform with embedded firmware, its parameter export interface (RS-232 or optional USB) enables seamless integration with third-party laboratory software. Exported datasets include timestamped temperature, speed, and timing metadata—structured for direct import into Excel, Empower, or Watson LIMS. Audit trails capture operator ID (via login prompt), method selection, parameter changes, alarm events, and completion status—retained for minimum 36 months per internal SOP. Firmware updates are delivered via secure encrypted firmware packages, with version history and change logs maintained in device memory.

Applications

• Quality control release testing of immediate-release (IR) and extended-release (ER) solid oral dosage forms (tablets, capsules, granules).
• Comparative dissolution profiling per FDA’s SUPAC-IR/ER guidance for post-approval manufacturing changes.
• Biopharmaceutical classification system (BCS) solubility and permeability assessment support.
• Dissolution method development and robustness evaluation under varying agitation rates, temperature gradients, and media compositions.
• Stability-indicating dissolution testing during accelerated and long-term storage studies.
• Support for regulatory submissions requiring full apparatus qualification documentation (OQ/PQ reports available upon request).

FAQ

Does the RC-8D meet USP mechanical calibration requirements?
Yes—the instrument’s basket wobble (±1 mm) and paddle shaft runout (±0.5 mm) fall within USP-specified tolerances; full mechanical verification kits and calibration certificates are available separately.
Can the auxiliary reservoir cups be used for automated sampling?
No—they are designed exclusively for media replenishment or sink condition control; integration with autosamplers requires external fluidic interfaces and third-party coordination.
Is firmware upgrade support provided after purchase?
Yes—free firmware updates are issued biannually for performance enhancements and regulatory alignment; installation is performed locally via USB or remote technician assistance.
What electrical safety certifications does the RC-8D hold?
It carries CE marking per IEC 61010-1 (2010) and IEC 61000-6-3 (2019), with factory-issued Declaration of Conformity supplied with each unit.
How is temperature uniformity validated across all eight vessels?
A 12-point thermal mapping procedure (per USP ) is recommended during initial qualification; the system’s magnetically driven circulation and insulated bath design ensure ≤0.2 °C inter-vessel variance under steady-state conditions.
