REA VeriCube Matrix and 1D Barcode Verification System

Overview

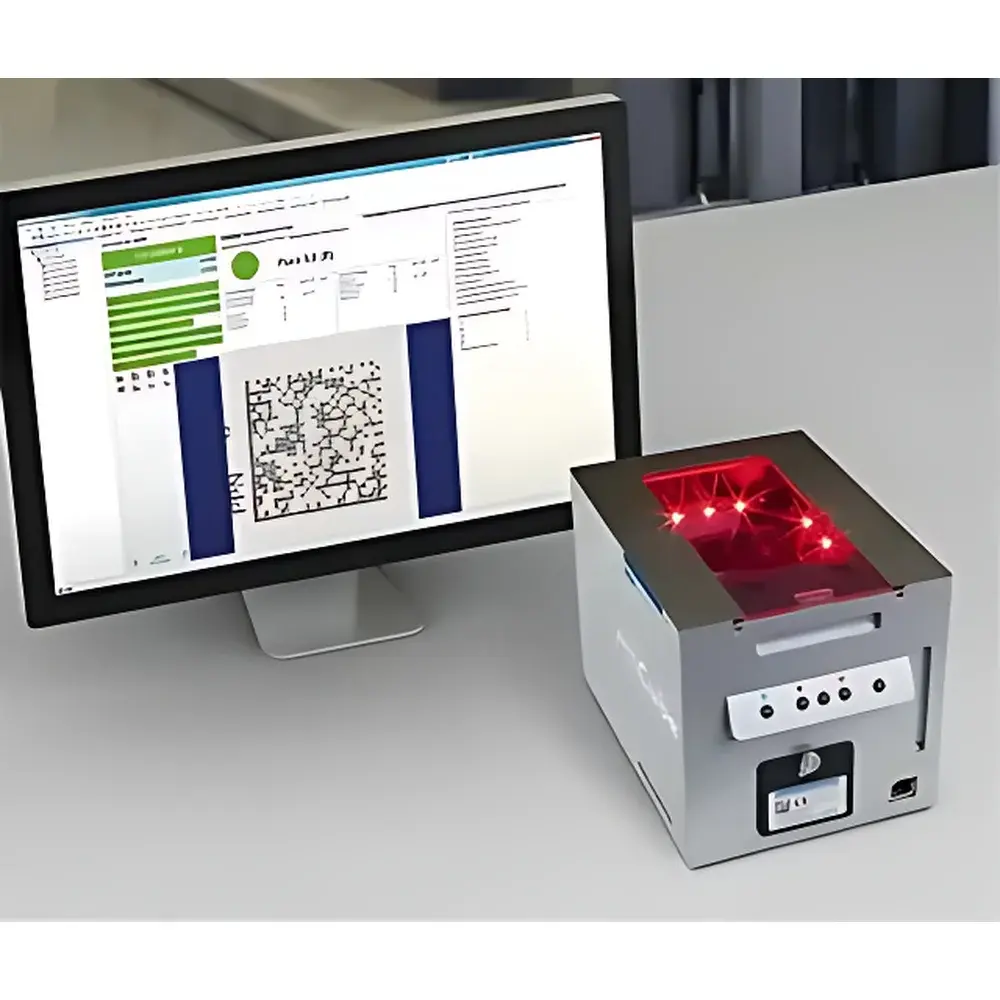

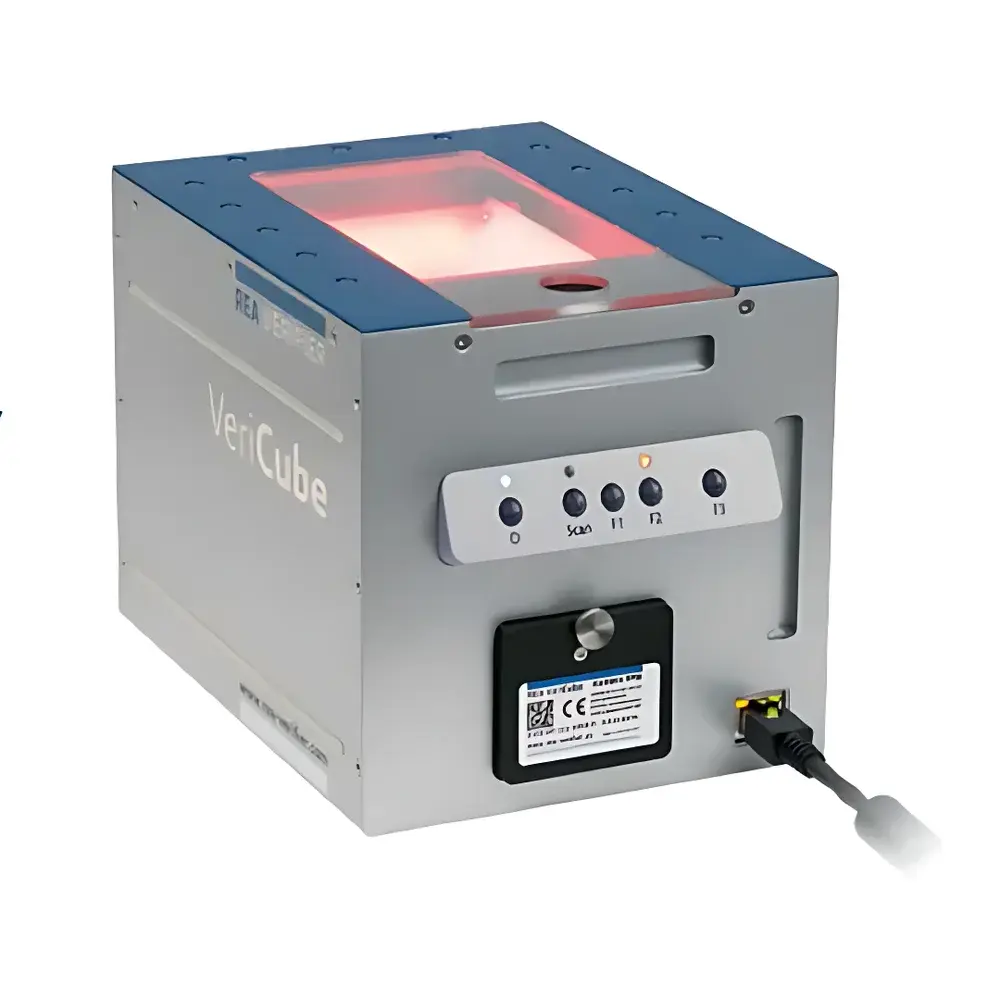

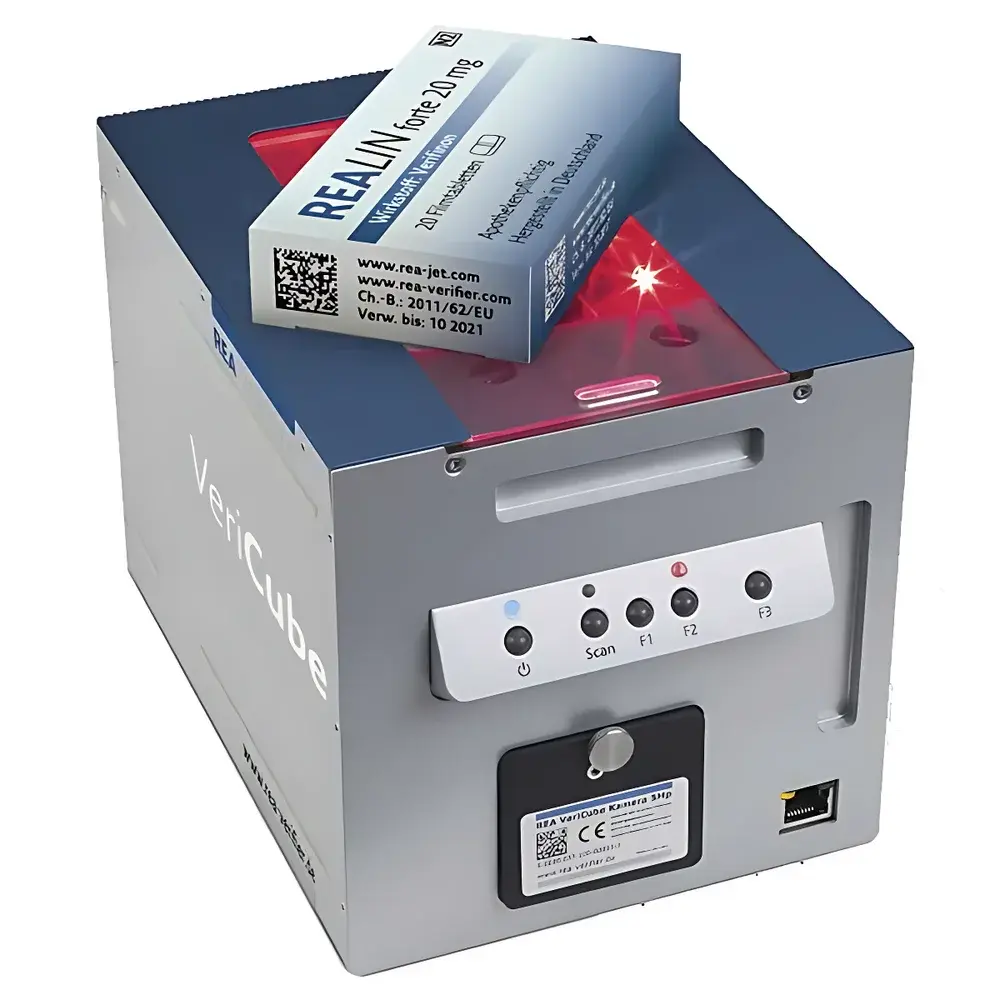

The REA VeriCube is a high-precision, ISO-compliant barcode verification system engineered for metrological-grade assessment of both 2D matrix codes (e.g., DataMatrix, QR, Aztec, PDF417) and 1D linear barcodes (e.g., EAN-13, UPC-A, Code 128, GS1 DataBar). Unlike conventional scanners, the VeriCube functions as a verification instrument—not a decoder—delivering objective, traceable grade reports based on internationally recognized standards. Its optical architecture implements controlled 45° illumination using either 660 nm red LED or 4000 K white LED sources, coupled with a high-resolution, interchangeable CMOS imaging module (2592 × 1944 pixels) housed within a light-tight measurement cavity. This design eliminates ambient light interference and ensures repeatable, GMP-aligned measurement conditions across production, quality assurance, and regulatory audit environments.

Key Features

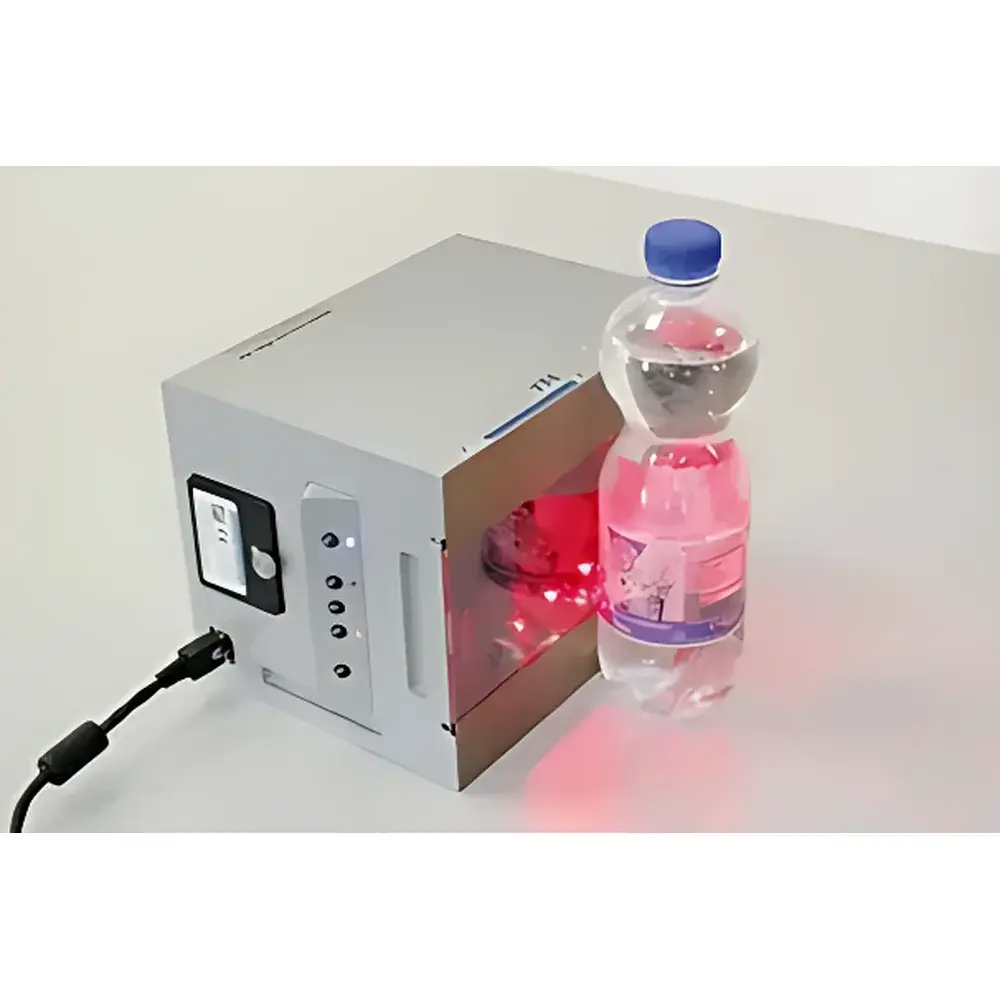

• Triple-axis mechanical flexibility: Supports horizontal (sideways), vertical, and inverted sample positioning—enabling optimal alignment for diverse part geometries without re-fixturing.
• DPM-ready verification: Fully compliant with ISO/IEC TR 29158 (formerly AIM DPM-1-2006) for direct part marked codes on metal, plastic, or composite surfaces.
• Multi-standard conformance: Simultaneous validation against ISO/IEC 15415 (2D), ISO/IEC 15416 (1D), ANSI X3.182 (1D), and ISO/IEC TR 29158 (DPM), with automated pass/fail grading per parameter (e.g., contrast, modulation, decode, reflectance margin).
• Modular optics: Interchangeable lens assemblies (8 mm to 50 mm focal length) allow adaptation to varying field-of-view (FOV) and minimum X-dimension requirements—from 0.46 mm down to 0.036 mm—without recalibration.
• Factory-optimized imaging: Each camera module undergoes factory calibration for focus, aperture, and uniformity; no user alignment required prior to operation.
• Robust industrial enclosure: Sealed dark chamber with ESD-safe interior, designed for integration into cleanrooms, packaging lines, and lab-based QA workflows.

Sample Compatibility & Compliance

The VeriCube accommodates a broad spectrum of physical media and marking methods—including laser etched, dot peened, inkjet printed, thermal transfer, and photopolymer labels—across substrates ranging from flat PCBs to curved medical device housings. Its non-contact measurement principle eliminates risk of surface damage during verification. All test procedures adhere strictly to ISO/IEC 15415 (for printed 2D symbols), ISO/IEC TR 29158 (for low-contrast, high-noise DPM codes), ISO/IEC 15416 (for linear barcodes), and ANSI X3.182 (U.S. national standard for 1D grading). The system supports full GLP/GMP documentation trails, including timestamped audit logs, operator ID tagging, and raw image archiving—facilitating compliance with FDA 21 CFR Part 11 when paired with validated software configurations.

Software & Data Management

The VeriCube operates with REA’s proprietary VeriSoft suite, which provides real-time visualization of decoded data, parameter-by-parameter grade breakdowns (A–F), and comprehensive report generation in PDF, CSV, and XML formats. All measurement results include embedded metadata: lens ID, illumination mode, exposure time, environmental temperature/humidity (optional sensor input), and traceable calibration certificate references. Software supports batch processing, statistical process control (SPC) charting, and configurable pass/fail thresholds aligned with internal QC protocols or customer-specific acceptance criteria. Data export interfaces are compatible with LIMS, MES, and ERP systems via standard ODBC or RESTful API endpoints.

Applications

• Medical device manufacturing: Verification of UDI-compliant DataMatrix codes on surgical instruments, implants, and disposable kits per FDA UDI Rule and EU MDR Annex I requirements.
• Automotive Tier-1 suppliers: In-line DPM code inspection on engine blocks, brake calipers, and battery modules using ISO/IEC TR 29158.
• Pharmaceutical packaging: Grade validation of serialized QR codes and GS1 DataBar Expanded codes on blister packs and secondary cartons per USP <1150> and EU Annex 11 guidelines.
• Aerospace component traceability: High-reliability verification of MIL-STD-130 compliant 2D symbols on avionics enclosures and turbine blades.
• Electronics assembly: SMT line-end verification of solder paste-marked QR codes on PCBs with sub-50 µm X-dimension resolution.

FAQ

Does the VeriCube require annual recalibration?
No—each unit ships with a factory-issued calibration certificate valid for 12 months under normal operating conditions. Recertification is recommended annually or after lens replacement, impact, or relocation.
Can the VeriCube verify stacked 2D symbologies such as PDF417?
Yes. It fully supports ISO/IEC 15415-compliant verification of PDF417, including row/column structure analysis, quiet zone evaluation, and error correction level validation.
Is operator training included with purchase?
Yes—REA provides remote and on-site application engineering support, including SOP development, IQ/OQ documentation assistance, and hands-on verification protocol training.
What file formats are supported for report export?
PDF (print-ready), CSV (SPC-compatible), XML (LIMS-integration), and native .veri project files containing full image stacks and metadata.
Does the system meet FDA 21 CFR Part 11 requirements?
When deployed with VeriSoft v5.2+ and configured with electronic signatures, audit trail logging, and role-based access control, the VeriCube satisfies technical controls for Part 11 compliance; full validation documentation is available upon request.
