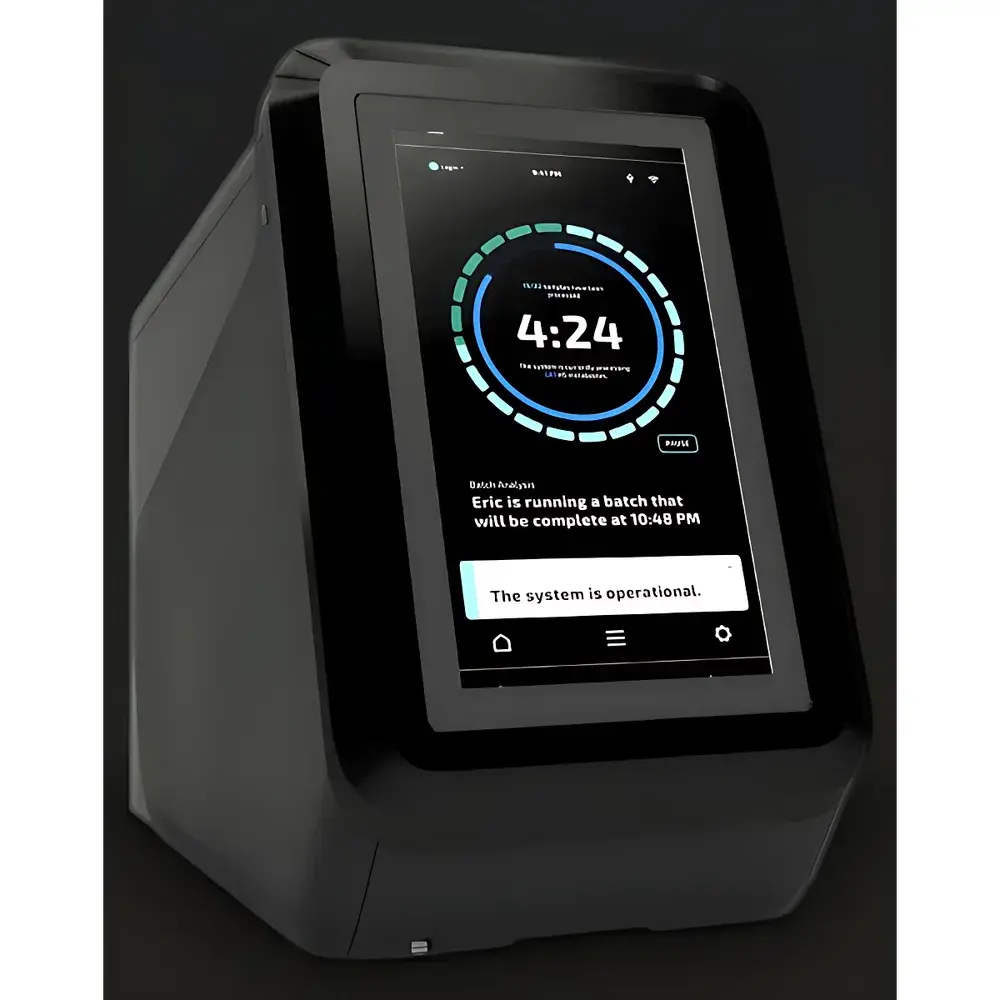

REBEL by 908 Devices – Portable High-Performance Cell Culture Biochemical Analyzer

Overview

The REBEL by 908 Devices is a compact, benchtop-capable biochemical analyzer engineered for real-time, label-free quantification of critical cell culture metabolites and nutrients directly in bioprocess streams. Leveraging microfluidic capillary electrophoresis coupled with high-sensitivity UV-Vis absorbance detection, the REBEL delivers rapid (<90 seconds per sample), reproducible measurements of amino acids (e.g., glutamine, glucose, lactate, ammonium), vitamins (e.g., B12, biotin), and key growth-related metabolites without requiring derivatization or extensive sample preparation. Designed specifically for upstream bioprocessing environments—from early-stage clone screening to fed-batch and perfusion bioreactor monitoring—the system operates under GMP-aligned conditions and supports seamless integration into process analytical technology (PAT) frameworks. Its architecture enables direct interfacing with bioreactor control systems via Modbus TCP or OPC UA, facilitating closed-loop feedback for dynamic feeding strategies and real-time CQA risk assessment.

Key Features

• Microfluidic capillary electrophoresis platform with integrated UV-Vis photodiode array detection (190–400 nm)
• Analysis time ≤ 90 seconds per sample for 12+ analytes including glucose, lactate, glutamine, glutamate, asparagine, ammonium, and key B-vitamins
• No derivatization, no reagent cartridges—uses only low-volume (≤ 5 µL) native sample injection
• Onboard calibration management with NIST-traceable standards and automated drift correction
• Ruggedized design rated IP54; operates continuously at ambient lab temperatures (15–30 °C) with minimal maintenance
• Embedded touchscreen interface with audit-trail-enabled software compliant with FDA 21 CFR Part 11 requirements

Sample Compatibility & Compliance

The REBEL accepts clarified, low-particulate cell culture supernatants (centrifuged at ≥3,000 × g or filtered through 0.22 µm PVDF membranes) with pH 5.5–7.5 and conductivity <15 mS/cm. It is validated for use with CHO, HEK293, hybridoma, and microbial fermentation broths. Method performance meets ICH Q2(R2) guidelines for specificity, linearity (R² ≥ 0.998 over physiological ranges), accuracy (recovery 95–105%), and precision (RSD < 3% intra-day, < 5% inter-day). The system supports GLP/GMP documentation workflows, including electronic signatures, user role-based access control, and full data integrity logging per ALCOA+ principles.

Software & Data Management

REBEL Control Software v3.x provides intuitive assay setup, real-time chromatogram visualization, peak integration with retention time locking, and automated report generation in PDF/CSV formats. All raw data—including electropherograms, calibration curves, and instrument logs—are stored in an encrypted SQLite database with configurable backup to network drives or cloud storage (AWS S3, Azure Blob). The software includes built-in tools for multivariate trend analysis (PCA, PLS regression) to correlate metabolite profiles with titer, viability, and product quality attributes (e.g., glycosylation patterns, aggregate formation). API access enables bidirectional integration with DeltaV, SIMATIC PCS 7, and custom LIMS/MES platforms.

Applications

• Clone selection based on metabolic footprint profiling during early cell line development
• Real-time feed strategy optimization in fed-batch processes using dynamic glucose/lactate/ammonium feedback
• Media QC release testing for amino acid composition consistency across supplier lots
• Process characterization studies supporting QbD (Quality by Design) submissions to regulatory agencies
• Supporting intensified processes (e.g., high-cell-density perfusion) through hourly metabolite trending
• Correlating intracellular redox state (NAD+/NADH ratio proxies) with monoclonal antibody charge variant distribution

FAQ

What sample preparation is required prior to analysis?
Clarification via centrifugation (≥3,000 × g, 5 min) or 0.22 µm filtration is mandatory; no deproteinization, dilution, or derivatization is needed.
Can the REBEL be integrated into existing bioreactor control systems?
Yes—it supports Modbus TCP and OPC UA protocols for real-time data exchange with DCS/SCADA platforms and enables automated trigger-based sampling.
Is method validation support available from 908 Devices?
Yes—908 Devices provides IQ/OQ documentation templates, validation protocol assistance, and on-site qualification support aligned with ASTM E2500 and ISO 13485 standards.
How frequently does the capillary chip require replacement?
Each microfluidic chip supports ≥500 injections under standard operating conditions; chips are serialized and tracked within the software for lifetime traceability.
Does the system comply with data integrity requirements for regulated biomanufacturing?
Yes—full 21 CFR Part 11 compliance is embedded, including electronic signatures, audit trails, and immutable raw data archiving with SHA-256 hashing.
