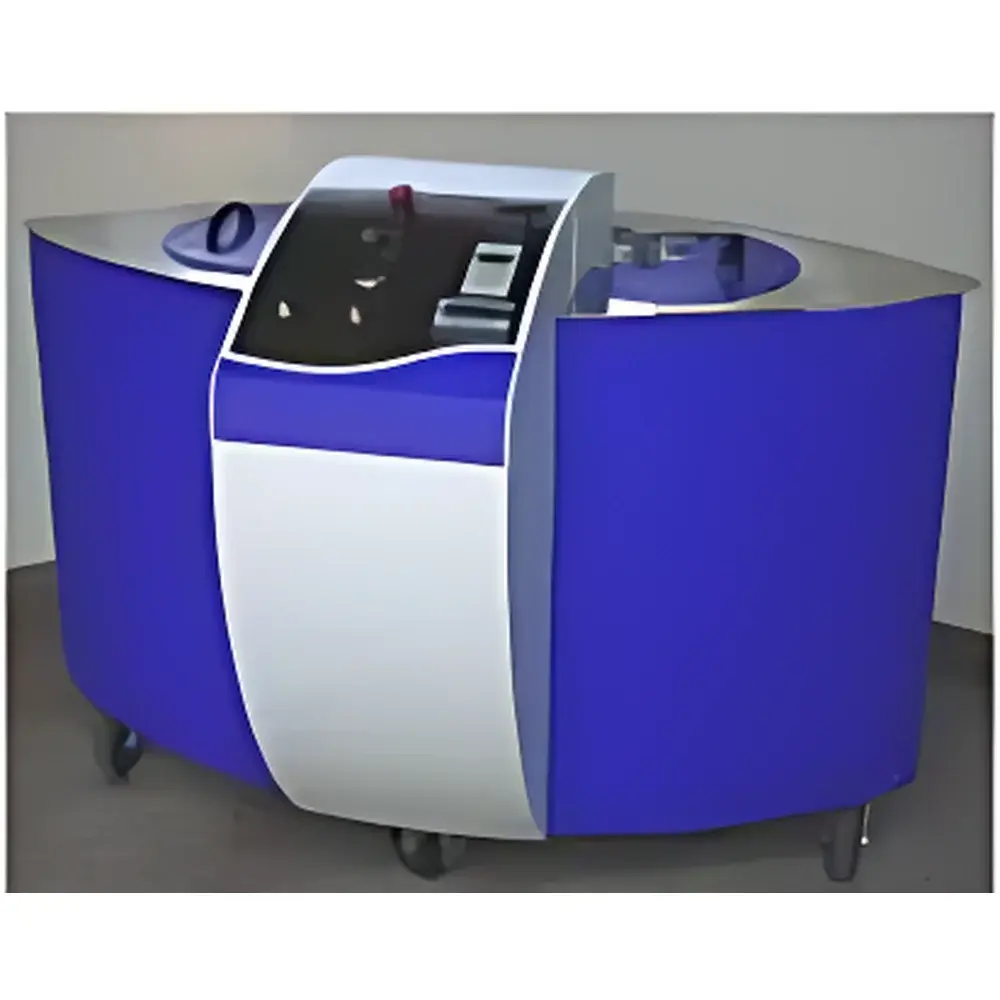

Regmed REGMED-VB-21 Laboratory Pulp Refiner (TAPPI/ISO-Compliant)

Overview

The Regmed REGMED-VB-21 Laboratory Pulp Refiner is a precision-engineered instrument designed for standardized mechanical pulping and fiber refining in R&D laboratories, quality control facilities, and pulp & paper technical centers. It operates on the principle of controlled shear refining—where cellulose fibers are subjected to repeated compression, cutting, and fibrillation between a rotating knife roll and a stationary bedplate under regulated mechanical load. This process simulates industrial refiners while enabling reproducible, small-scale evaluation of fiber development, freeness (CSF/Canadian Standard Freeness), drainage rate, tensile strength, and sheet formation behavior. Its architecture conforms strictly to internationally recognized test standards—including TAPPI T 200 and T 205 (for pulp preparation), ISO 5246-1 (pulp refining apparatus specifications), SCAN C 25, and CPPA C.2—ensuring data comparability across global laboratories and regulatory submissions.

Key Features

• Stainless steel construction throughout critical wet-end components: beater bowl, roll, knives, bedplate, and work platform (AISI 410 hardened, 325–400 HB) for corrosion resistance and long-term dimensional stability.
• Pneumatically actuated, digitally adjustable loading system delivering precise, repeatable contact force (105 N ± 1 N) between roll and bedplate—critical for inter-laboratory reproducibility.
• Gearmotor-driven roll with integrated frequency converter enables stable rotational speed control (500 ± 10 rpm), maintaining nominal shear velocity near 5 m/s across operational life with minimal maintenance.
• Sealed recirculation circuit within the 23 L stainless steel bowl ensures homogeneous fiber treatment and eliminates localized over-refining or dead zones.
• Digital control panel featuring programmable countdown timer, real-time pulp temperature display, and digital pressure readout/adjustment interface for immediate process verification and audit readiness.
• Drain valve assembly with stainless steel ball valve at bowl base facilitates rapid pulp discharge and full-system cleaning—supporting GLP-aligned hygiene protocols.

Sample Compatibility & Compliance

The REGMED-VB-21 accommodates all major wood-based and non-wood pulps (e.g., bleached/kraft, thermomechanical, recycled, bamboo, bagasse) within its specified 360 g oven-dry capacity and 1.57% working consistency range. Its mechanical configuration—including 32-knife roll (152.4 mm length, 4.8 mm thickness, 193.8 mm diameter) and 7-knife bedplate (3.2 mm thickness, 15.9 mm height, 2.4 mm pitch, 5° angle)—is optimized for standardized fiber modification without excessive fiber shortening. All operational parameters align with TAPPI and ISO definitions of “standardized refining”, making data directly admissible in technical reports submitted to certification bodies, regulatory reviewers (e.g., FDA-reviewed packaging substrate dossiers), and international pulp trade documentation.

Software & Data Management

While the VB-21 operates via embedded hardware controls (no external PC dependency), its digital interface supports traceable manual logging per GLP/GMP requirements. The timer, temperature sensor, and pressure transducer outputs are calibrated and documented per ISO/IEC 17025–accredited procedures. Optional analog signal outputs (0–10 V or 4–20 mA) can be integrated into centralized lab data acquisition systems for automated timestamped parameter archiving. Full compliance with FDA 21 CFR Part 11 is achievable when paired with validated electronic lab notebook (ELN) platforms—enabling secure user authentication, audit trails, and electronic signatures for critical refining trials.

Applications

• Development and validation of new pulp grades for food-contact, pharmaceutical, and specialty packaging substrates.
• Correlation studies between refining energy, freeness decline (CSF), and physical sheet properties (burst, tear, tensile).
• Quality assurance of recycled fiber streams prior to paper machine furnish blending.
• Supporting ISO 5359, ISO 12625, and TAPPI T 494 testing protocols requiring standardized pulp pretreatment.
• Evaluation of enzymatic or chemical-mechanical hybrid refining strategies under controlled baseline conditions.

FAQ

What standards does the REGMED-VB-21 comply with?
It meets TAPPI T 200, T 205; ISO 5246-1; SCAN C 25; and CPPA C.2 for laboratory pulp refining.
Is compressed air mandatory for operation?
Yes—clean, dry compressed air (5 kgf/cm² nominal) is required for the pneumatic loading system to maintain force accuracy and repeatability.
Can the refining intensity be varied beyond the standard 105 N setting?
The unit is calibrated and validated at 105 N per ISO 5246-1; deviation requires revalidation and is not recommended for comparative testing.
What maintenance intervals are recommended for the knife roll and bedplate?
Inspection every 200 operating hours; resharpening or replacement based on hardness verification and edge wear assessment per TAPPI T 572.
Does the system support integration with LIMS or ELN platforms?
Analog output signals (0–10 V / 4–20 mA) are available for third-party data capture; full digital integration requires optional I/O module and protocol mapping.
