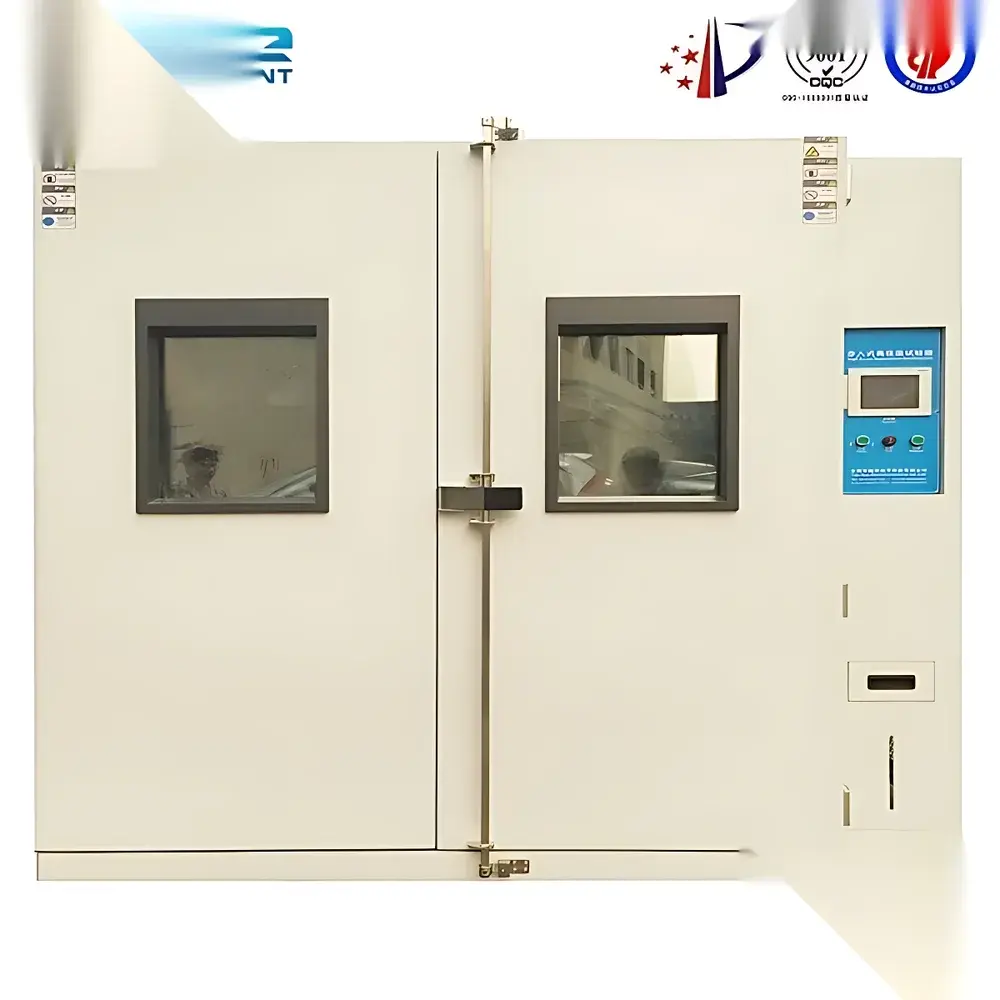

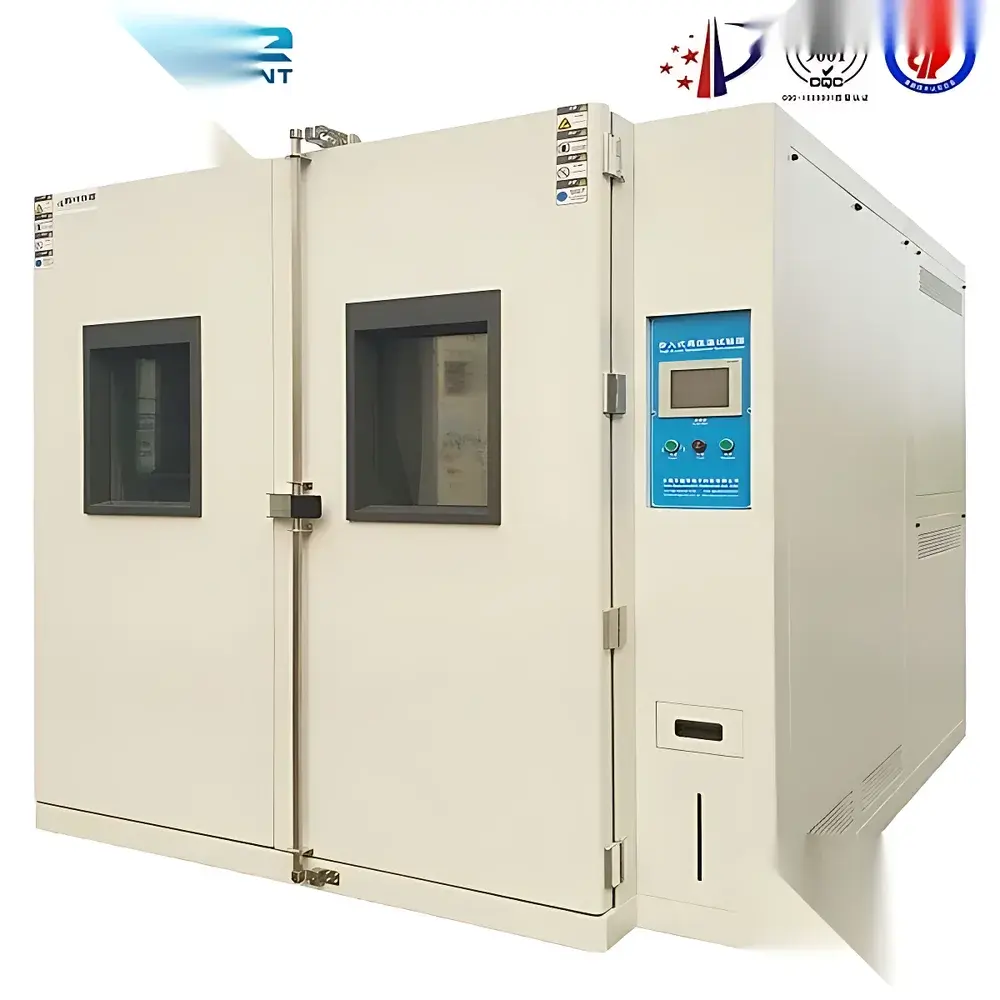

Relocation Service for Environmental Test Chambers (Constant Temperature & Humidity Laboratories)

Overview

Relocating an environmental test chamber—specifically a constant temperature and humidity laboratory—is a highly specialized laboratory service requiring precision engineering coordination, regulatory awareness, and deep domain expertise in climate-controlled equipment. Unlike standard office or general lab relocations, this service involves disassembly, transport, reinstallation, recalibration, and full functional validation of complex electromechanical systems designed to maintain tight tolerances (e.g., ±0.5°C temperature stability and ±2% RH uniformity) under continuous operation. The process adheres to internationally recognized environmental testing standards—including IEC 60068-3-5 (methods for determining the performance of temperature/humidity chambers), ISO 17025:2017 (general requirements for competence of testing and calibration laboratories), and ASTM E145–22 (standard specification for gravity-convection and forced-ventilation ovens)—to ensure post-relocation integrity of test data continuity and metrological traceability.

Key Features

• End-to-end relocation protocol covering pre-move site assessment, mechanical/electrical deintegration, vacuum-sealed transport of insulated chamber sections, and ISO-classified clean handling of control electronics and sensor arrays
• Full recommissioning including thermal mapping (per ISO/IEC 17025 Annex B), humidity distribution profiling, and stability verification over ≥72-hour dwell cycles
• Controller system preservation: Migration of TEMI touchscreen HMI interfaces with firmware version lock, parameter backup, and PLC logic integrity checks
• Revalidation of refrigeration circuit integrity—including leak testing per ASHRAE Standard 110, oil return verification, and expansion valve recalibration following compressor reorientation
• Compliance-aligned documentation package: Relocation SOP, as-built electrical schematics, calibration certificates (NIST-traceable sensors), and GLP-compliant audit trail logs

Sample Compatibility & Compliance

This service is engineered for chambers built to international environmental test specifications—including those conforming to GB/T 2423.1–2022 (cold testing), GB/T 2423.2–2022 (dry heat), and GB/T 2423.3–2016 (damp heat, steady state). It supports chambers with SUS304 stainless steel inner chambers, polyurethane + glass wool insulation layers, and dual-stage refrigeration systems using environmentally compliant refrigerants (R404A/R507 alternatives compliant with EU F-Gas Regulation No. 517/2014). All relocation workflows meet requirements for GMP Annex 15 (Qualification and Validation), FDA 21 CFR Part 11 (electronic records integrity), and ISO 9001:2015 clause 8.5.4 (preservation of product conformity during external provision).

Software & Data Management

Pre-move data capture includes full controller configuration export (TEMi software v3.0+), historical trend logs (CSV/Excel), and alarm event archives. Post-relocation, software reinstatement ensures identical operational logic—including programmable multi-step profiles (e.g., ramp-hold-soak sequences per IEC 60068-2-1/2/30), real-time Ethernet/IP or RS-485 communication port reconfiguration, and optional integration with LabVantage or Thermo Fisher SampleManager LIMS via OPC UA. Audit trails are preserved across relocation events; all software changes comply with 21 CFR Part 11 electronic signature and record retention mandates.

Applications

This relocation service is routinely deployed for pharmaceutical stability chambers (ICH Q1A–Q5C compliance), automotive component aging labs (SAE J2412, ISO 16750-4), aerospace avionics environmental screening (MIL-STD-810H Method 502.7), and semiconductor packaging reliability testing (JEDEC JESD22-A101). It is also applied in academic research infrastructure consolidation, contract testing lab expansions, and regulatory-mandated facility upgrades where uninterrupted test continuity—especially for long-duration studies (e.g., 6-month accelerated stability protocols)—is non-negotiable.

FAQ

Does the relocation service include requalification (IQ/OQ/PQ)?
Yes—full installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) are included per ISO/IEC 17025 and client-defined acceptance criteria.

Can chambers with custom modifications (e.g., extra ports, internal lighting, or gas purge systems) be relocated?
Yes—custom configurations are documented pre-move and replicated with dimensional and functional fidelity during reinstallation.

What is the typical lead time from site survey to operational handover?
Standard timeline is 10–14 business days, contingent on chamber size, site accessibility, and required validation depth.

Is third-party calibration certification provided post-relocation?
All temperature and humidity sensors are recalibrated by an ILAC-MRA accredited laboratory; certificates include measurement uncertainty budgets and NIST-traceable references.

Do you support cross-border relocation of imported chambers?
Yes—customs documentation, CE/UKCA conformity re-verification, and voltage/frequency adaptation (e.g., 380V/50Hz → 480V/60Hz) are managed within scope.
