Renishaw FASTRACK™ Linear Encoder System
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | FASTRACK™ |
| Accuracy | ±5 µm/m |
| Construction | Stainless Steel |
| Mounting Type | Bracket-Mounted |
| Serviceability | Modular, Segment-Replaceable Scale |
Overview

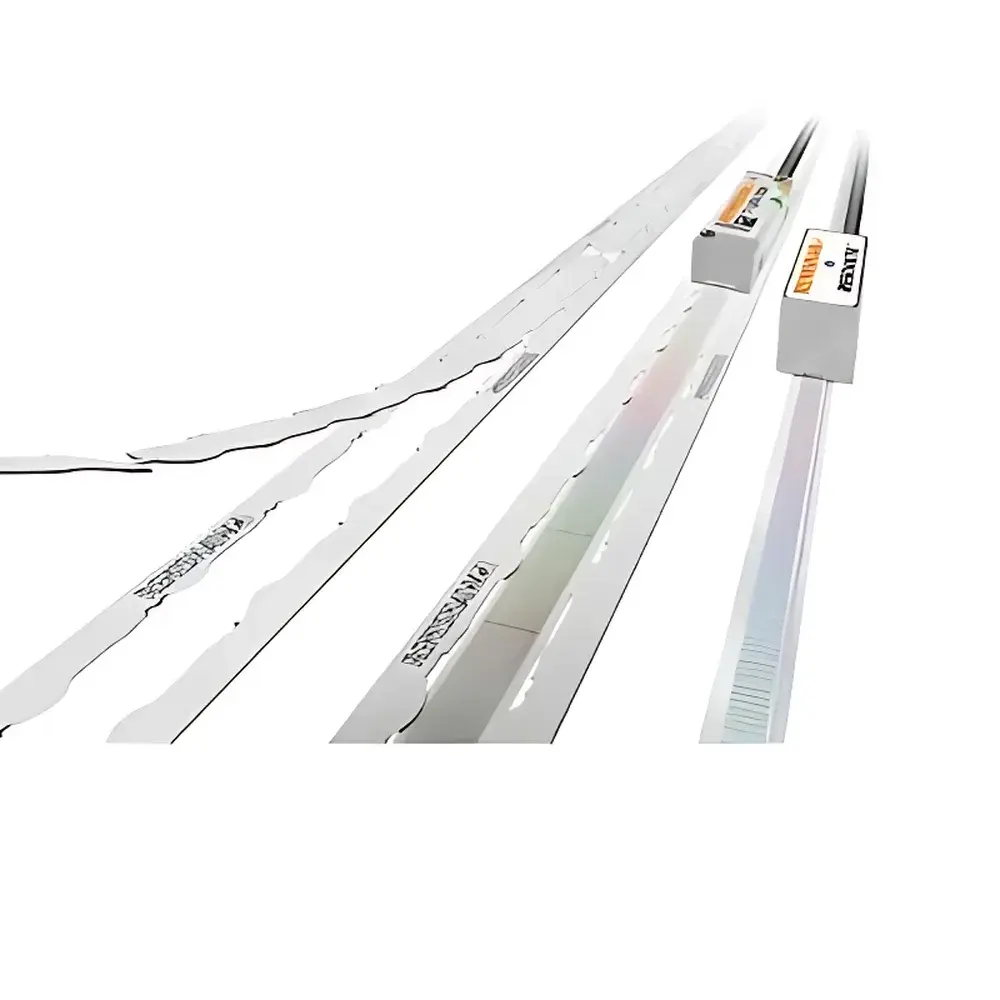

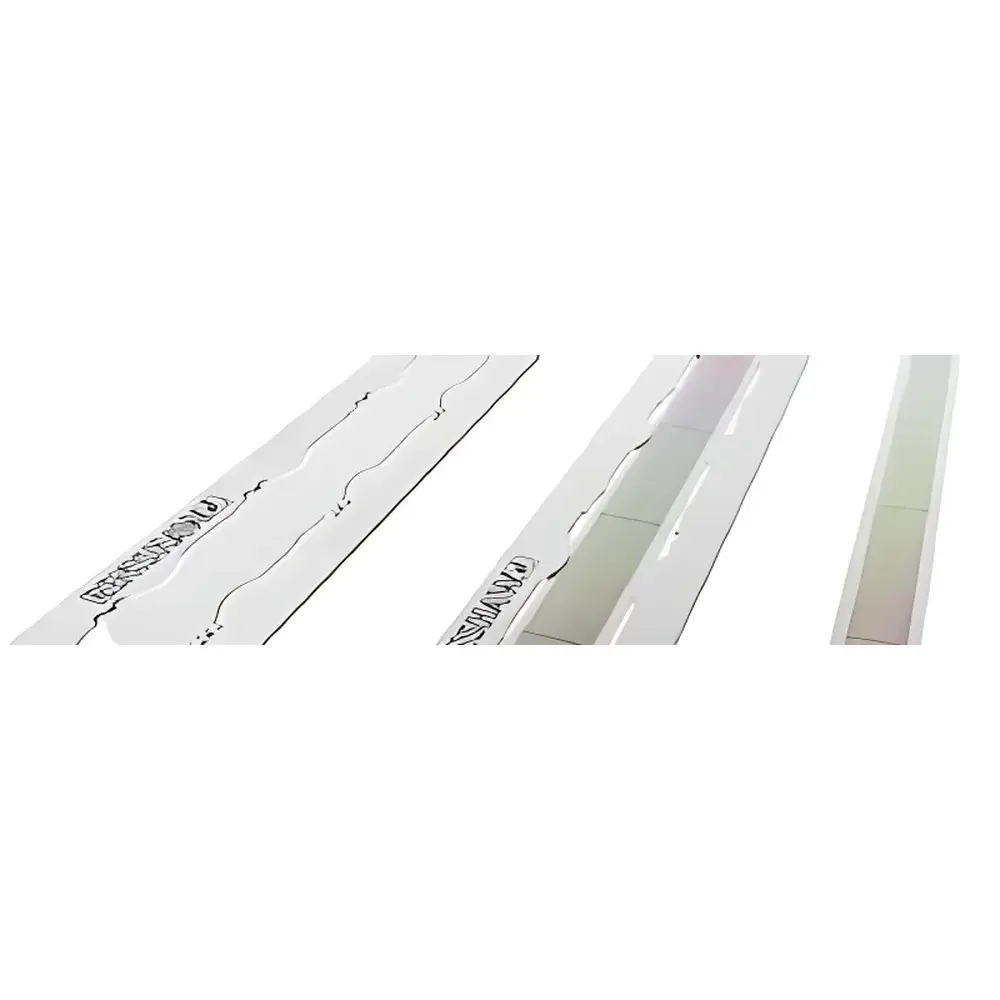

The Renishaw FASTRACK™ Linear Encoder System is a high-integrity, modular optical encoder solution engineered for precision linear position feedback in demanding industrial motion control and metrology applications. Based on proven incremental optical scanning principles, the system employs a high-resolution stainless steel scale with precisely etched periodic grating lines and a compact, robust readhead that optically interrogates the scale via diffraction-based light interference. Unlike traditional tape or flexible scales, FASTRACK™ utilizes rigid, extruded stainless steel carrier rails—providing dimensional stability across wide temperature ranges and resistance to mechanical deformation under vibration, thermal cycling, or mechanical loading. Its ±5 µm/m accuracy (traceable to national standards) ensures reliable performance in machine tool axis positioning, large-format coordinate measuring machines (CMMs), gantry systems, and precision assembly platforms where long-travel, high-repeatability measurement is required without compromising structural integrity.
Key Features
- Modular bracket-mounted architecture: Enables rapid installation onto existing machine structures without requiring extensive machining or surface preparation—ideal for retrofits and field upgrades.
- Rigid stainless steel scale carrier: Provides exceptional thermal stability (coefficient of linear expansion ≈ 17.3 × 10⁻⁶ /°C), minimizing drift over ambient temperature fluctuations typical in factory environments.
- Segment-replaceable scale design: Individual rail segments can be removed and replaced independently—eliminating the need for full-scale reinstallation after localized damage or wear, reducing downtime and maintenance cost.
- High contamination tolerance: Integrated optical filtering and signal processing algorithms suppress noise from oil mist, coolant splash, dust, and light particulate—maintaining signal integrity in harsh manufacturing settings.
- Standardized interface compatibility: Delivers industry-standard incremental outputs (A/B quadrature, index pulse) and supports optional analog sine/cosine (1 Vpp) or digital protocols including EnDat 2.2 and BiSS-C upon request.
Sample Compatibility & Compliance
FASTRACK™ is designed for integration with linear axes ranging from 0.5 m to over 30 m in total length, accommodating both single- and multi-segment configurations. The system complies with IEC 60068 environmental testing standards for operational reliability under vibration (IEC 60068-2-6), shock (IEC 60068-2-27), and humidity (IEC 60068-2-30). It meets electromagnetic compatibility requirements per EN 61326-1 (industrial environment) and carries CE marking. While not a certified metrological standard in itself, the system’s traceable calibration and documented uncertainty budget support compliance with ISO 9001 quality management systems and facilitate adherence to ISO 10360 (CMM acceptance testing) and ISO 230-2 (machine tool performance verification) when deployed in calibrated metrology setups.
Software & Data Management
Renishaw provides configuration utilities—including the RCU (Readhead Configuration Utility) and LSP (Linear Scale Parameterization) software—for optimizing signal alignment, setting zero reference positions, and validating signal quality during commissioning. These tools generate audit-ready logs containing timestamped setup parameters, signal amplitude diagnostics, and interpolation error metrics—supporting GLP/GMP-aligned documentation workflows. Although FASTRACK™ does not embed onboard data storage, its real-time output signals integrate seamlessly with PLCs, motion controllers (e.g., Siemens SINUMERIK, Beckhoff TwinCAT), and metrology software platforms such as PC-DMIS, Calypso, or Metrolog X4 via standard encoder interfaces. Full traceability of calibration history and firmware revision logs is maintained through Renishaw’s authorized service network for regulatory audit readiness.
Applications
- Precision linear axis feedback for CNC gantry mills, laser cutting systems, and waterjet machines
- Long-range position sensing in automated guided vehicle (AGV) navigation rails and overhead monorail transport systems
- Reference scale in large-volume metrology frames and portable CMM arms
- Thermally stable position feedback for semiconductor lithography stage alignment and wafer handling equipment
- Calibration transfer standard in national metrology institutes for verifying laser interferometer linearity over extended ranges
FAQ
What is the maximum recommended travel length for a single FASTRACK™ installation?
While individual rail segments are supplied up to 3 m, systems exceeding 10 m are routinely commissioned using abutted or overlapped configurations—with proper thermal expansion allowance and alignment verification per Renishaw’s installation guidelines.
Can FASTRACK™ be used in vacuum or cleanroom environments?
Standard FASTRACK™ components are rated for ISO Class 8 (100,000) cleanrooms. Vacuum-compatible variants (with outgassing-certified adhesives and non-lubricated brackets) are available under custom order—subject to material compatibility review and bake-out validation.
Is on-site recalibration supported?
Yes. Renishaw-certified field service engineers perform in-situ verification using laser interferometry or artifact-based reference standards, issuing NIST-traceable calibration certificates compliant with ISO/IEC 17025 requirements.
