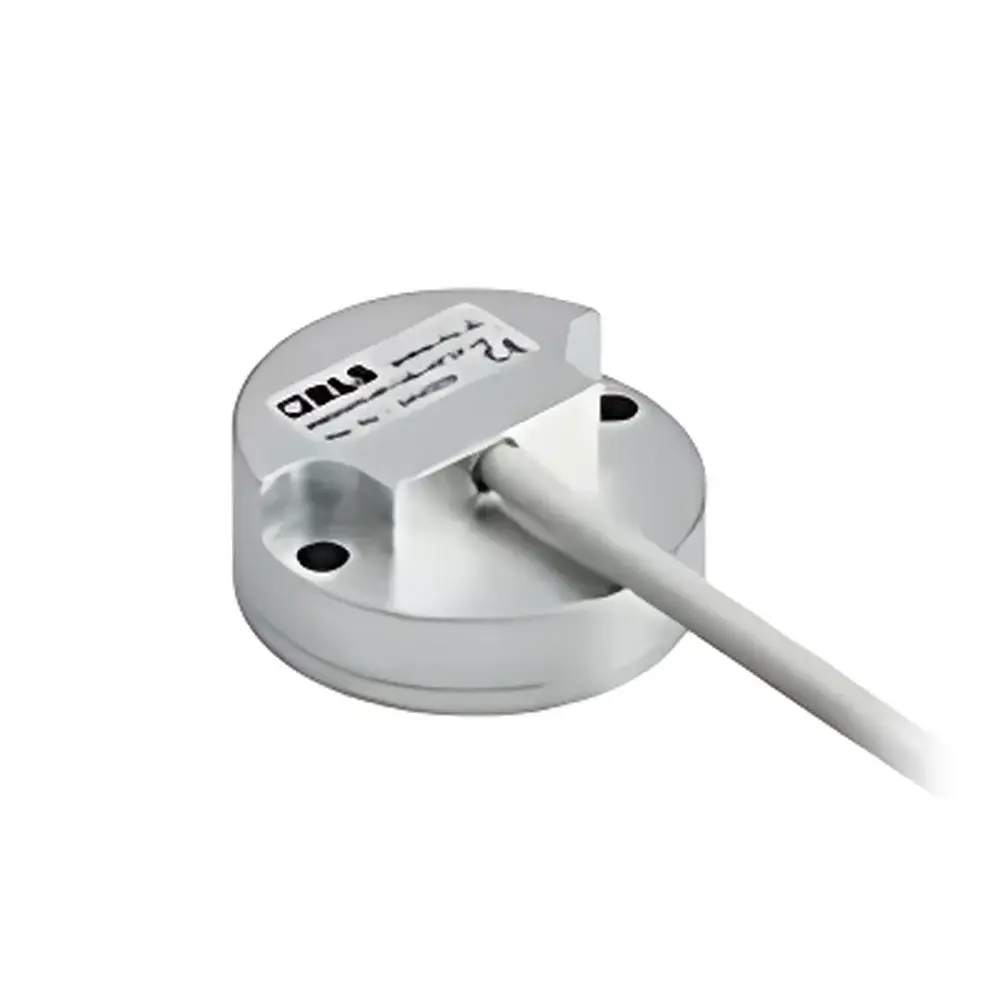

Renishaw RM44 Rotary Encoder

Overview

The Renishaw RM44 is a high-performance, non-contact rotary encoder engineered for demanding industrial motion control and precision positioning applications. Based on optical incremental sensing technology, the RM44 employs a robust glass or metal scale disc with precisely etched periodic markings and a matched LED-based readhead to deliver deterministic angular position feedback and real-time rotational speed data. Its design adheres to the fundamental principles of optical interferometric displacement measurement—where phase-shifted sinusoidal signals from quadrature channels (A/B) enable sub-division interpolation, while the index pulse (Z) provides absolute reference per revolution. Unlike resolvers or magnetic encoders, the RM44 offers superior resolution stability over temperature, minimal signal drift under mechanical stress, and immunity to magnetic field perturbations—making it particularly suitable for servo-driven wind turbine pitch/yaw systems, robotic joint feedback, CNC rotary tables, and high-dynamics electric motor commutation.

Key Features

• Hermetically sealed stainless steel housing rated to IP67, ensuring reliable operation in harsh environments including outdoor wind farms, marine installations, and heavy-duty manufacturing cells.
• Dual-sealed, pre-lubricated ball bearing assembly supporting continuous operation across −40 °C to +85 °C ambient conditions without performance degradation or lubricant migration.
• Non-contact optical readhead architecture eliminates mechanical wear, enabling >100 million revolutions MTBF and consistent signal integrity over extended service life.
• Integrated electromagnetic compatibility (EMC) design compliant with EN 61000-6-2 (immunity) and EN 61000-6-4 (emission), validated under industrial-grade conducted and radiated noise profiles.
• Hollow-shaft configuration (standard) allows direct mounting onto motor shafts or gearboxes without coupling hardware—reducing inertia, alignment error, and mechanical resonance.
• Configurable output options include industry-standard TTL/HTL quadrature (A/B/Z), sinusoidal 1 Vpp analog signals for high-resolution interpolation, and RS422 differential outputs for noise-immune long-cable transmission (>100 m).

Sample Compatibility & Compliance

The RM44 is compatible with standard NEMA and IEC motor flange dimensions (e.g., IM B5, IM B35), as well as custom adapter plates for wind turbine nacelle integration. It meets key international metrological and safety standards applicable to industrial motion sensors: ISO 5725 (accuracy and repeatability), IEC 60034-27-2 (rotary encoder test methods for electrical machines), and EN 61800-5-2 (functional safety requirements for adjustable speed drives). While not intrinsically safe, its construction supports integration into SIL2-capable motion control architectures when deployed with certified safety controllers. Documentation includes traceable calibration certificates aligned with UKAS-accredited metrology practices and full RoHS/REACH compliance declarations.

Software & Data Management

Renishaw provides the proprietary Renishaw Encoder Setup Utility, a Windows-based configuration tool enabling real-time signal diagnostics, interpolation factor selection (up to 4x, 10x, or 20x), zero-point offset programming, and electronic gearing setup. All parameter changes are stored in non-volatile memory onboard the readhead. For integration into higher-level automation platforms, the RM44 supports standard fieldbus protocols via optional gateway modules—including EtherCAT, PROFINET, and CANopen—ensuring seamless interoperability with PLCs from Siemens, Rockwell Automation, and Beckhoff. Audit trails for configuration updates are maintained in accordance with GLP/GMP-aligned data integrity guidelines where required.

Applications

• Wind turbine pitch and yaw control systems requiring long-term reliability under cyclic loading and extreme thermal cycling.
• Closed-loop servo motor feedback in robotics, packaging machinery, and semiconductor wafer handling stages.
• Rotary axis position feedback in multi-axis CNC machining centers and coordinate measuring machines (CMMs).
• Test bench instrumentation for motor efficiency mapping, torque ripple analysis, and dynamic response characterization.
• Redundant angle sensing in aerospace actuation systems where fault-tolerant dual-channel encoding is mandated.

FAQ

What is the maximum recommended cable length for RS422 output?
For stable signal integrity, Renishaw specifies up to 100 m using shielded twisted-pair cable meeting IEC 61158-2 requirements.
Does the RM44 support absolute position output?
No—the RM44 is an incremental encoder; absolute position must be established via homing routine or paired with a separate absolute device such as Renishaw’s RESOLUTE series.
Can the RM44 be used in vacuum environments?
Not without modification—the standard unit contains outgassing elastomers and is not vacuum-rated; consult Renishaw Engineering for bespoke vacuum-compatible variants.
Is firmware upgrade capability available in-field?
Firmware is factory-programmed and not user-upgradable; functional enhancements require replacement of the readhead module.
How is mechanical alignment verified during installation?
Renishaw supplies a dedicated alignment jig (part no. A-9908-0320) and recommends runout verification ≤15 µm TIR using dial indicator measurement at the encoder rim.
