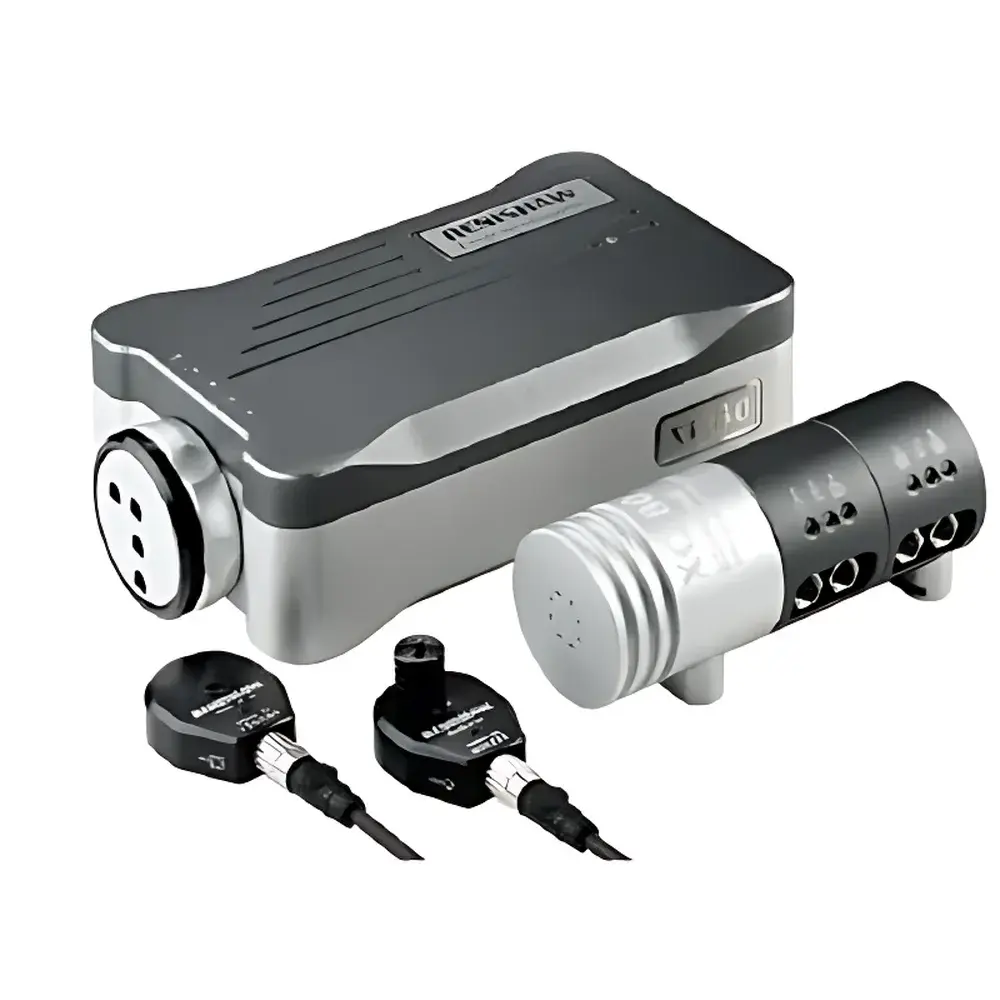

Renishaw XL80 Laser Interferometer

Overview

The Renishaw XL80 Laser Interferometer is a high-precision, portable metrology instrument engineered for linear, angular, straightness, flatness, and squareness measurements in industrial metrology, machine tool calibration, and coordinate measuring machine (CMM) verification environments. It operates on the principle of heterodyne laser interferometry, utilizing a thermally stabilized helium-neon (HeNe) laser source whose wavelength serves as a primary length standard traceable to the International System of Units (SI). The system delivers an absolute linear accuracy of ±0.5 parts per million across its full operational temperature range (0–40 °C), maintained through real-time environmental compensation provided by the integrated XC-80 environmental sensor unit. This compensation accounts for variations in air temperature, pressure, humidity, and CO₂ concentration—critical factors influencing the refractive index of air and thus the effective wavelength of the laser beam. Unlike conventional interferometers requiring extended warm-up periods, the XL80 achieves thermal stabilization in approximately six minutes, significantly reducing downtime in field service and production-floor calibration workflows.

Key Features

• Compact, lightweight architecture: total system mass <15 kg—including laser head, XC-80 compensator, power supply, cables, and sensors—enabling rapid deployment in constrained or mobile metrology applications.
• High-speed dynamic measurement capability: supports linear velocities up to 4.0 m/s with sustained 0.001 µm resolution and a maximum sampling rate of 50 kHz, suitable for characterizing rapid-axis motion and servo response in CNC machines and robotic systems.
• Full backward compatibility with ML10 optical components: allows seamless upgrade paths for existing ML10 users without replacement of retroreflectors, beam splitters, or angular optics—preserving prior investments in hardware and operator training.
• Integrated USB interface: eliminates need for external interface boxes; enables direct connection to Windows-based PCs for real-time data acquisition and control via native drivers.
• Automatic signal gain control: standard feature enabling robust operation over the full 0–80 m linear measurement range while optimizing signal-to-noise ratio at shorter distances.
• Modular mounting options: compact laser head and kinematic mount are compatible with magnetic bases, granite surface plates (no tripod required), and custom fixtures—supporting CMM calibration, gantry alignment, and in-situ machine tool verification.

Sample Compatibility & Compliance

The XL80 is designed for use with industry-standard interferometric optics—including plane mirror retroreflectors, corner-cube retroreflectors, and angular optics (e.g., pentaprisms and autocollimators)—all compliant with ISO 230-2 (machine tool testing – determination of accuracy) and ISO 10360 (CMM acceptance and reverification tests). Its traceable HeNe wavelength reference satisfies requirements for metrological traceability under ISO/IEC 17025 and supports audit readiness for GLP and GMP-regulated environments. Environmental compensation adheres to the Edlén equation (as implemented in the XC-80 firmware), updated per ISO 10360-10 Annex B and NIST SP 958 guidelines. The system meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU).

Software & Data Management

Renishaw’s LaserXL™ software provides guided, standards-compliant measurement routines aligned with ISO 230-2, ISO 230-6, and ANSI B5.54 protocols—including sequential positioning, bidirectional error mapping, and thermal drift analysis. All raw interferometric data—including phase quadrature signals, compensated distance values, and timestamped environmental parameters—are logged in ASCII and CSV formats for third-party post-processing. QuickViewXL™ offers real-time visualization of displacement, velocity, and signal strength—essential for on-the-fly alignment and troubleshooting. Both applications support 21 CFR Part 11-compliant audit trails when deployed with validated configurations, including user access controls, electronic signatures, and immutable data logging—meeting regulatory expectations for pharmaceutical, aerospace, and medical device manufacturing QA/QC laboratories.

Applications

• Machine tool volumetric error mapping and geometric performance verification (linear axis positioning, pitch/yaw/roll, squareness, straightness).
• In-situ calibration of coordinate measuring machines (CMMs), optical comparators, and laser trackers against primary length standards.
• Dynamic characterization of motion control systems, including servo loop tuning, resonance detection, and jitter analysis.
• Large-scale dimensional metrology in aerospace assembly jigs, shipbuilding templates, and wind turbine component alignment.
• Research-grade displacement metrology in precision mechanics, nanotechnology instrumentation, and gravitational wave detector test benches.

FAQ

Is the XL80 compatible with existing ML10 optical components?
Yes—the XL80 shares identical beam height, optical interface geometry, and retroreflector alignment tolerances with the ML10, ensuring full mechanical and functional interoperability.

What environmental parameters does the XC-80 measure, and how frequently are corrections applied?
The XC-80 measures air temperature, barometric pressure, relative humidity, and CO₂ concentration, updating compensation values every 7 seconds using the latest Edlén-based refractive index model.

Does the XL80 require external interface hardware for PC connectivity?
No—USB 2.0 connectivity is built into the laser head, eliminating the need for separate interface units or proprietary DAQ cards.

Can the XL80 perform non-linear measurements such as angular or straightness deviations?
Yes—when used with Renishaw’s angular optics kits (e.g., AxiSet™ or HS20 heads), the XL80 supports full 6-degree-of-freedom error mapping per ISO 230-1 and ISO 230-6.

What is the warranty coverage for the XL80 system?
The XL80 carries a standard 3-year comprehensive warranty covering parts, labor, and calibration services; optional extension to 5 years is available at time of purchase.
