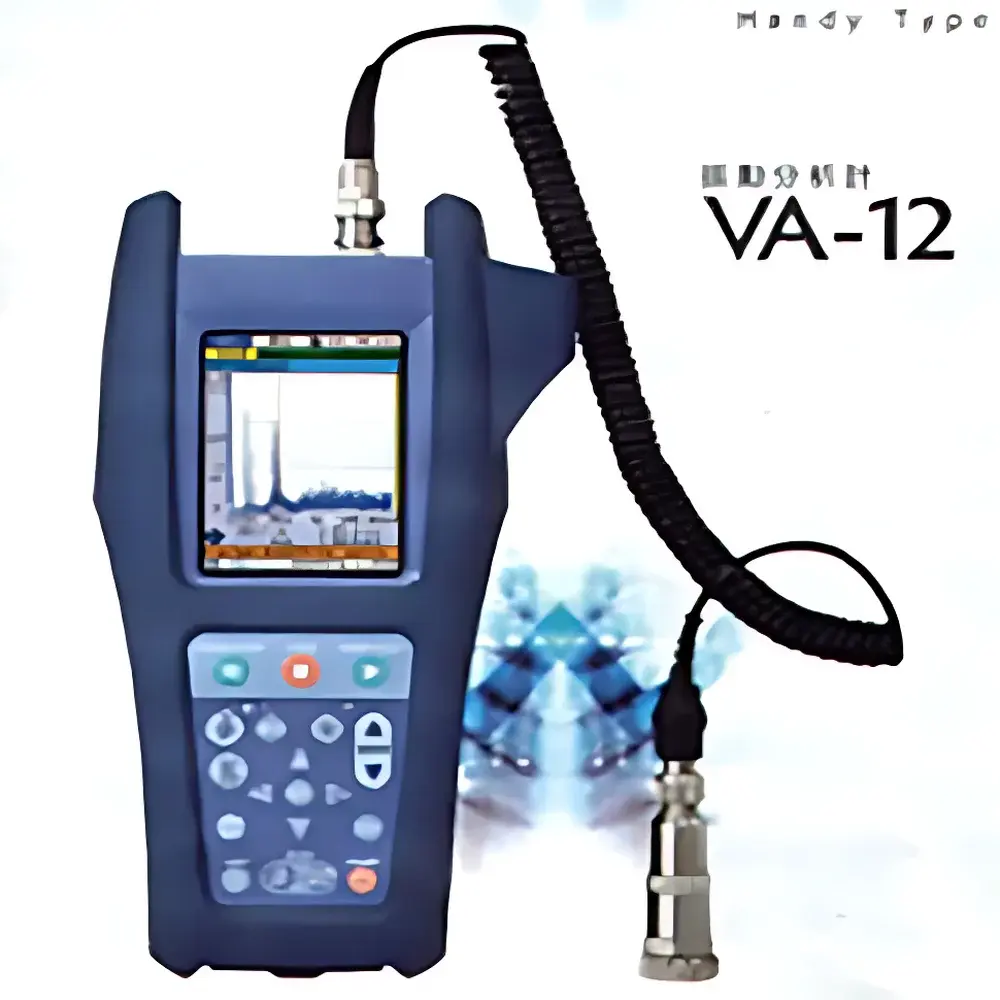

RION VA-12 Portable Vibration Analyzer

Overview

The RION VA-12 Portable Vibration Analyzer is an engineered field instrument designed for precision condition monitoring and predictive maintenance in industrial, mechanical, and facility management environments. Based on digital signal processing (DSP) architecture and compliant with international electromagnetic compatibility (EMC) and environmental directives (CE 2004/108/EC, China RoHS, WEEE), the VA-12 delivers high-fidelity acquisition of vibration signatures across acceleration, velocity, and displacement domains. Its core measurement principle relies on charge-mode piezoelectric transduction—optimized for use with the PV-57I accelerometer—and real-time 24-bit analog-to-digital conversion, ensuring a dynamic range of 110 dB and minimal quantization error across its full operational bandwidth. Unlike basic handheld meters, the VA-12 integrates time-domain waveform capture, FFT spectral analysis, and envelope detection (1–20 kHz band), enabling identification of bearing faults, gear mesh anomalies, imbalance, misalignment, and resonance phenomena in rotating machinery.

Key Features

• 8192-point sampling resolution—double that of the VA-11S—enabling finer frequency binning and improved amplitude resolution in FFT spectra.
• 240×320 color TFT LED display with adjustable backlight, optimized for low-illumination environments including confined spaces and nighttime inspections.
• Automatic screen capture: saves real-time waveforms, spectra, or meter readings directly as BMP files to SD card for traceable documentation.
• Auto-save-on-power-off functionality preserves active measurement sessions, allowing continuity across sequential inspection rounds without manual intervention.
• Three primary display modes: Vibration Meter (numeric RMS/peak values), Time-domain Oscilloscope (waveform visualization), and FFT Analyzer (frequency-domain magnitude spectra).
• Dual CCLD excitation options: default 18 V / 2 mA compatible with standard IEPE sensors; configurable to 24 V / 4 mA for extended sensor compatibility and signal integrity over longer cable runs.

Sample Compatibility & Compliance

The VA-12 is calibrated and validated for use with industry-standard piezoelectric accelerometers, particularly the RION PV-57I (sensitivity 1.00–9.99 mV/(m/s²)). It supports full-range measurements across acceleration (0.02–1000 m/s² rms), velocity (0.1–3160 mm/s rms), and displacement (0.003–89.4 mm EQp-p), with mode-specific frequency coverage aligned to ISO 10816 and ISO 20816 guidance for machinery health assessment. Built-in high-pass and low-pass filtering—including dedicated 1 kHz / 20 kHz envelope bandpass—facilitates early-stage fault detection per ISO 13373-3. The unit conforms to CE EMC Directive 2004/108/EC, meets China RoHS substance restrictions for export to mainland China, and complies with WEEE recycling requirements. While not certified to IEC 61000-4-x immunity standards out-of-box, its robust metal housing and shielded input stage provide stable operation in typical plant-floor EMI environments.

Software & Data Management

Data acquired by the VA-12 is stored on standard SD cards in proprietary binary format and exported via USB to Windows PCs running the included RION VA-Series Analysis Software. This application provides spectral overlay, trend charting, alarm threshold configuration, and customizable reporting templates compliant with internal QA/QC protocols. All exported reports include embedded metadata: timestamp, sensor ID, calibration status, filter settings, and operator ID—supporting auditability under GLP and GMP frameworks. Though not natively Part 11-compliant, the software allows integration with third-party LIMS or CMMS platforms via CSV/XML export, and supports digital signature workflows when deployed within validated IT infrastructure.

Applications

The VA-12 serves as a frontline diagnostic tool for maintenance engineers performing routine vibration surveys on electric motors, pumps, fans, compressors, gearboxes, and belt-driven systems. Its envelope detection capability enables reliable identification of rolling-element bearing defects prior to macroscopic wear. The 8192-point FFT resolution supports modal analysis of lightweight structures and verification of balancing corrections. In HVAC system commissioning, it verifies fan wheel balance and duct-induced resonance. Field technicians use its portability and battery life (>8 hours continuous operation) for multi-point route-based monitoring across large facilities, while its BMP screen capture function satisfies internal documentation requirements for ISO 55001 asset management audits.

FAQ

Does the VA-12 support dual-channel measurement?
No—the VA-12 is a single-channel analyzer. For phase analysis or cross-channel coherence, users require the RION VA-13 or VA-14 series.
Is firmware upgrade available, and how is it performed?
Yes—firmware updates are distributed via RION’s authorized service centers and applied using the included USB cable and VA-Series Utility software.
Can the VA-12 perform order analysis on variable-speed machinery?
No—it lacks built-in tachometer input or rpm-synchronized sampling; order tracking requires external speed reference and post-processing in the desktop software.
What is the calibration interval recommendation?
RION recommends annual calibration against traceable standards (e.g., NIST-traceable shaker systems) or after any physical impact or environmental exposure exceeding IP54 specifications.
Is the PV-57I sensor included with the VA-12 base configuration?
No—the PV-57I is sold separately as an optional accessory; the VA-12 ships with BNC input, carrying case, USB cable, AC adapter, and SD card.
