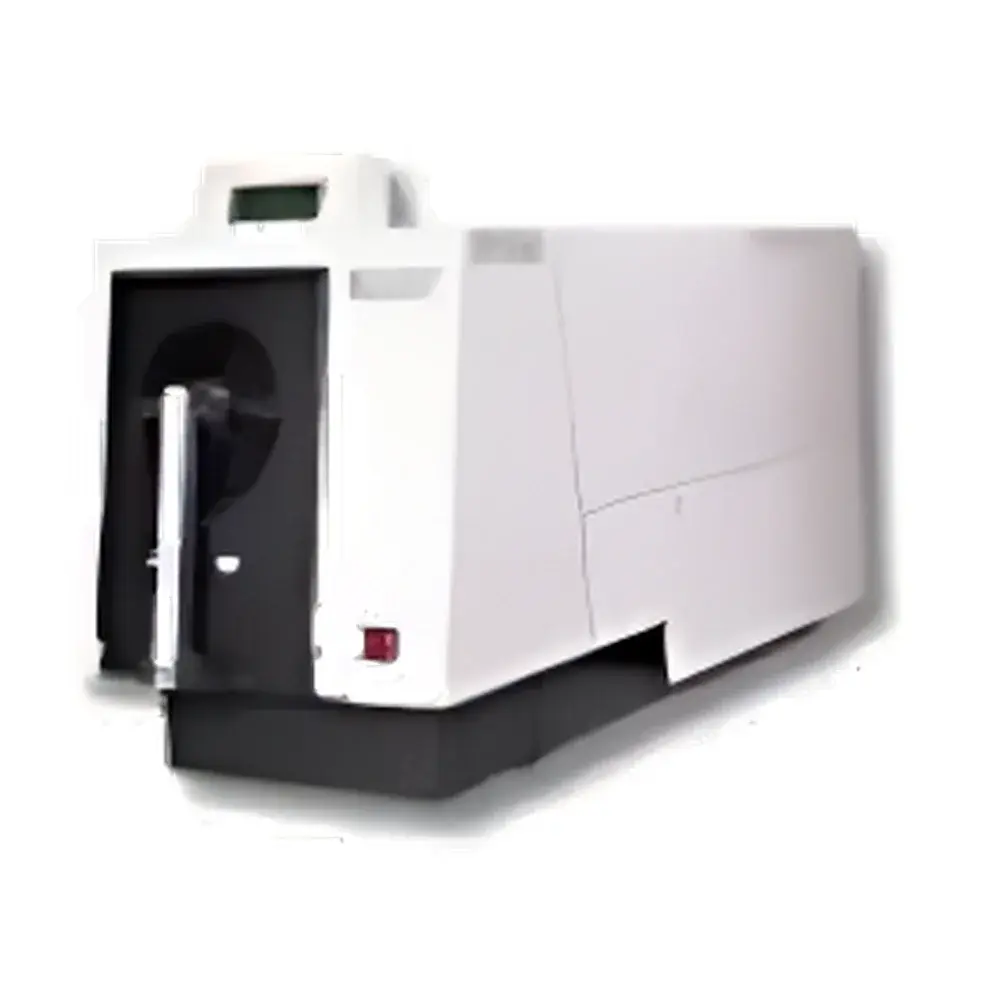

X-Rite Color-Eye 7000A Desktop Spectrophotometer

Overview

The X-Rite Color-Eye 7000A is a high-precision, dual-beam desktop spectrophotometer engineered for rigorous color quality control in industrial manufacturing, R&D laboratories, and supply chain validation environments. Based on the proven GretagMacbeth optical architecture, it employs a pulsed xenon arc light source coupled with dual spectral analyzers — one dedicated to sample measurement and the other continuously monitoring internal reference conditions. This real-time dual-channel acquisition enables continuous drift correction, significantly enhancing long-term stability and inter-instrument agreement. Its d/8° optical geometry complies with ISO 7724-1, ASTM E308, and CIE No. 15, ensuring metrological traceability across global color management workflows. Designed for use under ambient lighting without pre-warm-up or thermal stabilization, the instrument delivers sub-second measurements with exceptional repeatability (0.01 RMS ΔE on white tile) and industry-leading inter-instrument agreement (0.08 avg. ΔE in LAV mode), making it suitable for cross-site color data exchange, incoming/outgoing inspection, and regulatory-compliant documentation.

Key Features

• Dual spectral analyzer architecture: Simultaneous acquisition of sample and internal reference spectra enables dynamic compensation for temperature, voltage, and aging effects.
• Motorized specular component exclusion (SCI/SCE): Enables precise differentiation between surface appearance (gloss, texture) and intrinsic color via programmable mirror finish compensation.
• Automated UV control system: Two pre-configured UV bands with motorized filter alignment ensure accurate D65 daylight simulation — critical for fluorescent whitening agent (FWA) evaluation in textiles, paper, and plastics.
• Four interchangeable apertures (LAV, MAV, SAV, VSAV): Support flexible sampling of large surfaces, small parts, printed dots, and textured substrates while maintaining NIST-traceable calibration integrity.
• Integrated 152 mm integrating sphere with dual xenon lamps: Provides uniform diffuse illumination and eliminates directional bias; second lamp enables periodic auto-calibration flashes to maintain spectral fidelity over time.
• Haze and transmission measurement capability: With optional sample holder accessory, supports quantitative haze (ASTM D1003) and transmittance analysis for transparent and translucent materials including films, bottles, and lenses.

Sample Compatibility & Compliance

The Color-Eye 7000A accommodates opaque, translucent, transparent, and textured samples across diverse industrial sectors — including automotive coatings, packaging inks, pharmaceutical tablets, cosmetic emulsions, and architectural paints. Its 0–200% reflectance range and high-sensitivity detector support accurate measurement of deep blacks, metallics, and fluorescent pigments without saturation or signal clipping. The instrument meets ISO/IEC 17025 requirements for laboratory accreditation when operated within documented procedures and calibrated against certified standards (e.g., NIST SRM 2020). It supports GLP/GMP-aligned workflows through audit-trail-capable software integration (e.g., Color iQC), enabling full traceability of measurement conditions, operator ID, date/time stamps, and calibration history per FDA 21 CFR Part 11 guidelines.

Software & Data Management

Native compatibility with X-Rite’s Color iQC and Color iMatch software enables centralized database management, statistical process control (SPC), pass/fail tolerancing, and formulation prediction. Instrument settings — including aperture selection, UV mode, SCI/SCE configuration, and tolerance ellipsoids (CIEDE2000, CMC, BFD) — can be controlled either locally via the tactile LCD interface or remotely through networked software. All spectral data is stored in standardized .qtx or .ciex format, supporting interoperability with third-party LIMS, ERP, and PLM systems. Raw spectral curves (360–700 nm at 10 nm intervals), tristimulus values, chromaticity coordinates, and derived metrics (Yellowness Index, Whiteness Index, Haze %) are exportable in CSV or XML for further statistical analysis or regulatory submission.

Applications

• Color consistency verification across production batches and supplier tiers in automotive OEM and Tier-1 paint shops.
• Quantitative assessment of yellowing and whitening in polymer degradation studies (ISO 4892, ASTM D2565).
• Transparency and haze evaluation of medical device packaging per ISO 14782 and ASTM D1003.
• Pharmaceutical tablet coating uniformity testing compliant with USP and ICH Q5C.
• Printed electronics substrate characterization where spectral neutrality and UV response must be validated.
• Quality gate enforcement at receiving inspection points using automated pass/fail logic based on user-defined ΔE thresholds.

FAQ

What standards does the Color-Eye 7000A comply with for color measurement?
It conforms to ISO 7724-1 (geometry), ISO 11664 (CIE colorimetric observers), ASTM E308 (computation), and CIE Publication 15 (spectral irradiance), supporting compliance with ISO/IEC 17025 and FDA 21 CFR Part 11 when used with validated software protocols.
Can the instrument measure fluorescent or optically brightened samples accurately?
Yes — its motorized UV control system provides D65-matched UV energy output, enabling reliable quantification of fluorescence in papers, detergents, and textiles per ISO 11475 and ASTM E308 Annex A4.
Is haze measurement performed according to recognized industry methods?
Haze is calculated per ASTM D1003 using transmitted spectral data acquired via the included sample holder; results are traceable to NIST SRM 1979 when calibrated with certified haze standards.
How is inter-instrument agreement maintained across multiple units in a global facility?
The dual-lamp, dual-sphere design and built-in reference channel enable automatic daily self-calibration; combined with factory-set inter-unit agreement of ≤0.08 ΔE (LAV), it ensures consistent data transfer between sites without manual matching.
Does the instrument require warm-up time before operation?
No — the pulsed xenon source operates without thermal stabilization, delivering stable readings from first measurement, eliminating downtime and improving throughput in high-volume QC labs.
