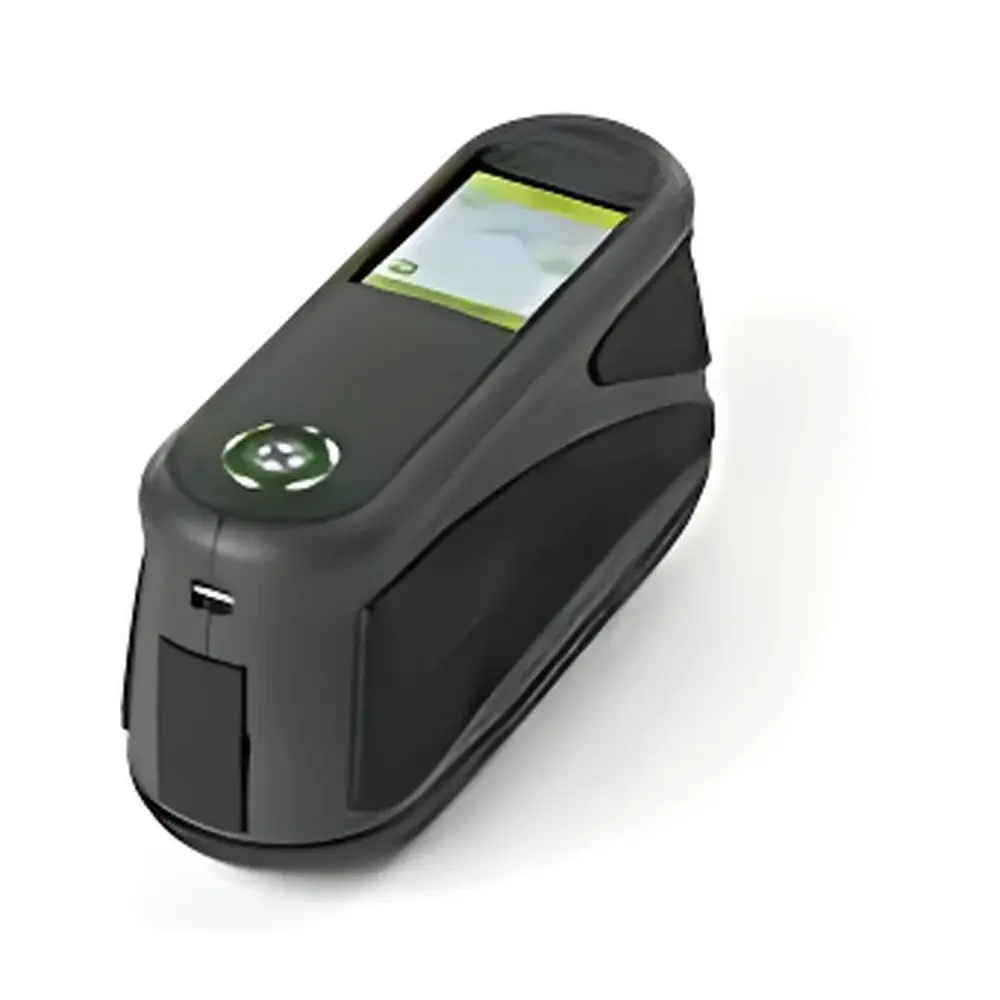

X-Rite MA-T6 and MA-T12 Multi-Angle Spectrophotometers

Overview

The X-Rite MA-T6 and MA-T12 are high-precision, portable multi-angle spectrophotometers engineered for the objective quantification of visual appearance attributes in effect finishes—including metallic, pearlescent, and goniochromatic coatings used in automotive OEM and refinish, consumer electronics, appliances, and cosmetics. Unlike conventional 0/45° or d/8° colorimeters, these instruments implement a dual-illumination, multi-receiver optical architecture based on the CIE-defined geometry for gonio-spectral measurement. Each unit integrates a full-spectrum white LED with enhanced blue output (400–700 nm, 10 nm resolution) and a 0/45° integrating sphere to ensure stable, diffuse illumination and accurate reflectance capture across all viewing angles. The MA-T6 supports six measurement geometries using 15° fixed illumination and variable receiver positions (15as−15°, 15as15°, 15as−30°, 15as45°, 15as80°), while the MA-T12 extends capability to twelve angles—six under 45° illumination (45as−15° to 45as110°) and six under 15° illumination—enabling comprehensive characterization of spatially varying appearance phenomena such as sparkle, graininess, and flop index. This architecture directly correlates with human visual perception under standardized lighting and viewing conditions, supporting robust pass/fail decisions in production and supply chain quality control.

Key Features

• True multi-angle gonio-spectral measurement: MA-T6 delivers six angles; MA-T12 delivers twelve—both compliant with ASTM E2539 and SAE J1545 for effect finish evaluation.
• High-stability optical platform: Blue-enhanced full-spectrum LED with 10-year rated lifetime ensures consistent spectral output without lamp replacement or drift-related recalibration.
• Integrated color imaging preview: 3.5-inch high-resolution touchscreen displays real-time RGB preview prior to measurement, enabling precise placement over heterogeneous surfaces.
• Automated internal calibration: Built-in black trap and ceramic white tile eliminate dependency on manual daily calibration routines—reducing operator variability and supporting GLP-aligned workflows.
• Dual-effect quantification engine: Simultaneous calculation of sparkle (luminance contrast distribution), graininess (spatial intensity variation), and flop index (L* shift between near- and far-flank angles) per ASTM E2847 and ISO 18314-2 methodologies.
• Robust data integrity architecture: All measurements include timestamp, GPS metadata (optional), operator ID, and instrument serial number—supporting FDA 21 CFR Part 11 audit trails when integrated with X-Rite Color iQC or Datacolor Tools software.

Sample Compatibility & Compliance

The MA-T6/T12 series accommodates flat, curved, and textured substrates up to 12.8 mm in height, with a defined 9 mm × 12 mm measurement aperture. Its non-contact design and pressure-activated trigger prevent surface deformation during measurement of soft plastics, powder-coated panels, or vacuum-metallized films. Instruments comply with international standards governing colorimetry and appearance metrology—including ISO 7724 (colorimetric methods), ISO 11664-4 (CIE colorimetric observers), DIN 6175-1/2 (effect paint evaluation), and ASTM E1164 (spectral data processing). For regulated industries, the firmware supports configurable user access levels, electronic signatures, and exportable .csv/.xml reports traceable to NIST-traceable BCRA reference tiles. Both models meet IEC 61000-4 electromagnetic compatibility requirements and operate reliably within Class II industrial environments per EN 61326-1.

Software & Data Management

X-Rite’s Color iMatch™ and Color iQC™ software platforms provide full integration for method-driven measurement, statistical process control (SPC), and cross-site tolerance management. Raw spectral data (31-point reflectance curves) and derived metrics—including ΔE2000, ΔECMC, ΔE DIN6175, and custom sparkle/graininess indices—are stored in encrypted SQLite databases with version-controlled backup. Cloud synchronization via X-Rite’s hosted Color Network enables centralized dashboard monitoring of global supplier measurements, with automated alerts for out-of-tolerance events. All software modules support 21 CFR Part 11 compliance packages, including audit trail logging, role-based permissions, and electronic signature validation. Legacy compatibility with MA68, MA94, MA96, and MA98 datasets ensures seamless migration without loss of historical baselines or specification libraries.

Applications

These instruments serve critical roles across R&D, manufacturing, and supplier quality assurance. In automotive OEM facilities, they quantify color flop and sparkle consistency across body panels, trim components, and wheels—ensuring visual harmony before final assembly. Consumer electronics manufacturers use them to validate anodized aluminum finishes, PVD-coated casings, and holographic film laminates against perceptual tolerances. In cosmetics, MA-T6/T12 supports objective assessment of glitter particle distribution and chroma shift in nail polishes and eyeshadows. Packaging converters apply them to evaluate pearlescent inks on flexible films and metallized board—linking instrumental data to consumer perception studies. Their portability also supports field verification at Tier-1 supplier sites, enabling rapid root-cause analysis of appearance deviations without requiring lab-grade environmental controls.

FAQ

What distinguishes the MA-T6 from the MA-T12?
The MA-T6 employs a single 15° illumination source with six receiver positions, optimized for cost-sensitive applications where primary sparkle and graininess metrics suffice. The MA-T12 adds a second 45° illumination channel and expands total angle count to twelve—enabling full flop curve generation and enhanced discrimination of complex goniochromatic effects.
Can the MA-T6/T12 measure transparent or translucent materials?
No—these instruments are designed exclusively for opaque, reflective surfaces. Transmission or backscatter measurements require dedicated d/0 or 0/d geometries not supported by this platform.
Is external calibration required?
While internal calibration is sufficient for routine operation, X-Rite recommends quarterly verification against a certified external white tile traceable to NIST SRM 2020 for GxP-regulated environments.
How is data security managed in multi-user environments?
Each instrument enforces password-protected user profiles with configurable privilege tiers (e.g., operator, supervisor, administrator), and all exported files include embedded digital signatures validated against X-Rite’s public key infrastructure.
Does the device support real-time wireless reporting to MES systems?
Yes—via Wi-Fi-enabled RESTful API integration, measurement results can be pushed directly to SAP QM, Siemens Opcenter Quality, or custom MES endpoints using JSON payloads compliant with ISA-95 Part 2 messaging schemas.
