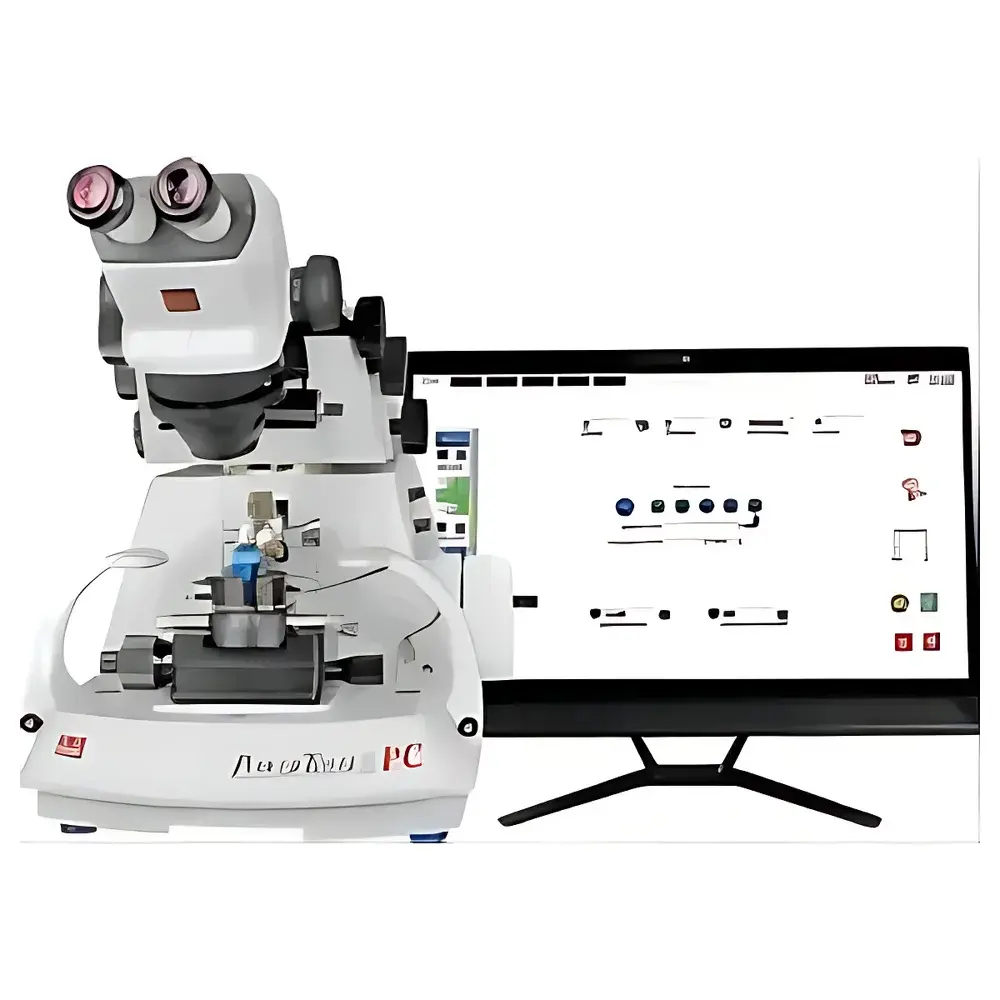

RMC PowerTome PC Ultramicrotome

Overview

The RMC PowerTome PC is a precision-engineered ultramicrotome designed for the preparation of ultra-thin sections (typically 30–150 nm) for transmission electron microscopy (TEM), as well as semi-thin sections (up to 15 µm) for light microscopy and serial block-face imaging. It operates on the fundamental principle of controlled, linear advancement of a resin-embedded specimen against a stationary ultra-sharp cutting edge—either glass or diamond—under precisely regulated thermal and mechanical conditions. Unlike fully automated systems, the PowerTome PC emphasizes operator-in-the-loop control, enabling experienced users to fine-tune sectioning parameters in real time based on visual feedback from the knife trough and specimen behavior. Its robust cast-metal frame, vibration-damped base, and precision-ground linear motion system provide mechanical stability essential for high-reproducibility sectioning across diverse biological, polymer, and material science samples.

Key Features

• Adjustable slice thickness range from 0 nm (theoretical limit at zero advance) up to 15 µm, calibrated via micrometer-driven specimen advance mechanism with vernier scale readout
• Dual-mode operation: manual advancement for precise positioning and motorized sectioning with variable speed control (0.05–3 mm/s) for consistent ribbon formation
• Modular knife holder compatible with standard 3 mm or 6 mm glass knives and disposable or reusable diamond knives, secured via positive-locking clamping system
• Integrated LED illumination system with adjustable intensity and angle, optimized for visualization of transparent ribbons on water surface in the knife trough
• Ergonomic specimen stage with three-axis adjustment (X/Y/Z + tilt), allowing fine alignment of block face relative to knife edge for optimal sectioning geometry
• Thermally stable base plate and optional anti-vibration table mount to minimize environmental perturbations during thin-section collection

Sample Compatibility & Compliance

The PowerTome PC accommodates standard epoxy, acrylic, and LR White-embedded biological specimens, as well as harder materials including cured polymers, composites, and soft metals when prepared using appropriate embedding protocols. Sample blocks are mounted on standard aluminum or brass stubs compatible with common microtome chucks. The instrument meets general laboratory safety standards per ANSI Z87.1 (eye protection), IEC 61010-1 (electrical safety), and ISO 13857 (mechanical hazard spacing). While not certified for GMP or GLP environments out-of-the-box, its mechanical repeatability, traceable calibration procedure, and absence of software-based automation allow full compliance with TEM sample preparation SOPs aligned with ASTM E1558 (Standard Guide for Preparation of Specimens for Transmission Electron Microscopy) and ISO/IEC 17025 documentation requirements when used within validated lab workflows.

Software & Data Management

The PowerTome PC is a hardware-centric instrument with no embedded operating system or digital data logging capability. All operational parameters—including slice thickness setting, speed selection, and stage position—are manually recorded by the user in lab notebooks or LIMS-integrated electronic records. This design eliminates software validation overhead and supports audit-trail integrity under FDA 21 CFR Part 11 when paired with compliant documentation practices. Optional accessories include digital calipers for independent verification of section thickness and USB-microscope adapters for real-time imaging of ribbons during collection—data from which may be archived externally in accordance with institutional data retention policies.

Applications

• Preparation of ultrathin sections (40–90 nm) for TEM analysis of cellular ultrastructure, synaptic morphology, and organelle architecture
• Semi-thin sectioning (0.5–15 µm) for toluidine blue staining and light microscopic screening prior to targeted TEM sampling
• Serial sectioning for 3D reconstruction and connectomics studies using array tomography or automated tape-collecting ultramicrotomy (ATUM) workflows
• Material science applications including cross-sectional analysis of thin-film devices, battery electrode interfaces, and polymer phase separation
• Quality control of embedding homogeneity and orientation in histopathology and preclinical toxicology laboratories

FAQ

What types of knives are compatible with the PowerTome PC?

Standard 3 mm and 6 mm glass knives, as well as 3 mm and 4.5 mm diamond knives with universal mounting tabs, are supported via the interchangeable knife holder assembly.

Is thermal drift compensation available?

No built-in active temperature control is included; however, the instrument’s low-coefficient-alloy frame and massive base minimize thermal expansion effects. Stable ambient temperature (±1°C) is recommended for sub-50 nm sectioning.

Can the PowerTome PC be integrated into automated imaging pipelines?

While the device itself lacks network connectivity or API interfaces, it is routinely used upstream of automated TEM grid loaders and serial section collectors—integration is achieved mechanically and procedurally, not digitally.

What maintenance is required for long-term reliability?

Monthly cleaning of the specimen advance mechanism with lint-free swabs and isopropyl alcohol, biannual lubrication of linear guides with silicone-free grease, and periodic verification of micrometer calibration using NIST-traceable gauge blocks.

Does RMC provide application support for new users?

Yes—RMC offers on-site installation, hands-on training modules covering block trimming, knife alignment, ribbon formation, and troubleshooting, plus access to a library of SOP templates aligned with major EM core facility standards.
