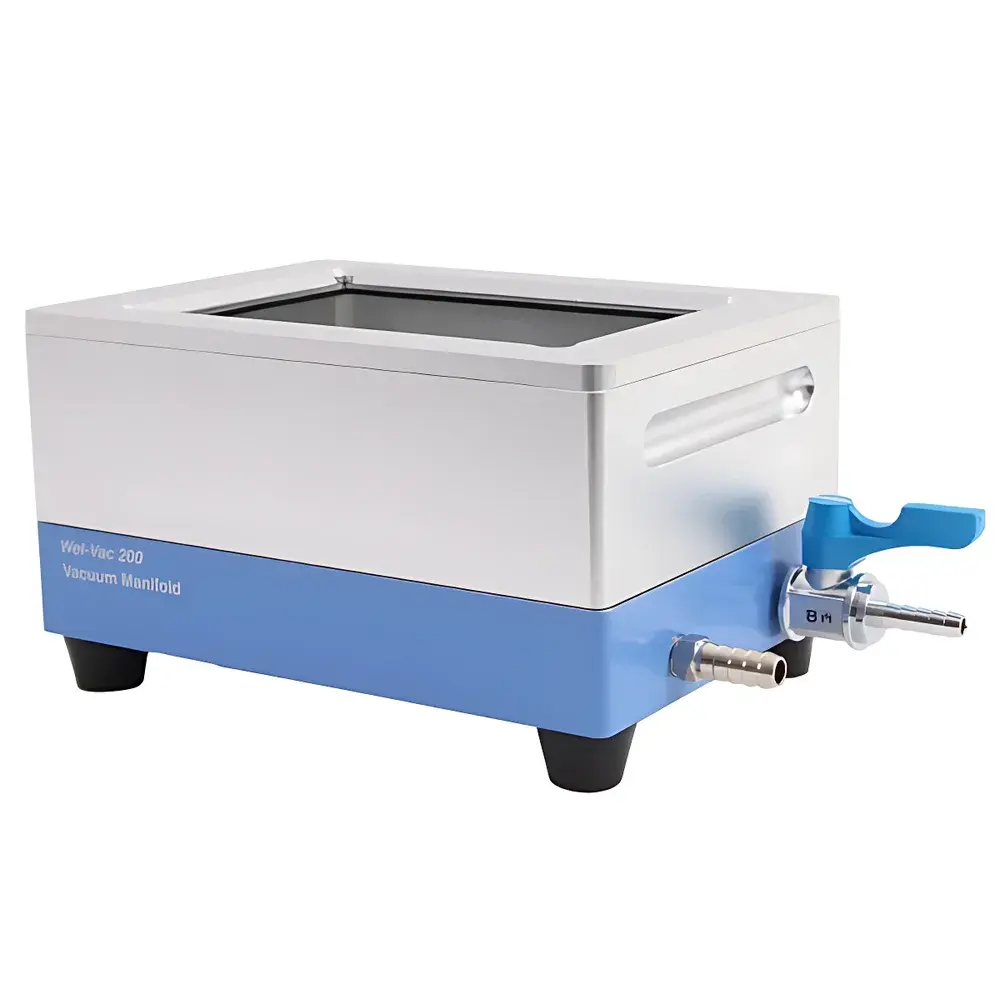

Rocker WelVac200 Vacuum Manifold System

Overview

The Rocker WelVac200 Vacuum Manifold System is an engineered platform for rapid, consistent, and scalable nucleic acid and biomolecule purification in molecular biology laboratories. Unlike centrifugation-based purification workflows—which require repeated rotor balancing, speed calibration, and tube handling—the WelVac200 leverages controlled vacuum pressure to drive sample passage through membrane-based spin columns or filter plates. This principle of vacuum-assisted filtration enables uniform flow rates across multiple samples simultaneously, minimizing shear stress on fragile nucleic acids (e.g., high-molecular-weight genomic DNA or intact RNA) while ensuring reproducible binding, washing, and elution steps. Designed for compatibility with standard commercial kits—including silica-membrane, magnetic bead, and anion-exchange chemistries—the system supports both low-throughput benchtop applications and mid-scale preparation workflows without requiring dedicated vacuum pumps or complex plumbing. Its modular architecture integrates seamlessly into GLP-compliant environments where traceability, process consistency, and operator safety are critical.

Key Features

• Modular vacuum manifold base constructed from corrosion-resistant anodized aluminum alloy, ensuring long-term structural integrity under repeated chemical exposure and sterilization cycles.
• Interchangeable sample support plates—24-well, 8-well, and 96-well formats—engineered for precise alignment with commercial spin columns and filter plates; all plates fabricated from medical-grade polycarbonate with certified biocompatibility (USP Class VI).
• Integrated silicone Luer-lock connectors and stoppers provide leak-tight vacuum coupling to standard laboratory vacuum sources (e.g., diaphragm or oil-free scroll pumps), with maximum operating vacuum ≤ −85 kPa (≤ 640 mmHg).
• Optimized internal cavity geometry ensures uniform vacuum distribution across all wells—validated via flow-rate profiling using calibrated microfluidic sensors—to eliminate edge effects and channeling artifacts common in non-vented manifolds.
• Tool-free assembly and disassembly facilitate rapid cleaning, autoclaving (up to 121°C, 20 min), and routine maintenance; all elastomeric components comply with ISO 10993-5 cytotoxicity standards.

Sample Compatibility & Compliance

The WelVac200 is validated for use with a broad spectrum of commercially available purification chemistries, including but not limited to Qiagen QIAamp, Thermo Fisher PureLink, Zymo Research Zymo-Spin, and Norgen Biotek kits. It accommodates standard 1.5–2.0 mL microcentrifuge tubes, 15–50 mL conical tubes, and ANSI/SLAS-standard 96-well filter plates (e.g., PVDF, nylon, or PES membranes). All wetted surfaces are inert to common lysis buffers (e.g., guanidine thiocyanate, chaotropic salts), ethanol washes, and low-pH elution solutions. The system meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD); documentation supports audit readiness for ISO/IEC 17025, CLIA, and FDA 21 CFR Part 11–aligned data integrity protocols when paired with compliant vacuum controllers and loggers.

Software & Data Management

As a hardware-only vacuum manifold, the WelVac200 does not incorporate embedded firmware or digital controls. However, it is fully compatible with third-party vacuum regulators equipped with analog/digital output (e.g., Vacuubrand VRD 100, KNF N86 KT.18) that support programmable pressure ramping, real-time monitoring, and CSV export of vacuum profiles. When integrated into validated workflows, users may record operational parameters—including applied vacuum level, duration per step, and lot numbers of consumables—in laboratory notebooks or electronic lab notebooks (ELNs) compliant with ALCOA+ principles. Rocker provides a comprehensive validation support package, including Installation Qualification (IQ) templates and Operational Qualification (OQ) test protocols aligned with ASTM E2500-13.

Applications

• High-yield plasmid DNA purification from bacterial lysates with minimized shearing and endotoxin carryover.
• RNA isolation from mammalian tissues and cultured cells, preserving RIN values ≥ 8.5 when used with RNase-inhibiting buffers.
• Post-PCR cleanup and enzymatic reaction termination—removal of dNTPs, primers, and polymerases prior to sequencing or restriction digestion.
• Gel extraction of DNA fragments (100 bp–10 kb) following electrophoresis in agarose or polyacrylamide matrices.
• Concentration and buffer exchange of purified proteins and antibodies using centrifugal ultrafiltration devices mounted on the 24-well plate adapter.

FAQ

Is the WelVac200 compatible with vacuum pumps that lack pressure regulation?

Yes—however, unregulated pumps may exceed −90 kPa, risking membrane rupture or column dry-out. We recommend pairing the system with a pump featuring adjustable vacuum control or installing an inline vacuum regulator.
Can the manifold be autoclaved?

The aluminum base and PC plates are autoclavable at 121°C for 20 minutes; silicone Luer components must be removed prior to sterilization and replaced post-cycle.
What is the maximum recommended vacuum level for nucleic acid purification?

For optimal recovery and integrity, maintain vacuum between −60 kPa and −80 kPa during binding and washing steps; elution may be performed at ambient pressure or mild vacuum (< −30 kPa).
Does Rocker provide application notes or protocol optimization guidance?

Yes—Rocker’s technical library includes peer-reviewed SOPs for >30 kit manufacturers, plus troubleshooting guides for low yield, high background, and inconsistent flow rates.
How is compliance with FDA 21 CFR Part 11 addressed?

While the WelVac200 itself is not software-driven, its mechanical design supports Part 11 compliance when integrated into systems with audit-trail-capable controllers and documented change-control procedures per your site’s validation master plan.
