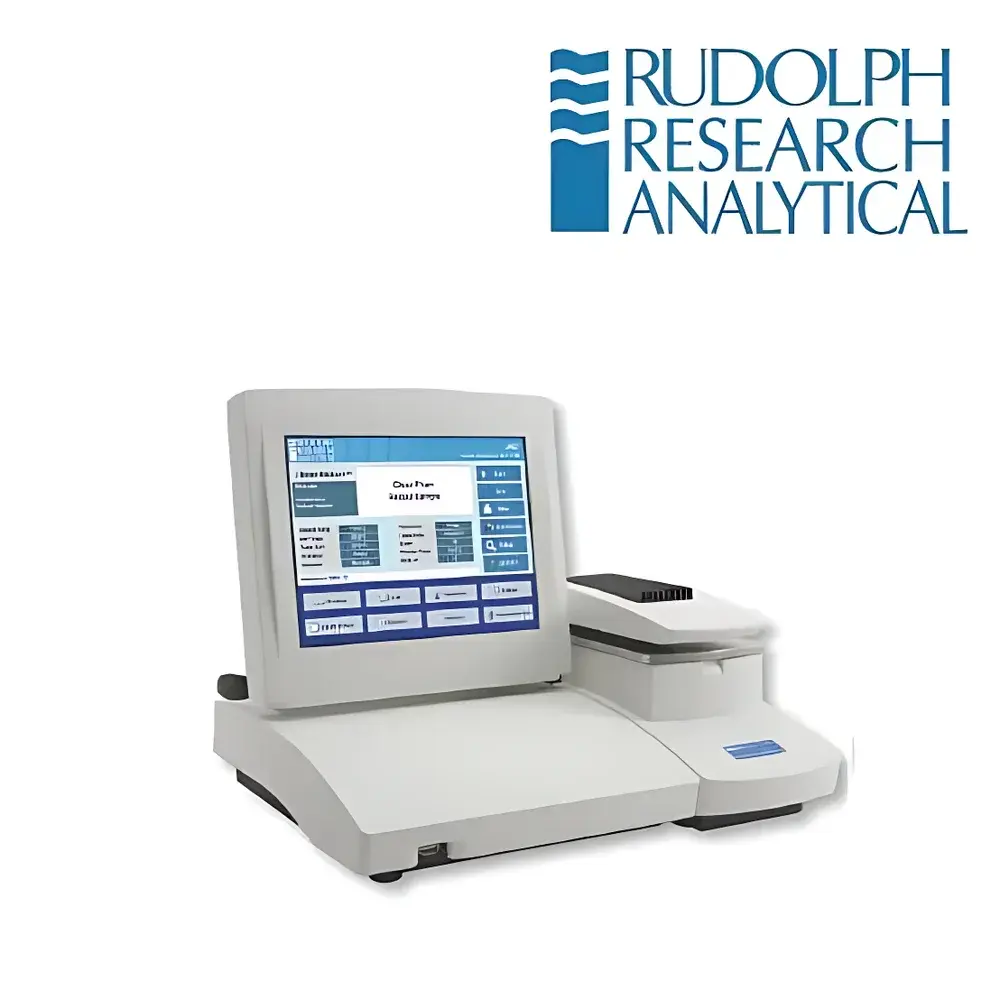

Rudolph J457 Digital Benchtop Refractometer

Overview

The Rudolph J457 Digital Benchtop Refractometer is a high-precision, temperature-controlled refractometric analyzer engineered for rigorous laboratory and industrial quality control applications. It operates on the principle of total internal reflection at the prism–sample interface, where the critical angle of incident light is measured and converted into refractive index (RI) values using Snell’s law. Equipped with a sapphire prism—Mohs hardness 9, chemically inert and scratch-resistant—the instrument ensures long-term optical stability and resistance to aggressive solvents, acids, and high-viscosity samples. Its dual-zone Peltier temperature control system independently regulates both the sample cell surface and the sample cover, enabling rapid thermal equilibration and minimizing thermal gradients across the measurement interface. This architecture delivers exceptional repeatability (<0.000002 RI RSD) and supports compliance-critical workflows in pharmaceutical, food & beverage, chemical, and petrochemical laboratories.

Key Features

• Sapphire prism optics for superior durability, chemical compatibility, and long-term refractive index stability
• Dual-zone Peltier temperature control (±0.01 °C stability) with independent regulation of sample cell and cover surfaces
• Smart Measure™ real-time diagnostic technology: automatically verifies sample volume adequacy, prism cleanliness, and calibration validity prior to measurement—and triggers visual/audible alerts if anomalies are detected
• Modular split-system design: sensor head (IP65-rated) can be wall-mounted or remotely installed in harsh or space-constrained environments; control unit remains in clean lab zones
• 10.4″ high-resolution color TFT touchscreen with intuitive icon-driven interface—no external PC required
• Multi-interface connectivity: RS-232, USB host/device, and Cat5 Ethernet for integration into LIMS, MES, or centralized data acquisition systems
• Wide operational range: 1.26–1.72 RI and 0–100 °Brix, accommodating low-index solvents (e.g., hydrocarbons), high-index polymers, and concentrated sugar or salt solutions

Sample Compatibility & Compliance

The J457 accommodates aqueous, organic, viscous, and particulate-laden samples without requiring dilution or filtration—enabled by its robust sapphire prism and optimized optical path geometry. It meets fundamental requirements for GLP and GMP environments: audit-trail-capable data logging (time-stamped, user-ID-tagged), password-protected method storage, and electronic signature support. Optional NIST-traceable calibration standards (certified RI and °Brix reference fluids) facilitate ISO/IEC 17025-compliant instrument qualification. The IP65-rated sensor head satisfies environmental resilience criteria per IEC 60529, making it suitable for production-floor deployment or humid, washdown-prone settings. Temperature control performance is validated per ASTM D1218 and ISO 21632 protocols.

Software & Data Management

The embedded operating system provides full standalone functionality—including method creation, calibration management, statistical reporting (mean, SD, RSD, min/max), and export to CSV or PDF. Data integrity is ensured via non-volatile memory with automatic backup and tamper-evident timestamps. Ethernet connectivity enables remote monitoring, firmware updates, and secure data transfer to networked servers under TLS 1.2 encryption. For regulated environments, optional 21 CFR Part 11 compliance packages include role-based access control, electronic signatures, and immutable audit trails with configurable retention policies. All measurements are stored with full metadata: operator ID, method name, calibration status, temperature reading, and Smart Measure™ diagnostic flags.

Applications

• Pharmaceutical: concentration verification of active pharmaceutical ingredients (APIs), excipients, and sterile formulations; solvent recovery validation
• Food & Beverage: Brix quantification in juices, syrups, dairy concentrates, and fermented products; quality assurance of honey, maple syrup, and wine must
• Chemical Manufacturing: real-time monitoring of polymerization reactions, resin formulation consistency, and glycol/water mixture ratios
• Petrochemical: hydrocarbon blend analysis, lubricant base oil characterization, and crude cut-point estimation
• Academic & R&D Labs: thermophysical property studies (RI vs. temperature), formulation development, and inter-laboratory method transfer

FAQ

Does the J457 require external PC software to operate?
No—the instrument runs fully autonomously with an integrated OS and touchscreen interface. A PC is only needed for advanced data export or network administration.
What is the purpose of dual-zone Peltier temperature control?
It eliminates thermal lag and boundary-layer effects by simultaneously stabilizing both the sample cell substrate and the upper cover surface, ensuring uniform thermal equilibrium across the entire measurement interface.
How does Smart Measure™ improve measurement reliability?
It performs pre-measurement diagnostics—including prism residue detection, insufficient sample volume identification, and calibration drift assessment—reducing operator-dependent error and preventing invalid results from entering the data stream.
Is the sapphire prism serviceable or replaceable in the field?
Yes—Rudolph supplies certified replacement sapphire prisms with factory recalibration certificates; replacement is performed using standardized torque tools and alignment fixtures.
Can the J457 be integrated into a SCADA or PLC-controlled process line?
Yes—via Modbus TCP over Ethernet or ASCII commands over RS-232/USB, enabling real-time RI feedback for closed-loop process control in continuous manufacturing environments.
