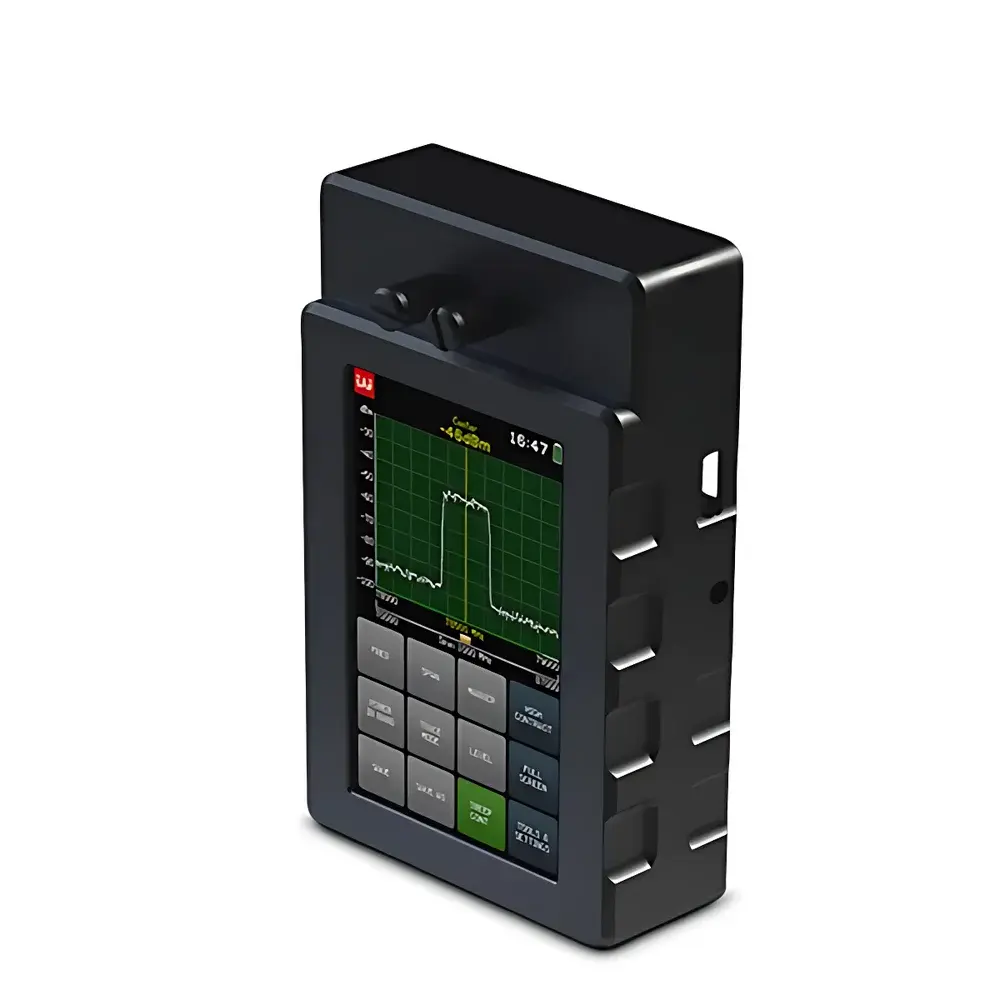

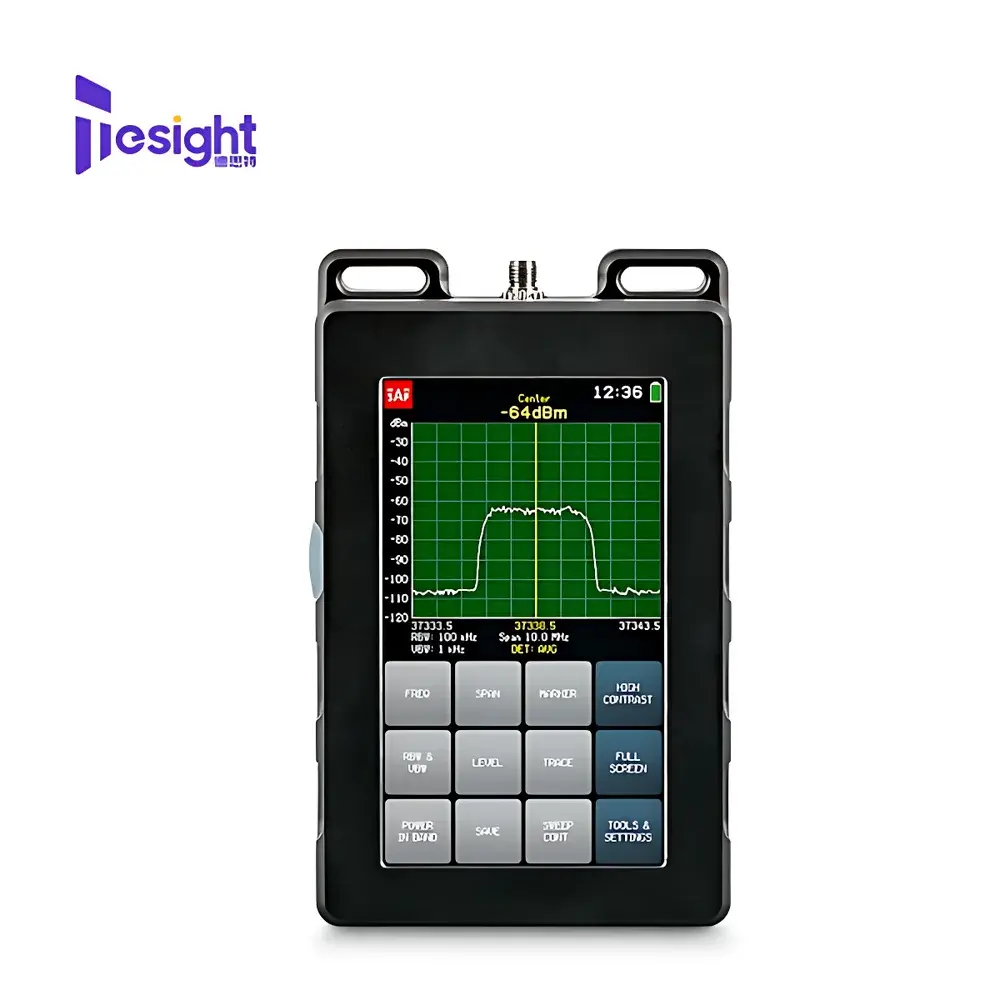

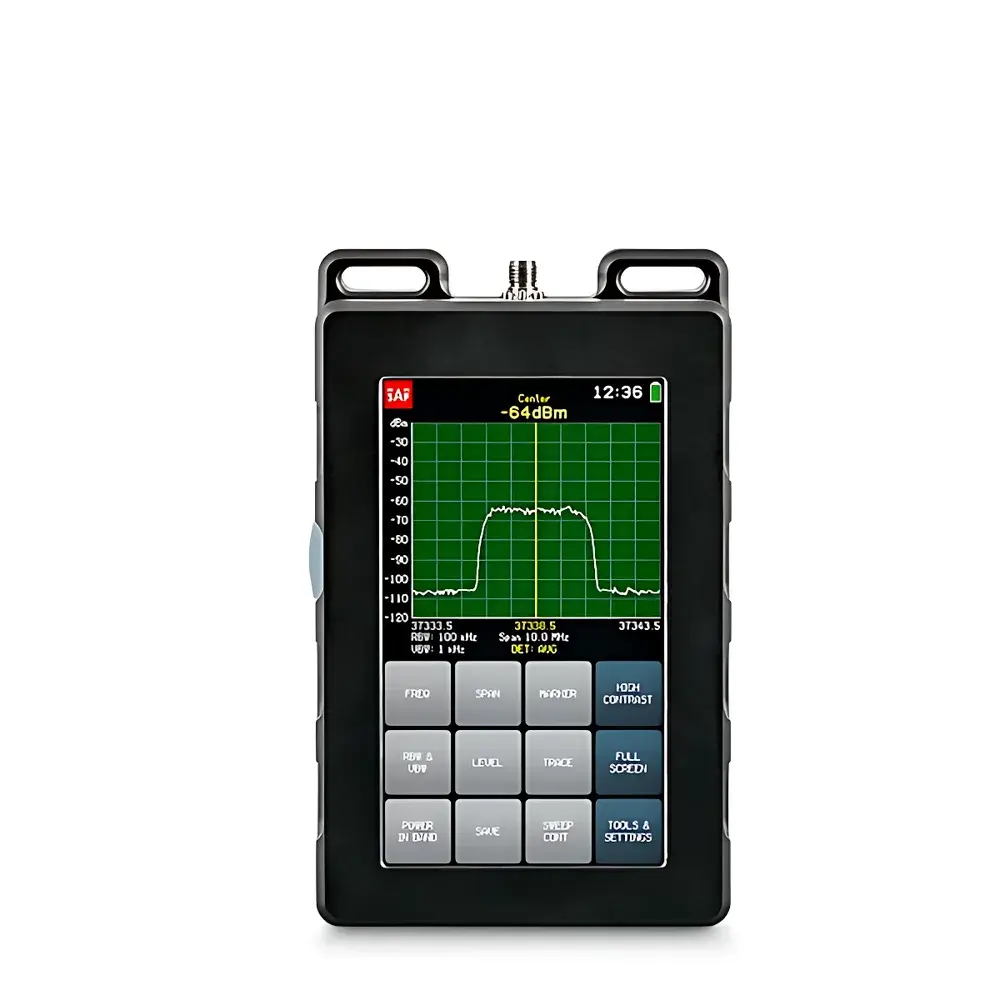

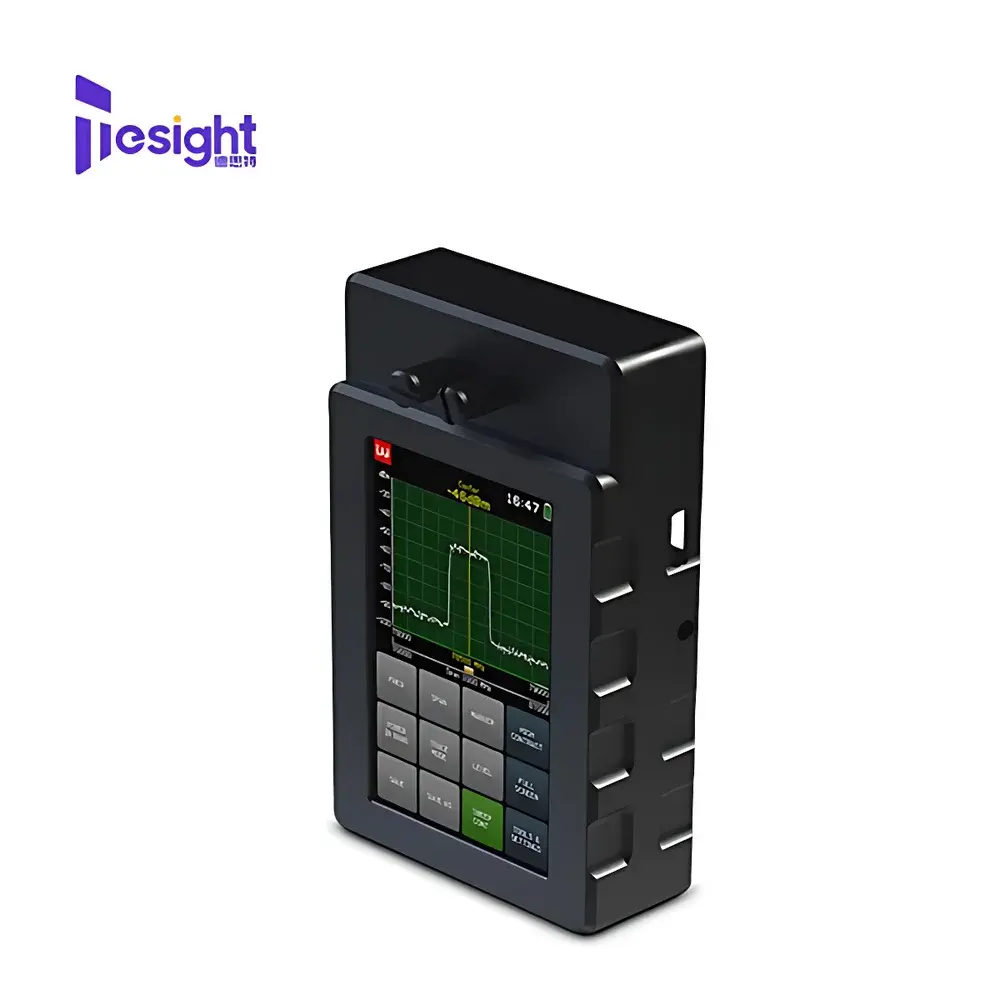

SAF J0GSAP5401 Handheld Spectrum Analyzer (24–43 GHz)

Overview

The SAF J0GSAP5401 Handheld Spectrum Analyzer is a purpose-built microwave measurement instrument engineered for field-deployable spectral analysis in the E-band (24.3–43.0 GHz). It operates on the principle of superheterodyne downconversion with digital IF processing, enabling real-time frequency-domain characterization of RF emissions, interference sources, and signal integrity across millimeter-wave communication systems. Unlike benchtop analyzers or software-defined radio (SDR)-based alternatives, the J0GSAP5401 integrates a calibrated front-end, temperature-compensated local oscillator, and embedded digital signal processing architecture—ensuring traceable amplitude and frequency accuracy under variable environmental conditions. Its design targets mission-critical outdoor applications where portability, ruggedness, and rapid decision-making are non-negotiable: satellite uplink verification, radar sidelobe assessment, 5G NR FR2 deployment validation, and VSAT link commissioning.

Key Features

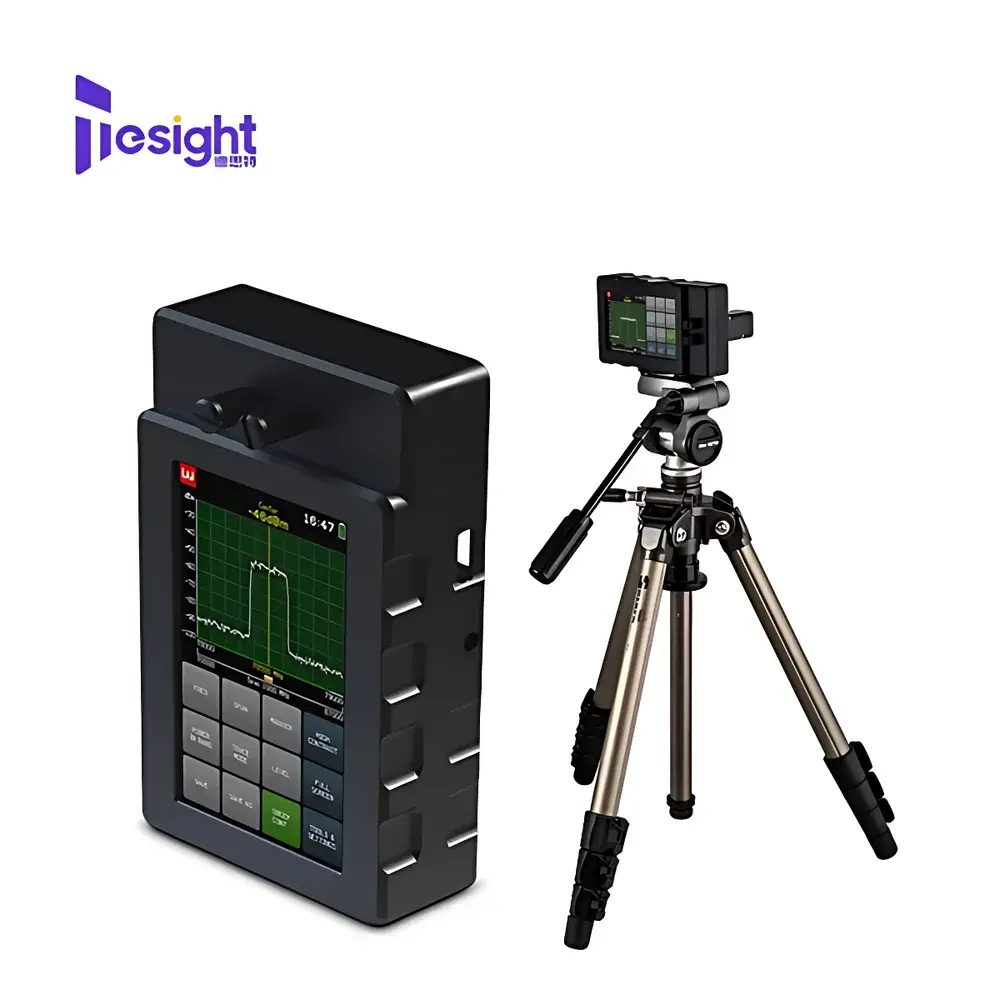

• True handheld form factor (135 × 83 × 34 mm, 0.57 kg) optimized for one-handed operation and extended field use
• Glove-compatible resistive touchscreen interface—enabling reliable interaction in cold, wet, or dusty environments
• IP54-rated enclosure for dust resistance and protection against water splashes during outdoor deployment
• Dual high-capacity 3500 mAh lithium-ion battery system supporting up to 4 hours of continuous operation without external power
• Ultra-low displayed average noise level (DANL) of –100 dBm at 100 kHz RBW (–150 dBm/Hz), enabling detection of weak out-of-band emitters and low-level spurious signals
• Calibrated RF input path with 50 Ω SMA (female) connector—compatible with industry-standard horn antennas, waveguide-to-coax adapters, and passive DUT fixtures
• USB Type-C interface serving dual roles: charging and high-speed bidirectional data transfer for configuration export, trace logging, and firmware updates
• Onboard measurement functions including channel power (CHP), adjacent channel power ratio (ACPR), occupied bandwidth (OBW), and spectrogram mode for time-varying signal analysis

Sample Compatibility & Compliance

The J0GSAP5401 is designed for direct connection to passive RF components and radiating elements used in microwave infrastructure. It supports standard 50 Ω coaxial interfaces and accommodates common antenna types—including WR-28 waveguide horns (via 2.92 mm adapter), sector patch arrays, and omnidirectional dipole probes—without requiring external preamplifiers or attenuators for nominal signal levels. While not certified to specific regulatory standards as a standalone test instrument, its amplitude linearity, frequency stability, and thermal drift performance align with typical requirements for field verification per IEEE Std 1139 (Definitions of Physical Quantities for Fundamental Frequency and Time Metrology) and IEC 61000-4-3 (Radiated RF Immunity Testing). The analyzer’s calibration certificate includes traceability to national metrology institutes via accredited third-party laboratories, supporting GLP-compliant documentation workflows in telecom infrastructure audits.

Software & Data Management

The J0GSAP5401 ships with SAF SpectrumView™ PC software (Windows 10/11 compatible), providing full remote control, automated report generation (PDF/CSV), and post-processing capabilities including mask testing, limit line overlays, and multi-scan comparison. All measurements retain embedded metadata: timestamp, GPS coordinates (when paired with optional GNSS module), ambient temperature, battery voltage, and calibration epoch. The USB Type-C interface enables direct memory dump of spectrum traces, spectrograms, and configuration profiles—facilitating integration into centralized network management platforms. Software logs maintain audit-ready records compliant with ISO/IEC 17025 clause 7.7 (Ensuring Validity of Results) and support 21 CFR Part 11–aligned user authentication when deployed in regulated telecom maintenance environments.

Applications

• 5G NR FR2 site survey and interference mapping in urban and suburban deployments
• VSAT terminal alignment verification and uplink spectral purity validation
• Radar system harmonics and spurious emission screening in defense and aerospace ground support
• Distributed Antenna System (DAS) troubleshooting—including intermodulation product identification and isolation loss verification
• Millimeter-wave backhaul link commissioning and long-term stability monitoring
• E-band wireless access point certification per FCC Part 101 and ETSI EN 302 217
• Academic and industrial R&D involving terahertz precursor technologies and metamaterial antenna characterization

FAQ

Is the J0GSAP5401 calibrated before shipment?
Yes—each unit undergoes full factory calibration across its entire frequency range and is supplied with a NIST-traceable calibration certificate valid for 12 months.

Can the analyzer operate while charging?
Yes. The device supports simultaneous operation and charging via USB Type-C, with automatic battery management to prevent thermal stress.

Does it support external GPS or time synchronization?
GPS functionality is available via an optional external GNSS receiver connected through the USB Type-C port; PPS and 10 MHz reference inputs are not supported on this model.

What is the maximum safe input power level?
The absolute maximum RF input is +20 dBm; permanent damage may occur above this threshold. Internal attenuation is fixed, and no programmable input attenuator is included.

Is firmware upgrade capability provided?
Yes—firmware updates are delivered via SAF’s secure customer portal and installed through SpectrumView™ software or direct USB mass storage mode.
