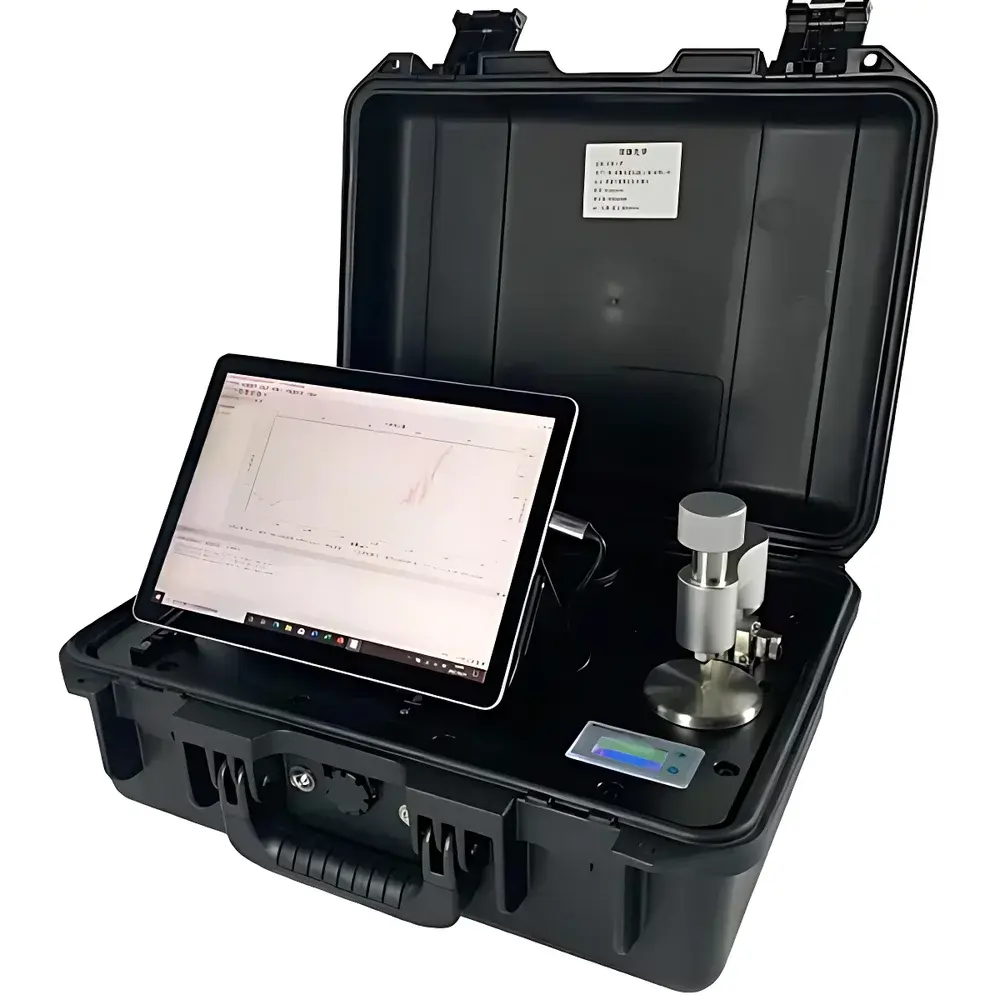

Safe AT-FR200 Portable Fourier Transform Infrared (FTIR) Spectrometer

Overview

The Safe AT-FR200 is a field-deployable, battery-powered Fourier Transform Infrared (FTIR) spectrometer engineered for high-fidelity molecular identification under non-laboratory conditions. Based on Michelson interferometry with a permanently aligned, maintenance-free optical path, the instrument delivers laboratory-grade spectral fidelity in a ruggedized portable platform. Its core measurement principle relies on interferometric acquisition of raw interferograms, followed by fast Fourier transformation to generate absorbance or transmittance spectra across the mid-infrared region (7800–350 cm⁻¹). Designed for rapid qualitative and semi-quantitative analysis, the AT-FR200 targets applications where immediate chemical identification—without sample preparation or infrastructure dependency—is operationally critical.

Key Features

• Integrated portable enclosure housing all optical components, a diamond ATR (Attenuated Total Reflectance) sampling module, rechargeable Li-ion power system, and a 10-inch Android-based touchscreen tablet—fully assembled and calibrated prior to shipment.
• Battery endurance ≥4 hours of continuous operation under typical field conditions; intelligent dual-load charging circuit simultaneously powers both spectrometer core and integrated tablet.
• Pre-installed analytical software with native Chinese-language interface, including real-time peak detection, automated spectral matching, and visual alert triggers upon match confidence thresholds.
• Comprehensive reference library containing >2,400 IR spectra, each labeled with standardized Chinese compound names compliant with Chinese Pharmacopoeia (ChP), GB/T standards, and common industrial nomenclature.
• Dual-mode analysis workflow: (1) Intelligent peak-based alarm mode for rapid presence/absence screening; (2) Full-spectrum correlation search mode using Pearson or Euclidean distance algorithms against user-selected subsets of the database.
• Wireless connectivity via IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5.0 for secure data export, remote firmware updates, and integration with enterprise LIMS or mobile reporting platforms.

Sample Compatibility & Compliance

The AT-FR200 supports direct solid, liquid, and paste-phase analysis via its monolithic diamond ATR crystal (refractive index ~2.42, hardness 10 Mohs), eliminating need for KBr pelletization or transmission cells. Surface contaminants, thin films, and heterogeneous mixtures—including pharmaceutical tablets, polymer fragments, fuel residues, mineral powders, and biological calculi—are routinely characterized with minimal operator training. The system complies with ISO 17025:2017 general requirements for competence of testing and calibration laboratories, and its spectral accuracy (≤±0.5 cm⁻¹) meets ASTM E1421–22 specifications for FTIR instrument performance verification. While not FDA 21 CFR Part 11–certified out-of-the-box, audit trail functionality and user-access controls can be enabled via optional software configuration for GLP/GMP-aligned workflows.

Software & Data Management

The embedded Android application provides full instrument control, real-time spectral preview, and offline database search without cloud dependency. Spectral files are saved in standard JCAMP-DX v6 format, ensuring interoperability with third-party chemometrics tools (e.g., Unscrambler, GRAMS/AI). User-defined libraries may be created, edited, and version-controlled locally; metadata fields include sample ID, location GPS coordinates (if enabled), operator name, date/time stamp, and acquisition parameters. All spectral matches generate traceable reports with confidence scores, matched peak assignments, and deviation metrics—exportable as PDF or CSV. Data synchronization supports encrypted Wi-Fi transfer to on-premise servers or validated cloud storage endpoints meeting ISO/IEC 27001 security requirements.

Applications

• Law enforcement: Rapid identification of illicit narcotics, explosives precursors, and counterfeit documents at checkpoints or crime scenes.
• Pharmaceutical QA/QC: On-site verification of active pharmaceutical ingredients (APIs), excipients, and packaging materials per ChP and USP guidelines.
• Industrial maintenance: In-field assessment of lubricant oxidation, fuel adulteration, and polymer degradation in transportation and energy infrastructure.
• Environmental monitoring: Classification of recyclable plastics (PET, HDPE, PP, PS) and detection of hazardous additives (e.g., phthalates, flame retardants).
• Geoscience and forensics: Mineral phase identification in soil/sediment samples and gemstone authenticity verification using characteristic lattice vibration bands.
• Clinical support: Compositional analysis of urinary or biliary calculi to guide urological intervention strategies.

FAQ

Does the AT-FR200 require external calibration standards for routine use?
No—factory-applied wavenumber and photometric calibration are retained across power cycles. Optional annual verification using NIST-traceable polystyrene film is recommended for ISO 17025 accreditation.
Can the instrument operate in extreme ambient temperatures?
The operating range is specified as −10 °C to +50 °C; internal thermal stabilization maintains interferometer alignment within tolerance up to 45 °C ambient.
Is spectral library expansion supported under regulatory audit conditions?
Yes—user-added spectra are stored with immutable timestamps and digital signatures; change logs are retained for GxP inspection readiness.
What level of technical support is provided internationally?
Safe offers remote diagnostics, firmware patches, and application-specific method development support via secure web portal; local distributor service agreements available in APAC, EMEA, and LATAM regions.
How does the AT-FR200 handle spectral interference from moisture or CO₂ in ambient air?
Real-time atmospheric compensation is applied during background collection using built-in reference interferograms; residual water vapor and CO₂ bands are digitally subtracted post-acquisition per ASTM E168–22 protocols.
