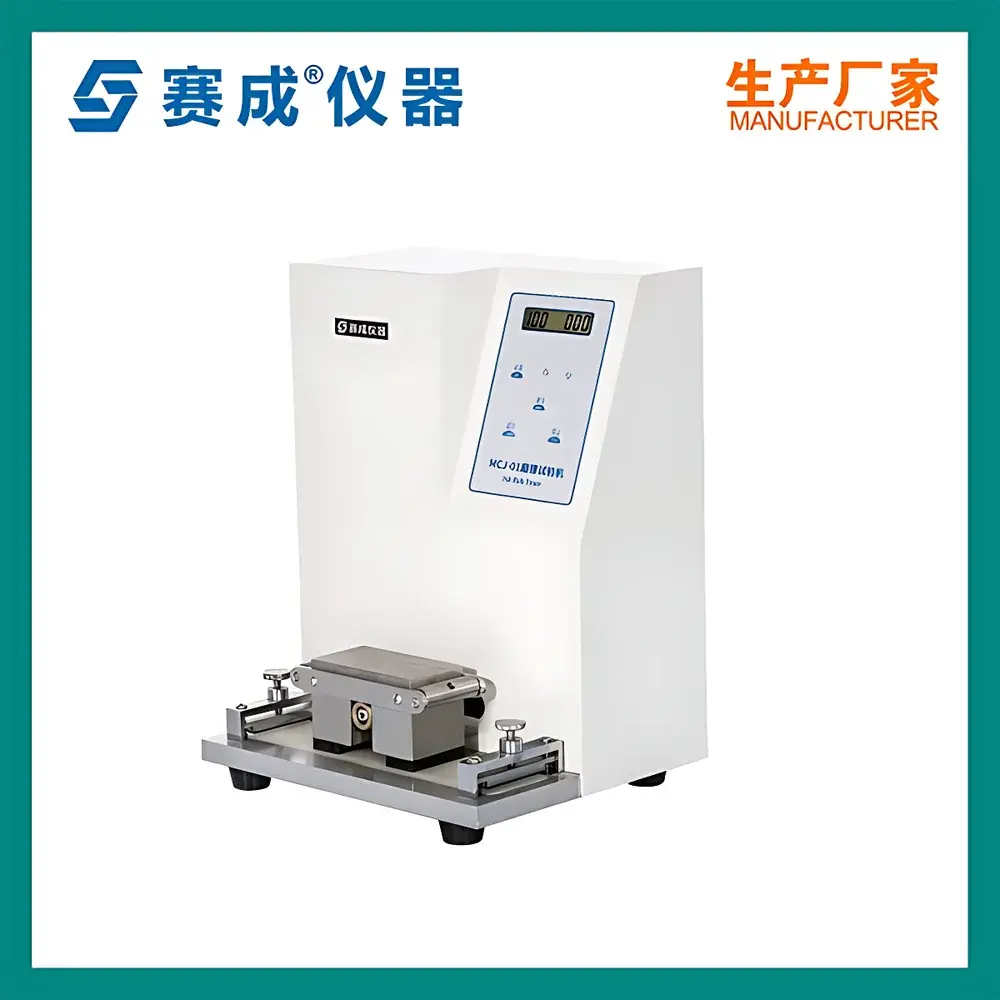

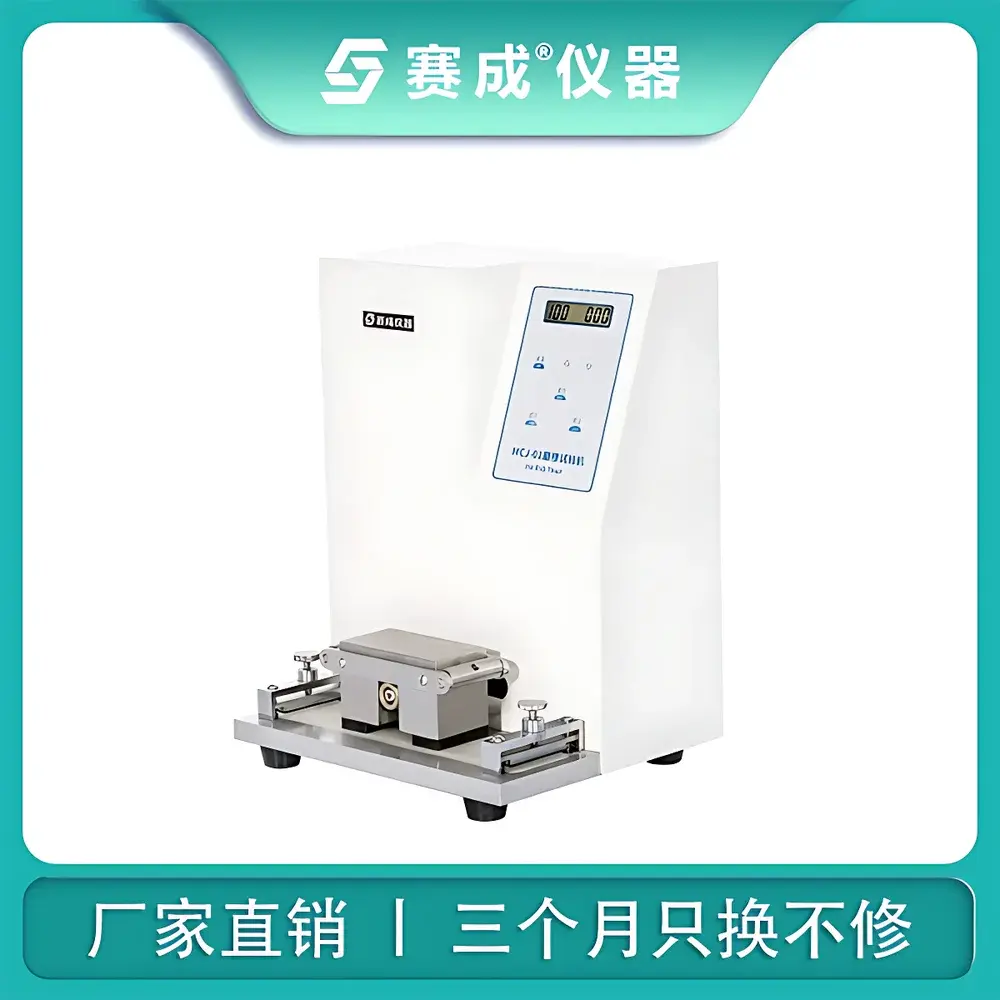

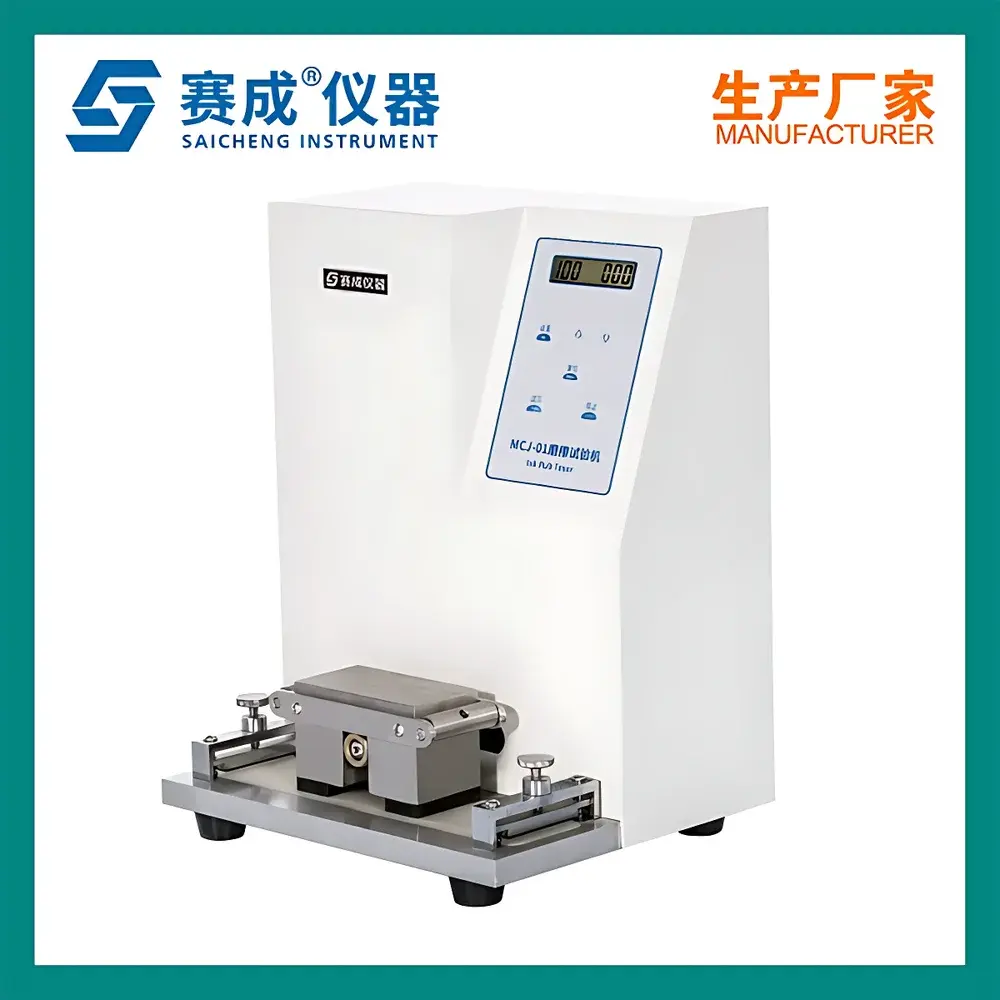

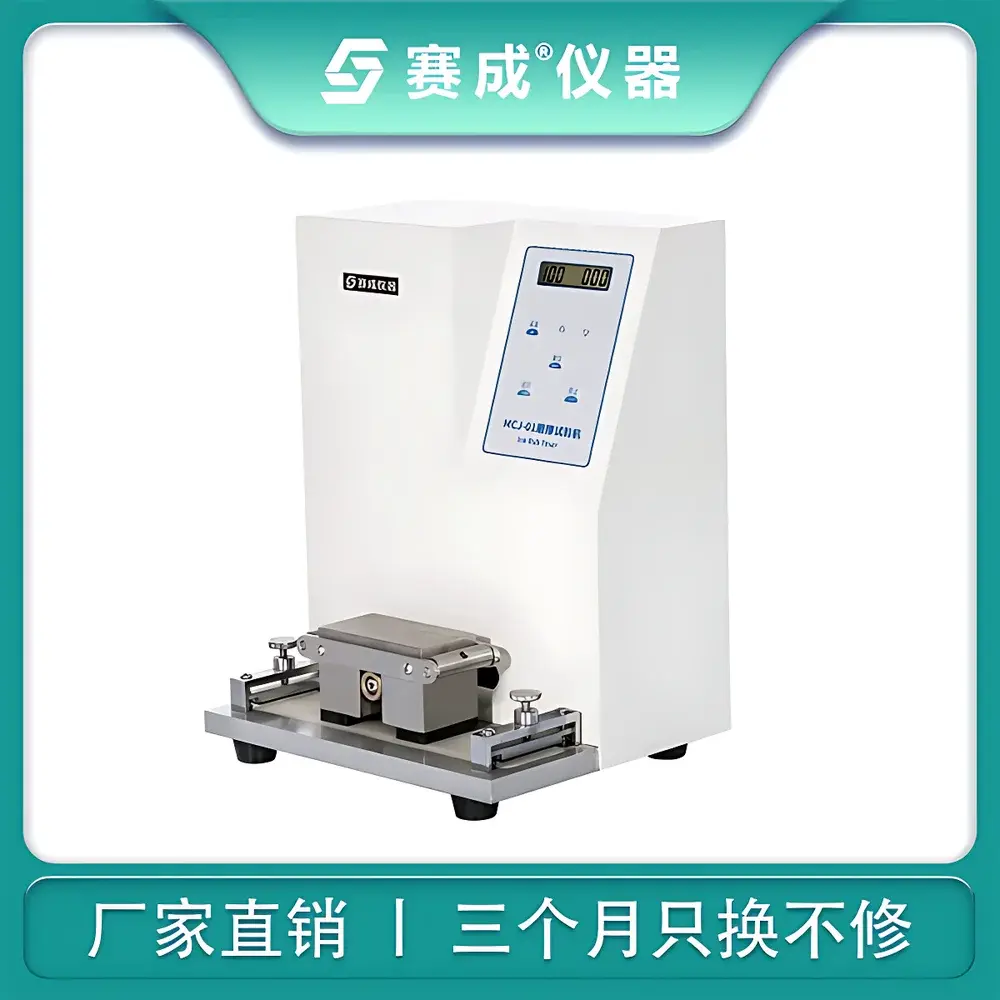

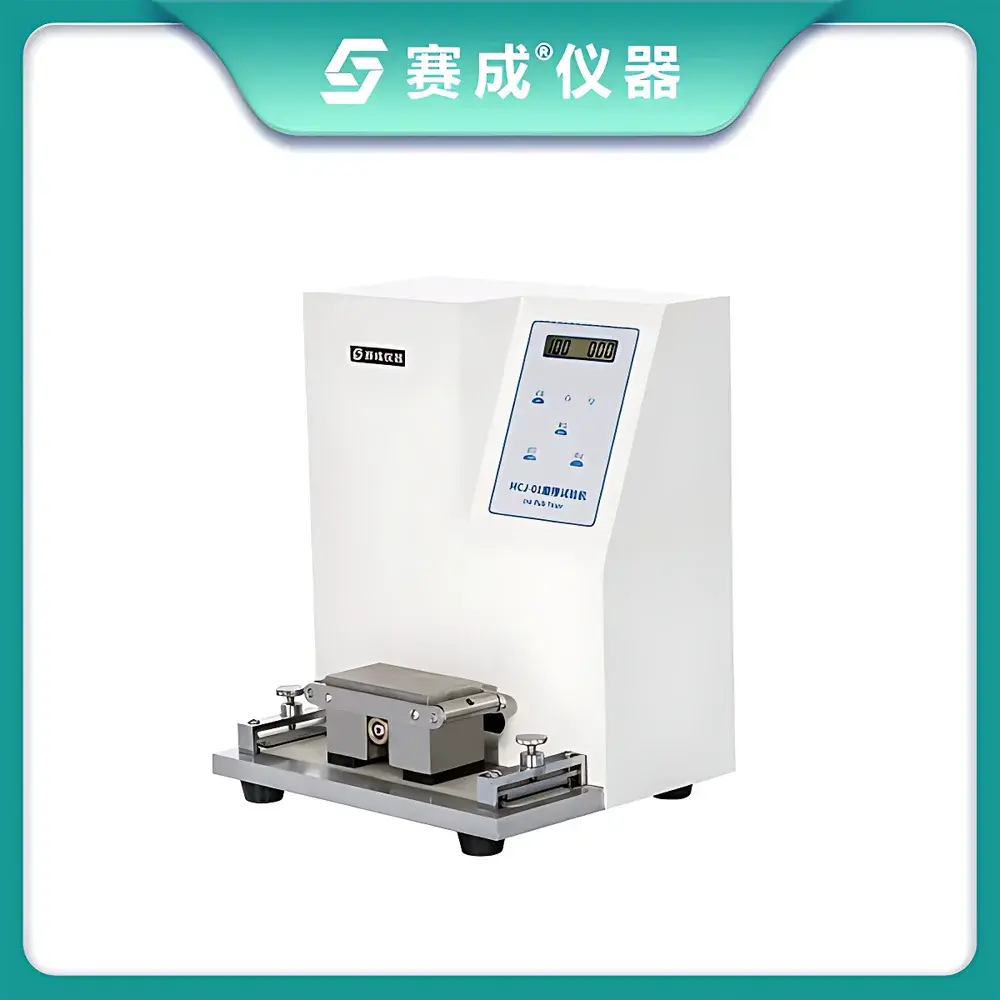

Saicheng MCJ-01 Ink Abrasion Tester for Printing Materials
| Brand | Saicheng |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MCJ-01 |
| Pricing | Upon Request |
Overview
The Saicheng MCJ-01 Ink Abrasion Tester is a precision-engineered instrument designed specifically for evaluating the mechanical durability of ink layers on printed substrates, photosensitive coatings on PS (Presensitized) printing plates, and other surface-applied functional coatings in packaging and graphic arts applications. It operates on the standardized principle of controlled linear reciprocating abrasion—where a conditioned kraft paper stylus applies defined normal force and motion profile against the test surface under repeatable environmental conditions. The resulting change in optical density (measured via densitometry before and after abrasion) quantifies the relative resistance of the ink or coating to mechanical wear, directly correlating with real-world print longevity, press run endurance, and post-print handling robustness. This method aligns with fundamental tribological assessment protocols used across global packaging R&D labs and quality control environments.
Key Features
- Microprocessor-based control system with backlit LCD interface for intuitive parameter setting and real-time cycle counting.
- Ergonomic PVC membrane keypad with tactile feedback and logically grouped function keys for rapid test initiation and mode selection.
- Integrated abrasion platform with precisely engineered linear guide rails and spring-loaded loading mechanism, ensuring consistent 20 N ± 0.5 N contact pressure across the full 100 mm × 50 mm abrasion zone.
- Acoustically damped drive assembly achieving <45 dB(A) operational noise level—enabling use in shared laboratory spaces without acoustic interference.
- Non-volatile memory retention that preserves test parameters, cumulative cycle count, and last-run configuration even during unexpected power interruption.
- Modular sample holder accommodating standard ISO A4-sized sheets (210 × 297 mm) and PS plate specimens up to 3 mm thickness with edge clamping stability.
Sample Compatibility & Compliance
The MCJ-01 supports flat, rigid, or semi-rigid substrates including coated/uncoated paper, cardboard, aluminum PS plates, polymer film laminates, and UV-cured varnish layers. It is validated for use with ASTM D5264 (Standard Practice for Abrasion Resistance of Printed Materials by the Sutherland Rub Tester), ISO 12647-2 (Process standards for offset lithographic printing), and fully conforms to GB/T 7706–2008 “Testing Method for Abrasion Resistance of Gravure Printing Ink Film”. Its mechanical design satisfies CE marking requirements for machinery safety (2006/42/EC), and its calibration traceability supports GLP-compliant documentation workflows. All firmware operations comply with ISO/IEC 17025:2017 clause 7.8.2 regarding measurement uncertainty management.
Software & Data Management
While the MCJ-01 operates as a standalone hardware platform, its embedded firmware supports USB data export (CSV format) of cycle logs, timestamped test records, and operator ID tags. Optional PC connectivity enables integration into LIMS environments via RS-232 or USB virtual COM port. Audit trail functionality—including user login timestamps, parameter modification history, and calibration event logging—meets FDA 21 CFR Part 11 requirements when deployed with Saicheng’s certified LabManager Pro software suite (v3.2+). Raw density delta values (ΔD) are calculated automatically upon manual input of pre- and post-abrasion densitometer readings, minimizing transcription errors.
Applications
- Quantifying ink set-off resistance in high-speed flexographic and gravure packaging lines.
- Validating shelf-life performance of matte/gloss aqueous coatings applied to folding cartons.
- Assessing photopolymer layer integrity on digital PS plates prior to plate mounting on rotary presses.
- Supporting ISO 15378:2017 Annex C risk assessments for pharmaceutical blister foil coatings subject to blister-packing machine friction.
- Enabling comparative evaluation of nanocomposite barrier coatings versus conventional acrylic dispersions in sustainable flexible packaging development.
- Providing objective pass/fail criteria for incoming inspection of label stock supplied to brand owners under AQL Level II sampling plans (ISO 2859-1).
FAQ
What standard test substrate is required for GB/T 7706–2008 compliance?
A standardized kraft paper strip (60 g/m², moisture content 5.5 ± 0.5%) conditioned at 23 °C / 50% RH for 24 hours must be used as the abradant medium.
Can the MCJ-01 accommodate curved or embossed samples?
No—the instrument requires planar, dimensionally stable specimens; curvature exceeding 0.2 mm deviation over 100 mm length invalidates test validity per ISO 12647-2 Annex B.
Is third-party calibration certification available?
Yes—Saicheng provides NIST-traceable calibration reports (certified to ISO/IEC 17025) for load cell verification and cycle timing accuracy, issued by CNAS-accredited laboratories.
How is wear quantification performed post-test?
Optical density is measured using a calibrated reflection densitometer (e.g., X-Rite 518 or equivalent) at three predefined locations; the arithmetic mean ΔD value is reported as the primary abrasion metric.
Does the device support automated densitometry integration?
Not natively—but the USB export protocol is compatible with custom Python or LabVIEW scripts that ingest densitometer ASCII outputs and auto-generate final abrasion reports.
