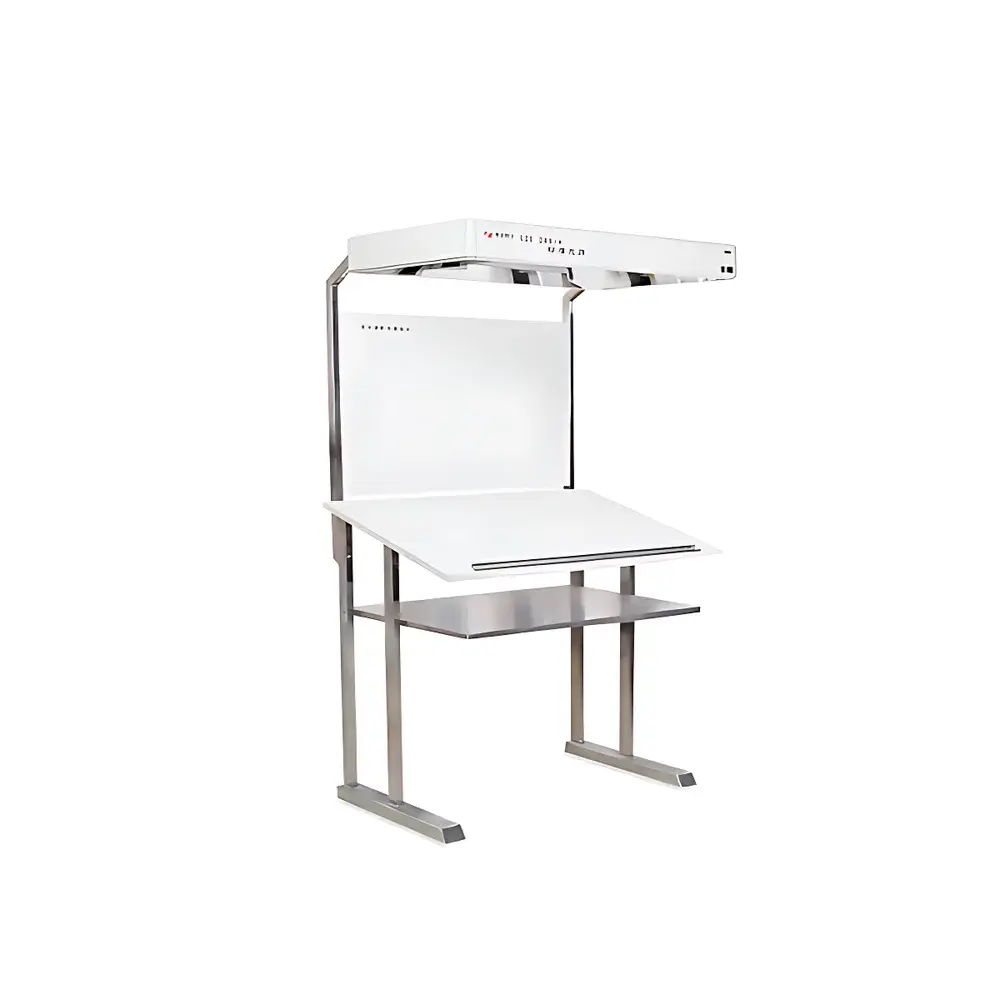

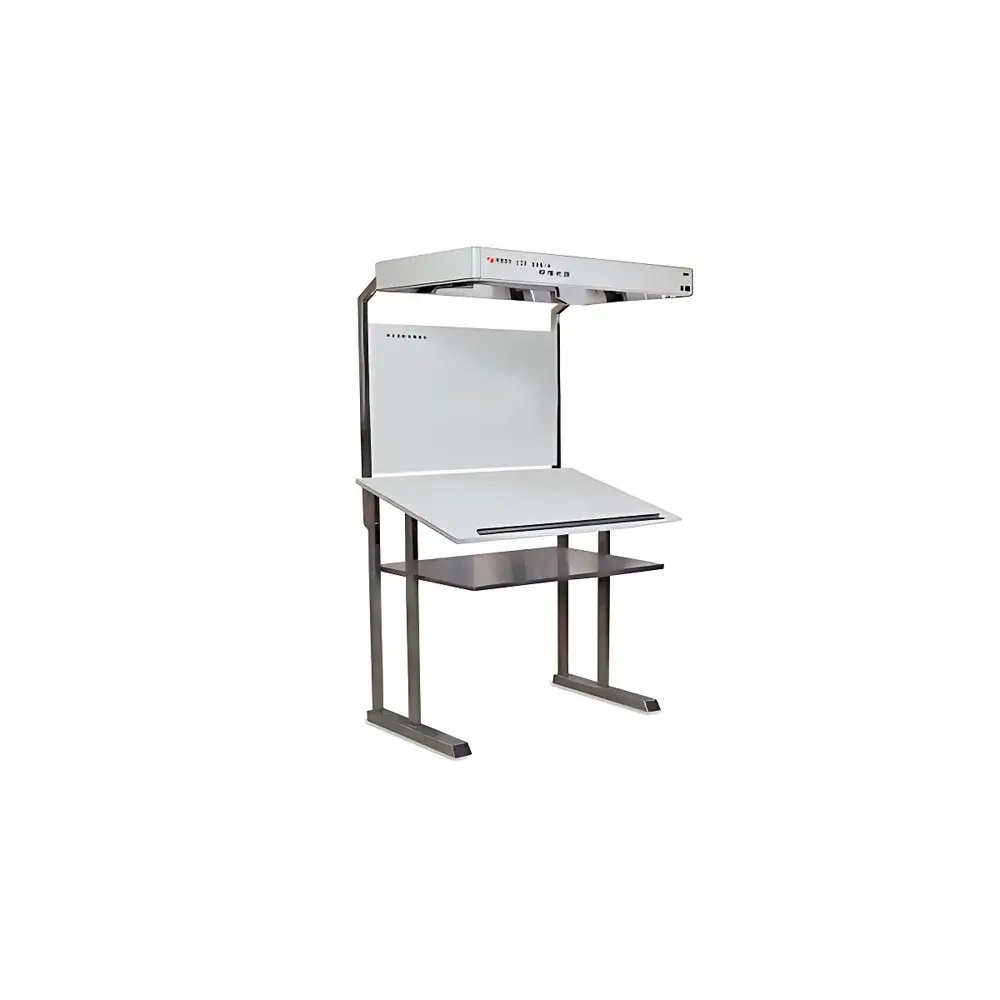

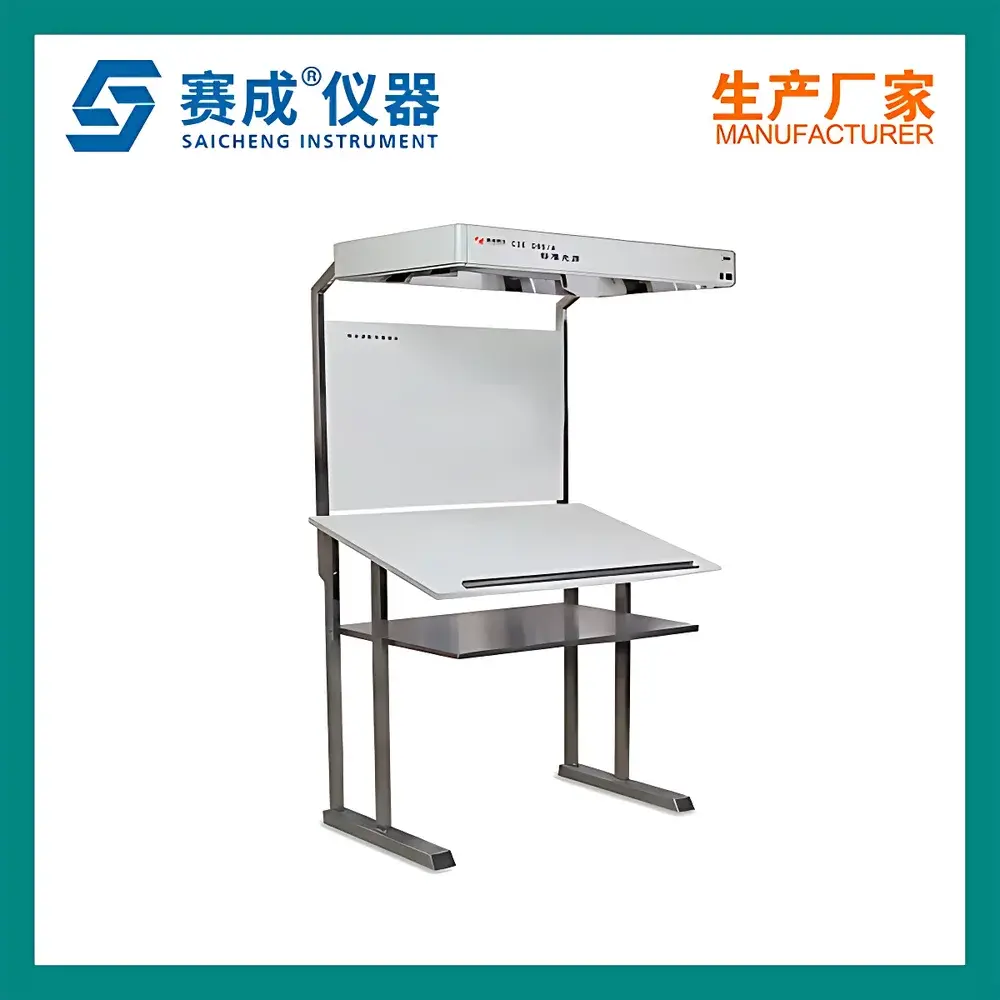

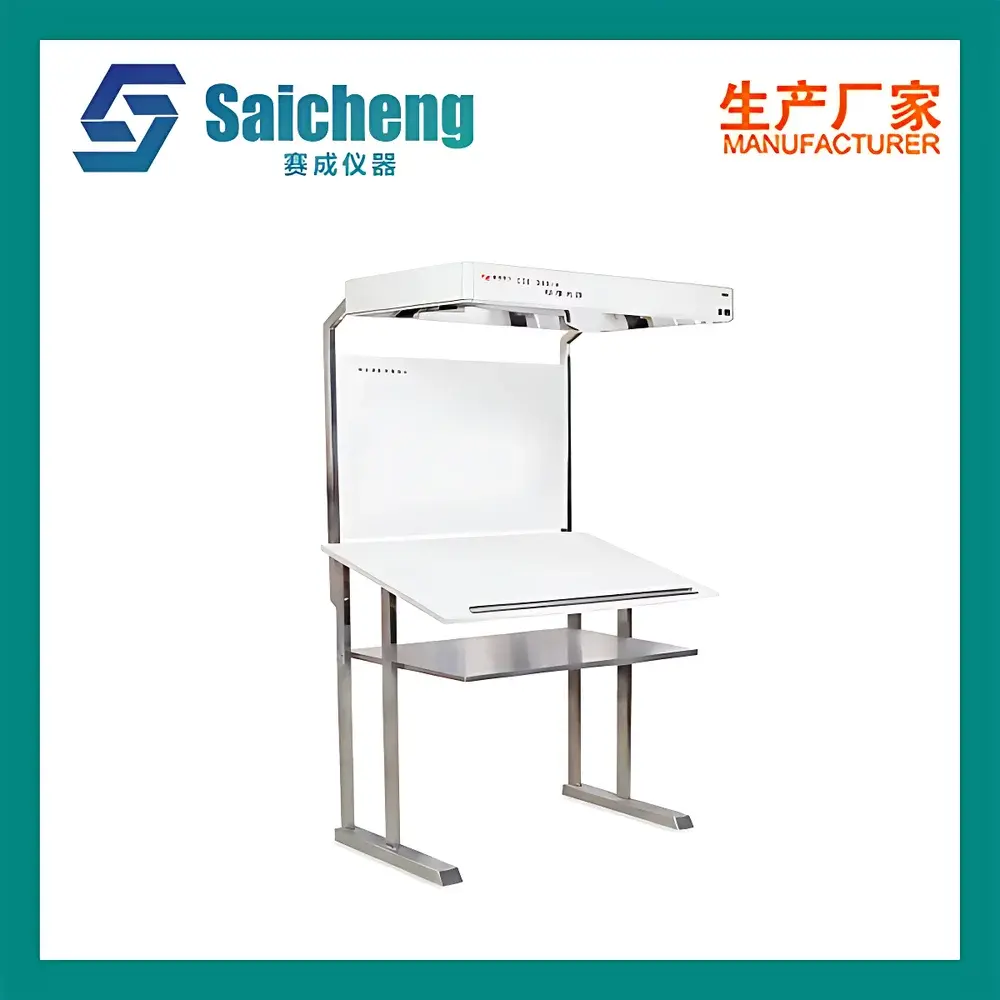

Saicheng SPG-80T Dual-Source Color Matching Booth

Overview

The Saicheng SPG-80T Dual-Source Color Matching Booth is an engineered optical evaluation system designed for precise visual color assessment and metamerism verification in industrial R&D and quality control environments. It operates on the fundamental principle of standardized illumination—reproducing two spectrally distinct reference light sources defined by the Commission Internationale de l’Éclairage (CIE): daylight simulator D65 (6500 K) and incandescent illuminant A (2900 K). This dual-source architecture enables simultaneous or sequential evaluation of color appearance under conditions that mimic natural daylight and indoor tungsten lighting—critical for detecting metamerism, where two samples match under one illuminant but diverge under another. The booth’s optical design incorporates high-CRI (>96) D65 fluorescent tubes and stabilized tungsten-halogen A-source lamps, coupled with precision-engineered reflectors and diffusers to ensure spatial uniformity (±5% across viewing area) and temporal spectral stability (<0.5% drift over 1,000 hours). Its neutral gray interior (Munsell N8) eliminates chromatic bias, while the rigid aluminum frame and thermal management system maintain consistent photometric output during extended operation.

Key Features

• Dual-standard illumination: Independently switchable CIE D65 (6500 K) and Illuminant A (2900 K) light sources compliant with ISO 3664:2009 and CY/T 3–1991
• High-fidelity color rendering: Average Color Rendering Index (CRI) >96 across visible spectrum (380–780 nm), validated per CIE 13.3 and IEC 61231
• Uniform irradiance distribution: Optical path geometry ensures ±5% illuminance variation across full 1050 mm × 700 mm viewing surface
• Metamerism detection mode: Dedicated A-source evaluation channel for identifying spectral mismatch prior to production release
• Integrated lamp life monitoring: Microprocessor-controlled hour-meter logs cumulative usage per light source for predictive maintenance
• Ergonomic optical enclosure: Tilt-angle reflective hood, adjustable sample mounting board, and dedicated specimen storage tray support repeatable positioning per ASTM D1729

Sample Compatibility & Compliance

The SPG-80T accommodates flat, rigid, and semi-flexible substrates up to 10 mm thickness—including printed sheets, coated panels, plastic films, textile swatches, and painted metal samples. Its viewing geometry conforms to ISO 3664:2009 requirements for colorimetric viewing conditions: 0°/45° illumination/viewing geometry, diffuse surround, and controlled ambient luminance (<20 cd/m²). All optical components are traceably calibrated against NIST-traceable standards. The unit meets electromagnetic compatibility (EMC) and safety requirements per CE Directive 2014/30/EU and 2014/35/EU. It supports GLP-compliant workflows through documented lamp calibration intervals and user-accessible log files for audit trails.

Software & Data Management

While the SPG-80T is a hardware-centric optical instrument without embedded software, its operational parameters are fully compatible with third-party color management ecosystems (e.g., X-Rite Color iMatch, Datacolor TOOLS, GretagMacbeth SpectraLight QC). Lamp-on timing data is stored locally in non-volatile memory and exportable via USB for integration into laboratory information management systems (LIMS). All firmware updates and calibration certificates adhere to FDA 21 CFR Part 11 principles—supporting electronic signatures, audit trails, and role-based access when interfaced with validated enterprise platforms.

Applications

This booth serves as a primary visual evaluation station in color-critical manufacturing sectors including offset and digital printing, automotive OEM paint development, industrial coatings formulation, synthetic pigment synthesis, textile dyeing validation, and packaging prepress approval. It is routinely deployed in QC labs for batch-to-batch color consistency checks, in R&D for spectral matching of custom formulations, and in customer-facing proofing rooms for cross-illuminant sign-off. Its compliance with ISO 3664 makes it suitable for certification testing per ISO 9001:2015 Clause 8.5.1 (production and service provision) and ISO/IEC 17025:2017 Clause 7.2.2 (method validation).

FAQ

What standards does the SPG-80T comply with?
It meets CIE Publication No. 51, ISO 3664:2009, and Chinese national standard CY/T 3–1991 for graphic technology—color proofing and viewing conditions.
Can the SPG-80T be used for ISO/IEC 17025-accredited testing?
Yes—when operated within documented procedures, with scheduled lamp replacement per manufacturer specifications, and with periodic verification using a calibrated spectroradiometer, it satisfies Clause 6.4.10 (equipment verification) of ISO/IEC 17025:2017.
Is the viewing surface size sufficient for large-format print proofs?
The 1050 mm × 700 mm active viewing area accommodates standard A1-sized (594 mm × 841 mm) and oversized press proofs up to B0 (1000 mm × 1414 mm) when oriented longitudinally.
How is lamp aging compensated during long-term use?
The integrated hour-meter triggers alerts at 1,500-hour (D65) and 2,000-hour (A-source) thresholds; replacement lamps are supplied with factory-measured spectral power distribution (SPD) reports to ensure continuity of measurement uncertainty budgets.
Does the unit support GMP documentation requirements?
Yes—the physical logbook, lamp replacement records, and calibration history templates align with Annex 11 (Computerized Systems) and EU GMP Chapter 4 (Documentation) for regulated pharmaceutical and medical device color verification processes.
