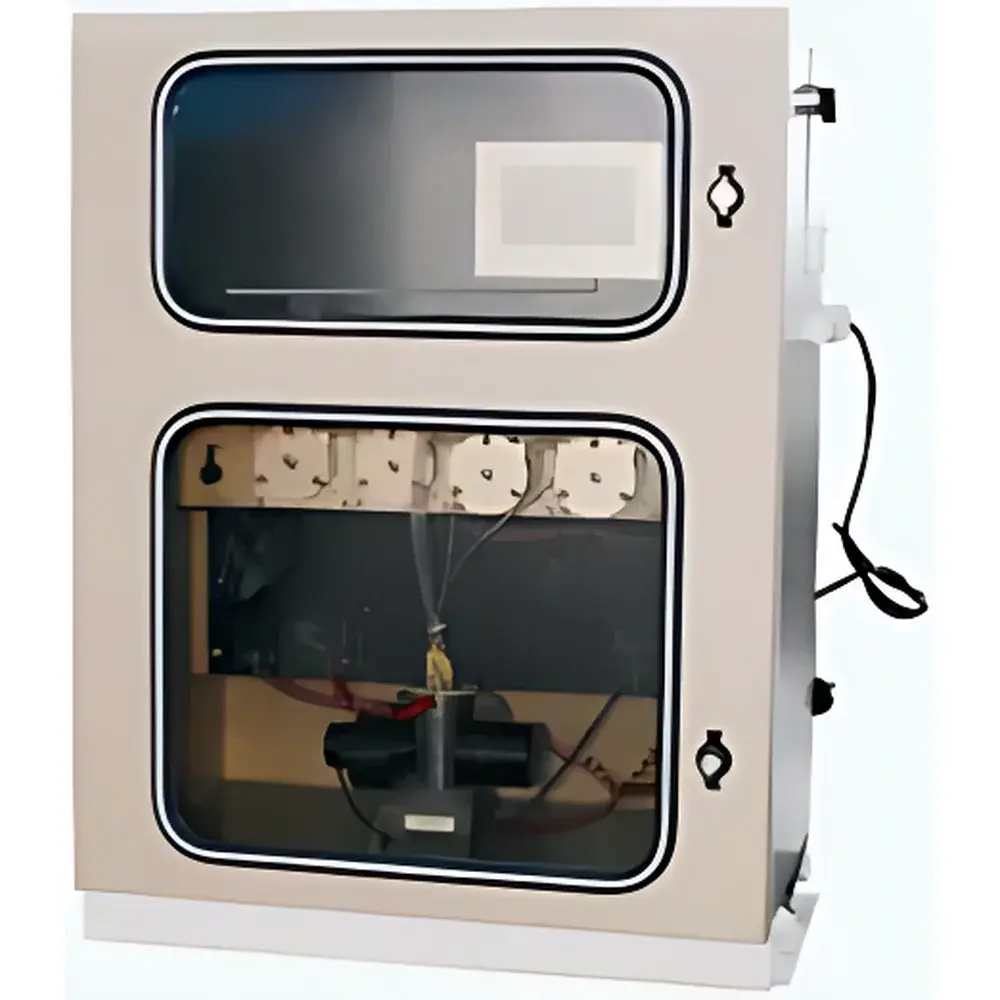

SAIL HERO SERES 2000 NH₃-N Online Ammonia Nitrogen Analyzer

Overview

The SAIL HERO SERES 2000 NH₃-N Online Ammonia Nitrogen Analyzer is an industrial-grade, fully automated water quality monitoring system engineered for continuous, unattended quantification of ammonia nitrogen (NH₃-N) in diverse aqueous matrices. It operates on the internationally validated salicylate spectrophotometric method—compliant with U.S. EPA Method 350.1 and equivalent to HJ/T 101–2003 (China’s Environmental Protection Industry Standard). Under strongly alkaline conditions (pH ≈ 11.7), ammonium ions react with salicylate and hypochlorite in the presence of sodium nitroprusside as a catalyst to form a stable indophenol blue complex. Absorbance is measured at 650 nm using a high-stability LED light source and precision photodetector, enabling trace-level quantification with minimal spectral interference. Designed for deployment in municipal wastewater treatment plants, surface water surveillance networks, industrial effluent discharge points, and ecological monitoring stations, the SERES 2000 delivers long-term operational stability under variable ambient temperatures and challenging matrix conditions.

Key Features

• Triple-range auto-switching capability (0–1 / 0–10 / 0–100 mg/L), dynamically selecting optimal optical path and reagent dosing for improved linearity and low-end sensitivity
• Integrated reaction manifold with PTFE-modified peristaltic tubing (imported grade), resistant to alkaline corrosion and extending service life beyond 12 months under continuous operation
• Precision temperature-controlled digestion zone (±0.3 °C stability), equipped with dual thermal sensors and self-resetting overtemperature protection to ensure reaction kinetics reproducibility
• Automated acid-based cleaning cycle post-measurement, preventing precipitate buildup from carbonate or hydroxide scaling in high-hardness or high-pH influents
• Non-mercury, non-cyanide reagent formulation—fully compliant with EU RoHS Directive 2011/65/EU and China’s GB/T 26572–2011 on hazardous substance restrictions
• Intelligent fault recovery protocol: automatic purge of residual reagents and samples upon power restoration or error reset; full system reinitialization without manual intervention
• Multi-level alarm architecture: real-time alerts for concentration exceedance, reagent depletion, pump failure, optical path obstruction, and communication timeout

Sample Compatibility & Compliance

The SERES 2000 accepts raw, filtered, or clarified water samples with turbidity ≤ 100 NTU and suspended solids < 50 mg/L. It has been validated for use with surface water (rivers, lakes), treated and untreated wastewater (including nitrified/denitrified streams), cooling tower blowdown, and industrial process effluents containing moderate levels of chloride (< 500 mg/L), sulfate (< 1000 mg/L), and organic carbon (COD < 150 mg/L). All hardware and software components conform to IEC 61326–1 (EMC for laboratory equipment) and IEC 61000–4 series immunity standards. Data integrity protocols support audit-ready operation per GLP and ISO/IEC 17025 requirements, including timestamped event logs, calibration history tracking, and user-access control tiers.

Software & Data Management

The embedded Linux-based controller supports Modbus TCP, RS-485 (Modbus RTU), and optional 4–20 mA analog output for integration into SCADA or DCS environments. The web-enabled interface (HTTPS secured) provides remote access for method configuration, zero/span calibration, multi-point standardization, and diagnostic review. All measurement data—including absorbance values, calculated concentrations, QC flags, and maintenance timestamps—are stored locally (8 GB internal flash) with automatic rollover and export via USB or FTP. Audit trail functionality records operator actions, parameter changes, and alarm events with immutable timestamps—aligned with FDA 21 CFR Part 11 principles for electronic records in regulated environments.

Applications

• Real-time compliance monitoring at NPDES or permit-defined discharge points
• Process control feedback in biological nutrient removal (BNR) systems
• Trend analysis for eutrophication risk assessment in reservoirs and estuaries
• Early-warning detection of upstream contamination events in drinking water source protection zones
• Long-term performance validation of constructed wetlands and denitrification filters
• Support for ISO 5667–3 sampling program verification through synchronized grab-sample correlation studies

FAQ

What regulatory standards does the SERES 2000 meet for ammonia nitrogen measurement?

It conforms to HJ/T 101–2003 (China), EPA Method 350.1 (U.S.), and ISO 7150–1:1984 (Water quality — Determination of ammonia nitrogen — Part 1: Spectrometric method using salicylate).
Can the analyzer handle high-turbidity wastewater without filtration?

Pre-filtration (≤ 80 µm mesh) is recommended for samples exceeding 50 NTU to prevent optical window fouling and flow path clogging.
Is remote calibration supported without on-site technician intervention?

Yes—zero and span calibrations can be initiated remotely via encrypted web interface; certified reference standards must be manually loaded prior to execution.
How frequently does the system require preventive maintenance?

Routine maintenance (reagent replacement, tubing inspection, optical window wipe) is scheduled every 30 days; full PM interval is 180 days under typical operating conditions.
Does the instrument support data export in CSV or XML format for LIMS integration?

Yes—structured CSV exports include ISO 8601 timestamps, measurement units, QC metadata, and instrument status codes, compatible with major LIMS platforms.
