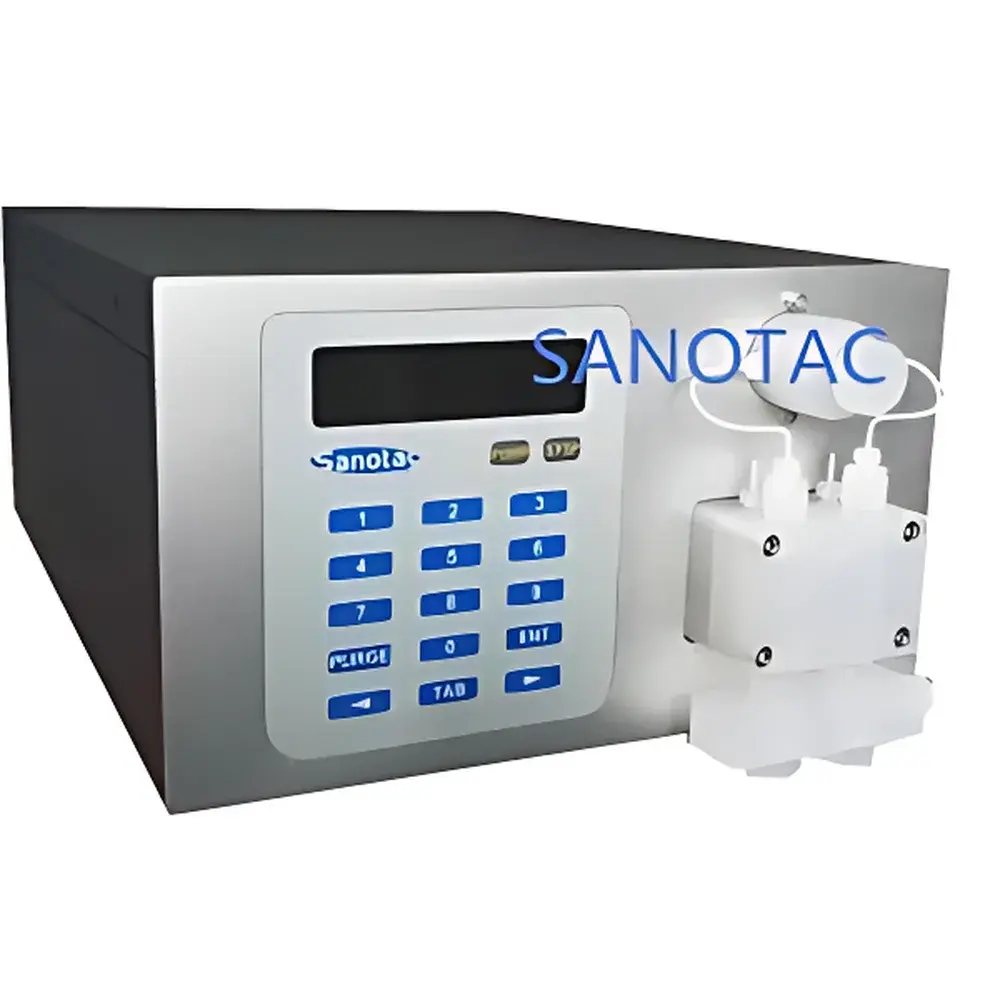

Sanotac F1002 Fluoropolymer Constant Flow Pump

Overview

The Sanotac F1002 Fluoropolymer Constant Flow Pump is an engineered precision fluid delivery system designed for continuous, low-pulsation, high-reproducibility metering in demanding chemical and analytical environments. Based on a dual-piston parallel architecture with floating piston design, the pump operates on positive displacement principles—ensuring volumetric accuracy independent of fluid viscosity or backpressure within its operational envelope. Its fluoropolymer-wetted flow path (PTFE/PCTFE) combined with sapphire and ceramic components provides exceptional chemical resistance to aggressive solvents, strong acids, alkalis, and halogenated reagents—making it suitable for applications where material compatibility and long-term stability are critical. The F1002 is not a peristaltic or diaphragm-based device; rather, it delivers true constant flow through mechanical displacement synchronized with real-time electronic pulsation suppression and cam-profile compensation—enabling stable delivery across the full 0.01–100.00 mL/min range.

Key Features

• Dual-piston parallel pumping mechanism with floating piston design for enhanced seal longevity and reduced wear under continuous operation.
• Low-pressure pulsation performance (≤0.2 MPa), achieved via integrated cam-curve compensation and active electronic pulse suppression algorithms.
• Volumetric and gravimetric delivery modes—supporting both volume-based dispensing and mass-based feeding when interfaced with loss-in-weight (LIW) scales at reactor inlets.
• Real-time pressure and flow transient visualization—displayed as dynamic curves on the built-in 256×64 backlit LCD for immediate process diagnostics.
• On-device flow calibration capability with multi-point curve correction, enabling user-defined accuracy adjustments without external recalibration services.
• Flexible control architecture: local keypad operation, remote PC control (via USB/RS-232/RS-485), and analog integration (0–5 V / 4–20 mA) for PLC-driven process automation.
• Open communication protocols—including Modbus RTU, ASCII, and customizable serial command sets—for seamless integration into SCADA, DCS, or LIMS environments.
• Scalable system architecture supporting one-to-many pump coordination—up to 30 units controllable from a single host interface for gradient or parallel reaction setups.

Sample Compatibility & Compliance

The F1002’s fully fluorinated fluidic path ensures compatibility with a broad spectrum of corrosive and reactive media—including hydrofluoric acid, nitric acid, aqua regia, organic solvents (e.g., THF, DMF, chloroform), and high-purity reagents used in semiconductor cleaning or battery electrolyte formulation. All wetted materials conform to USP Class VI and FDA 21 CFR 177.1550 standards for fluoropolymer contact surfaces. While the pump itself does not carry CE or UL certification out-of-the-box, its electrical design complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) requirements when installed per manufacturer guidelines. For GMP/GLP-regulated environments, audit-trail-capable software integration (via optional Sanotac Control Suite) supports 21 CFR Part 11-compliant electronic records when paired with validated PCs and access controls.

Software & Data Management

Sanotac provides native Windows-based control software with real-time monitoring, method storage, and event logging capabilities. The software supports time-stamped export of flow/pressure profiles in CSV format for post-acquisition analysis in MATLAB, Python (Pandas), or Excel. For enterprise deployment, the pump’s Modbus RTU implementation enables direct mapping into Siemens S7, Allen-Bradley Logix, or Schneider EcoStruxure platforms. All firmware updates are delivered via signed binary packages with SHA-256 verification. Configuration parameters—including flow setpoints, ramp profiles, alarm thresholds, and calibration offsets—are stored in non-volatile memory with write-protection options to prevent accidental modification during operation.

Applications

The F1002 serves as a core fluidic actuator in multiple high-integrity workflows: continuous-flow synthesis reactors requiring stoichiometric reagent addition; inline dilution systems for ICP-MS sample introduction; catalyst injection in fixed-bed hydrogenation units; solvent delivery in automated extraction platforms (e.g., ASE, Soxhlet); and precise dosing in electrochemical cell testing rigs. Its gravimetric mode interfaces directly with Mettler Toledo or Sartorius loss-in-weight feeders for closed-loop mass-controlled feeding—critical in polymerization kinetics studies or API crystallization processes. In environmental labs, it supports EPA Method 3550C-compliant solvent delivery for accelerated solvent extraction. In food and cosmetics QA/QC, it enables reproducible spiking of internal standards prior to GC-FID or LC-MS analysis.

FAQ

What is the maximum allowable backpressure for continuous operation?
The F1002 is rated for continuous operation up to 2 MPa (290 psi); sustained operation above 1.8 MPa is recommended only with active cooling and verified thermal management of the pump head.
Can the pump be integrated into a validated pharmaceutical manufacturing line?
Yes—when deployed with Sanotac’s Part 11-compliant software package, documented IQ/OQ protocols, and calibrated traceable to NIST standards, the F1002 meets baseline requirements for Category B equipment in FDA-regulated facilities.
Is tubing replacement required after each solvent change?
No—unlike peristaltic systems, the F1002 uses rigid fluoropolymer flow paths; solvent switching only requires system flushing per SOPs, with no consumable tubing wear concerns.
Does the pump support gradient elution with multiple solvents?
Yes—via optional multi-channel valve modules and coordinated control of up to 30 pumps, enabling binary, ternary, or stepped gradient generation without external mixing hardware.
How is flow accuracy maintained over extended runtime?
Through automatic thermal drift compensation, periodic self-diagnostic checks of piston position sensors, and real-time correction using stored calibration curves updated during routine maintenance intervals.
