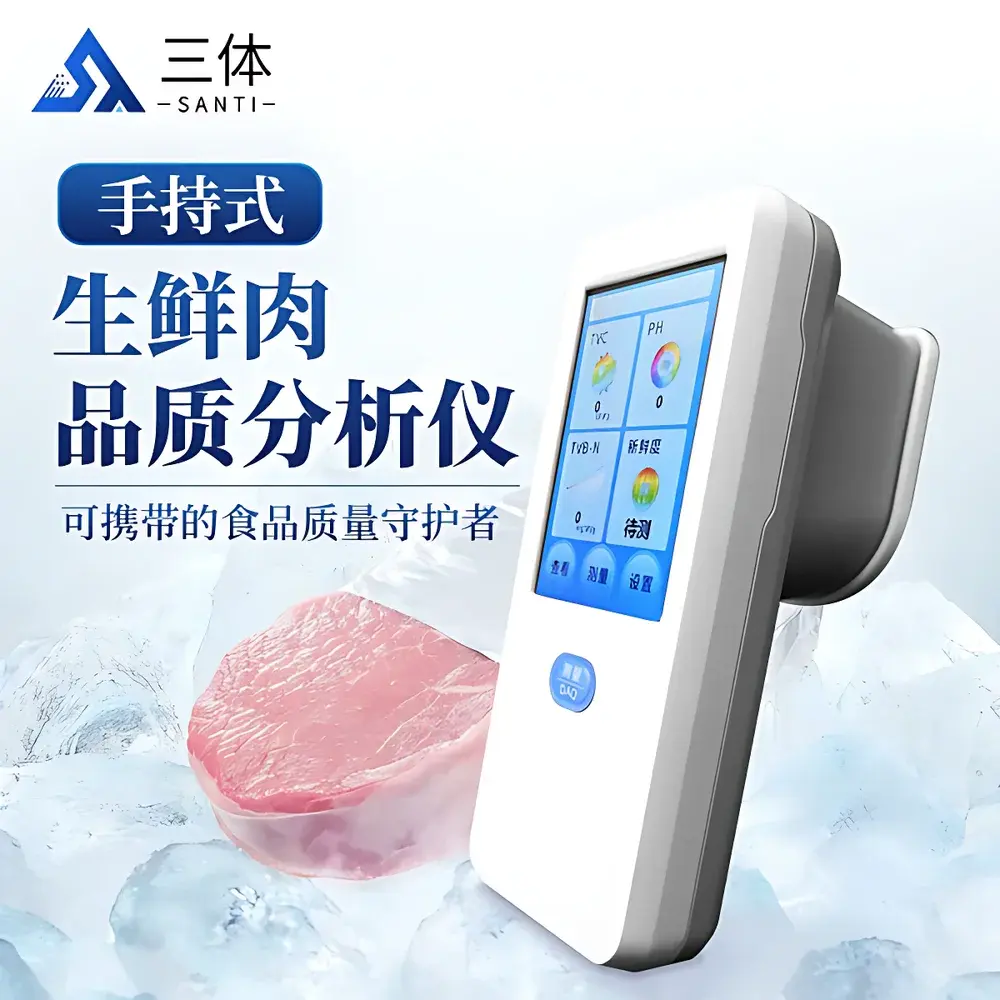

Santiyiqi ST-PA Palm-Sized Freshness Analyzer for Fresh Meat

Overview

The Santiyiqi ST-PA Palm-Sized Freshness Analyzer is a portable, field-deployable optical-electrochemical hybrid instrument engineered for rapid, non-destructive assessment of freshness-related quality parameters in fresh meat. It integrates multi-modal sensing—combining miniaturized pH electrodes, electrochemical TVB-N biosensing elements, and a calibrated RGB-CIE L*a*b* colorimetric module—to deliver concurrent measurements of microbial load proxy (TVC), acid-base status (pH), nitrogenous spoilage metabolites (TVB-N), and surface color metrics (L*, a*, b*) within a single 1-second sampling cycle. Designed for use outside controlled laboratory environments, the ST-PA operates on battery power and requires no reagents or consumables beyond routine electrode calibration. Its measurement methodology aligns with established food quality evaluation frameworks defined in ISO 21527-1 (for aerobic colony counts), ISO 29189 (for TVB-N in meat), and ISO 11664-4 (CIE colorimetry), enabling correlation with standard reference methods under field conditions.

Key Features

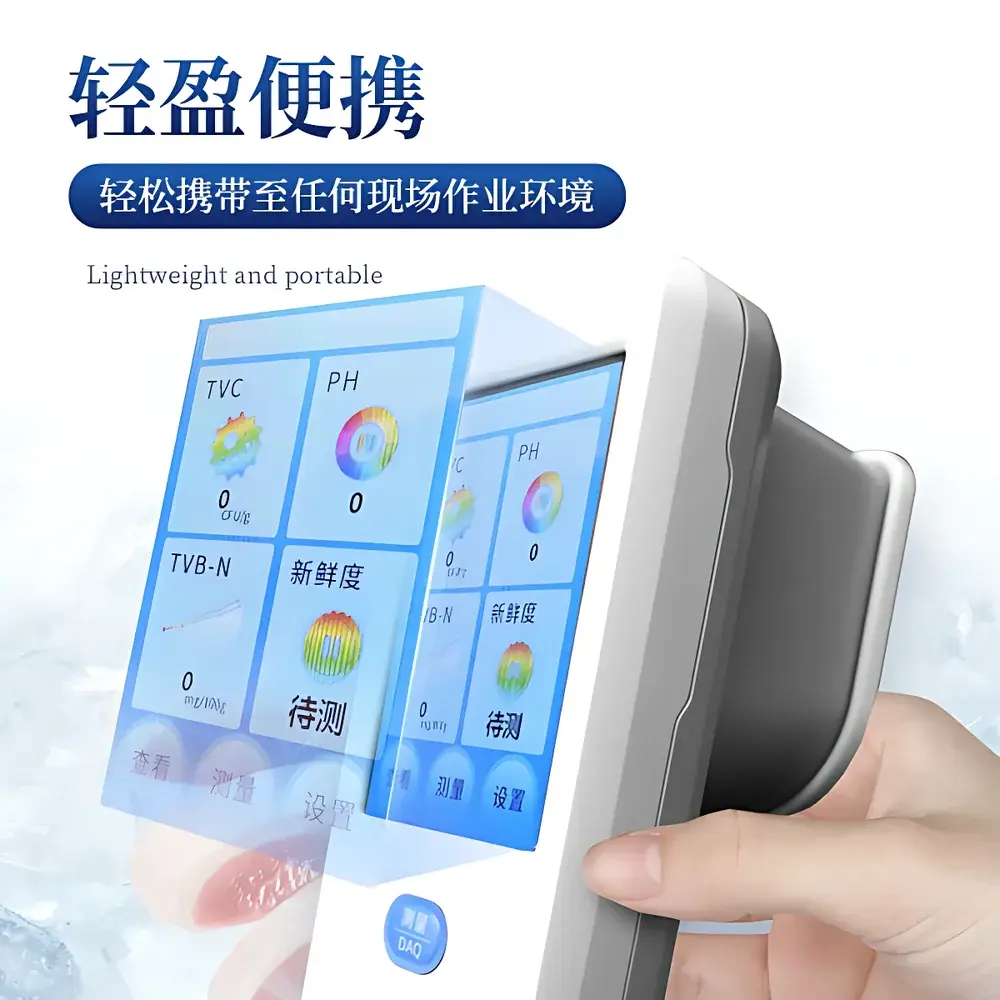

• Compact handheld form factor (160 × 70 × 30 mm; 350 g) optimized for on-site deployment across cold chain logistics, retail backrooms, and inspection checkpoints.

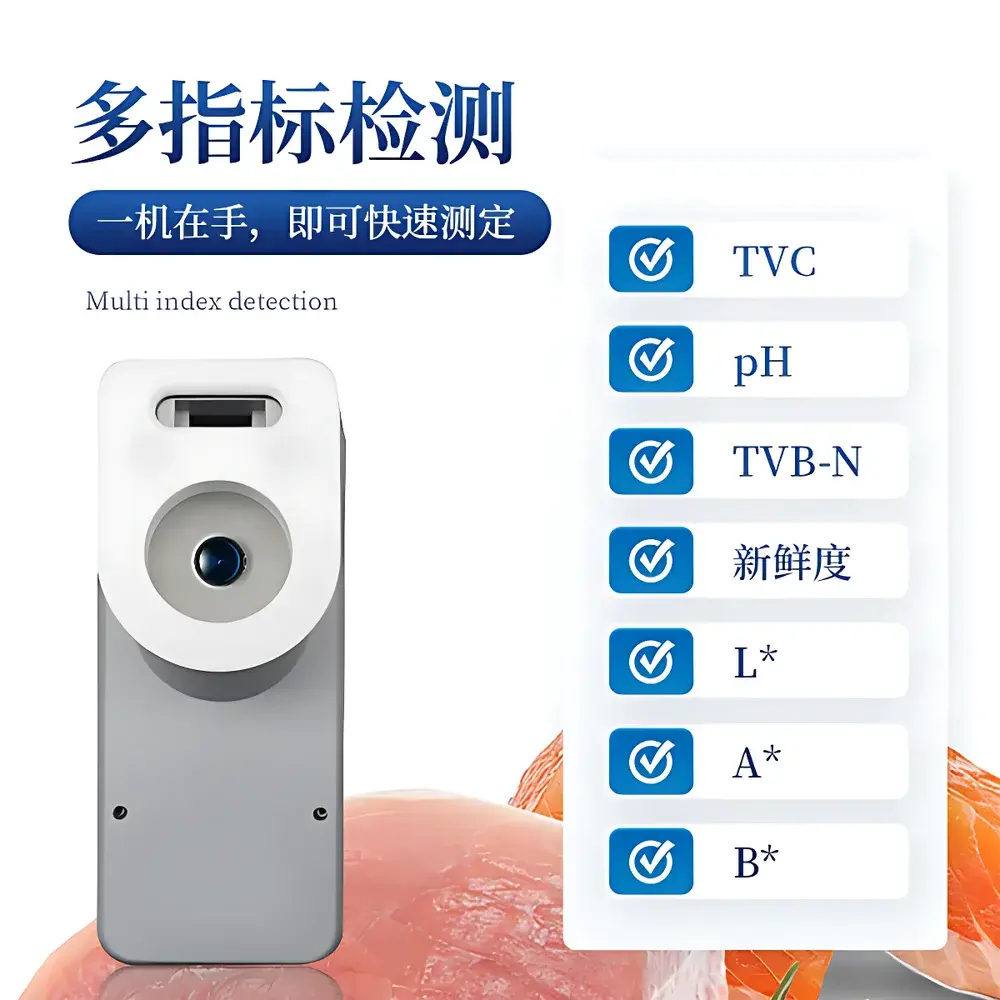

• Simultaneous acquisition of seven core freshness indicators: TVC (estimated), pH, TVB-N, freshness index (algorithm-derived composite score), and CIELAB color space values (L*, a*, b*).

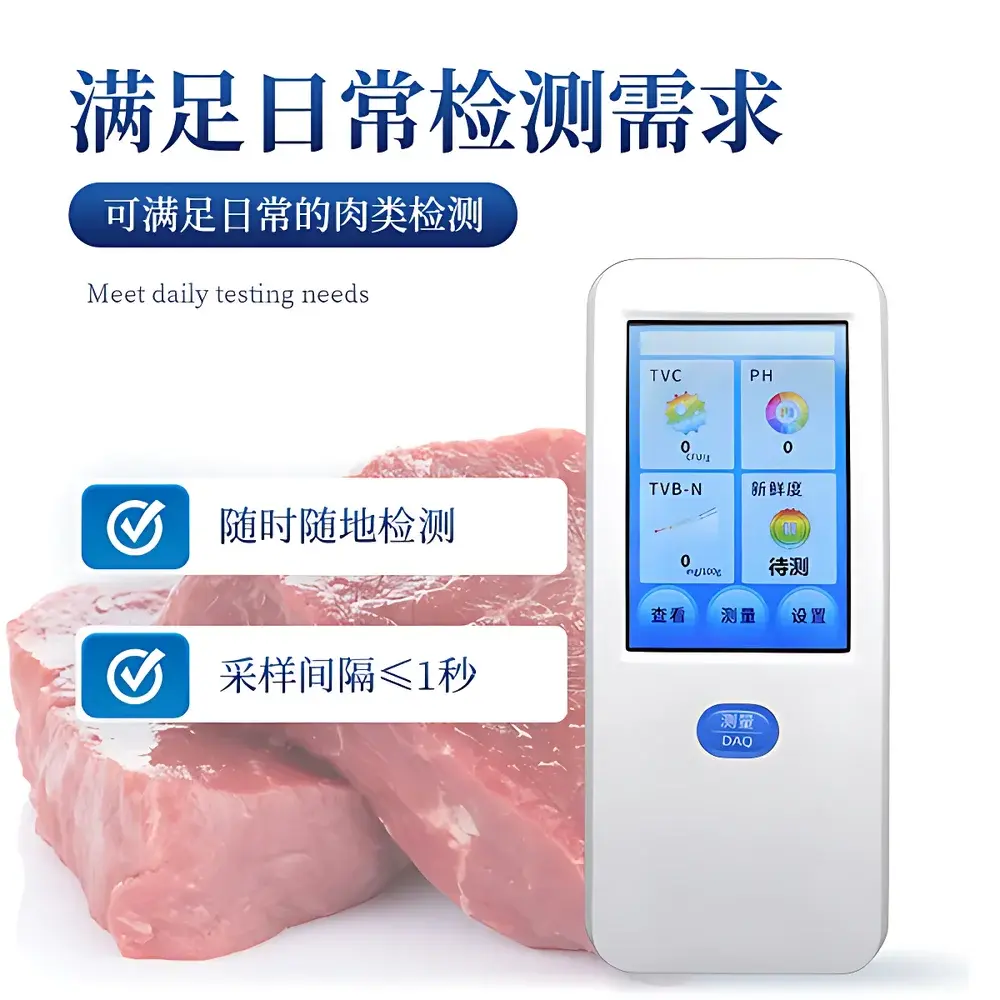

• Sub-second sampling interval (≤1 s per measurement), enabling real-time batch screening of multiple carcass cuts or packaged products.

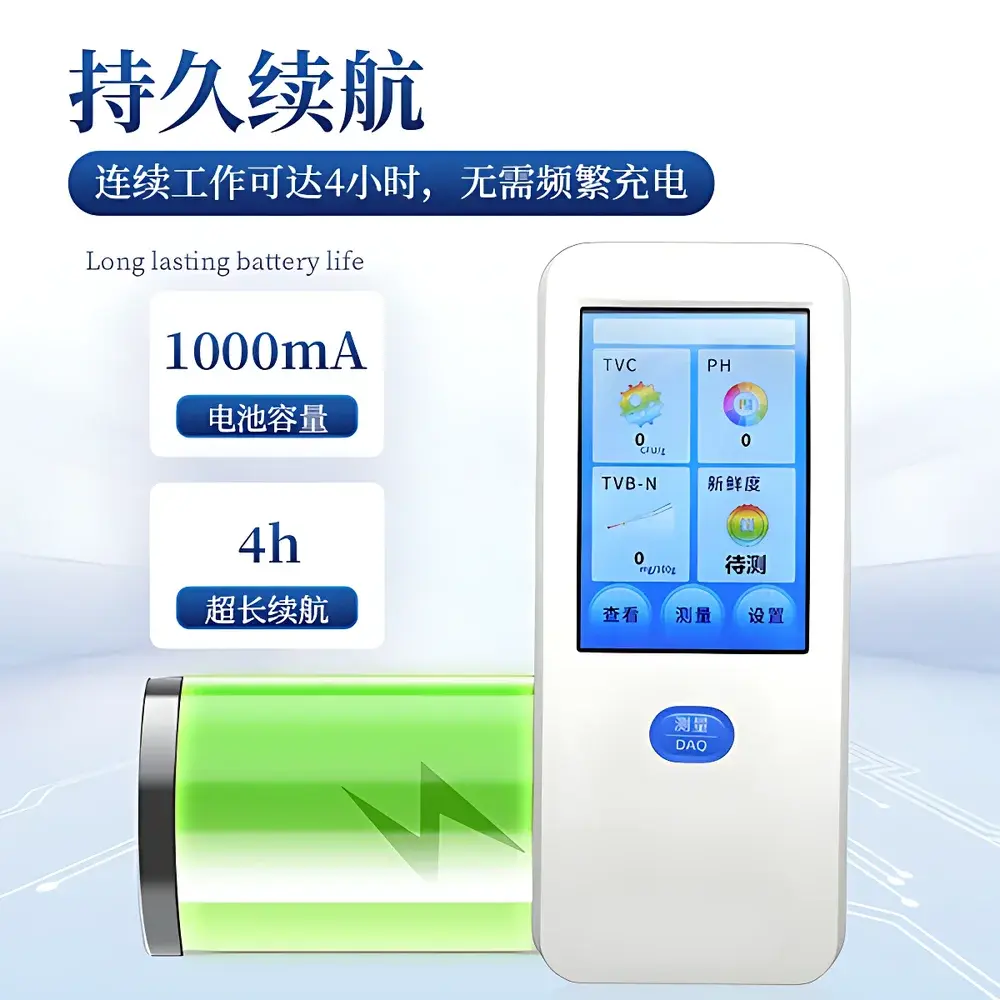

• Integrated rechargeable lithium-ion battery (1000 mAh) supporting up to 4 hours of continuous operation—sufficient for full-shift inspections without external power.
• On-device display with intuitive interface and contextual pass/fail thresholds aligned with national food safety guidelines (e.g., GB 2707–2016 for fresh meat).
• Ruggedized housing rated IP54 for resistance to dust and incidental moisture exposure during handling in wet market or abattoir environments.

Sample Compatibility & Compliance

The ST-PA is validated for direct surface contact measurement on uncooked, chilled, or frozen-thawed beef, pork, lamb, and poultry muscle tissue. It accommodates both intact cut surfaces and ground meat samples (≥5 g). No sample homogenization or extraction is required. While not a replacement for accredited laboratory microbiological culture (e.g., ISO 4833-1), its TVC estimation correlates with aerobic plate count data within ±0.5 log CFU/g across the 10⁴–10⁷ CFU/g range. TVB-N readings demonstrate linearity (R² > 0.92) against spectrophotometric reference methods in the 5–35 mg N/100 g range. All firmware and calibration protocols comply with basic GLP principles, including timestamped measurement logging and user-accessible calibration history. The device meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage safety (EN 61010-1).

Software & Data Management

Measurements are stored locally on internal flash memory (up to 5,000 records) with automatic time/date stamping and operator ID tagging. Data export is supported via USB-C interface to CSV format for integration into existing quality management systems (QMS). Optional Bluetooth 5.0 connectivity enables wireless synchronization with the Santiyiqi QM Cloud platform—a secure, audit-ready web portal supporting role-based access control, trend analysis, and automated report generation compliant with internal food safety plan documentation requirements. Audit trails meet minimum traceability criteria per ISO 22000:2018 Clause 8.2.4.

Applications

• Real-time verification of shelf-life compliance during cold storage and transport handovers.
• Routine surveillance at slaughterhouse dispatch points to identify early-stage spoilage before distribution.
• In-store quality assurance for supermarkets and wet markets—enabling dynamic labeling and markdown decisions.
• Regulatory field inspections by municipal food safety bureaus conducting rapid triage prior to lab submission.
• Research applications in meat science labs evaluating packaging interventions, antimicrobial treatments, or aging protocols.

FAQ

Is the ST-PA suitable for regulatory enforcement use?
It is intended for preliminary screening and internal quality control—not as a standalone evidentiary tool for legal proceedings. Confirmatory testing must follow ISO-standard laboratory methods.
How often does the device require recalibration?
pH electrode calibration is recommended before each daily shift using two-point (4.01 and 7.00) buffer solution; TVB-N sensor recalibration is advised every 50 measurements or after exposure to high-humidity environments.
Can it measure frozen meat directly?
Yes—surface readings are valid on thawed or partially frozen samples; however, consistent surface temperature (0–4°C) is required for optimal repeatability.
Does it support multi-language UI?
English and Simplified Chinese interfaces are preloaded; additional language packs may be deployed via firmware update.
What is the warranty and service coverage?
Standard 12-month parts-and-labor warranty; extended service plans include annual on-site verification and sensor replacement kits.
