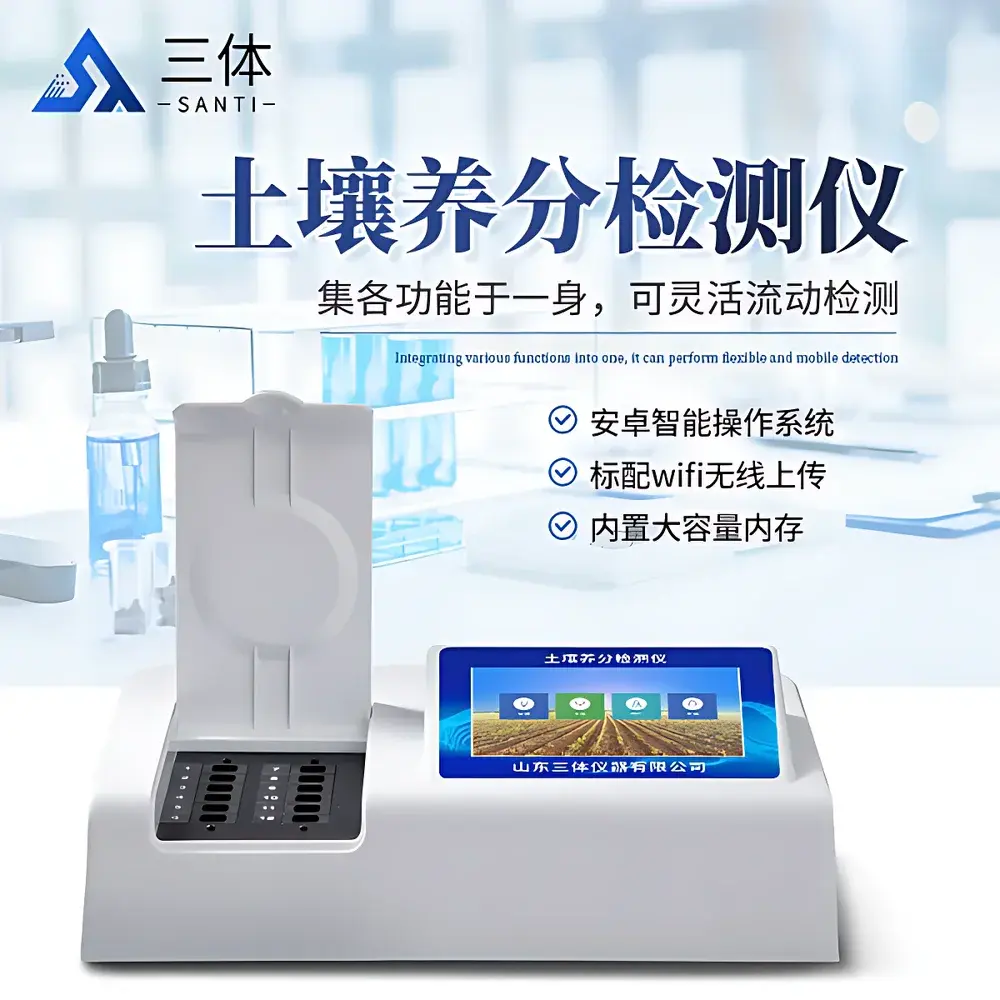

Santiyiqi ST-T2 Multi-Parameter Soil Nutrient Analyzer

Overview

The Santiyiqi ST-T2 Multi-Parameter Soil Nutrient Analyzer is a field-deployable, laboratory-grade spectrophotometric instrument engineered for rapid, on-site quantification of key soil fertility indicators. It operates on the principle of visible-light absorbance spectroscopy—using four precisely calibrated narrow-band LED light sources (red, blue, green, and orange) to measure colorimetric reactions between soil extracts and standardized reagents. Each optical channel is solid-state mounted with 1-cm pathlength cuvettes, eliminating mechanical alignment drift and ensuring long-term photometric stability (<0.001 Abs 2-h drift). Designed in accordance with China’s Ministry of Agriculture & Rural Affairs (MARA) rapid-testing industry standards for soil nutrient analysis, the ST-T2 delivers quantitative results aligned with national reference methods—including ammonium-N (NH₄⁺-N), available phosphorus (Olsen-P), exchangeable potassium (K⁺), nitrate-N (NO₃⁻-N), hydrolyzable nitrogen, total N/P/K, organic matter (Tiurin and extraction-based protocols), total organic carbon (TOC), C/N ratio, pH, electrical conductivity (EC), and gravimetric moisture content. Its integrated architecture eliminates dependency on external lab infrastructure—making it suitable for extension services, cooperative agronomy units, fertilizer manufacturers, and large-scale farming operations requiring real-time, decision-grade soil data.

Key Features

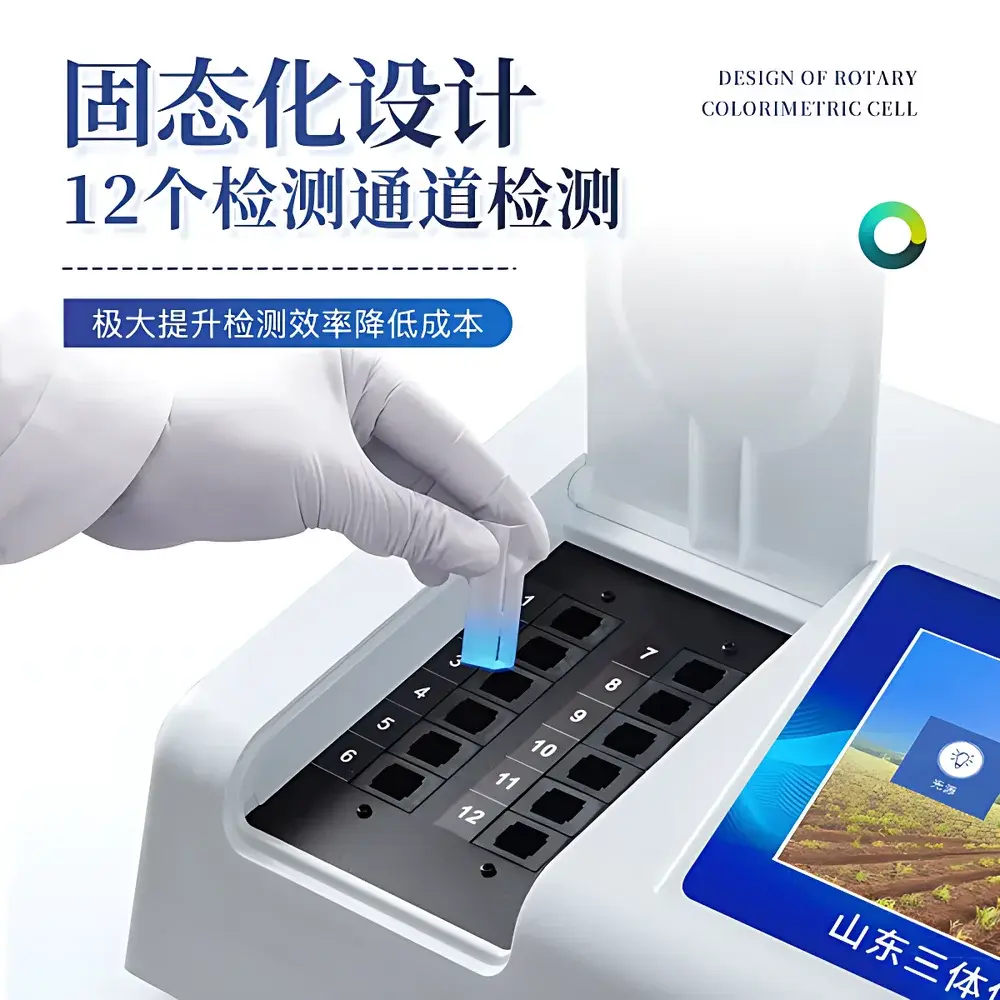

• 12-channel solid-state optical detection system enabling parallel analysis of up to 6 soil samples per batch for N, P, and K—reducing average analysis time to ≤20 min per sample (including extraction and reagent addition)

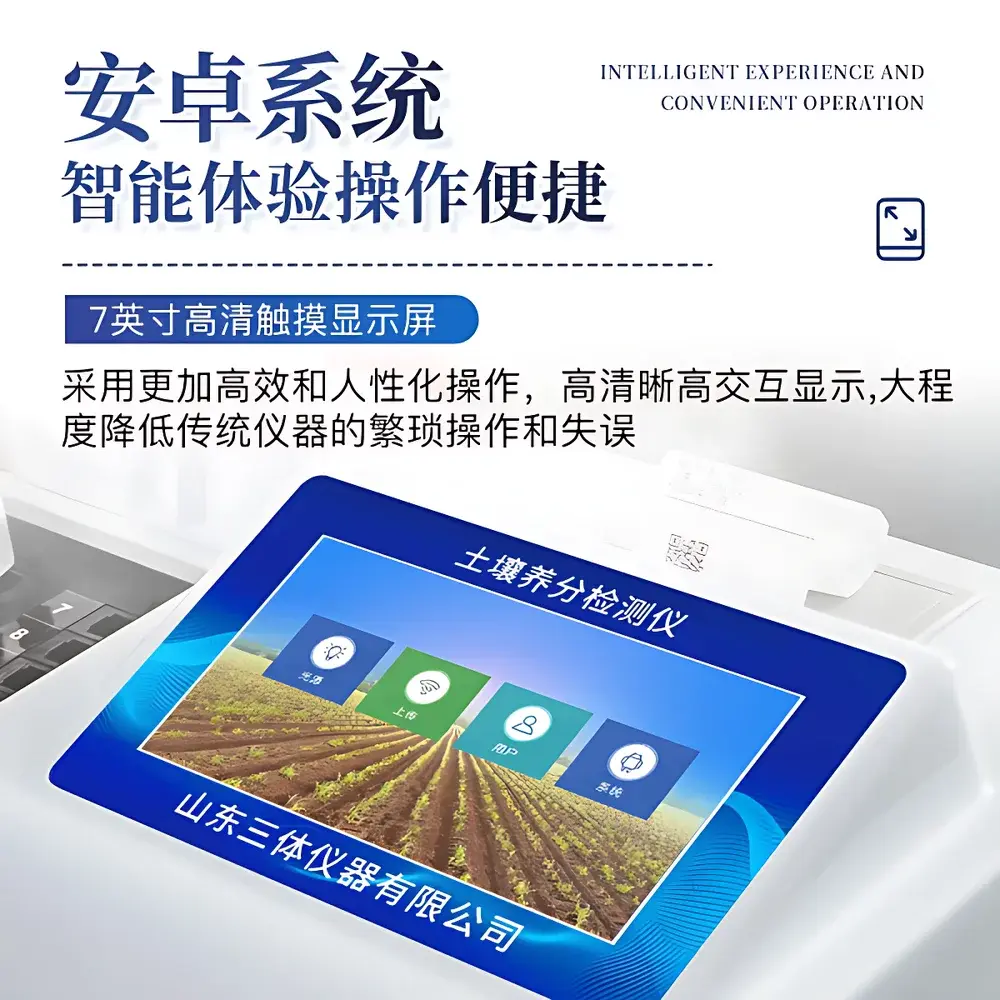

• Android-based embedded OS powered by ARM Cortex-A7 RK3288 quad-core processor (1.88 GHz), supporting intuitive touch navigation, multi-user account management, and localized UI language switching (English/Chinese)
• Integrated GPS module for georeferenced sampling documentation—critical for spatial soil mapping and longitudinal field trials
• Self-calibrating optical engine with intelligent constant-current regulation, automatic light-intensity normalization, and thermal-stable LED emitters (rated lifespan >100,000 h, zero wavelength drift during extended operation)

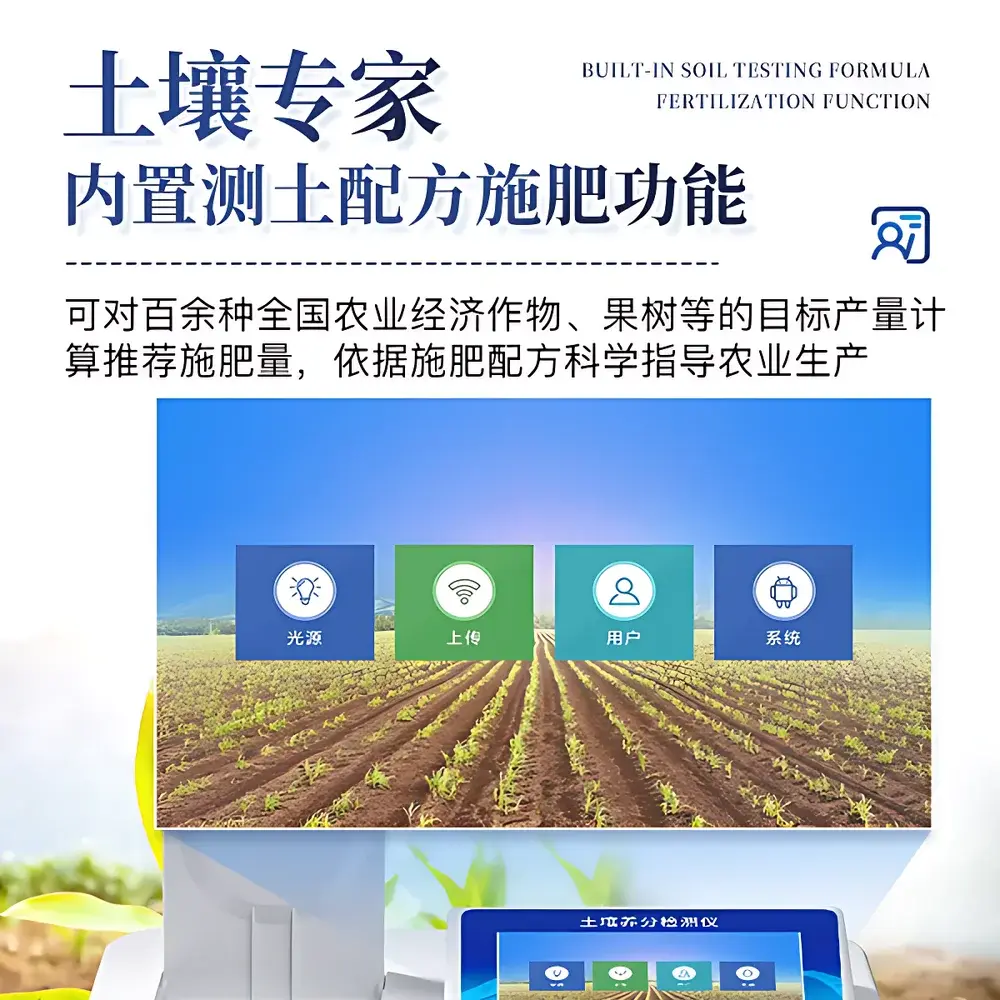

• Built-in crop-specific fertilization expert system covering >100 economically significant crops and fruit trees; computes target-yield-driven nutrient recommendations and generates printable reports compliant with MARA technical guidelines
• Dual-mode power supply: rechargeable lithium-ion battery (>10 h runtime) + DC 12 V/AC 220 V input; supports vehicle-mounted charging and uninterrupted operation via auto-save and low-voltage warning
• Ruggedized IP65-rated enclosure with shock-absorbing housing—validated for field transport and outdoor deployment under variable ambient conditions

Sample Compatibility & Compliance

The ST-T2 accepts air-dried, sieved (<2 mm) soil samples processed according to GB/T 32725–2016 (Chinese national standard for soil testing) and harmonized with ISO 11260, ISO 10390, and ASTM D512 for ion quantification. It accommodates both aqueous extractants (e.g., Mehlich-3, Olsen, ammonium acetate) and digestion-based protocols (e.g., Kjeldahl for total N, perchloric–sulfuric acid for total P/K). pH and EC measurements meet ISO 10390:2020 and ISO 11265:2022 specifications. All photometric assays are traceable to NIST-certified reference materials (e.g., potassium dichromate for absorbance linearity verification). The device supports GLP-aligned data integrity through timestamped, user-authenticated records, audit-trail-enabled result export, and optional 21 CFR Part 11-compliant cloud synchronization via the Santiyiqi SmartAgri Cloud Platform.

Software & Data Management

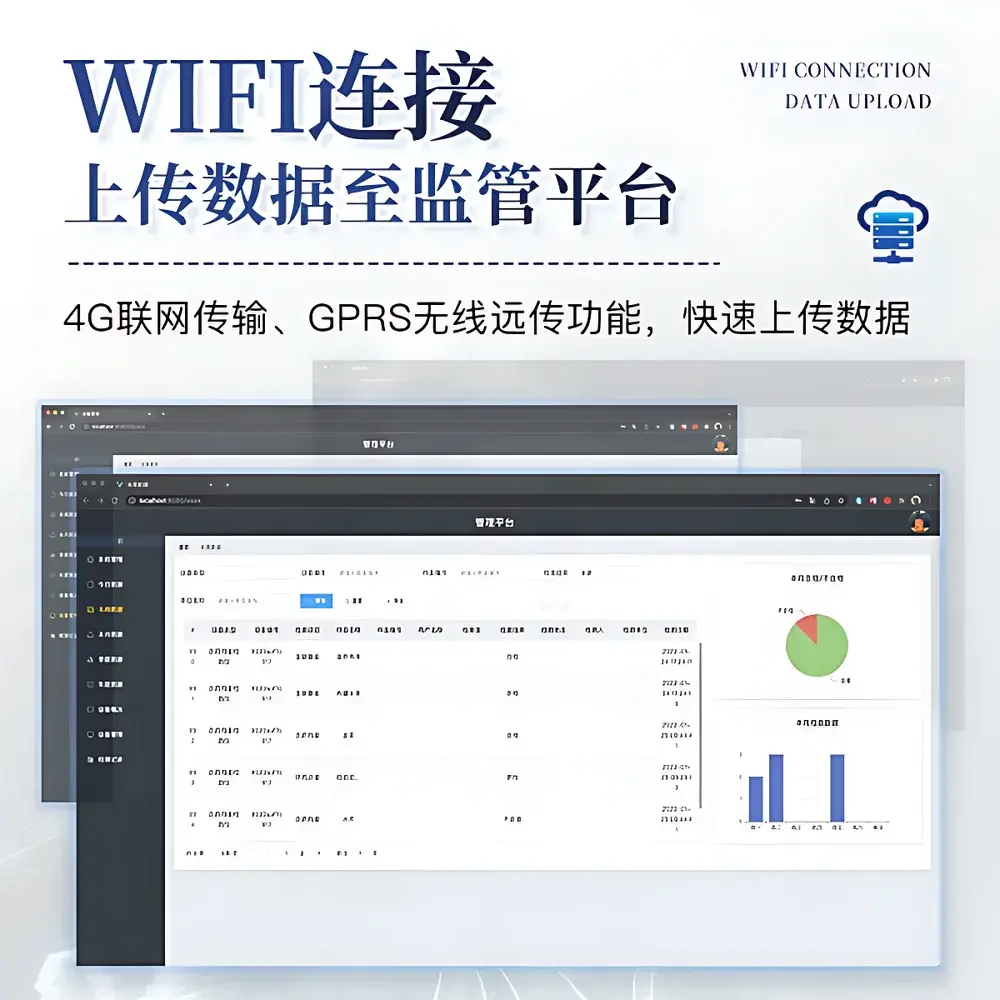

The ST-T2 runs proprietary firmware with embedded database storage (≥10,000 test records) and dual-path data export: local transfer via USB flash drive or Ethernet, and remote transmission via Wi-Fi, 4G LTE, or GPRS. The SmartAgri Cloud Platform provides role-based web access for data visualization, temporal trend analysis, geo-spatial heatmaps, and automated report generation (PDF/CSV). Mobile applications enable real-time viewing of historical datasets across iOS and Android devices. All uploaded data retain full metadata: operator ID, GPS coordinates, sample ID, extraction method, reagent lot number, calibration timestamp, and instrument firmware version—ensuring full traceability for regulatory review or third-party verification.

Applications

• On-farm precision nutrient mapping for variable-rate fertilizer application planning
• Extension service delivery of rapid soil health diagnostics to cooperatives and smallholder networks
• Quality assurance testing of commercial fertilizers and soil amendments against GB 15063 and NY 525 standards
• Longitudinal monitoring of soil organic carbon sequestration in climate-smart agriculture programs
• Academic field research requiring portable, standardized nutrient profiling under ISO/IEC 17025-conducive conditions
• Regulatory compliance screening for land remediation projects (e.g., heavy metal co-analysis via optional add-on modules)

FAQ

Does the ST-T2 comply with international testing standards?
Yes—the instrument’s photometric performance, pH/EC measurement protocols, and sample preparation workflows align with ISO 10390, ISO 11265, ASTM D512, and GB/T 32725–2016. Calibration traceability is maintained using NIST-traceable reference solutions.
Can raw spectral data be exported for third-party analysis?
Yes—absorbance values at all four wavelengths (420 nm, 510 nm, 590 nm, 680 nm), along with blank-subtracted transmittance and calculated concentrations, are exportable in CSV format via USB or cloud interface.
Is the built-in fertilization recommendation engine customizable for regional cropping systems?
Yes—agronomists can import localized yield response curves, soil nutrient buffering coefficients, and crop-specific uptake models via the SmartAgri Cloud admin portal.
What maintenance is required for long-term optical accuracy?
No routine lamp replacement is needed due to solid-state LED design. Users perform quarterly verification using supplied K₂Cr₂O₇ and CuSO₄ standards; instrument self-diagnostic logs track photometric drift and flag recalibration thresholds automatically.
How is data security handled during wireless transmission?
All cloud communications use TLS 1.2 encryption; user accounts enforce password complexity and session timeout policies. On-device storage employs AES-256 encryption for sensitive fields (e.g., GPS coordinates, operator credentials).
