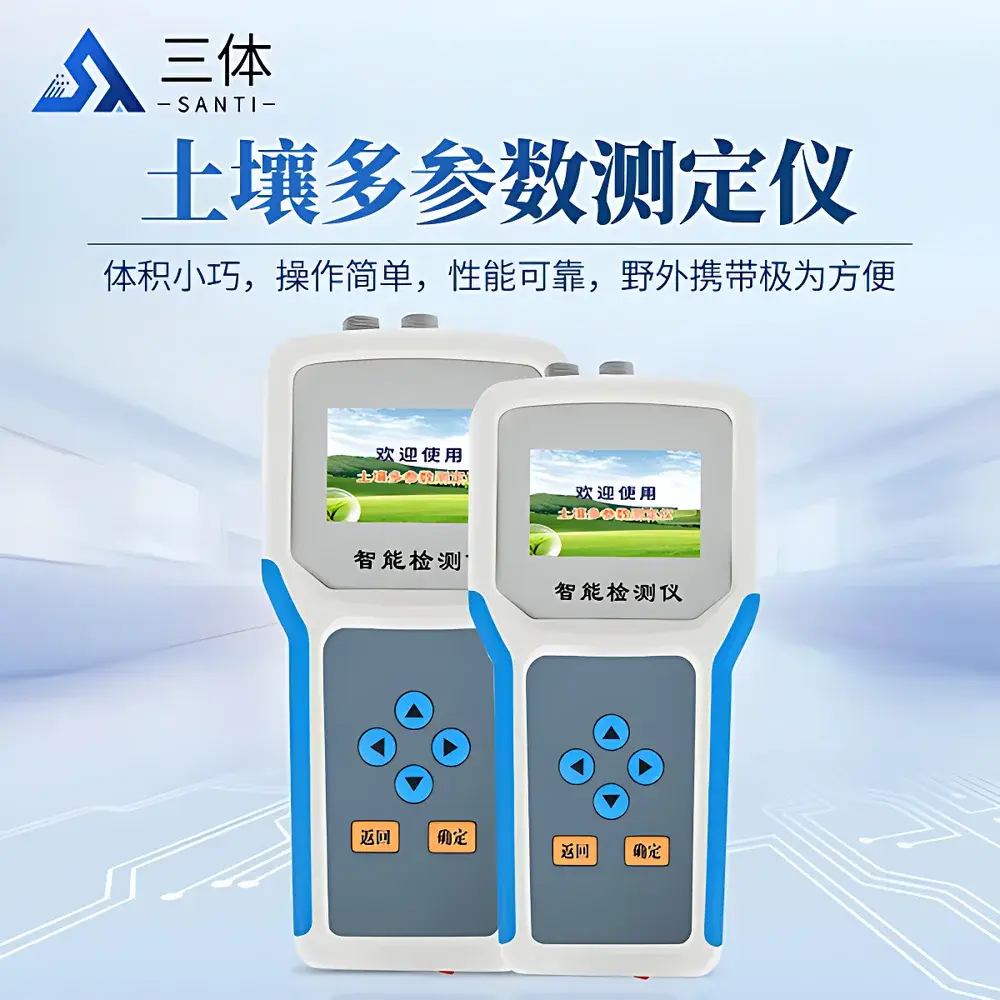

Santiyiqi ST-WSYPF Multi-Parameter Soil Property Analyzer

Overview

The Santiyiqi ST-WSYPF Multi-Parameter Soil Property Analyzer is an integrated field-deployable instrument engineered for simultaneous, in-situ measurement of critical soil physical and chemical parameters—including volumetric water content (VWC), soil temperature, electrical conductivity (EC), pH, and extractable macronutrients (N, P, K) via ion-selective sensor modules. Built upon a modular sensor architecture with standardized analog/digital interfaces, the system operates on the principle of multi-channel analog signal acquisition coupled with calibrated electrochemical and dielectric sensing methodologies. It is designed for both spot sampling and unattended long-term monitoring across heterogeneous terrain, supporting time-series analysis of soil hydrological and biogeochemical dynamics. The device complies with ISO 11277:2023 (soil sampling principles), ASTM D5365-22 (field EC measurement), and ISO 10390:2023 (soil pH determination), ensuring data traceability and methodological consistency required for environmental reporting and agronomic decision support.

Key Features

• Modular sensor interface architecture enabling plug-and-play integration of VWC (capacitance-based, 0–100% VWC range), PT100 temperature (−20 to +70 °C, ±0.2 °C accuracy), EC (0–20 dS/m, ±2% full scale), pH (0–14, ±0.1 unit), and NPK ion-selective electrodes—each auto-recognized upon insertion.
• Configurable sampling intervals from 1 minute to 24 hours; internal real-time clock with timestamped logging; 300,000-entry non-volatile memory with power-loss recovery and automatic data integrity checksums.
• 5-inch color TFT LCD (800 × 480 pixels) with ambient-light-adaptive backlight; simultaneous display of EC and derived salinity (dS/m → g/L NaCl equivalent using USDA conversion algorithm).

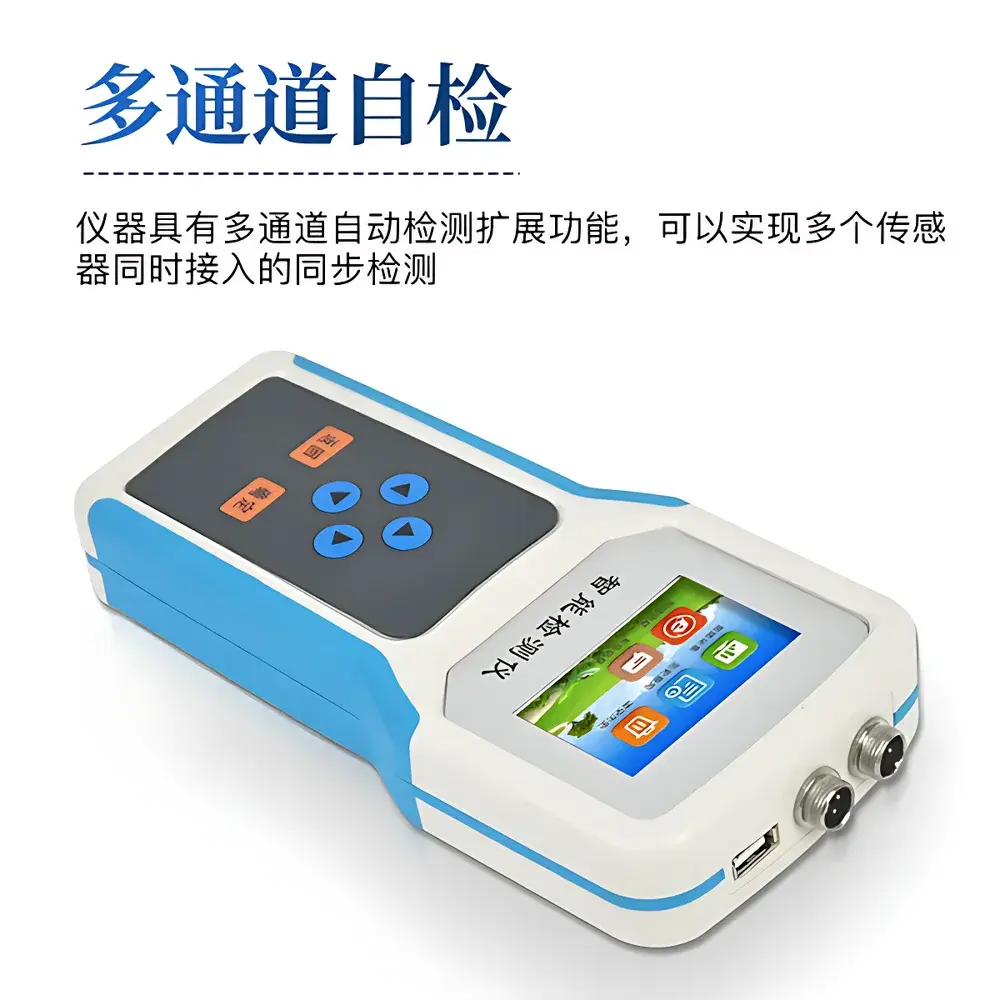

• Multi-channel synchronous acquisition: up to 8 sensor inputs supported via expansion port; all channels sampled within <100 ms synchronization window to eliminate temporal misalignment in dynamic soil profiles.
• Ruggedized IP67-rated enclosure with reinforced polycarbonate housing; operating temperature range −10 to +60 °C; battery life up to 14 days (with 4× AA LiFePO₄ cells) under 15-min logging interval.

Sample Compatibility & Compliance

The ST-WSYPF is validated for use in mineral soils (sand, loam, clay), organic substrates (peat, compost), and amended agricultural media. Sensor probes are compatible with standard auger-bore installation (2–10 cm depth) and direct insertion into undisturbed cores. All electrochemical sensors meet ISO 7888:2022 (pH electrode performance) and ISO 8466-1:2022 (calibration linearity). Data output conforms to ISO/IEC 17025:2017 documentation requirements, including audit trails for calibration history, user logins, and parameter modification events. Firmware supports GLP-compliant metadata tagging (operator ID, GPS coordinates via optional Bluetooth GNSS module, sample ID, depth tag) for regulatory submission readiness.

Software & Data Management

The included Windows-based SantiData Pro software (v3.2+) provides USB 2.0 interface for bidirectional communication. Functions include batch export to CSV/Excel (.xlsx), time-series visualization with dual-Y axis overlay, customizable threshold-based color-coding (e.g., red highlight for EC > 4 dS/m or pH < 5.5), and automated report generation compliant with FAO’s WaPOR framework templates. Raw binary logs include embedded CRC-32 error detection; software enforces digital signature verification prior to import to prevent tampering. Audit trail records all export actions, filter applications, and curve-fit parameter adjustments—fully traceable per FDA 21 CFR Part 11 Annex 11 guidelines when used in GxP-aligned agricultural trials.

Applications

• Soil moisture deficit mapping for deficit irrigation scheduling in vineyards and orchards (aligned with FAO-56 Penman-Monteith evapotranspiration modeling inputs).
• Salinity stratification profiling in coastal aquifer recharge zones and reclaimed farmland.
• Long-term monitoring of pH drift and nutrient leaching in controlled-environment plant phenotyping platforms.
• Field validation of satellite-derived soil moisture products (e.g., SMAP L2_SM_P, Sentinel-1 SAR backscatter inversion).
• Regulatory compliance monitoring for landfill cover systems and remediation site aftercare (EPA Method 9045D, ASTM D420-21).

FAQ

Can the ST-WSYPF measure nitrate, phosphate, and potassium concentrations directly in soil solution?
Yes—via interchangeable ion-selective electrodes calibrated against ISE-certified reference standards (ISO 17034-accredited); detection limits are 0.1 mg/L NO₃⁻-N, 0.05 mg/L PO₄³⁻-P, and 0.2 mg/L K⁺.
Is sensor recalibration required in the field?
Two-point calibration (buffer/solution) is recommended before each deployment cycle; onboard calibration storage retains up to 5 unique calibration sets per sensor type.
Does the device support wireless telemetry?
Not natively—but the RS-485 expansion port enables integration with LoRaWAN or NB-IoT gateways via third-party protocol converters (e.g., Dragino LHT65 interface module).
What is the warranty and service support coverage?
Three-year limited warranty covering electronics and housing; sensor probes carry 12-month performance guarantee with optional extended calibration service contracts.
Are raw sensor voltage outputs accessible for custom algorithm development?
Yes—firmware exposes raw ADC counts and temperature-compensated mV readings via ASCII command protocol (AT-style), documented in the publicly available Engineering Interface Manual v2.1.
