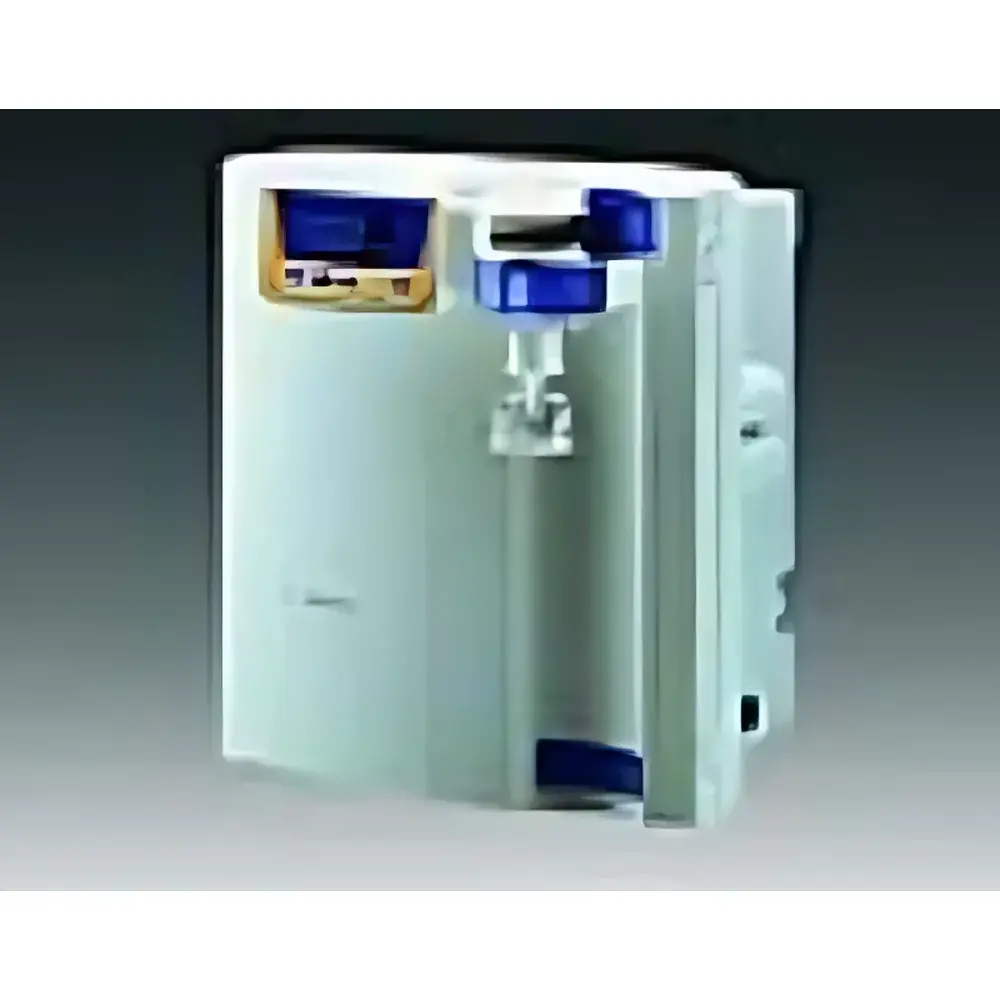

Sartorius arium® 611 DI Ultra-Pure Water System

Overview

The Sartorius arium® 611 DI Ultra-Pure Water System is an integrated, compact benchtop water purification platform engineered for laboratories requiring consistent, trace-level purity in analytical and life science applications. It employs a multi-stage purification architecture—comprising pre-treatment, reverse osmosis (RO), dual-stage deionization (DI), ultrafiltration (UF), and UV photo-oxidation—to deliver Type I ultrapure water compliant with ASTM D1193-20, ISO 3696:1987, and CLSI EP21-A guidelines. Its core output specification—18.2 MΩ·cm resistivity at 25 °C—reflects near-theoretical limit conductivity suppression, essential for minimizing background interference in sensitive detection modalities including atomic absorption spectroscopy (AA), ion chromatography (IC), inductively coupled plasma optical emission spectrometry (ICP-OES), ICP-mass spectrometry (ICP-MS), and high-performance liquid chromatography (HPLC). The system’s low TOC (<4 ppb) and sub-particulate filtration (<1 particle/mL at ≥0.2 µm) ensure compatibility with low-detection-limit methodologies where organic leachables or colloidal contamination may compromise calibration stability or column integrity.

Key Features

• Compact footprint (30.2 × 11.3 × 15.7 cm) optimized for space-constrained analytical workstations without compromising performance or service accessibility.
• Integrated real-time monitoring of critical water quality parameters—including resistivity, TOC, temperature, and flow rate—via a high-contrast LCD interface with configurable alarm thresholds.
• Proprietary Sartorius UF membrane cartridge (0.2 µm pore size) with endotoxin-retentive properties, validated to reduce microbial load to <1 CFU/mL and eliminate pyrogenic risk in cell culture and molecular biology workflows.
• 185/254 nm dual-wavelength UV lamp for continuous photo-oxidation of residual organics and microbial inactivation, contributing to sustained TOC suppression below 4 ppb.
• Non-leaching, pharmaceutical-grade fluid path materials (e.g., PEEK, PVDF, and sanitary silicone tubing) certified per USP Class VI and FDA 21 CFR 177.2600, ensuring no extractables interfere with assay reproducibility.
• Modular design supporting field-upgradable components—including RO membrane, DI cartridges, and UV lamp—enabling predictable maintenance intervals and minimizing downtime.

Sample Compatibility & Compliance

The arium® 611 DI is explicitly validated for use as the primary water source in regulated analytical environments. Its output meets or exceeds the water purity requirements specified in ISO 15195:2018 (clinical laboratory testing), ASTM D1193-20 (Type I water), and EU Pharmacopoeia Chapter 2.2.44 (Water for Analytical Purposes). For laboratories operating under GLP or GMP frameworks, the system supports audit-ready documentation via optional data logging modules compliant with FDA 21 CFR Part 11—providing electronic signatures, user access control, and immutable audit trails for all operational events and quality parameter deviations. All consumables are supplied with full traceability documentation, including lot-specific certificates of analysis (CoA) and bioburden test reports.

Software & Data Management

While the base arium® 611 DI operates via standalone hardware controls, it is compatible with Sartorius’ arium® Connect software suite (optional upgrade) for centralized fleet monitoring across multi-instrument lab environments. This PC-based application enables remote status visualization, historical trend analysis of resistivity and TOC decay profiles, predictive cartridge lifetime estimation based on usage metrics, and automated report generation in PDF or CSV format. Data export conforms to ASTM E1384 and ISO/IEC 17025–recommended formats, facilitating integration into LIMS or ELN platforms. All system logs—including alarm history, user login events, and maintenance timestamps—are time-stamped and cryptographically signed to satisfy ALCOA+ data integrity principles.

Applications

• Preparation of mobile phases and sample diluents for HPLC, UHPLC, and LC-MS systems where trace metals or organics induce baseline drift or column fouling.
• Blank preparation and standard dilution in trace elemental analysis (ICP-MS, ICP-OES, AA), where ionic contamination directly impacts detection limits and calibration linearity.
• Buffer formulation for electrophoresis, ELISA, and qPCR applications demanding endotoxin-free, nuclease-free water.
• Final rinse step in cleanroom component validation and medical device manufacturing processes governed by ISO 13485.
• Reagent preparation for next-generation sequencing library construction, where residual DNase/RNase activity or oxidants compromise nucleic acid integrity.

FAQ

What feed water quality is required for optimal performance of the arium® 611 DI?
The system is designed for connection to potable municipal water or pretreated (softened, carbon-filtered) feed sources. Inlet pressure must be maintained between 2–6 bar; total dissolved solids (TDS) should not exceed 200 ppm to ensure RO membrane longevity and stable DI bed regeneration cycles.
Can the arium® 611 DI be connected to a centralized distribution loop?
No—the arium® 611 DI is a point-of-use system intended for direct dispensing only. For loop-based distribution, Sartorius recommends the arium® Essential or arium® Advance series with integrated recirculation pumps and loop-compatible monitoring.
Is the system suitable for producing water for cell culture applications?
While its microbial and endotoxin specifications meet many cell culture requirements, the arium® 611 DI does not include a dedicated 0.1 µm final filter or vapor-phase hydrogen peroxide sterilization cycle. For strict sterile applications, pairing with an arium® Pro UF module or selecting the arium® CellPlus configuration is advised.
How often do consumables require replacement?
Typical service intervals are: RO membrane (24–36 months), DI cartridges (6–12 months depending on feed water TDS), UF cartridge (12 months), and UV lamp (12 months). System alerts notify users when capacity thresholds are reached, and usage-based counters are logged internally for compliance verification.
