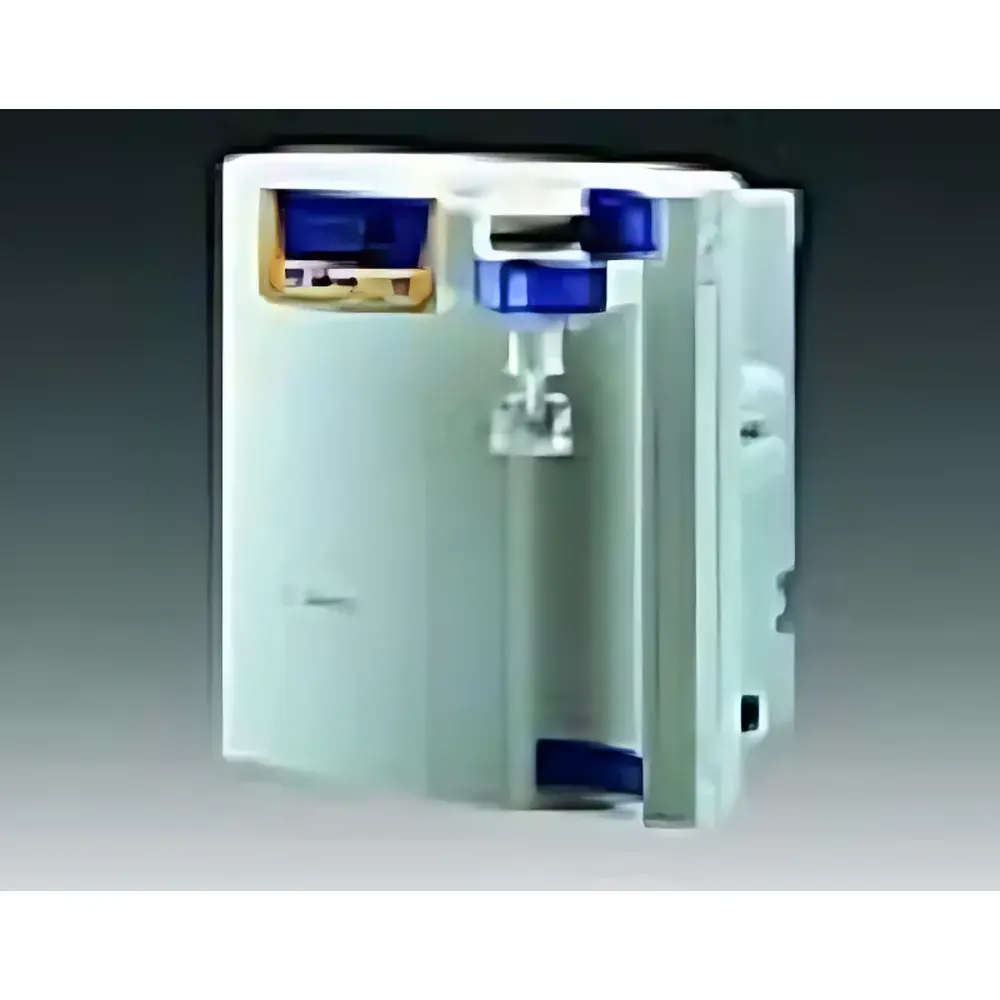

Sartorius arium® 611 UF Ultra-Pure Water System

Overview

The Sartorius arium® 611 UF is an integrated, benchtop ultra-pure water system engineered for laboratories requiring consistent, high-fidelity water for sensitive life science and analytical applications. It employs a multi-stage purification architecture—comprising pre-treatment, reverse osmosis (RO), electrodeionization (EDI), and dual-stage final polishing—to deliver Type I ultrapure water compliant with ASTM D1193-20, ISO 3696:1987, and CLSI EP22-A guidelines. The defining feature of the arium® 611 UF is its integrated ultrafiltration (UF) membrane module positioned at the point-of-use, which physically removes endotoxins, nucleases, and submicron particles without chemical regeneration or leaching—critical for cell culture, transfection, and molecular biology workflows where biological contaminants compromise assay integrity.

Key Features

• Integrated ultrafiltration (UF) final polishing cartridge with molecular weight cutoff ≤10 kDa, validated for endotoxin removal to <0.001 EU/mL and RNase/DNase activity reduction to non-detectable levels
• Real-time resistivity monitoring (0.01–18.2 MΩ·cm) with temperature compensation and automatic calibration traceability
• Onboard TOC sensor with UV oxidation (185/254 nm) and conductivity detection, reporting continuous TOC values <4 ppb
• Touchscreen interface with event logging, system diagnostics, and configurable alarm thresholds for pressure, flow, and purity parameters
• Compact footprint (30.2 × 11.3 × 15.7 cm) optimized for biosafety cabinets and laminar flow hoods; dry weight 16.8 kg, operational weight 25.3 kg including reservoir
• Automatic recirculation loop with UV lamp (254 nm) and 0.2 µm final filter to maintain microbial control in the distribution path

Sample Compatibility & Compliance

The arium® 611 UF delivers water meeting or exceeding stringent specifications for critical applications including mammalian cell culture, monoclonal antibody production, HPLC mobile phase preparation, and next-generation sequencing library construction. Its output complies with ISO 13485 quality management requirements for medical device manufacturing environments and supports GLP/GMP documentation needs through audit-ready system logs. The UF module is certified per USP “Water for Pharmaceutical Purposes” for endotoxin control and validated against ISO 14644-1 Class 5 (ISO Class 5) cleanroom particle limits (<1 particle/mL ≥0.2 µm). All wetted materials—including housing, tubing, and membranes—are USP Class VI-certified and extractables-tested per FDA guidance for biopharmaceutical process water.

Software & Data Management

The system includes embedded firmware with configurable user access levels (operator, supervisor, administrator) and full 21 CFR Part 11 compliance support—including electronic signatures, audit trails, and immutable data storage for ≥12 months. Event logs record timestamped entries for all critical events: cartridge replacement alerts, resistivity excursions, TOC spikes, UV lamp status, and UF membrane integrity checks. Optional Ethernet or RS232 connectivity enables integration into laboratory information management systems (LIMS) or centralized facility monitoring platforms. Data export is supported via USB flash drive in CSV format, preserving metadata such as calibration history, maintenance records, and daily purity summaries.

Applications

• Mammalian and insect cell culture media preparation, where endotoxin-free water prevents TLR4-mediated inflammatory responses and improves viability
• Purification of therapeutic proteins and antibodies using affinity chromatography, ion exchange, and size exclusion—where low TOC and ionic contamination prevent column fouling and aggregation
• Electrophoresis buffer preparation for SDS-PAGE and native PAGE, ensuring minimal background interference and reproducible band resolution
• Synthesis and dilution of qPCR and CRISPR reagents, where nuclease-free water eliminates false negatives and off-target cleavage
• Calibration and rinsing of high-sensitivity analytical instruments including ICP-MS, LC-MS/MS, and atomic absorption spectrometers

FAQ

What is the purpose of the integrated ultrafiltration (UF) module in the arium® 611 UF?

It provides physical barrier-based removal of endotoxins, viruses, and large biomolecules immediately before dispensing—eliminating post-purification contamination risks inherent in stored water reservoirs.
Does the system require periodic sanitization or chemical disinfection?

No. The combination of continuous UV irradiation (254 nm), recirculation, and the non-leaching UF membrane enables maintenance-free operation between scheduled consumable replacements.
Can the arium® 611 UF be connected to a centralized feed water source?

Yes—it accepts standard municipal or pretreated RO feed water (conductivity <50 µS/cm) and includes inlet pressure regulation and particulate pre-filtration.
How is membrane integrity verified for the UF cartridge?

Integrity is assessed via forward-flow testing during startup and after each cartridge change; the system automatically logs results and triggers visual alerts if permeability exceeds specification limits.
Is the system compatible with third-party dispensing accessories or remote dispensers?

Yes—standard 1/4″ push-to-connect fittings and analog/digital I/O ports support integration with Sartorius ProLine dispensers or OEM-compatible peripherals under controlled flow conditions.
