Sartorius Cubis II Modular High-End Laboratory Balance

Overview

The Sartorius Cubis II Modular High-End Laboratory Balance is an engineered platform for precision mass measurement in regulated and research-intensive environments. Built upon electromagnetic force compensation (EMFC) technology, it delivers traceable, high-stability weighing performance under dynamic laboratory conditions. Unlike conventional analytical balances, the Cubis II integrates hardware modularity with embedded software architecture—enabling configuration of mechanical components (e.g., draft shield, weighing cell, base module), connectivity protocols (Ethernet, USB, RS232), and application-specific firmware—all within a single, validated system. Its design philosophy centers on metrological integrity, regulatory adaptability, and workflow integration—not just static accuracy, but sustained reproducibility across changing environmental, procedural, and compliance requirements. The balance operates within temperature-controlled environments (15–30 °C) and supports automatic compensation for barometric pressure, humidity, and electrostatic charge—critical for microgram-level determinations in pharmaceutical development, reference standard preparation, or catalyst formulation.

Key Features

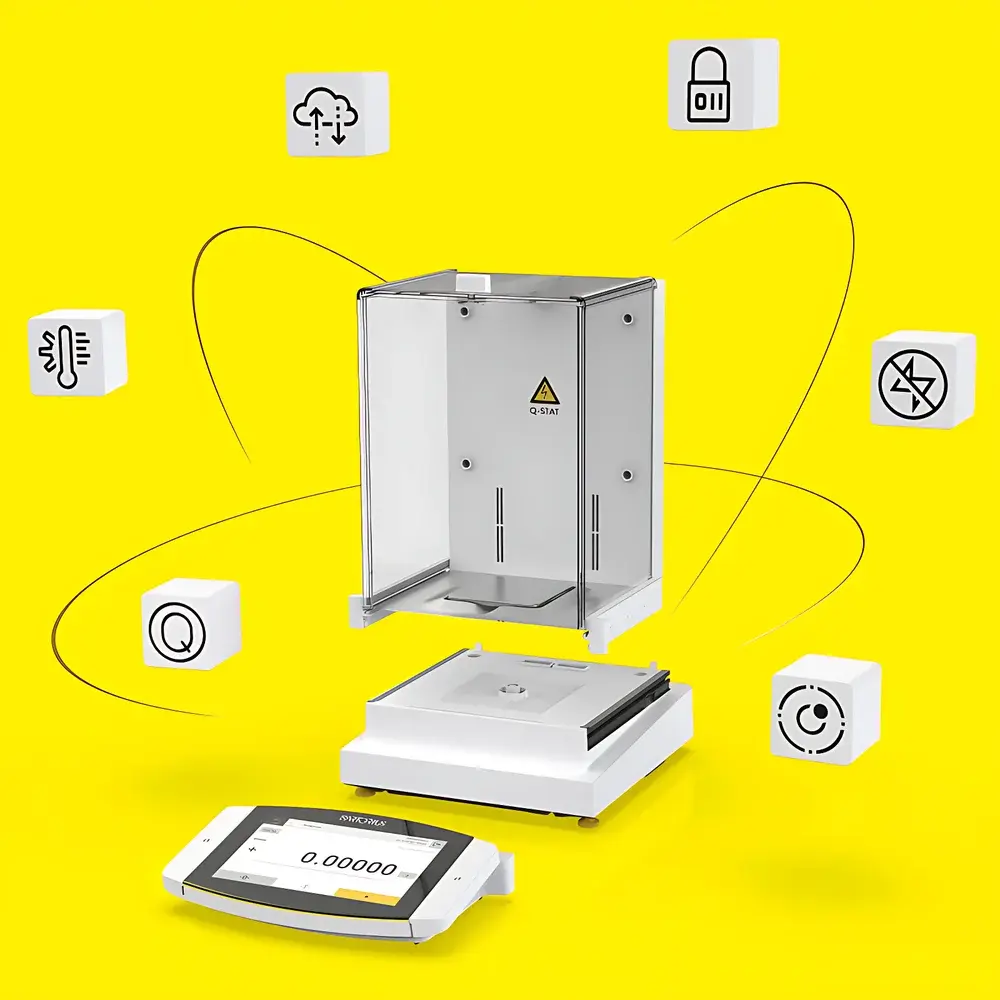

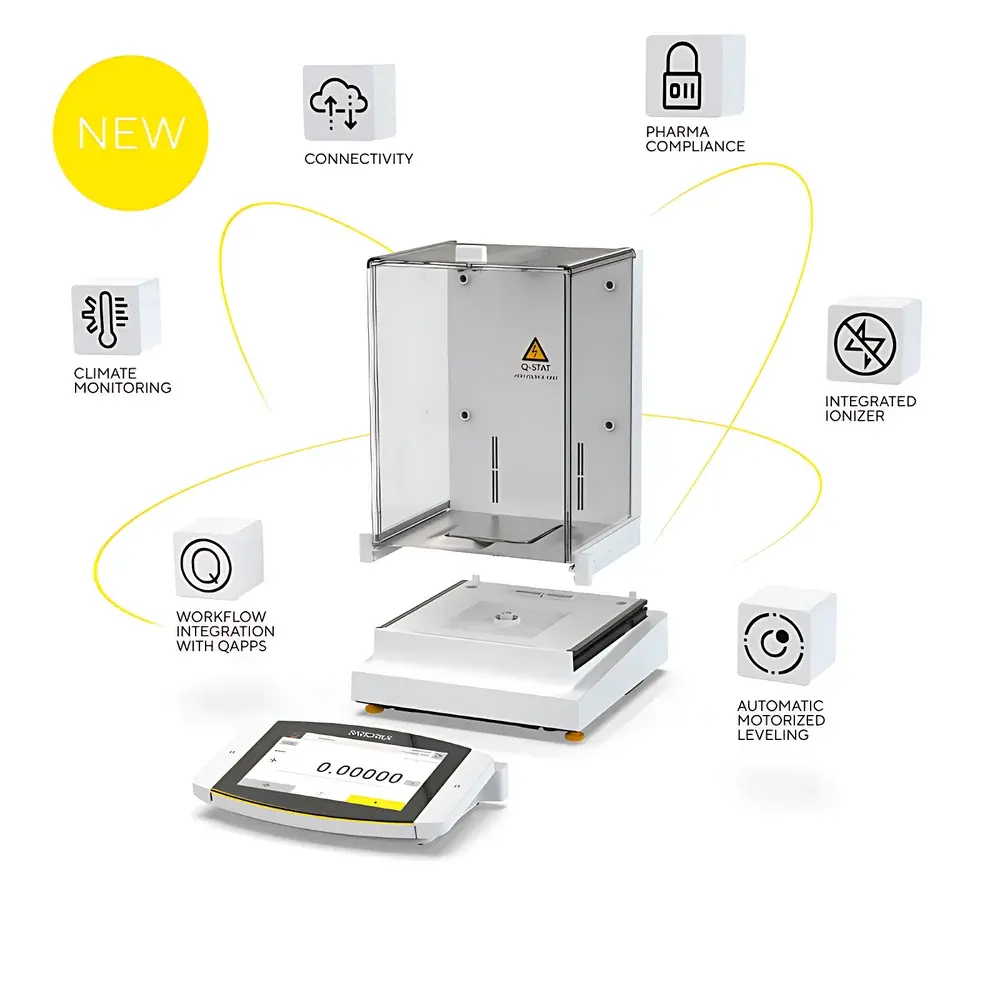

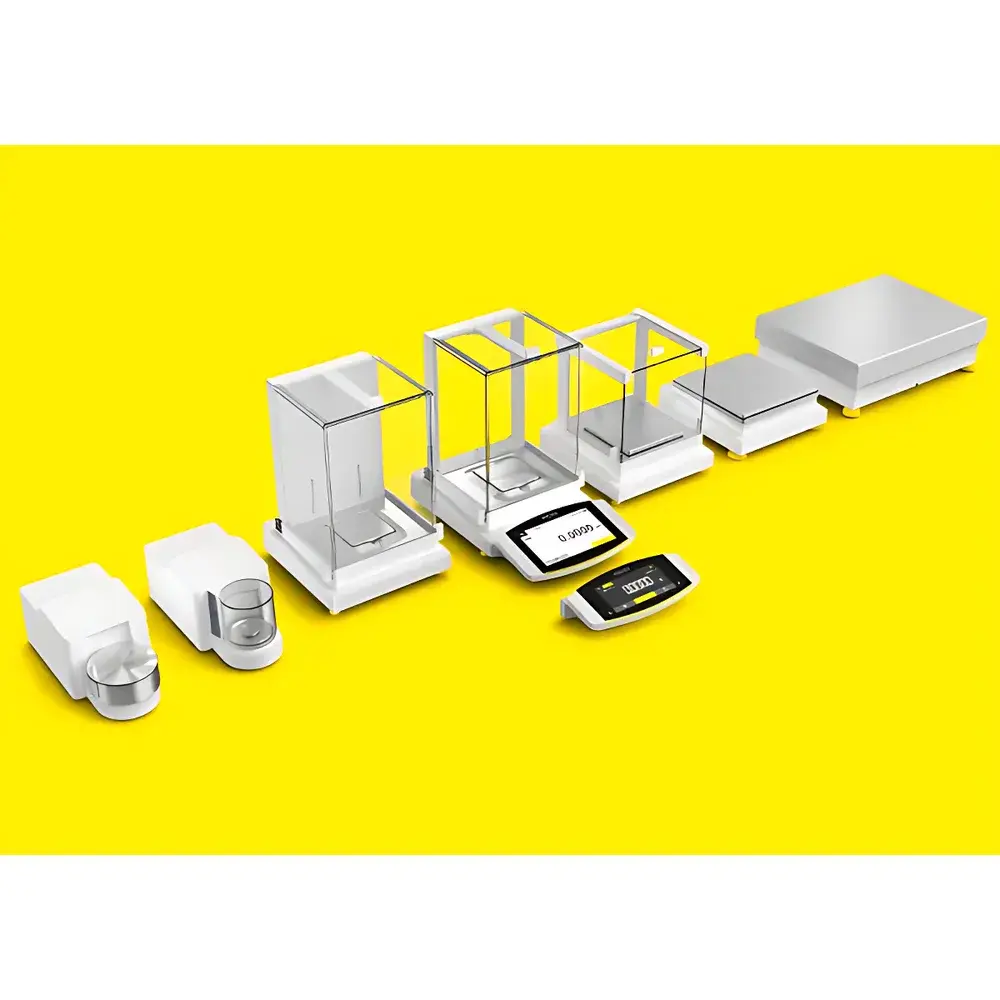

• Modular architecture: Independent selection and replacement of weighing cell, draft shield (including motorized, gesture-sensing variants), display unit, and base module—supporting capacities from 200 g to 70 kg via interchangeable load cell assemblies.
• isoCAL® fully automatic internal calibration and adjustment: Temperature- and time-triggered recalibration ensures continuous traceability without manual intervention; compliant with ISO 9001 and GLP audit requirements.
• Integrated climate sensor: Monitors ambient temperature, relative humidity, and atmospheric pressure in real time—feeding data into dynamic uncertainty calculation per EURAMET cg-18 guidelines.
• Active electrostatic compensation: Built-in ionizer automatically detects and neutralizes surface charge on samples and containers, eliminating drift during low-mass (<1 mg) measurements.
• Auto-leveling system: Motor-driven leveling feet achieve ±0.1° tilt correction in under 15 seconds—eliminating operator dependency and reducing setup variability.
• Status Center dashboard: Centralized visual interface displaying real-time instrument health, calibration status, environmental alerts, and pending user actions—configured per role-based access control.

Sample Compatibility & Compliance

The Cubis II accommodates diverse sample formats—including open vessels, sealed vials, magnetic stir bars, and volatile solvents—via configurable draft shield geometries (e.g., full-height, side-access, or low-profile variants). Its weighing chamber design minimizes air turbulence while permitting ergonomic sample placement. From a regulatory perspective, the system meets critical GxP requirements: full ALCOA+ adherence (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available), electronic signature enforcement per FDA 21 CFR Part 11, and granular audit trail generation (user, timestamp, action, before/after values, IP address). All firmware and software updates are version-controlled and documented per ICH Q5A and Annex 11 expectations. System qualification documentation (DQ/IQ/OQ/PQ) templates are provided and compatible with GMP-compliant validation frameworks.

Software & Data Management

Embedded Cubis II OS provides native support for SOP-driven workflows—including pipette calibration, density determination, differential weighing, and formulation. No third-party software is required for LIMS/ELN integration: native drivers support ASTM E1382, HL7, and direct SQL database push via ODBC/JDBC. Audit trails are immutable, digitally signed, and exportable in PDF/A-1b or CSV with cryptographic hash verification. User management integrates with enterprise LDAP/Active Directory for centralized authentication and password policy enforcement (minimum length, complexity, expiration, lockout). All data exports include metadata headers confirming instrument ID, firmware revision, calibration certificate ID, and environmental log snippets—ensuring full contextual reproducibility.

Applications

• Pharmaceutical quality control: Quantitative assay of active pharmaceutical ingredients (APIs) at sub-milligram levels per USP and EP 2.1.6.
• Reference material certification: Preparation and verification of certified reference materials (CRMs) requiring ≤0.001 mg repeatability per ISO Guide 35.
• Materials science R&D: Precise powder blending for battery cathode formulations, where 100 µg deviations impact electrochemical performance.
• Environmental testing labs: Gravimetric analysis of PM₂.₅ filters per EPA Method IO-4.2, with automated tare stabilization and humidity compensation.
• Academic metrology: Teaching and validating uncertainty budgets in undergraduate and graduate analytical chemistry curricula.

FAQ

Does the Cubis II require external calibration weights for routine operation?
No—isoCAL® enables fully automatic internal calibration using built-in reference masses; external weights are only required for periodic verification or as part of formal accreditation audits.
Can the Cubis II be integrated into a 21 CFR Part 11–compliant environment without additional middleware?
Yes—the balance natively enforces electronic signatures, role-based permissions, and audit trail retention without add-on modules or vendor-specific gateways.
Is the 0.1 µg readability maintained across the full 200–500 g range?
Readability is specified at nominal capacity (e.g., 500 g); actual minimum detectable mass depends on environmental stability and sample properties—consult Sartorius Application Note AN-2023-04 for uncertainty modeling guidelines.
How does the gesture-sensing draft shield improve workflow efficiency?
It eliminates physical contact during door operation—reducing contamination risk in sterile environments and enabling hands-free access during multi-step gravimetric procedures.
What validation documentation is supplied with the instrument?
Factory-issued IQ/OQ protocols, calibration certificates traceable to PTB/NIST, and electronic signature validation reports are included; PQ templates align with ISO/IEC 17025 and EU GMP Annex 15.
