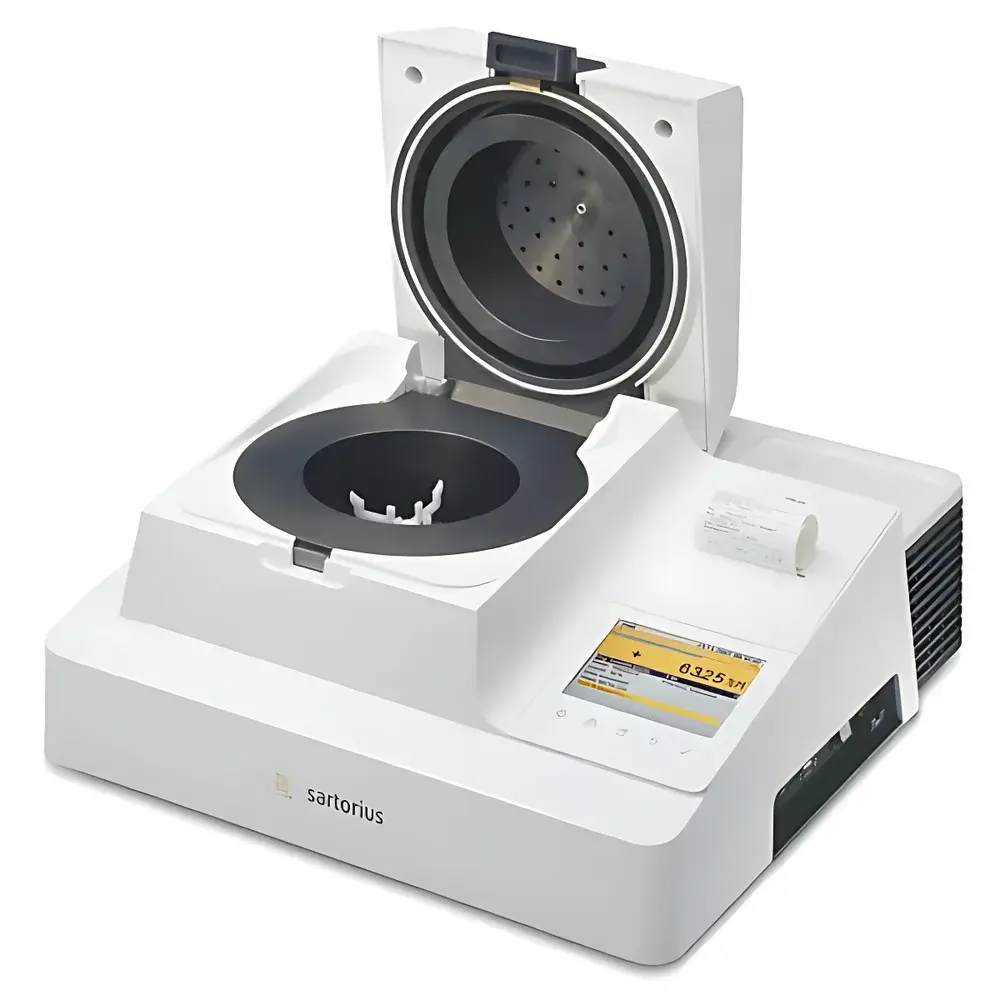

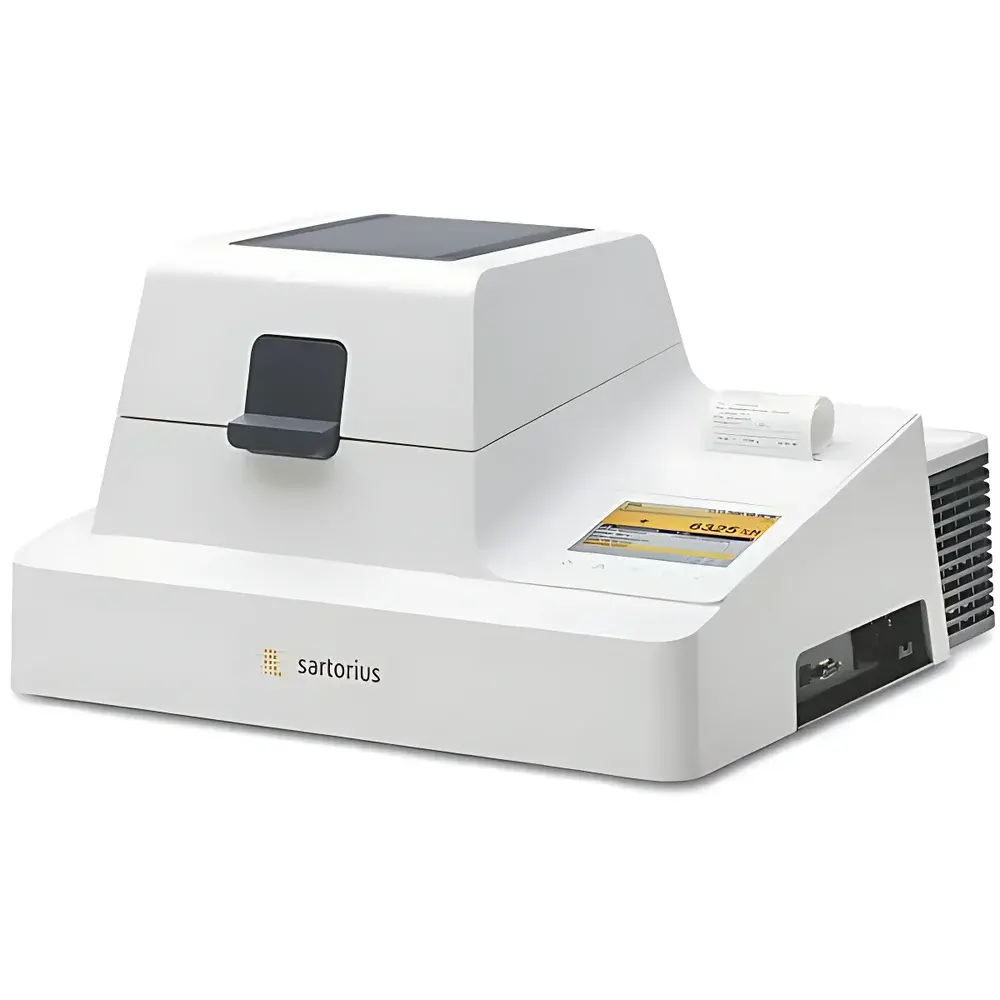

Sartorius LMA200PM Microwave Moisture Analyzer

Overview

The Sartorius LMA200PM Microwave Moisture Analyzer is a discontinued but technically significant instrument engineered for rapid, precise quantification of water content in liquid and semi-solid samples via microwave-assisted thermogravimetry. Unlike conventional halogen or infrared drying systems, the LMA200PM employs a 1000 W magnetron-based microwave source to selectively excite water molecules—enabling volumetric, uniform heating with minimal thermal degradation of heat-sensitive matrices. This principle delivers up to 300× faster drying kinetics compared to standard oven-drying (e.g., ASTM D4017, ISO 712), particularly for high-moisture samples (>8% w/w). The analyzer integrates an analytical balance (70 g capacity, 0.1 mg readability) with real-time mass tracking and an integrated humidity sensor that monitors evolved vapor concentration during drying. This dual-sensor architecture provides orthogonal confirmation of endpoint stability—enhancing method robustness and reducing operator dependency. Though superseded by the MA160 platform, the LMA200PM remains referenced in legacy validation protocols across food, pharmaceutical, and chemical QC laboratories where microwave-specific drying performance is required.

Key Features

• High-power microwave drying (2–100% adjustable in 1% steps) ensures reproducible, sample-penetrating energy delivery without surface charring.
• Dual-endpoint detection: simultaneous mass-loss monitoring and ambient moisture vapor sensing—minimizing false endpoints from volatile co-evaporation or condensation artifacts.
• GLP-compliant data handling: built-in thermal printer generates audit-ready reports on non-fading paper, including timestamp, operator ID, method name, initial/final mass, moisture %, dry residue, and deviation metrics.
• 320 programmable drying methods support complex multi-stage protocols (e.g., ramped power, hold segments, conditional triggers) for heterogeneous or thermally labile samples.
• Multi-language interface (English, French, German, Italian, Spanish) with five customizable function keys accelerates routine operation in multinational facilities.
• RS-232 and Ethernet interfaces enable seamless integration into LIMS environments and support remote method deployment, data archiving, and electronic signature workflows compliant with FDA 21 CFR Part 11 requirements.

Sample Compatibility & Compliance

The LMA200PM is validated for use with liquids, suspensions, pastes, gels, and emulsions—particularly those exhibiting high water activity (8–100% w/w) and low thermal stability. Its 90 mm glass fiber sample pad provides inert, non-reactive support while permitting efficient vapor escape. Method development aligns with established regulatory frameworks: moisture results are traceable to NIST-traceable mass standards; drying protocols satisfy USP , AOAC 952.07, and ISO 15512 for polymer and food matrices. Instrument qualification includes factory-performed balance calibration (ISO/IEC 17025-accredited), microwave output verification, and humidity sensor linearity testing. Full IQ/OQ documentation packages were available at time of manufacture for GMP-regulated environments.

Software & Data Management

Data integrity is enforced through hierarchical user access control (administrator, supervisor, operator), automatic audit trail logging (all parameter changes, print events, method executions), and tamper-evident report generation. Raw mass vs. time datasets are exportable via RS-232 or Ethernet in CSV format for secondary statistical analysis (e.g., ANOVA, trend monitoring per ISO 10012). The onboard firmware supports automated pass/fail evaluation against user-defined specification limits (e.g., “moisture ≤ 12.5 ± 0.3%”), triggering visual alerts and optional printer output. All stored methods include metadata fields for revision history, responsible analyst, and associated SOP reference numbers—facilitating alignment with ISO/IEC 17025 clause 7.2.2 and EU Annex 11 computerized system validation expectations.

Applications

• Food & Beverage: Rapid moisture profiling of dairy concentrates, fruit purees, sauces, and infant formula—reducing batch release time versus AOAC official methods.
• Pharmaceuticals: Quantifying residual solvent and hydrate water in active pharmaceutical ingredients (APIs) and excipients prior to lyophilization or tableting.
• Chemicals & Polymers: Monitoring water content in silicone emulsions, acrylic dispersions, and polyol prepolymers where excess moisture compromises catalytic activity or shelf life.
• Environmental Testing: Determining free water in sludge, biosolids, and contaminated soils per EPA Method 9060A adaptations.
• Research & Development: Screening formulation stability under accelerated humidity cycling using repeatable, low-thermal-stress drying profiles.

FAQ

Is the LMA200PM still supported by Sartorius?
Sartorius discontinued the LMA200PM in favor of the MA160 platform; however, technical documentation, spare parts (e.g., magnetron assemblies, humidity sensors, glass fiber pads), and calibration services remain available through authorized service centers until 2027.
Can the LMA200PM comply with 21 CFR Part 11?
Yes—the instrument’s firmware and companion PC software (when used with Sartorius LabX) support electronic signatures, audit trails, and role-based access control required for regulated environments.
What is the typical measurement time for a 10 g milk powder sample?
Approximately 4–7 minutes under optimized microwave power ramping (e.g., 60% → 85% → 100%), significantly shorter than the 60+ minutes required for forced-air oven drying per ISO 8587.
Does the humidity sensor require periodic recalibration?
The integrated capacitive humidity sensor is factory-calibrated and drift-compensated algorithmically; annual verification against NIST-traceable humidity standards is recommended per ISO/IEC 17025.
How is method transfer validated between LMA200PM and MA160?
Sartorius provides cross-platform equivalence protocols—including paired-sample testing, bias assessment per ISO 5725-2, and uncertainty budgeting—to demonstrate metrological equivalency for legacy method migration.
