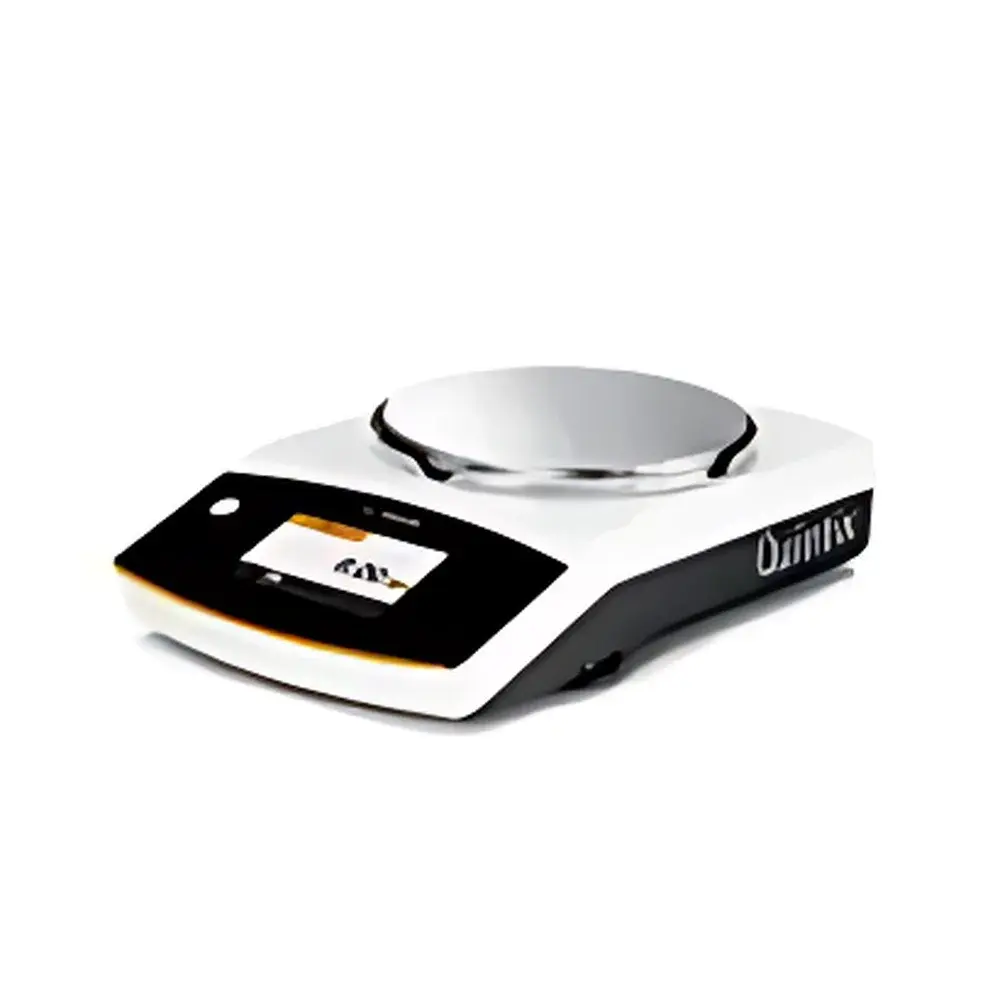

Sartorius Quintix1102-1CN Precision Balance

Overview

The Sartorius Quintix1102-1CN is a high-performance precision balance engineered for routine laboratory weighing tasks requiring reliable 10 mg readability and robust metrological integrity. Designed and manufactured in Germany, it operates on electromagnetic force compensation (EMFC) principle—ensuring high reproducibility, minimal drift, and long-term stability across diverse environmental conditions. With a maximum capacity of 1100 g and optimized mechanical architecture—including an integrated draft shield mount, vibration-damped base, and temperature-compensated load cell—the Quintix1102-1CN delivers consistent performance in standard lab environments without the need for external enclosures. Its compliance with international metrological standards—including ISO/IEC 17025 traceability pathways and China’s CMC (Measurement Certification) approval—makes it suitable for regulated workflows in pharmaceutical QC, academic research, and industrial quality assurance.

Key Features

• isoCAL™ fully automatic internal calibration and adjustment—activated manually or scheduled at user-defined intervals to maintain accuracy across ambient temperature fluctuations.
• Full-color 4.3-inch capacitive touchscreen interface with intuitive icon-based navigation—enabling operation without reference to printed manuals.
• GLP/GMP-compliant direct printing via optional Sartorius YDP30 or YDP40 printers; all printouts include date/time stamp, operator ID (if configured), balance ID, calibration status, and uncertainty metadata.
• Integrated PC connectivity via mini-USB—supports seamless data export to Excel, LIMS, or ELN systems using Sartorius DataControl or third-party software compliant with USB HID class protocols.
• Ergonomic design with front-access leveling feet, removable stainless-steel pan (Ø180 mm), and chemically resistant housing compatible with acetone-based cleaning agents.
• Built-in application suite: density determination, percentage weighing, checkweighing, piece counting, peak hold, statistical analysis, formulation, and unit conversion across 18 measurement units (g, ct, oz, lb, dwt, mg, etc.).

Sample Compatibility & Compliance

The Quintix1102-1CN supports solid, granular, and powdered samples within its 1100 g capacity range. Its open-top design accommodates containers up to 150 mm in height and permits easy integration with volumetric flasks, beakers, and sample boats. While not equipped with a built-in draft shield, the balance is compatible with optional Sartorius anti-vibration tables and external acrylic enclosures for low-mass (<100 mg) or hygroscopic applications. Regulatory alignment includes support for 21 CFR Part 11 audit trails when paired with Sartorius LabX software (sold separately), full traceability per ISO 17025 requirements, and documented calibration history storage accessible via USB export. The device meets CE, RoHS, and WEEE directives and carries CMC certification for use in accredited Chinese laboratories.

Software & Data Management

Data capture and reporting are streamlined through native USB-HID functionality—allowing real-time transmission to Windows-based applications without driver installation. For advanced workflow automation, Sartorius LabX software (optional) provides centralized instrument management, electronic signature support, customizable report templates, and full compliance with FDA 21 CFR Part 11 and EU Annex 11. Local data logging includes calibration events, error logs, stabilization timestamps, and operator actions—all retained onboard for ≥1000 entries. Export formats include CSV, PDF, and XML, with configurable field mapping for LIMS integration. All printed outputs adhere to GLP formatting standards: mandatory inclusion of balance ID, calibration due date, environmental conditions (if external sensor connected), and unique record identifiers.

Applications

This balance serves as a core metrology tool across multiple domains: raw material verification and batch release testing in pharmaceutical manufacturing; formulation development and stability studies in R&D labs; stoichiometric reagent dispensing in synthetic chemistry; educational demonstrations of mass conservation and uncertainty propagation; QC checks in automotive component production; and precious metal valuation (e.g., gold, platinum) where certified repeatability ≤10 mg is mandated. Its fast stabilization time (≤1.5 s) and resistance to air currents make it especially effective for high-throughput environments such as contract testing laboratories and university teaching labs handling multi-user workloads.

FAQ

Does the Quintix1102-1CN include a built-in draft shield?
No—it features an open weighing chamber optimized for speed and accessibility. Optional external acrylic shields or laminar flow hoods may be used for microgram-level work.
Is isoCAL calibration traceable to national standards?
Yes—internal calibration weights are factory-certified and traceable to PTB (Physikalisch-Technische Bundesanstalt) standards; calibration certificates include uncertainty budgets per ISO/IEC 17025.
Can the balance store user profiles or enforce password protection?
Not natively—the Quintix1102-1CN does not support multi-user authentication or role-based access control. These capabilities require LabX software deployment.
What is the minimum sample weight recommended for reliable measurement?
Per USP and EUR Pharm 2.1.6 guidelines, the minimum weight is calculated as 2000 × readability = 20 g. Below this threshold, measurement uncertainty exceeds acceptable limits for quantitative analysis.
Is the balance compatible with networked laboratory infrastructure?
Yes—via USB-to-Ethernet adapters or LabX gateway modules, enabling remote monitoring, firmware updates, and centralized calibration scheduling across enterprise deployments.
