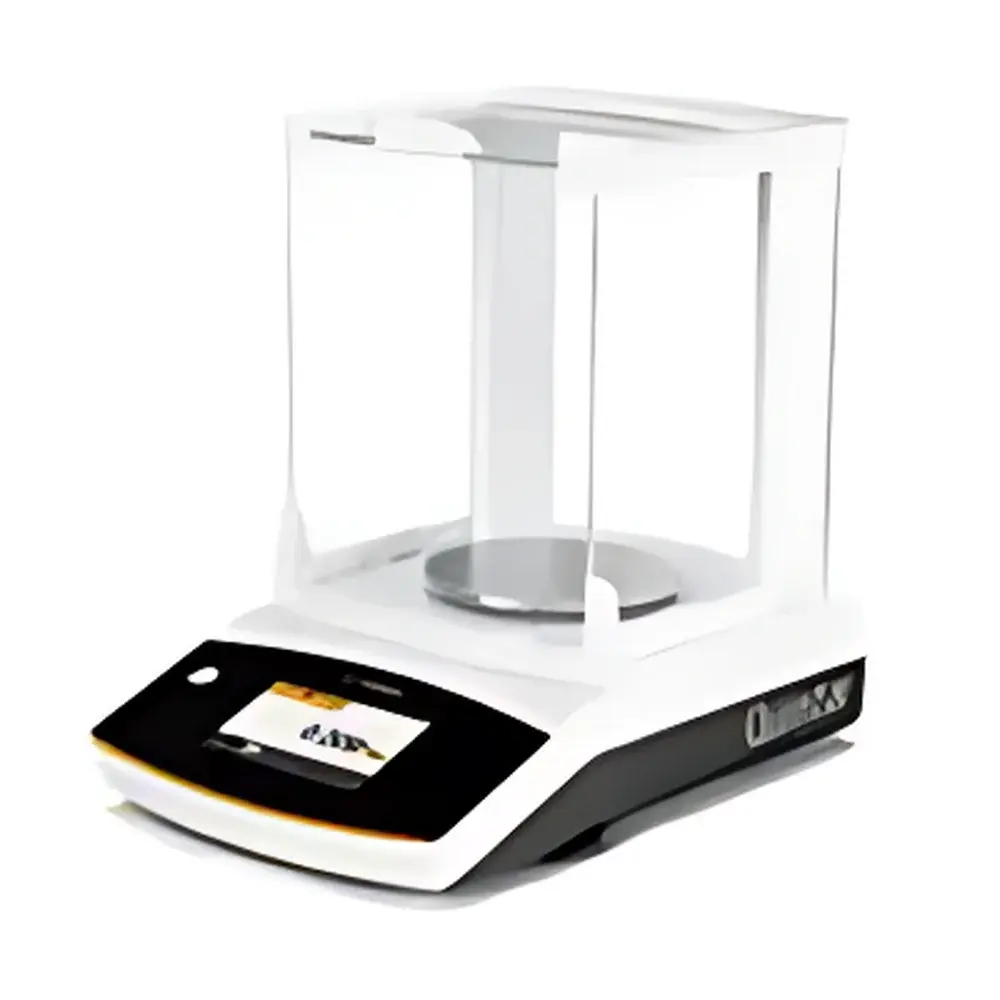

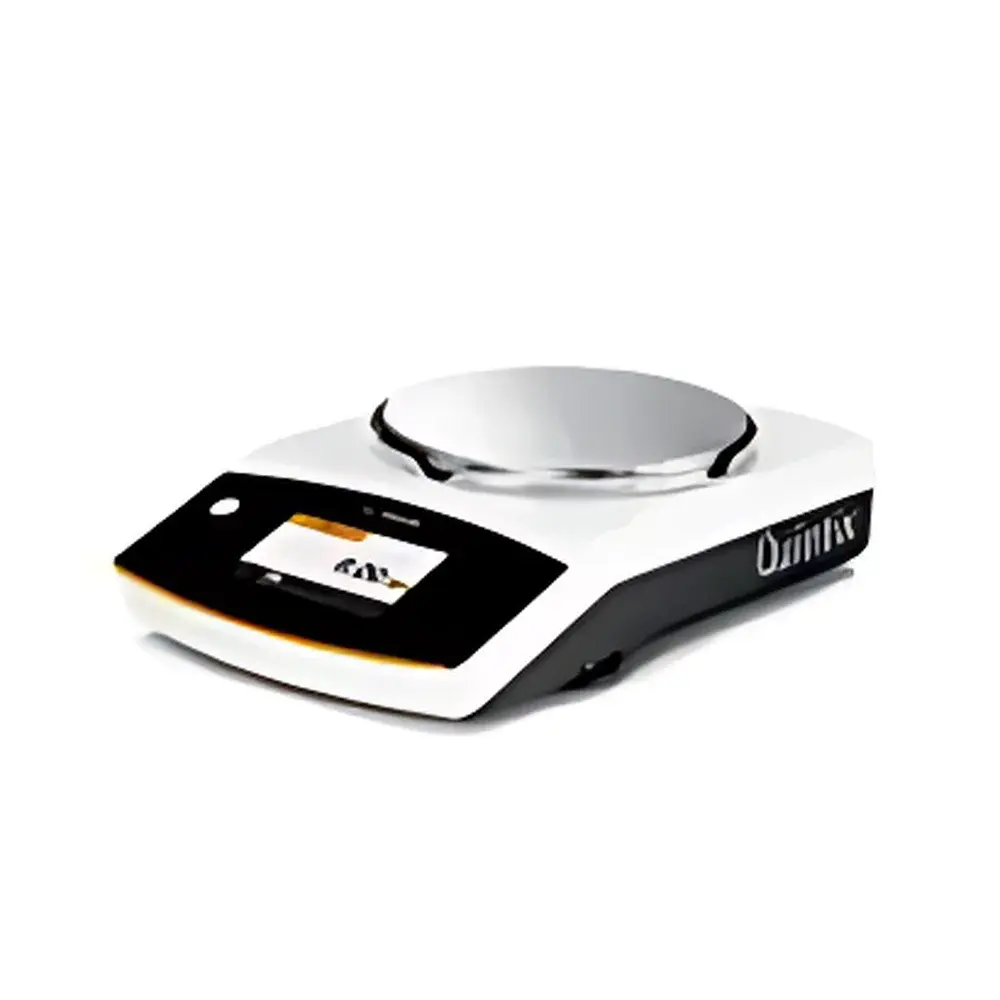

Sartorius Quintix5102-1CN Precision Balance

Overview

The Sartorius Quintix5102-1CN is a high-performance precision balance engineered for routine laboratory weighing tasks requiring robust repeatability, regulatory compliance, and operational efficiency. Designed and manufactured in Germany, it operates on electromagnetic force compensation (EMFC) principle — the industry-standard method for analytical and precision balances — delivering stable, drift-free measurements under variable environmental conditions. With a maximum capacity of 5100 g and readability of 10 mg, the Quintix5102-1CN bridges the gap between analytical and top-loading balances, making it suitable for applications ranging from formulation and quality control to education and production line verification. Its compact footprint (216 × 360 × 95 mm) and lightweight construction (~5.2 kg) facilitate integration into constrained benchtop spaces without compromising mechanical stability or thermal inertia.

Key Features

• isoCAL fully automatic internal calibration and adjustment — activated manually or scheduled, ensuring continuous traceability and minimizing operator-induced error.
• High-resolution color touchscreen interface with intuitive icon-based navigation — no manual required for routine operations including weighing, density determination, percentage weighing, checkweighing, peak hold, counting, and statistical analysis.
• Direct data transfer via miniUSB to Windows-based applications (e.g., Excel, LIMS, ELN) without proprietary software — supports drag-and-drop export and real-time streaming.
• GLP/GMP-compliant reporting: built-in printer driver enables one-touch generation of audit-ready records including date/time stamp, operator ID (via optional user management module), balance ID, calibration history, and net/gross/tare values — all formatted per 21 CFR Part 11 readiness guidelines.
• Chemically resistant housing — surface compatible with acetone and common lab solvents, supporting rigorous cleaning protocols in regulated environments.
• Kensington lock slot for physical security in shared or open-lab settings.
• Dust cover included as standard — protects the weighing pan and mechanism during non-use and meets ISO 17025 environmental control recommendations.

Sample Compatibility & Compliance

The Quintix5102-1CN accommodates a broad range of sample types and containers, including beakers, weighing boats, vials, and crucibles, thanks to its Ø180 mm stainless steel pan and optimized draft shield geometry (optional accessory). It complies with international metrological requirements under OIML R 76 and meets China’s CMC certification standards (Certificate No. attached to type approval documentation). For regulated laboratories, the balance supports full audit trails: calibration logs, adjustment events, and weighing records are timestamped and stored internally. All printed outputs include mandatory GLP elements — instrument ID, calibration status, environmental conditions (if external sensor connected), and operator identification — aligning with ISO/IEC 17025 clause 7.7 and FDA guidance on data integrity.

Software & Data Management

No dedicated software installation is required for basic data capture. The balance functions as a HID-compliant USB device, enabling seamless integration with existing laboratory informatics systems. When connected to a Windows PC, it appears as a virtual COM port or keyboard wedge — allowing direct entry into spreadsheets, databases, or custom QA forms. Optional Sartorius LabX Lite software (downloadable) extends functionality with advanced statistics, multi-step SOP execution, electronic signature support, and centralized device monitoring across networked instruments. All firmware updates are delivered via Sartorius’ secure download portal and validated per IEC 62304 software lifecycle requirements.

Applications

This balance serves critical roles across multiple domains: in pharmaceutical QC labs for raw material verification and tablet weight uniformity testing (USP <905>); in academic research for reagent preparation and stoichiometric calculations; in metallurgy and jewelry sectors for karat/gold assay workflows; in chemical manufacturing for batch blending and loss-on-drying protocols; and in government testing facilities where CMC-certified traceability and ISO/IEC 17025 accreditation are mandatory. Its fast stabilization time (≤1 s) and 10 mg repeatability ensure consistent throughput in high-volume environments such as contract testing labs and university teaching labs.

FAQ

Does the Quintix5102-1CN support external temperature or humidity sensors for environmental compensation?
No — this model does not integrate external environmental sensors. However, its isoCAL system compensates for thermal drift autonomously, and internal temperature monitoring triggers recalibration when deviations exceed preset thresholds.
Is user administration (e.g., role-based access, password protection) available on this model?
User management is not embedded in the base firmware of the Quintix5102-1CN. Full operator authentication and privilege controls require LabX software deployment.
Can the balance perform density determination without additional hardware?
Yes — density measurement is supported natively using the built-in application, provided a density kit (e.g., Sartorius YDK01) is connected via the auxiliary port.
What regulatory documentation is supplied with the instrument?
Each unit ships with a Factory Calibration Certificate traceable to national standards (DAkkS or equivalent), CMC certificate (for China market), EU Declaration of Conformity (CE), and ISO 9001-manufactured quality record.
Is the miniUSB interface compatible with macOS or Linux systems?
The miniUSB port supports CDC ACM class communication — native drivers exist for recent macOS and Linux kernels, though official Sartorius validation is limited to Windows 10/11 environments.
